YENUO Undermount Soft Close Drawer Slides Bottom Mounted 9 12 15 18 21 24 Inch Ball Bearing Runners Rails for Cabinets with Face Frame and Frameless,Come with Rear Mounting Brackets 78 Lb Load 6 Pair

Brand: YENUO
  • 【Please Read】Before purchase,It is important to pay attention to the depth of drawers and cabinets. For drawer width: The inside drawer width must equal cabinet opening width minus 44mm(1-3/4") to align and function optimally.Fits for 1/2" and up to 5/8" thickness of drawer side panel; For choosing slides length: Drawer Length: ≥216mm(8.5"); Cabinet Depth Range: ≥258mm(10.16"); please choose 9" slides. For specific parameters, please check the installation drawing on our main photo.
  • 【30 Years service life】The slides is made of 1.5mm thick High - density cold-rolled steel plates with solid steel ball bearings on both sides,which keep your drawers stable and safe even carrying up to 78LB(35kg) heavy weight items; Because of electroplated zinc surface treatment, The anti-rust ability and oxidation resistance of our slides is superior to the others. The slides’ service life could be 30 years at least.
  • 【Soft/Self Closing】It is equipped with the 2nd generation upgraded hydraulic buffer rod that allows the drawer to close slowly automatically without slamming shut. "slowly close & without slam shut"mechanism effectively reduce the risk of bang shutting baby's finger,which make the drawer become safe for your children and create a quiet and safe family environment.

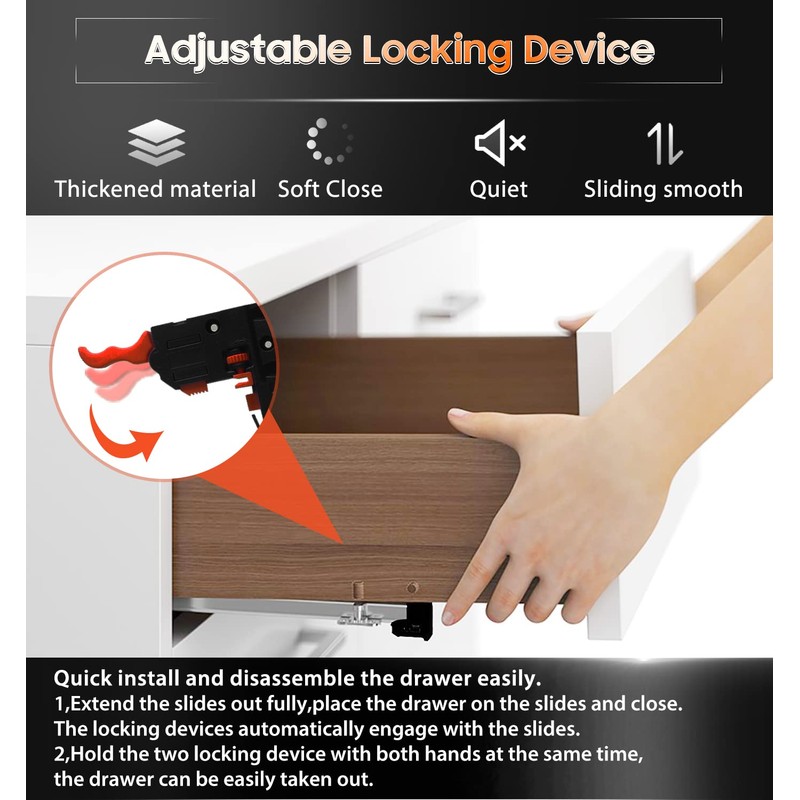

  • 【Easy to Install & 3-Fold full extension 】By the adjustable locking device , free to quick install and disassemble the drawer by your will: hold the two locking device with both hands at the same time,the drawer can be easily taken out; “The 3-fold full extension”, enable the slides to fully extend, which allows for the entire drawer's storage to be accessed easily;
  • 【Widely Application】 It is suitable for both of frame-less cabinets and with face frame cabinets ,the rear mounting brackets are included in package. It can be used on all kinds of home drawers and office furniture:cabinet drawers,bathroom drawers ,wardrobe drawers,keyboard drawers,kitchen drawers, etc.
  • 【After Sales Service】Our motto is “Use quality slides,live quality life",besides the quality, YENUO is also focused on after-sales service,any quality or installing problem please feel free to contact us. Package Includes: 6 pairs of slides, adjustable locking device * 12, Rear mounting brackets *12, mounting screws * 72, installation instructions.
Brand: YENUO
Size: 9 Inch
Color: Silver
Manufacturer: Foshan yenuo Hardware Co., Ltd
Part Number: F8ZV4LX
Material Type: Alloy Steel
Isin: IA45GIU3MBFV

$328.69

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
YENUO Undermount Soft Close Drawer Slides Bottom Mounted 9 12 15 18 21 24 Inch Ball Bearing Runners Rails for Cabinets with Face Frame and Frameless,Come with Rear Mounting Brackets 78 Lb Load 6 Pair

YENUO Undermount Soft Close Drawer Slides Bottom Mounted 9 12 15 18 21 24 Inc...

$328.69

YENUO Hidden Bottom Full Extension Drawer Slides

Installation method: bottom installation
Multiple size options:Hidden Bottom Drawer Slides 9 12 15 18 21 24 inch
Material: high quality cold rolled steel, strong and durable.
Sheet thickness: 1.8*1.5*1.0mm
Weight: 35kg/75 pounds

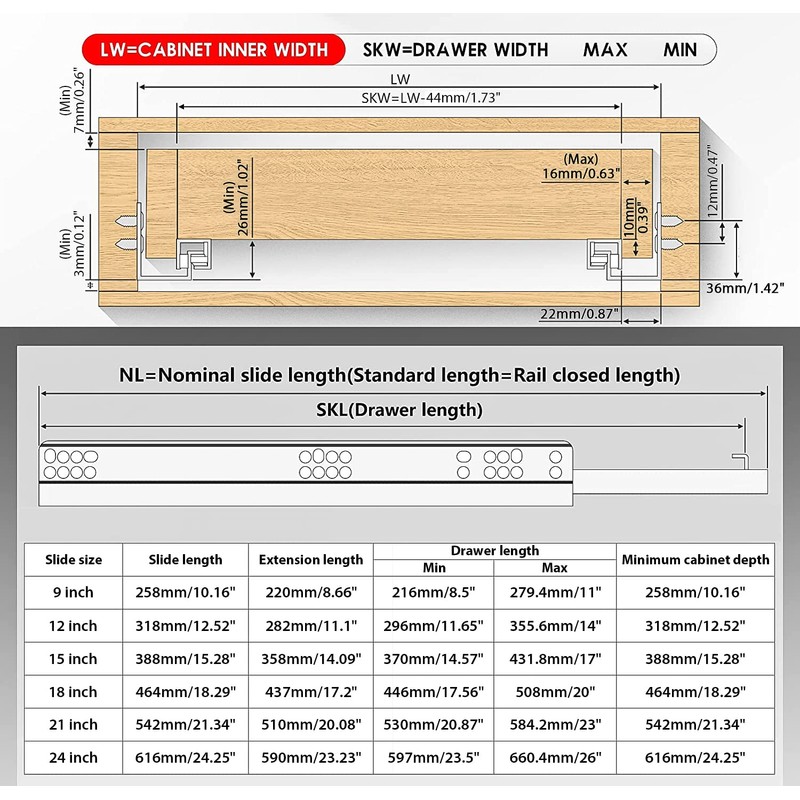

Installation requirements:
1: The drawer bottom plate needs to be slotted, and the thickness of the side plate at the bottom of the drawer: 16-18mm (0.63-0.7in) < br> 2: Drawer unilateral installation clearance: 7mm * 2 (0.3 inches * 2).
3: The clearance at the bottom of the drawer is greater than 28 mm (1.1 inches).
4:1 pair of hidden bottom rails + 12 fixing screws. Hidden bottom installation, you can't see the slide rails after opening the drawer, making the furniture more beautiful.
