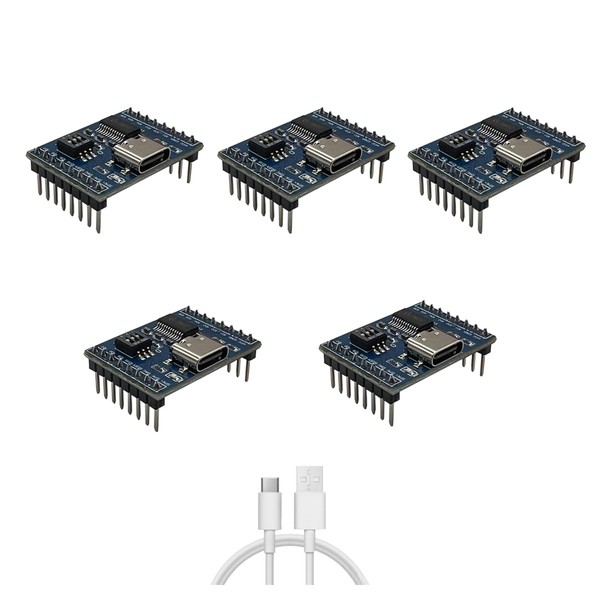

XLW Voice Playback Module,16M Sound Board MP3 Music Player with Speaker,DC3.6-5.2V,USB Downloadable 10 IO Trigger Serial Port Control for Voice Prompts, Broadcast Device Factory, Xmas DIY-5 Pack
XLW Voice Playback Module,16M Sound Board MP3 Music Player with Speaker,DC3.6-5.2V,USB Downloadable 10 IO Trigger Serial Port Control for Voice Prompts, Broadcast Device Factory, Xmas DIY-5 Pack
XLW Voice Playback Module,16M Sound Board MP3 Music Player with Speaker,DC3.6-5.2V,USB Downloadable 10 IO Trigger Serial Port Control for Voice Prompts, Broadcast Device Factory, Xmas DIY-5 Pack
- Voice Module : CH9300-FL is a Intelligent sound module, A specialized application for voice broadcasting products. Integrated IO Segmentation Triggering, Standard MP3 and 8 playback mode selections(Please check the manual carefully for details). With 16M memory. Suitable for audio, broadcasting host, digital music player, digital broadcasting host, analog broadcasting host. Good for shopping malls, schools, gymnasiums, office buildings and other public places broadcasting.
- Hardware parameters :MP3 music player sound board has 16Mbyte memory, can be connected to the computer via TYPE-C to copy audio files. Supports all bitrates 11172-3 and ISO13813-3 layer3 audio decoding, Supports Normal, Jazz, Classic, Pop, Rock and other sound effects. About boot sound, Background music, IO port combination playback setting method and application instructions, Please check the manual. Note: The audio file must be in mp3 format, and the file name must be 5 digits: 00001-00010.
- Voice Module Board Features :The 16 M voice playback module support MP3 hardware decoding. Sampling (8,11.025,12,16,22.05,24,32,44.1,48(KHz)). Multiple control modes (10-way button one-to-one, MP3 mode, combined playback).Combination playback(up to 1023 audio segments). Boot tone broadcast and background music insertion.8 Playback mode selections( can be adapted to different applications).Dedicated BUSY signal output indication.
- MP3 Player Sound Board : Voice audio module can selected through the 3-digit DIP switch on the module, 8 combinations,boot sound, background music, IO port combination playback and other operations can check the instruction manual for details of the operation.
- Audio Playback Module :The PCB playback mode board input voltage DC3.6-5.2 V (Recommended 5V power , IO level 3.3 V).Rated current , standby current 8 MA, operating current <500 MA, 29*22 mm size,3w speaker, -40 degrees~85 degrees operating temperature, 5%~95% humidity. We have factories and hardware engineers specializing in voice sound circuit boards and modules.Various styles, support customization, If you have any questions, please email us, looking forward to cooperating with you!
| Brand: | XLW |
|---|---|
| Size: | 1.1X0.8 in |
| Color: | Blue |
| Manufacturer: | XLW |
| Part Number: | P9GTCFN |
| Isin: | IJNIEUVQC7DW |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
一、Module features
1、Support MP3 hardware decoding.
2、Support sampling (KHz):8,11.025,12,16,22.05,24,32,44.1,48.
3、Multiple control modes: 10-way button one-to-one, MP3 mode, combined playback.
4、Memory: 16 M(Note: The audio file must be in mp3 format, and the file name must be 5 digits: 00001-00010.)
5、Supports: combination playback(the combination mode supports up to 1023 audio segments.), boot tone broadcast, background music insertion, 8 playback mode selections(which can be adapted to different applications.), dedicated BUSY signal output indication.

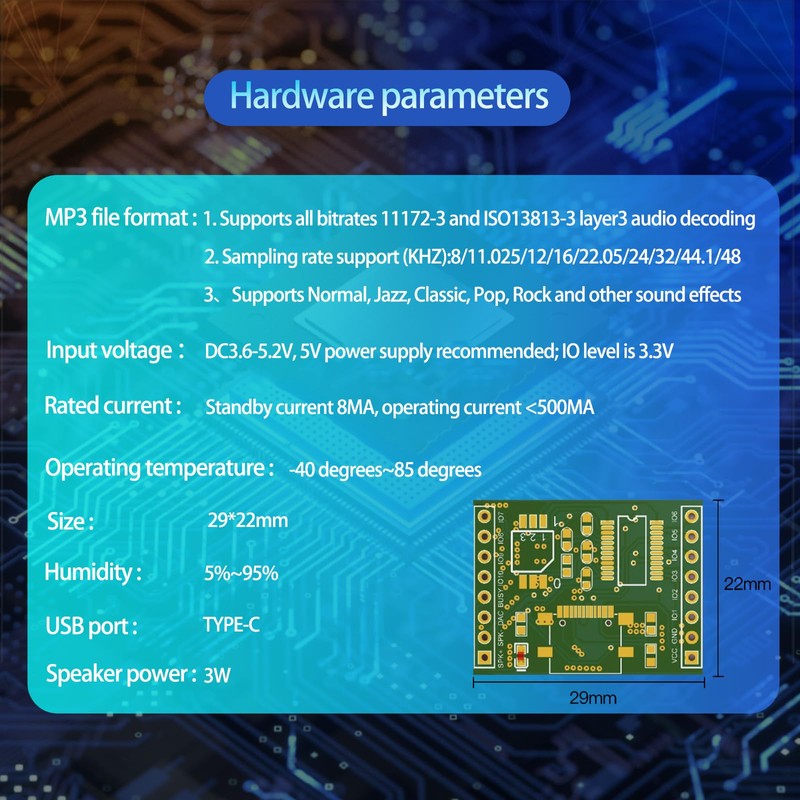

二,Hardware parameters MP3 file format: 1、Supports all bitrates: 11172-3 and ISO13813-3 layer3 audio decoding
2、Sampling rate support (KHZ): 8,11.025,12,16,22.05,24,32,44.1,48
3、Supports:Normal, Jazz, Classic, Pop, Rock and other sound effects
USB port: TYPE-C
Input voltage: DC3.6-5.2 V, 5 V power supply recommended, IO level is 3.3 V
Rated current , Standby current: 8 MA
Operating current: <500 MA
Size: 29*22 mm
Speaker power: 3 W
Operating temperature: -40 degrees~85 degrees
Humidity: 5%~95%
三,Play Mode Description
Voice audio module can selected through the 3-digit DIP switch on the module, 8 combinations, boot sound, background music, IO port combination playback and other operations can check the instruction manual for details of the operation.
