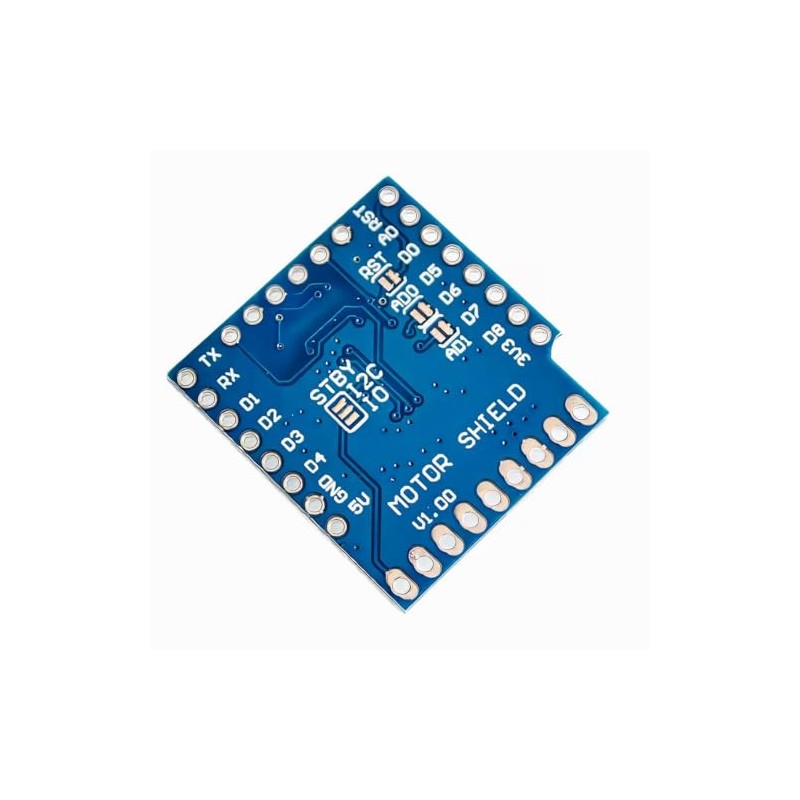

WeMos D1 Mini I2C Dual Motor Driver Shield Driver Module - TB6612FNG
WeMos D1 Mini I2C Dual Motor Driver Shield Driver Module - TB6612FNG
WeMos D1 Mini I2C Dual Motor Driver Shield Driver Module - TB6612FNG
Product Overview
- Dual motor control with the TB6612FNG driver chip, handling up to 3.2A peak current.
- Supports CW, CCW, short brake, and stop modes for flexible motor management.
- I2C interface allows for easy communication with the WeMos D1 Mini.
- Standby mode and reset options enhance power efficiency and control.
- Compact design includes headers for simple and reliable connections.
| Brand: | Phipps Electronics |
|---|---|
| Color: | Blue |
| Manufacturer: | Phipps Electronics |
| Part Number: | PH8JSB8 |
| Isin: | IP9ZG4N7MPLF |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- Dual motor control with the TB6612FNG driver chip, handling up to 3.2A peak current.
- Supports CW, CCW, short brake, and stop modes for flexible motor management.
- I2C interface allows for easy communication with the WeMos D1 Mini.
- Standby mode and reset options enhance power efficiency and control.
- Compact design includes headers for simple and reliable connections.
| Brand: | Phipps Electronics |
|---|---|
| Color: | Blue |
| Manufacturer: | Phipps Electronics |
| Part Number: | PH8JSB8 |
| Isin: | IP9ZG4N7MPLF |

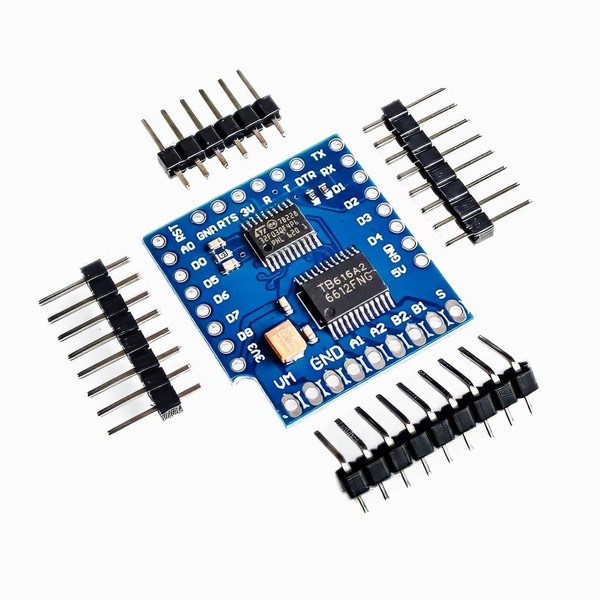

The WeMos D1 Mini I2C Dual Motor Driver Shield, featuring the TB6612FNG motor driver chip, is designed for efficient and versatile motor control. This shield can manage up to two DC motors with a constant current of 1.2A and a peak current of 3.2A, making it ideal for various robotic and DIY projects. It operates via an I2C interface, which simplifies connectivity with the WeMos D1 Mini or Mini Pro development boards. The shield offers four motor control modes: CW (clockwise), CCW (counterclockwise), short brake, and stop, providing flexible options for motor operations.
Engineered for reliability, the shield includes a standby control feature to conserve power when the motors are not in use. Its compact design allows for easy integration and removal, facilitated by the supplied headers. The TB6612FNG chip?s pins are arranged to separate input and output functions, enhancing user convenience. Additionally, the shield supports high-frequency PWM control up to 100kHz, ensuring precise speed and direction management of the connected motors.
Specifications:
- I2C interface for easy control
- Power supply voltage: VM=15V max
- Output current: 1.2A (average) / 3.2A (peak)
- Four motor control modes: CW, CCW, short brake, stop
- Standby control to save power
- PWM control frequency up to 100kHz
- Pin configuration: VM, GND, A1, A2 (Motor A), B1, B2 (Motor B)
- Shield reset mode with options for reset via D1 Mini or DTR pin
Features:
- Controls up to two DC motors independently
- Compact design for easy integration
- Headers included for quick insertion and removal
- Library and example sketches available for simple setup
- High-efficiency MOSFET-based H-bridges
- Flexible motor control through I2C and IO modes
