WayPonDEV LDROBOT D800 Lidar Kit STL-27L 25M DTOF ROS Car SLAM Navigation Scanning Laser Radar Sensor Support ROS1 and ROS2 for Outdoor Use
WayPonDEV LDROBOT D800 Lidar Kit STL-27L 25M DTOF ROS Car SLAM Navigation Scanning Laser Radar Sensor Support ROS1 and ROS2 for Outdoor Use
WayPonDEV LDROBOT D800 Lidar Kit STL-27L 25M DTOF ROS Car SLAM Navigation Scanning Laser Radar Sensor Support ROS1 and ROS2 for Outdoor Use
- (Long Measurement Range) The D800 radar measurement range is 0.03 - 25 m (0.03 - 25 m), and the measurement range can reach 86.4 ft (25 m) and can also detect environmental information
- 【Excellent Performance and High Precision】The D800 radar accurately detects the environmental contours, real-time detection of "road conditions" and dynamically avoid obstacles, effectively reduce the blind spots of navigation and reduce speed when you approach to furniture
- (Small errors) The D800 radar angle resolution is 0.167°, and the effective measurement distance range is within 6.6 ft (2 m), and the average error is within 0.6 inch (15 mm)
- 【Strong Light】D800 radar can effectively withstand ambient light interference, while thoroughly optimizing the optical system and algorithms to meet the requirements of use in strong light environments of 60,000 lux, making it suitable for a variety of indoor and outdoor use
- Ultra Mini: The D800 radar greatly saves the interior space of your robot, reduces the overall size of the machine, improves the robot's passage, and improves user usability
- Stable Performance: The D800 radar uses a coaxial brushless motor with stable performance and a lifetime of up to 10,000 hours
- Laser Safety FDA Classl: The D800 radar uses a low-output infrared laser as a luminous light source to ensure the safety of the human body and pets, and uses a modulation pulse method. It provides a very short amount of time and complies with FDA Classl's human eye safety levels
- Applicable scenarios: D800 radar can be used for household service robots, commercial service robots, special robots, drones, industrial robots, etc
- 【GitHub】https://youyeetoo.com/blog has a strong after-sales service team. For data sheets or any questions regarding this product, please email us. After you buy it, this module is for you. Click on "WayPonDEV-jp" to ask you a question
Brand: | WayPonDEV |
---|---|
Manufacturer: | WayPonDEV |
Part Number: | HX38BXL |
Isin: | IPDKRPL5WDOU |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
System
Measurement range: 0.03-25m test with 80% reflectivity white target
Test on black target with 4% reflectivity
Measurement accuracy: ±0.6 inch (15 mm) @ 0.03 - 2 m, standard 5 mm;
±20mm@2m-8m, standard 15mm;
±30mm@>8m, standard 25mm;
Scan frequency: 6 - 13 Hz
Range: 216,000 Hz
Pitch error: 0.5° to 2°
Yaw Angle Error: -1° to 1°
Angle Resolution: 0.167°
Ambient Light Resistance: 60 KLux
Operating Temperature: -10°C to 50°C
Storage Temperature: -30°C - 70°C
Dustproof and Waterproof: lP5X
Input Voltage: 4.5V - 5.5V
PWM control frequency: 20-50KHz
PWM High Level: 3.0V - 5.0V
PWM Low Level: -0.3V ~ -0.5V
PWM Duty Cycle: 40-100% (40% duty cycle scan at 10Hz)
Starting Current: 540mA
Operating current: 290mA

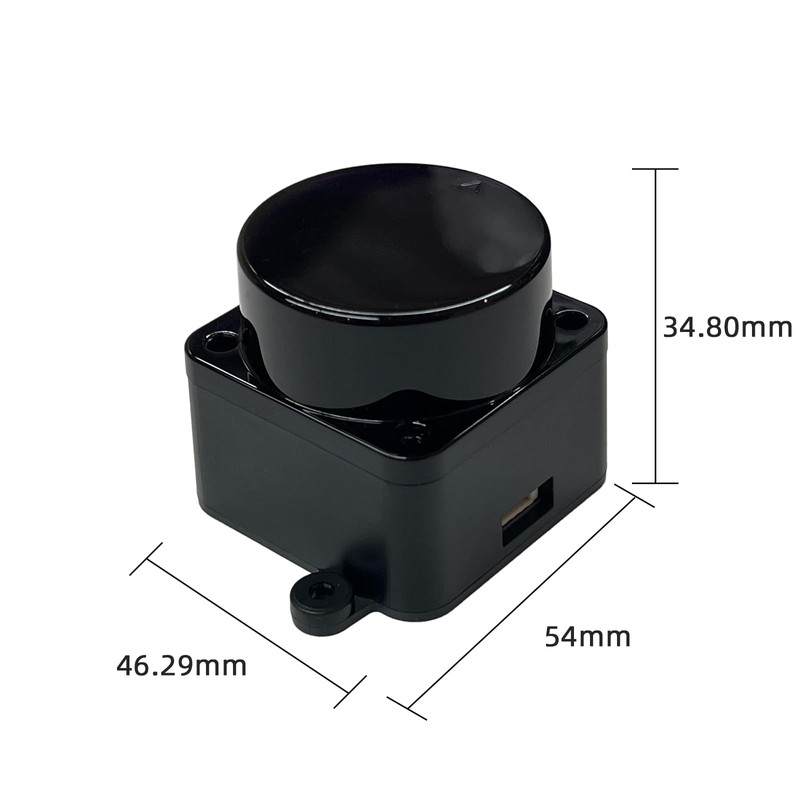

Dimensions: 54x46.29x34.80 mm

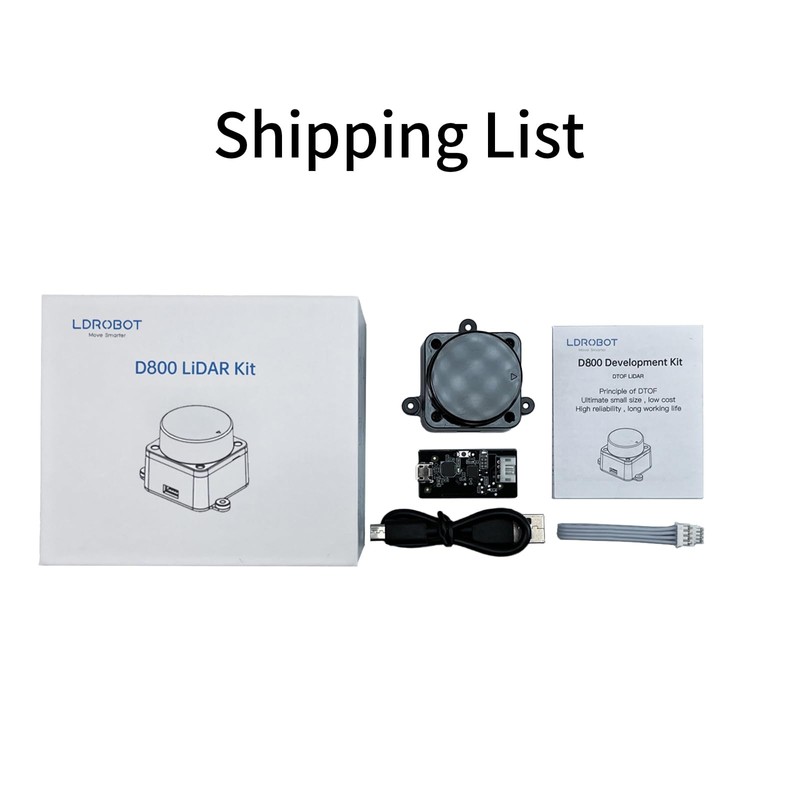

Shipping List
1 x D800
And accessories as shown in the picture
