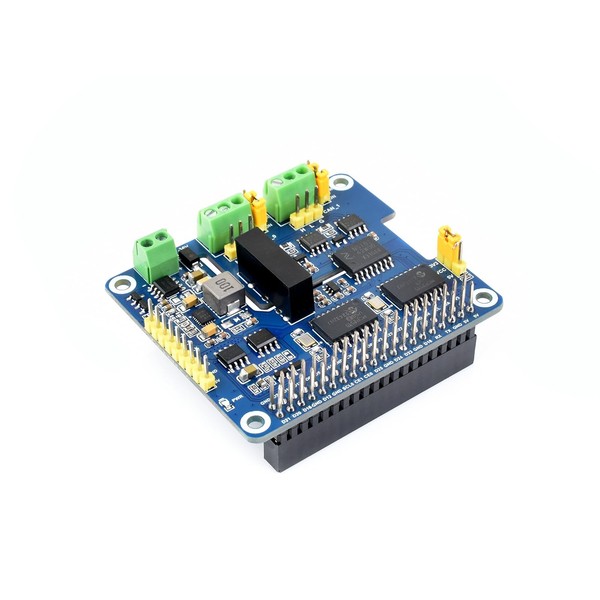

Waveshare 2-Channel Isolated CAN Bus Expansion HAT Compatible with Raspberry Pi 5/4B/3B+/Zero/Zero W/Zero WH/Jetson Nano,2-CH CAN HAT with MCP2515 + SN65HVD230 Dual Chips Solution

Brand: waveshare
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards / Jetson Nano.Comes with online development resources and manual (examples in Python/C)

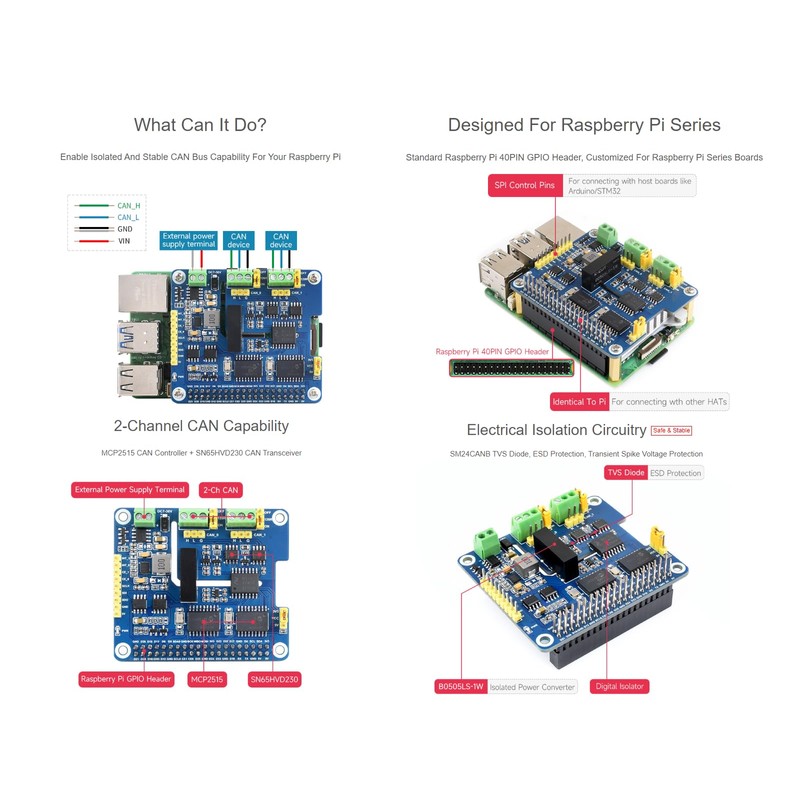

  • Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication.Breakout SPI and I2C control pins, for connecting with other host control boards
  • Onboard unibody power supply isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal.Onboard digital isolator, signal isolation makes the communication more safe and stable, and better anti-interference
  • Onboard external power supply terminal, supports 736V wide voltage power input, supports powering the Pi and the HAT at the same time.Onboard SM24CANB TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
  • Onboard voltage translator, select 3.3V/5V operating voltage by jumper.Onboard 120Ω terminal resistor, configured by jumper
Brand: waveshare
Manufacturer: Waveshare
Part Number: 6B4JPH2
Isin: ISZWULOZNTER

$70.86

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow

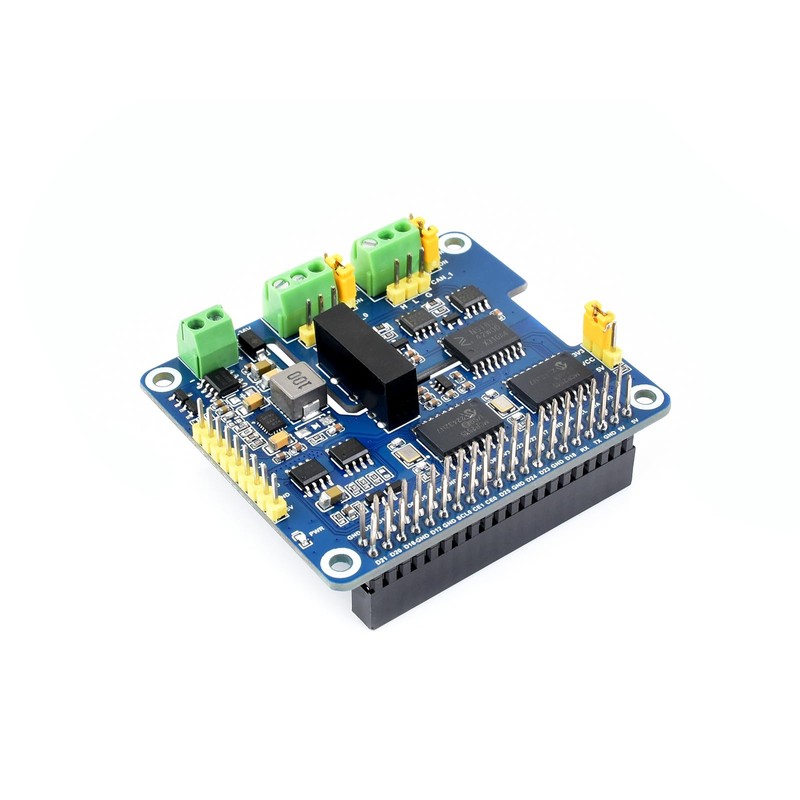

Waveshare 2-Channel Isolated CAN Bus Expansion HAT Compatible with Raspberry Pi 5/4B/3B+/Zero/Zero W/Zero WH/Jetson Nano,2-CH CAN HAT with MCP2515 + SN65HVD230 Dual Chips Solution

Waveshare 2-Channel Isolated CAN Bus Expansion HAT Compatible with Raspberry ...

$70.86

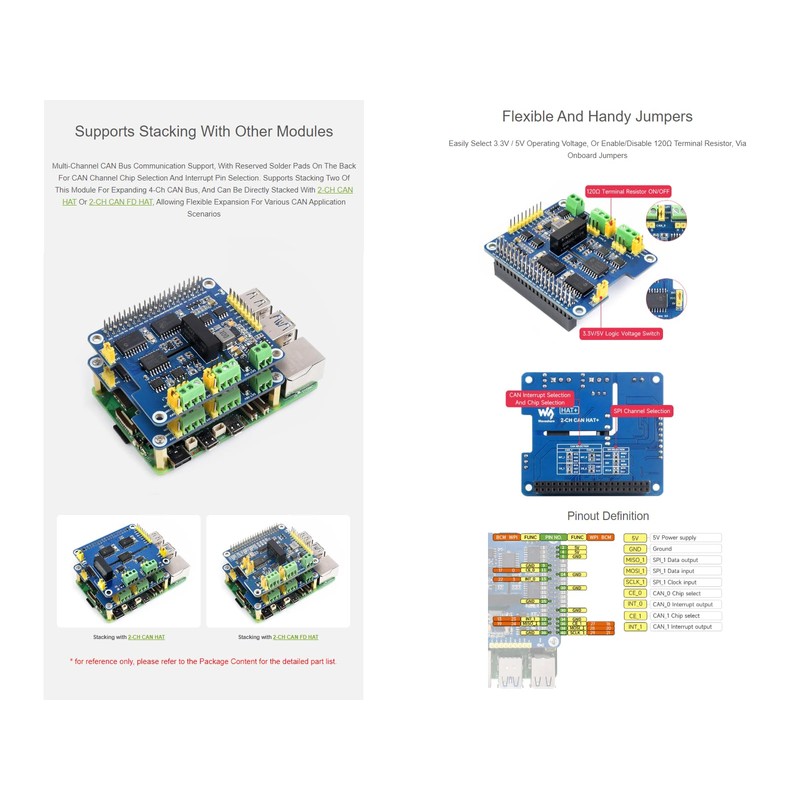

2-Channel Isolated CAN Bus Expansion HAT For Raspberry Pi, Dual Chips Solution, Stackable Design For Expanding Multiple CAN Channels Features At A Glance The 2-CH CAN HAT+ is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi. Supports expanding multiple CAN channels by stacking with the 2-CH CAN HAT or 2-CH CAN FD HAT. Adopts HAT+ standard design, compatible with Raspberry Pi series boards such as Raspberry Pi 5/4/3/Zero. Onboard various protection circuits, including electrical isolation to make communication more safe and reliable. Supports wide range voltage input of 736V, suitable for industrial applications. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards / Jetson Nano Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication Onboard unibody power supply isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal Onboard digital isolator, signal isolation makes the communication more safe and stable, and better anti-interference Onboard external power supply terminal, supports 736V wide voltage power input, supports powering the Pi and the HAT at the same time Onboard SM24CANB TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection Onboard voltage translator, select 3.3V/5V operating voltage by jumper Onboard 120Ω terminal resistor, configured by jumper Breakout SPI and I2C control pins, for connecting with other host control boards Comes with online development resources and manual (examples in Python/C) Parameters Input voltage: 5V, 736V Logic level: 3.3V/5V CAN controller: MCP2515 CAN receiver: SN65HVD230 Dimensions: 65.0x56.5mm Mounting hole diameter: 3.0mm Package Content 2-CH CAN HAT+ x1 Screws pack x1
