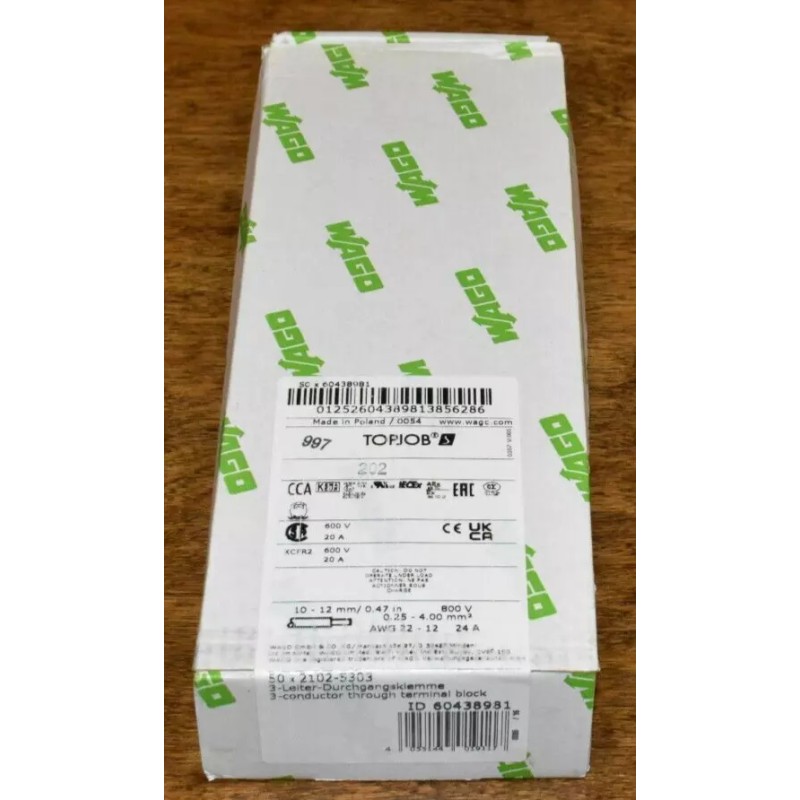

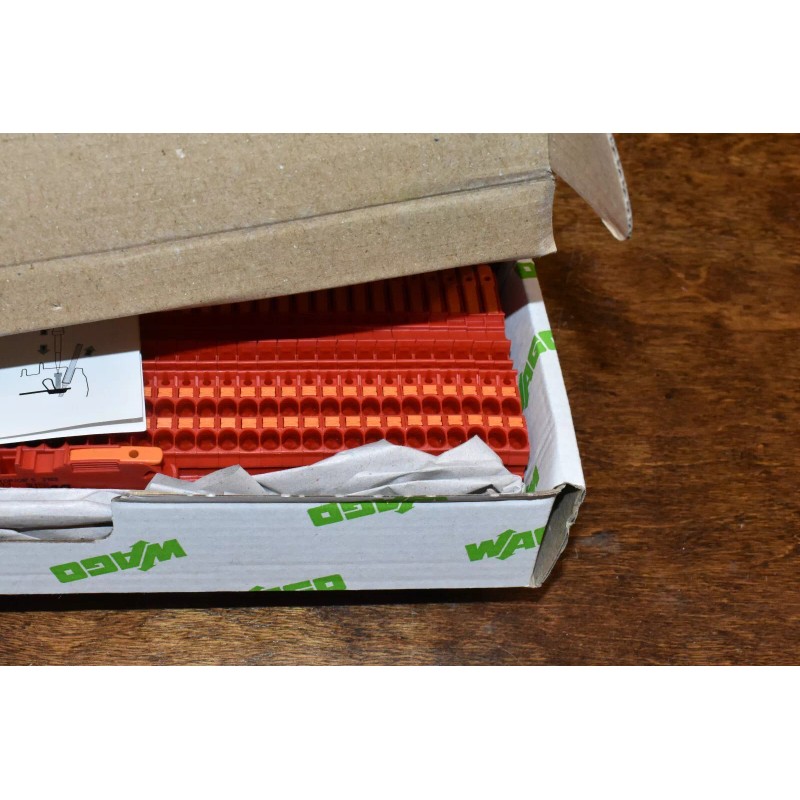

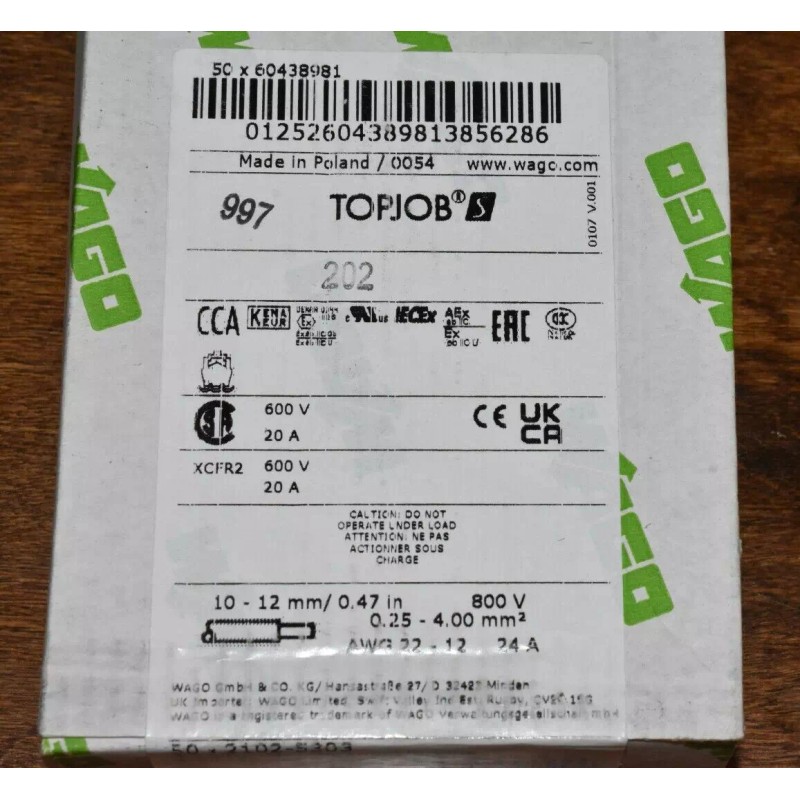

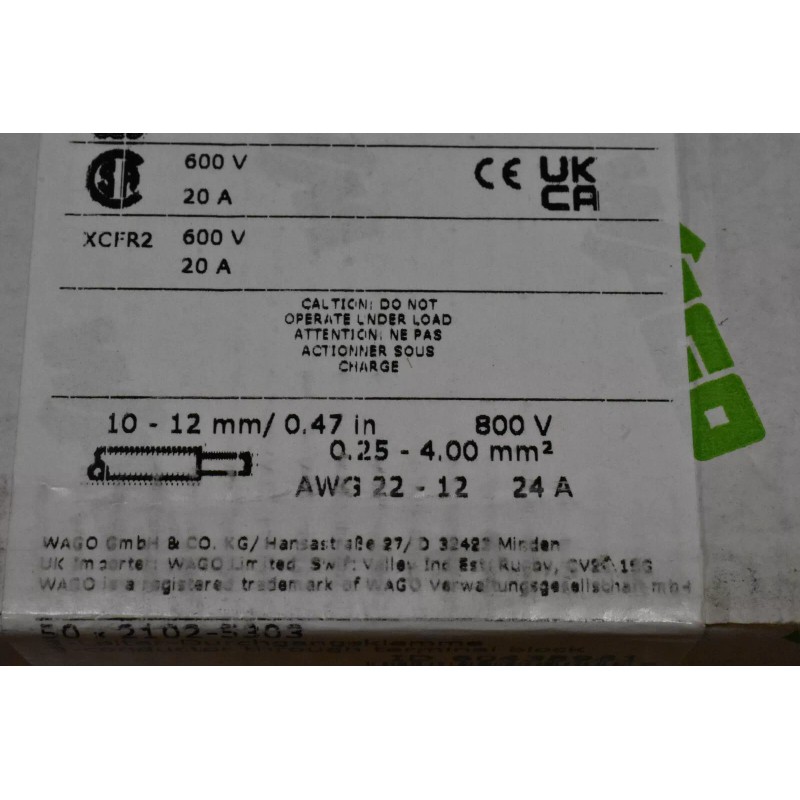

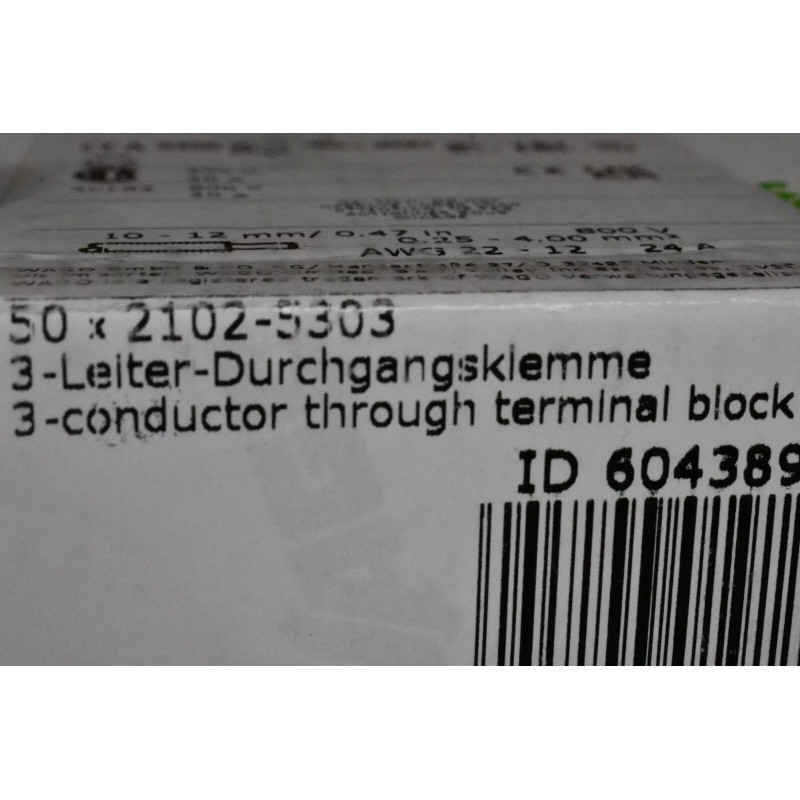

WAGO NIB 50 Wago TopJob S 2102-5303 3 Conductor Feed Through Terminal Blocks 60438981

Brand: WAGO
Brand new in unopened box 50 Wago TopJob S 2102-5303 3-conductor through terminal blocks.
FROM WEBSITE:
Electrical data
IEC Approvals
Ratings per
IEC/EN 60947-7-1
Overvoltage category
III
III
II
Pollution degree
3
2
2
Nominal voltage
800 V
-
-
Rated surge voltage
8 kV
-
-
Rated current
24 A
-
-
Current at conductor cross-section (max.) mm²
30 A
-
-
UL Approvals
Approvals per
UL 1059
Use group
B
C
D
Rated voltage
600 V
600 V
-
Rated current
20 A
20 A
-
CSA Approvals
Approvals per
CSA 22.2 No 158
Use group
B
C
D
Rated voltage
600 V
600 V
-
Rated current
20 A
20 A
-
Ex information
Reference hazardous areasSee “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Ratings perATEX: PTB 18 ATEX 1010 U / IECEx: PTB 18.0001U (Ex eb IIC Gb)
Rated voltage EN (Ex e II)550V
Rated current (Ex e II)20.5A
Rated current (Ex e II) with jumper20A
Power Loss
Power loss, per pole (potential)0.766W
Rated current IN for specified power loss24A
Resistance value for specified, current-dependent power loss0.001Ω
Connection data
Connection points3
Total number of potentials1
Number of levels1
Number of jumper slots2
Connection 1
Connection technologyPush-in CAGE CLAMP®
Actuation typeLever
Connectable conductor materialsCopper
Nominal cross-section2.5 mm²
Solid conductor0.25 … 4 mm² / 22 … 12 AWG
Solid conductor; push-in termination0.75 … 4 mm² / 18 … 12 AWG
Fine-stranded conductor0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination1 … 2.5 mm² / 18 … 14 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length10 … 12 mm / 0.39 … 0.47 inches
Wiring directionFront-entry wiring
Connection 2
Actuation type 2Push-button
Physical data
Width5.2 mm / 0.205 inches
Height72.2 mm / 2.843 inches
Depth from upper-edge of DIN-rail32.9 mm / 1.295 inches
Mechanical Data
Mounting typeDIN-35 rail
Marking levelCenter/side marking
Material data
Note (material data)
Information on material specifications can be found here
Colorred
Material groupI
Insulation materialPolyamide (PA66)
Flammability class per UL94V0
Fire load0.186MJ
Actuator colororange
Weight8.1g

Shipping is free to the continental USA. I will ship worldwide via the ebay global shipping program. Please contact me if you have any questions. Thank you for looking.
Brand: WAGO
Isin: IW2MEKPPPAF3

$113.83

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.
