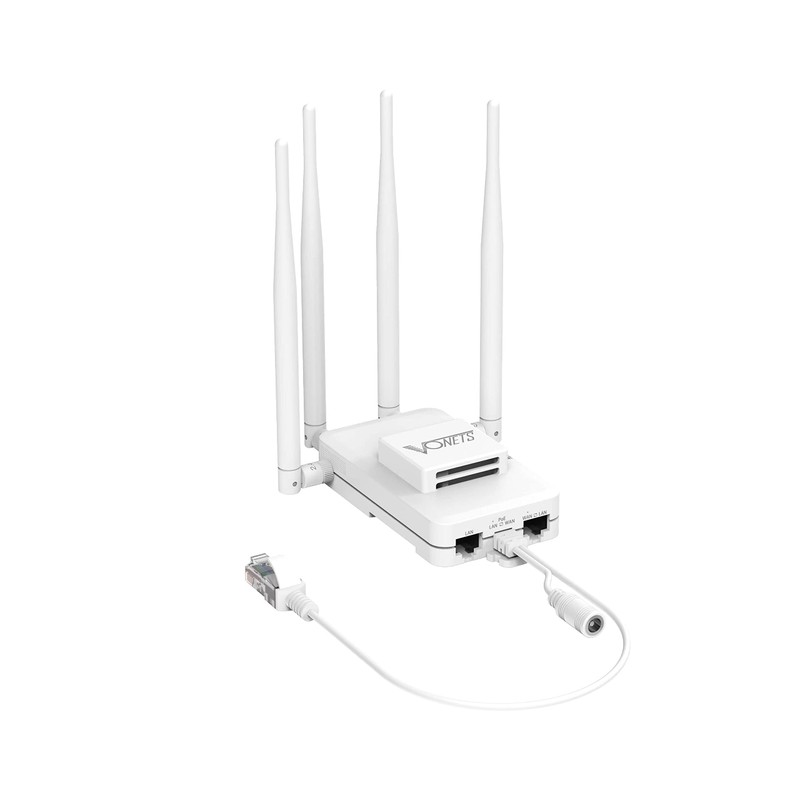

VONETS Gigabit WiFi Router Wireless Bridge Ethernet Repeater/Dual Band 2.4GHz/5GHz RJ45 WiFi Adapter Range Extender 3 Gigabit POE/DC Powered for DVR Robots Industrial IoT Network Devices VAR1200-H
VONETS Gigabit WiFi Router Wireless Bridge Ethernet Repeater/Dual Band 2.4GHz/5GHz RJ45 WiFi Adapter Range Extender 3 Gigabit POE/DC Powered for DVR Robots Industrial IoT Network Devices VAR1200-H
VONETS Gigabit WiFi Router Wireless Bridge Ethernet Repeater/Dual Band 2.4GHz/5GHz RJ45 WiFi Adapter Range Extender 3 Gigabit POE/DC Powered for DVR Robots Industrial IoT Network Devices VAR1200-H

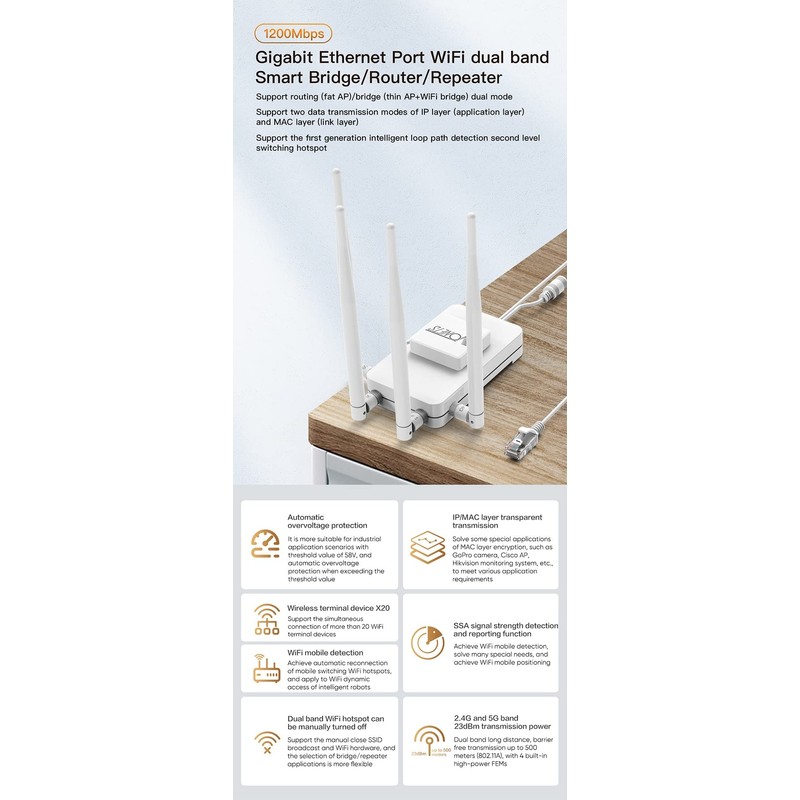

- đ¶ăGigabit WiFi Router/Bridge/RepeaterăIndustrial Gigabit Dual Band 2.4GHz/5GHz WiFi Bridge Wireless Repeater Mini Router/WiFi to Ethernet Adapter/WiFi Bridge with ethernet port, WiFi Hotspot Signal Range Extender cover; can achieve Wireless to Wired, Wired to Wireless function (WiFi to Ethernet or Ethernet to WiFi convert ); 3 Gigabit ports and PoE (output)/DC Powered.

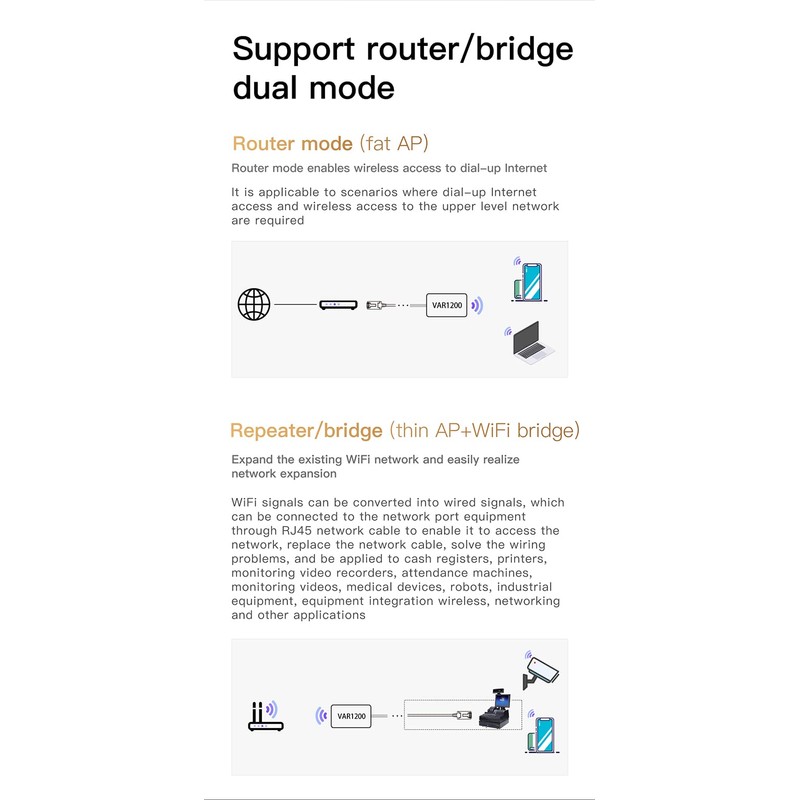

- đ„ăSupport Multiple ApplicationsăWiFi Bridge: it can smart control the device's WiFi mode (IP Layer or MAC Layer Transparent Transmission) and WiFi Repeater (Wireless Signal Repeater): it can extend the distance of WiFi signal coverage, WiFi transfer and WiFi access point (AP); WiFi Router Mode (support WiFi WAN uplink and WAN/LAN exchange);
- đăExpand Network for the WiFi or Wired DevicesăWiFi signals can be converted into Wired Signals, which can be connected to the network port equipment through RJ45 network cable to enable it to access the network, replace the network cable, solve the wiring problems, and be applied to Cash registers, IP Printers, Monitoring Video Recorders, Attendance Machines, Medical Devices, Robots, Industrial PLC Devices, Equipment Integration Wireless, Networking and more Applications.
- đăPoE/DC Power Supply & ParametersăSupport wide voltage DC12V-48V (Typical 12V/3A Applicable for No PoE), 48V/1.2A (Applicable for PoE) power supply, two-level overvoltage and overcurrent protection and reverse connection protection; a DC power cable powered; one 10/100/1000M adaptive Ethernet cable, support PSE output, Two 10/100/1000M adaptive network ports
- â ăIP/MAC Layer Transparent TransmissionăSupport IP layer and MAC layer transparent transmission in two bridge modes, IP layer transparent transmission (factory default), can meet most of the bridge applications; MAC layer transparent transmission, can transparent transmission the MAC layer(link layer) and above of all data, including IP layer data, MAC transparent transmission can solve some special application for MAC layer encryption: such as AP managed by AC, Surveillance System devices.
- đăDevice with fan for fast heat dissipationăMore stable operation,smart automatic start and stop of cooling fan: after 5-10 minutes of normal operation, the fan cooling function will be automatically turned on, and the mini Wireless Bridge/Repeater/Router for smart automatic startup and shutdown of the cooling fan.
Brand: | Vonets |
---|---|
Color: | Gigabit 2.4G+5G Bridge+Repeater+Router 1200Mbps |
Manufacturer: | Shenzhen HouTian Network Communication Technology Co., Ltd. |
Part Number: | R3B4KDM |
Isin: | IN7L5C1ZFCUN |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Features:
1. Support 802.11ac/a/g/b/n WiFi transmission protocol, WiFi transmission rate: 300Mbps(2.4GHz)+900Mbps(5GHz), theoretical value; Transmit power: 2.4G 19dBm/23dBm, 5G 19dBm/21dBm optional
2. Support wide voltage DC12V-48V (Typical 12V/3A Applicable for No PoE), 48V/1.2A (Applicable for PoE) power supply, two-level overvoltage and overcurrent protection and reverse connection protection
3. Built-in 4 high-power FEM, greatly increased coverage;
4. Built-in intelligent automatic start-stop cooling fan; Intelligently automatically turn on the cooling fan, more effective heat dissipation

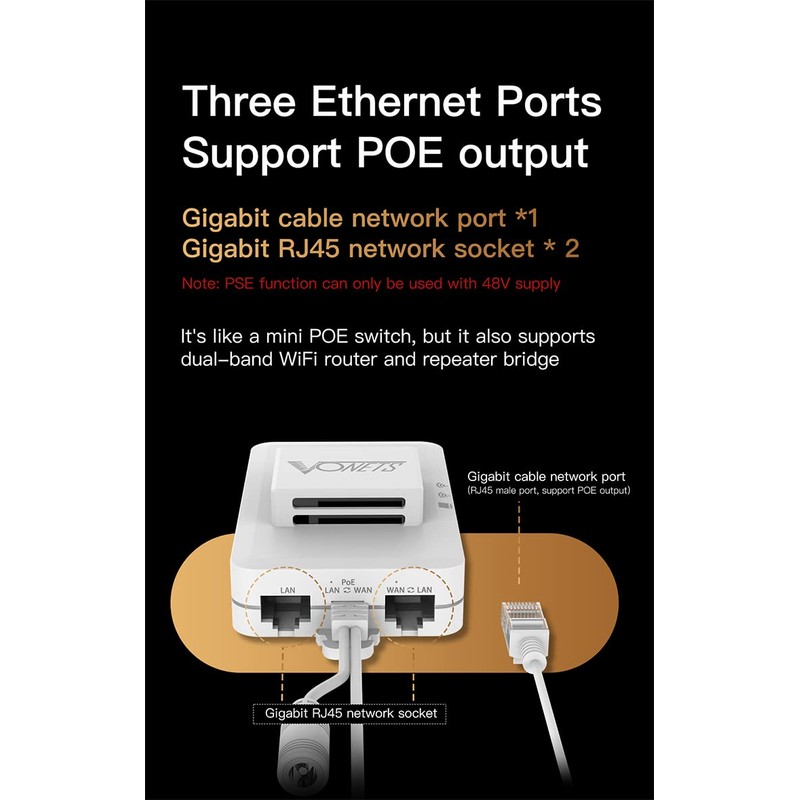

5. Support 3 RJ45 network ports and support POE power supply at the same time;
6. Point-to-point barrier-free maximum transmission distance: 300 meters (802.11a);
7. Working Environment temperature is -20â to 50â
8. Support connecting more than 20pcs WiFi terminal at the same time;
9. Adopt temperature compensated auto frequency control technology, WiFi signal is more stable and not easy to drop;

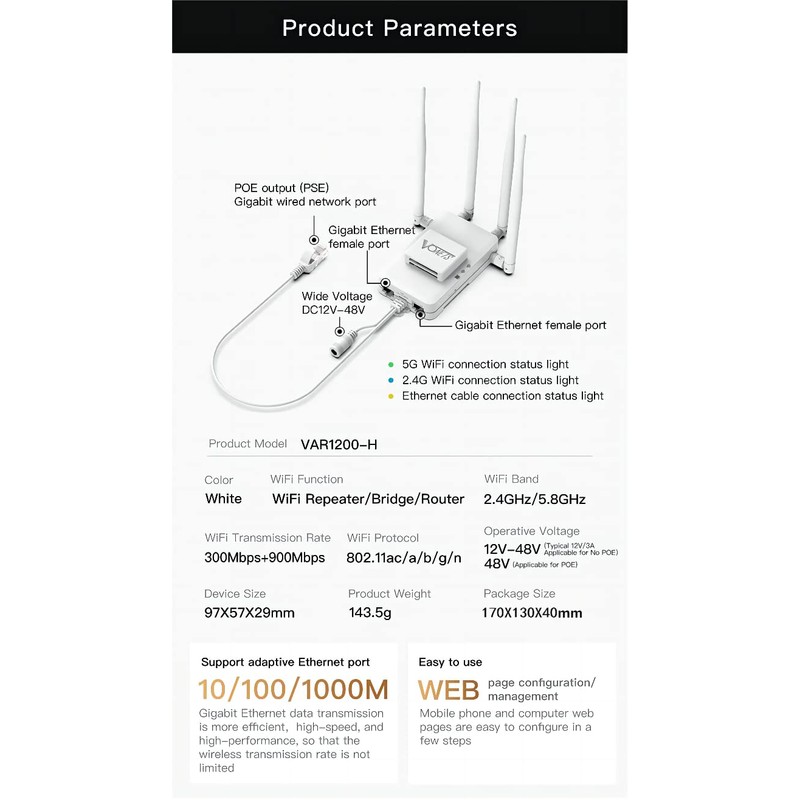

Hardware Specification:
External interface: A DC power cable; A set of 100/1000m adaptive Ethernet cable, Support POE power supply;
Reset button: Long press 5 seconds, then release, the device will automatically restore the factory (During operation, the product can not be powered down, otherwise it may cause damage to the product.)
LED Status instruction:
Ethernet port status light (Yellow);
2.4G WiFi connection status light (Blue);
5G WiFi connection status light (Green);
Packages:
1* VAR1200-H
2*2.4GHz external antennas
2*5GHz external antennas
1* Industrial DC connector
1* Fixing kit
1* User manual
1* Retail box
