Video Wall Controller 2x3 1080P HDMI Video Wall Controller 2x2 2×1 1x2 3x2 1×6 6×1 5×1 4×1 14 Splicing Modes 1HDMI/1DVI in 6HDMI Out TV Wall Splicing Processor Support IR RS232 3.5mm Audio Out etc
Video Wall Controller 2x3 1080P HDMI Video Wall Controller 2x2 2×1 1x2 3x2 1×6 6×1 5×1 4×1 14 Splicing Modes 1HDMI/1DVI in 6HDMI Out TV Wall Splicing Processor Support IR RS232 3.5mm Audio Out etc
Video Wall Controller 2x3 1080P HDMI Video Wall Controller 2x2 2×1 1x2 3x2 1×6 6×1 5×1 4×1 14 Splicing Modes 1HDMI/1DVI in 6HDMI Out TV Wall Splicing Processor Support IR RS232 3.5mm Audio Out etc

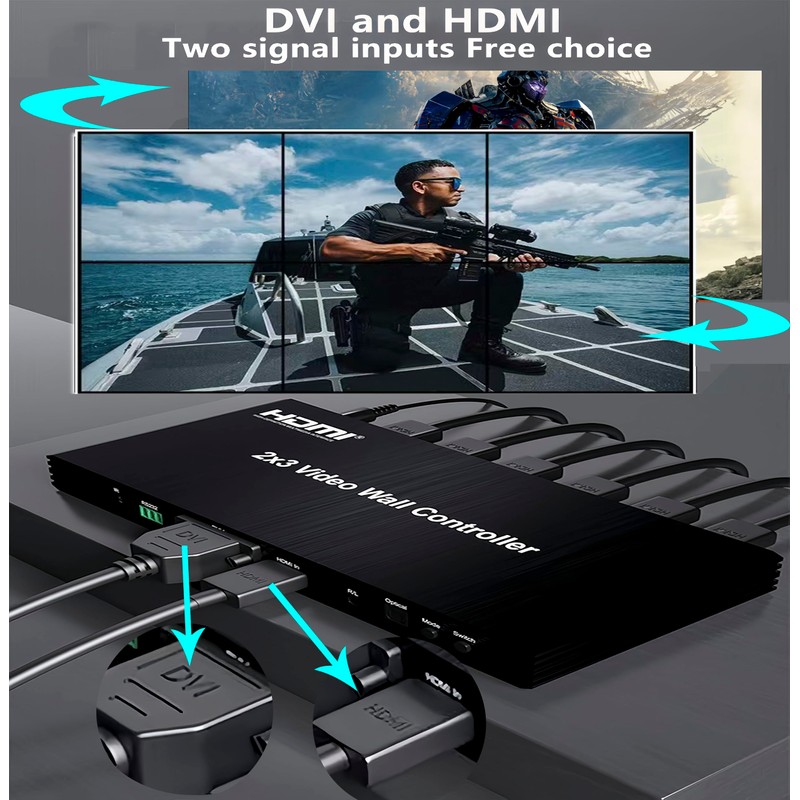

- ▶This Video Wall Controller 2x3 Support 1HDMI/1DVI video source input 6 HDMI ouput ;
- ▶This Video Wall Controller 2x3 With power off memory function;
- ▶This Video Wall Controller 2x3 Support RS232/IR Remote control and push button switch 3 types of control;
- ▶This Video Wall Controller 2x3 Support 14 splicing modes: 1×1 1×2 1×3 1×4 1×5 1×6 2×3 2x2 3x2 6×1 5×1 4x1 3×1 2×1, easy to handle, plug and play;
- ▶This Video Wall Controller 2x3 Resolution support up to 1080P@60Hz Full HD backwards compatible 720P/576p/576i etc(Does not support resolutions above 4K);

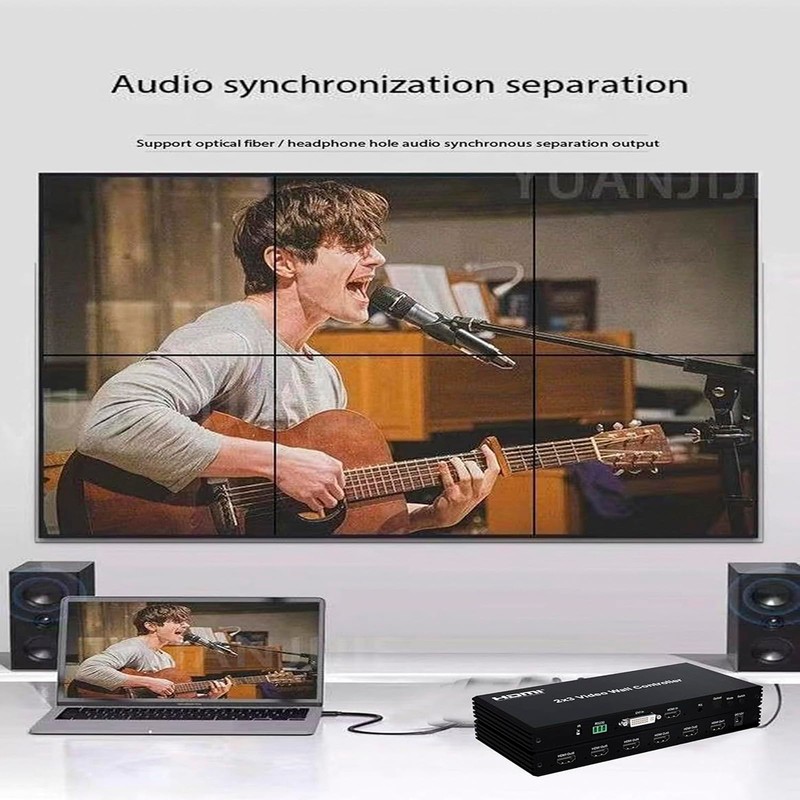

- ▶This Video Wall Controller 2x3 Support Separate audio output,3.5mm stereo/optical audio with two simultaneous outputs for improved audio signal quality.
| Brand: | SIGRAPID |
|---|---|
| Size: | Video Wall Controller 2×3 |
| Color: | 1080P Video Wall Controller 2x3 |
| Manufacturer: | SIGRAPID |
| Part Number: | 1XNX7SG |
| Isin: | IL8X6MOYINQJ |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

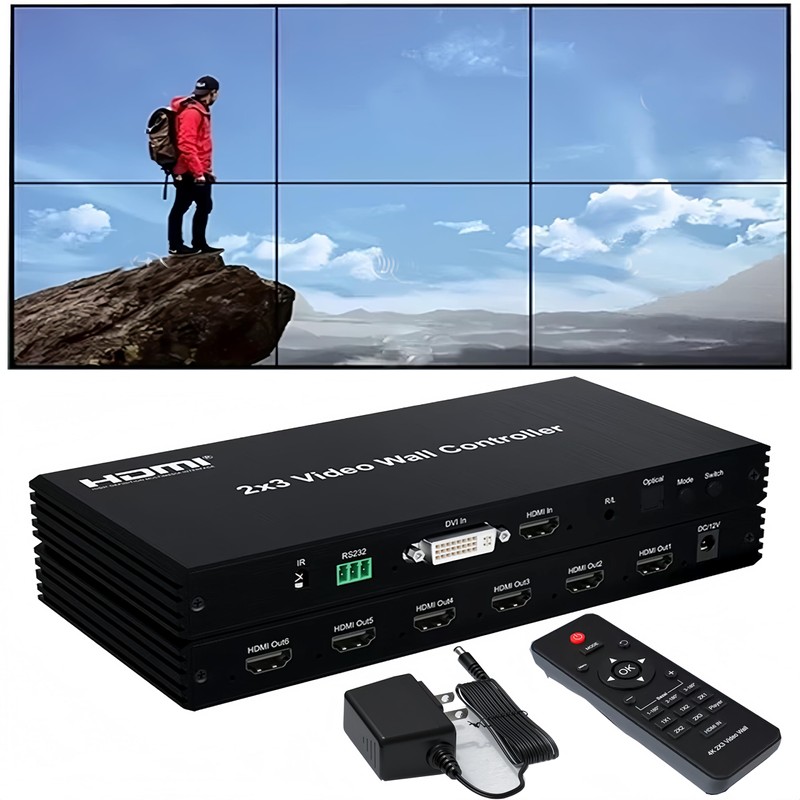

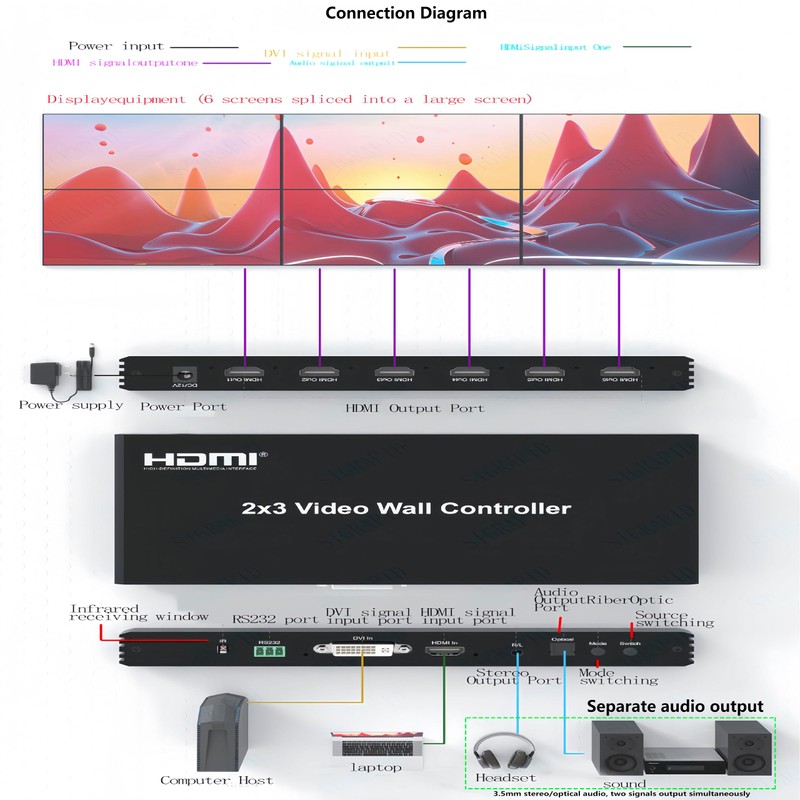

【Video Wall Controller】:This 2x3 TV wall controller supports 1 way HDMI/DVI input and 6 way HDMI output.
The main function is to divide a complete HDMI image signal into 6 display units (rear projection screen, LCD TV, etc.), so that they form a large dynamic image screen to bring you an amazing visual experience.
Specifications:
HDMI input resolution …………………...………..................... 1080P/720P/576p/576i/480P
HDMI output resolution ……………………….….......................... support 1920x1080/60Hz
Support video formats ............................................ RGB,YCbCr444,YCbCr442,YCbCr440
Support audio formats ............................................................................................... Stereo
Max bandwidth ..................................................................................... 4.95Gbit/s(1080P)
Maximum Transfer Rate ....................................................................... 3.96Gbit/s(1080P)
Input/output cable length …………………................... ≤15M,AWG26 HDMI standard cable
Max working current …………………………………......................………...……........ 280mA
Power adapter specifications …...... input AC (50Hz, 60Hz) 100V-240V Output 12V DC/1A
Operating temperature range ………………………………….………........... (-10℃~ +45℃)
Dimension (L x W x H) ………………………………...……………............. 226x110x25(mm)
Weight ….…..……………………………………………..........................….................... 500g

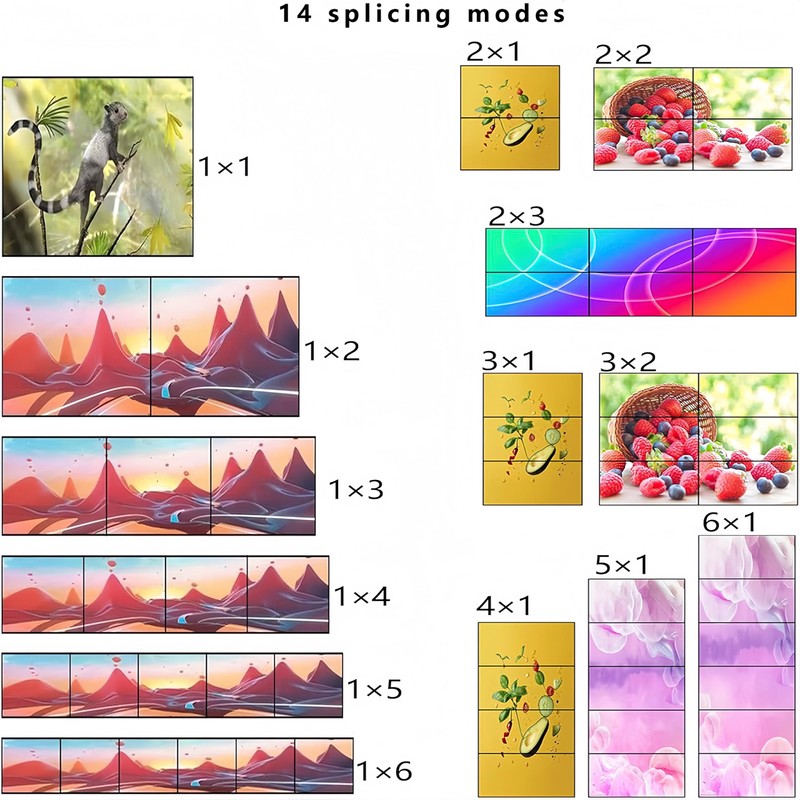

Splicing mode reference:
1x1/1x2/1x3/1x4/1x5/1x6/2x1/2x2/2x3/3x1/3x2/4x1/5x1/6x1

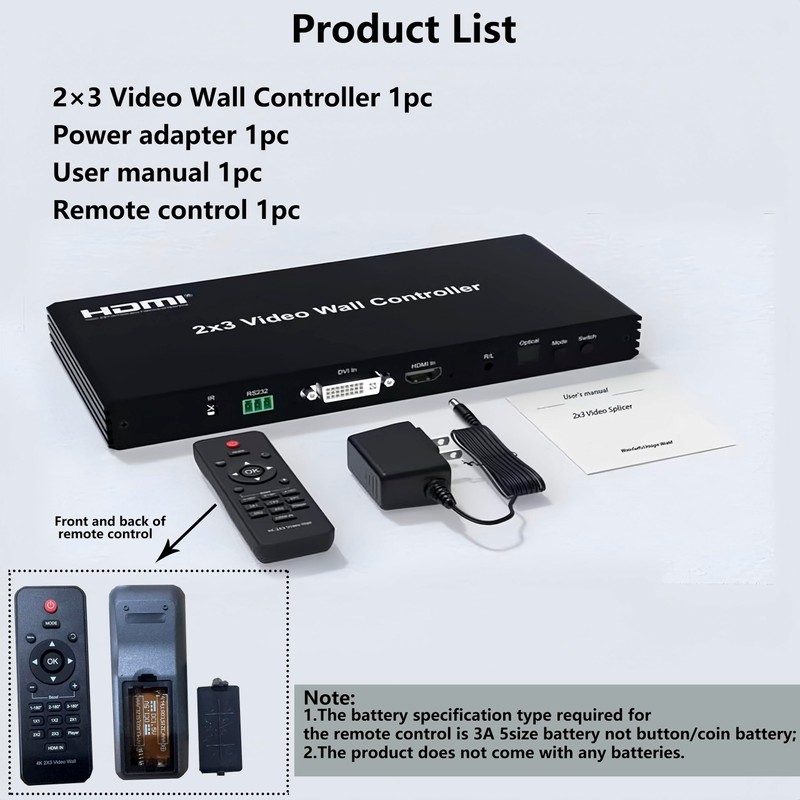

Package include:
1:2x3 Video Wall Controller1PC
2:Remote control 1PC
3:12V DC power adaptor 1PC
4:User manual 1PC
