Vgate iCar Pro Bluetooth 4.0 OBD2 Code Reader ELM327 V2.2 Car Diagnostic Scanner
Vgate iCar Pro Bluetooth 4.0 OBD2 Code Reader ELM327 V2.2 Car Diagnostic Scanner
● FIT AND FORGET - With it's micro size and unique power saving functionality that protects your battery, and turn your iPhone, iPad or Android phone/tablet into a sophisticated car scan tool.
● WORKS MANY POPULAR OBD2 APP - The Vgate iCar Pro Bluetooth Low Energy device works with most popular OBD apps (such as OBD Fusion, Torque Pro, Car Scanner ELM OBD2, etc.).

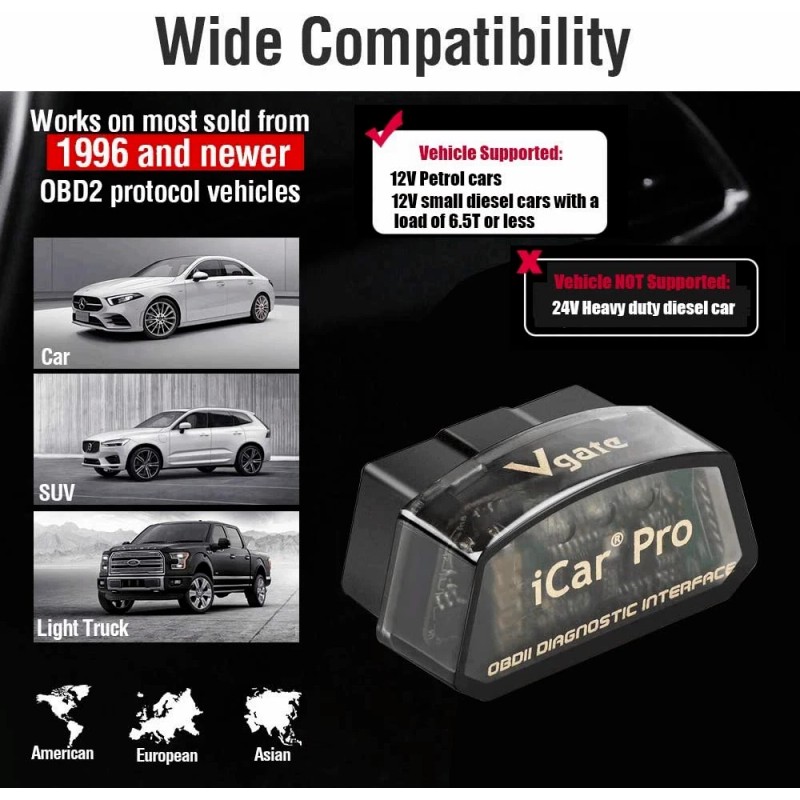

● COMPATIBLE CARS - Works with 12V OBD2 compliant petrol cars and light trucks (year 1996 or newer in the US, including light pickup truck; Do not use in 24V power diesel cars).
Vgate iCar Pro Specification:
Supply Voltage: 11.5V-15V
Supply Current: <200Ma
Standby Current: <30Ma (TONWON Pro = <3Ma)
Operating temperature: -40 ℃ - 85 ℃
Operating Humidity: 5% - 95% RH Non-Dewfall
Hardware version:V2.2
Supported systems:Android/IOS
Connection method:Bluetooth-compatible 3.0/4.0/WIFI
Vgate iCar Pro Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Engine RPM
Calculated Load Valu
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many othershellip

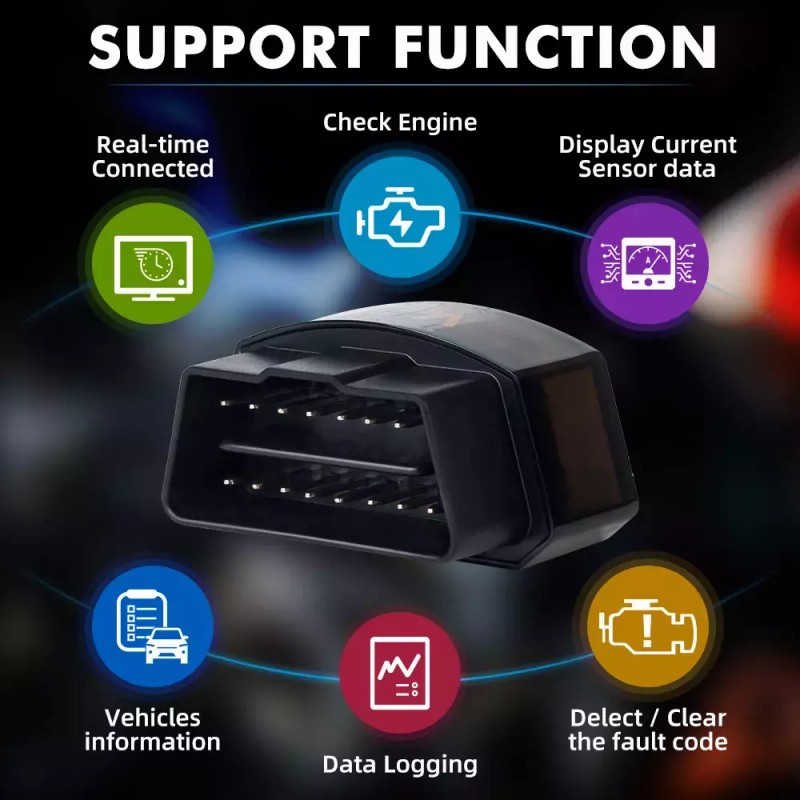

ICAR PRO function :
Check Engine
Data Logging
Delect / Clear the fault code
Real-time Connected
Display Current Sensor data
Vehicles information
Vgate iCar Pro OBD II adpater is a High-quality automotive scanning tool, Supports all OBD-II protocols:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250 * Kbaud)
USER1 CAN (11 * bit ID, 125 * Kbaud)
USER2 CAN (11 * bit ID, 50 * kbaud)
* Default Settings (User Adjustable)

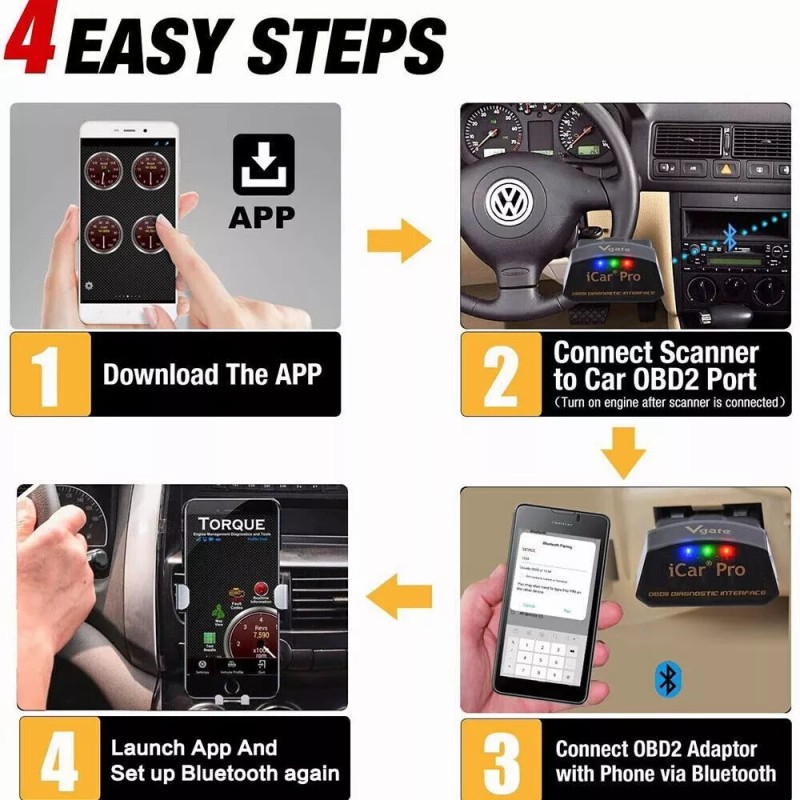

How to connect Vgate iCar Pro?
For Android
Please connect WIFI or Bluetooth-compatible directly in the software, do not connect on the phone's settings page, otherwise you will not be able to connect , Here is theBluetooth-compatible setting manual ( if your choose wifi version, pls choose wifi connect )
Connection Tips - For iOS & Android
NOTE for IOS User:
Just Enable Bluetooth on the IOS device, Then configure Bluetooth device name in the OBD app setting.
## DO NOT Need to pair Bluetooth Name on IOS device. ##
NOTE for Android User:
The two names IOS-VLINK and ANDROID-VLINK will be displayed), it can only be connected to the ANDROID-VLINK name.
More APPs
IOS:OBD Fusion, OBD Auto Doctor, OBD Car Doctor, JScan, etc
ANDROID:Torque Pro, Torque Lite (Free), JScan, OBD Fusion, OBD Auto Doctor, etc
NOTE:
Connects to your Android or iOS device using a 3rd party application.
Depending on your needs, you can choose various apps cost range.

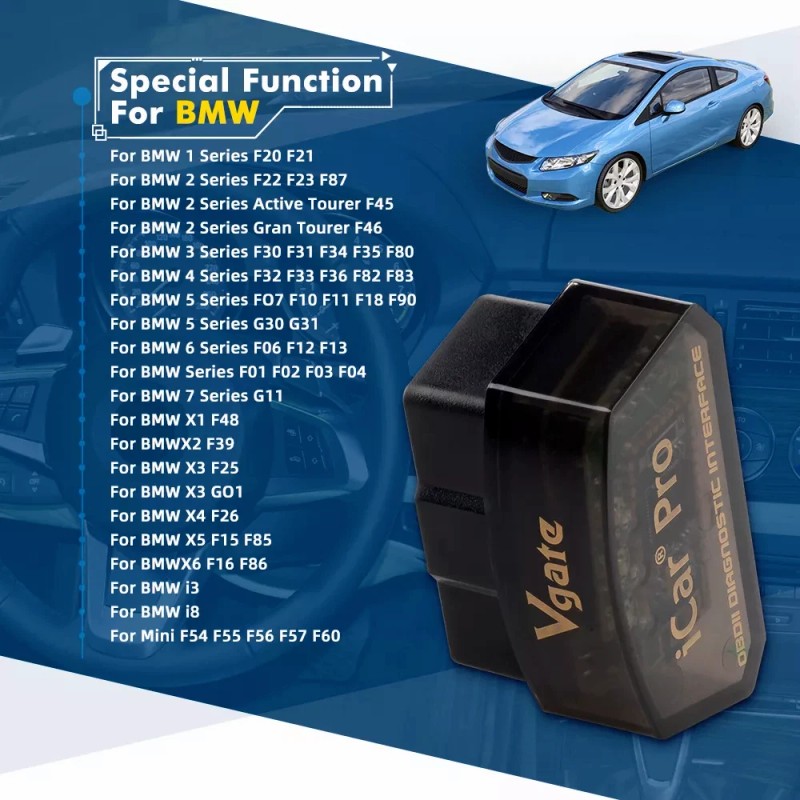

Bimmer Code for BMW-designated models :
ICAR pro special features:Auto sleep mode and Ultra low power consumption
How to Get the software ?
There has the software QR code in the manual paper , just Scan it to download the software :
| Brand: | Vgate |
|---|---|
| Isin: | IAL0SXP2NDF9 |
