VEVOR Air-Operated Double Diaphragm Pump 2.5GPM 1/2" Inlet Outlet Polypropylene

Brand: VEVOR
Document
Product Description

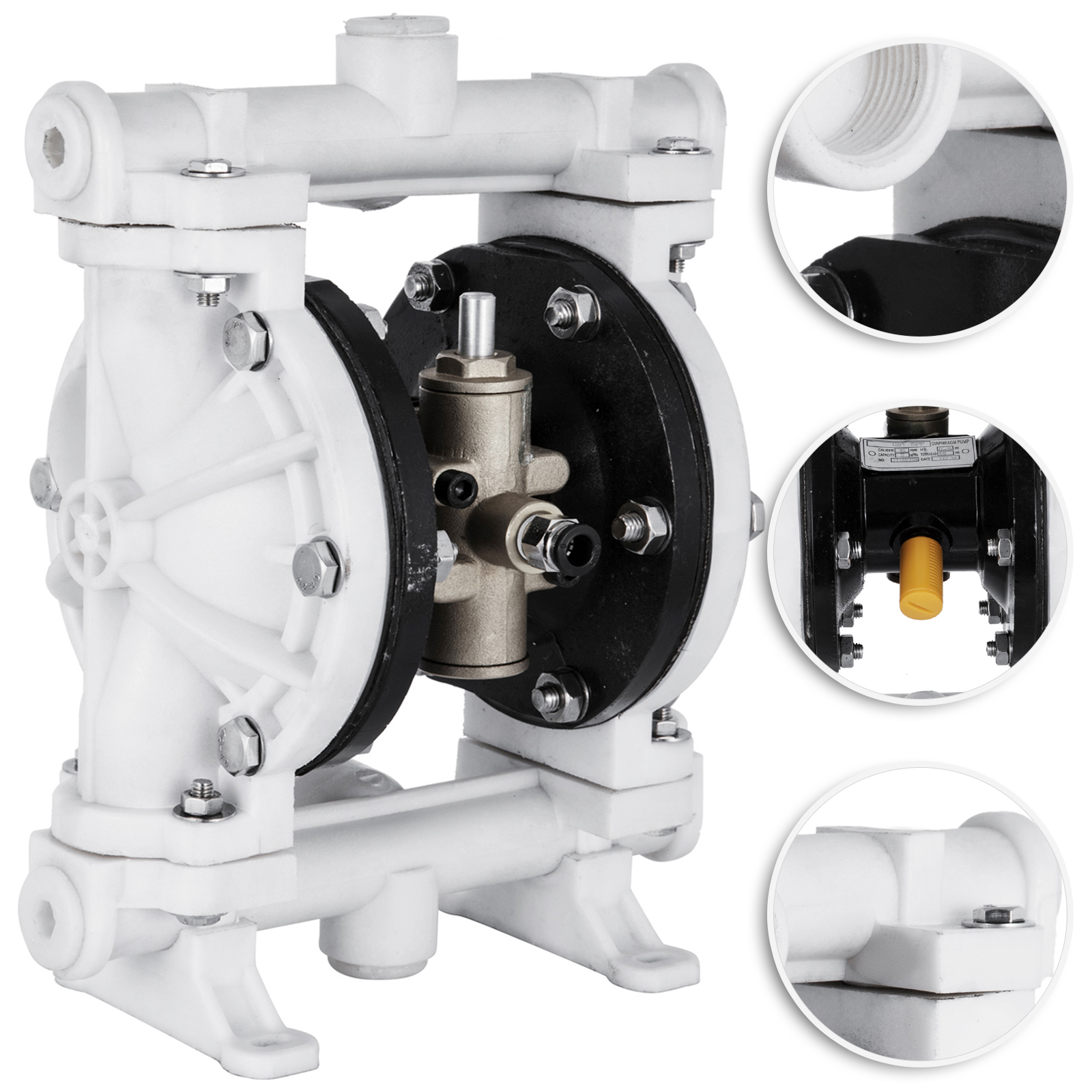

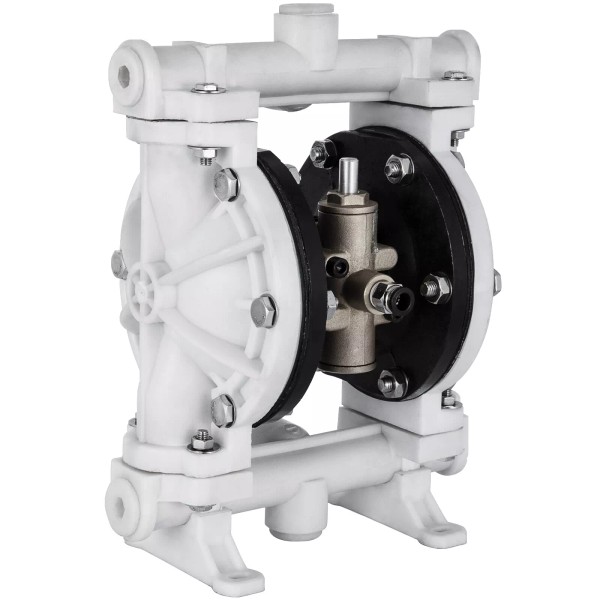

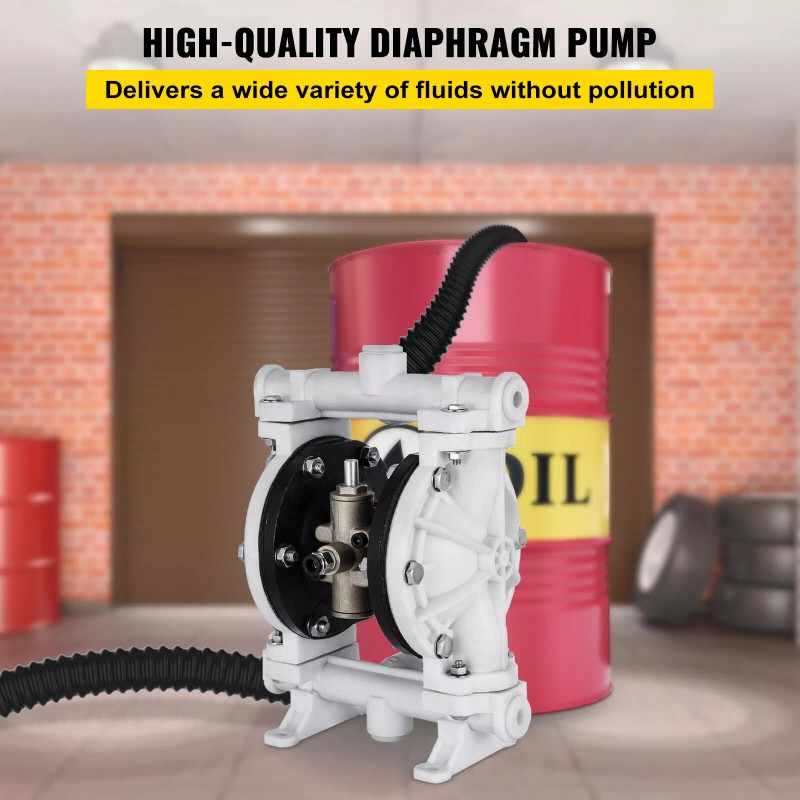

Air-Operated Double Diaphragm Pump
Polypropylene Construction & PTFE Diaphragm & 13.2 GPM Flow Rate
Our self-priming diaphragm pump features an all-bolted polypropylene body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
  • Premium Double PTFE Diaphragms
  • Sturdy & Leak-proof Construction
  • Excellent Air-operated Performance
  • Unique & Professional Designs
Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

Key Features

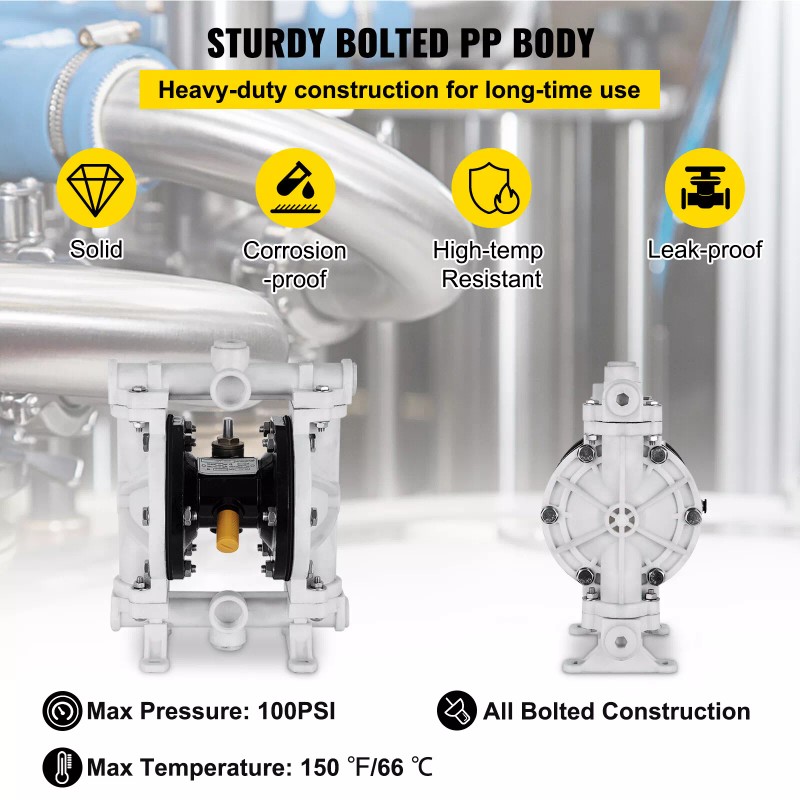

  • Sturdy Polypropylene Body


    The shell of the air-operated diaphragm pump adopts polypropylene construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi.

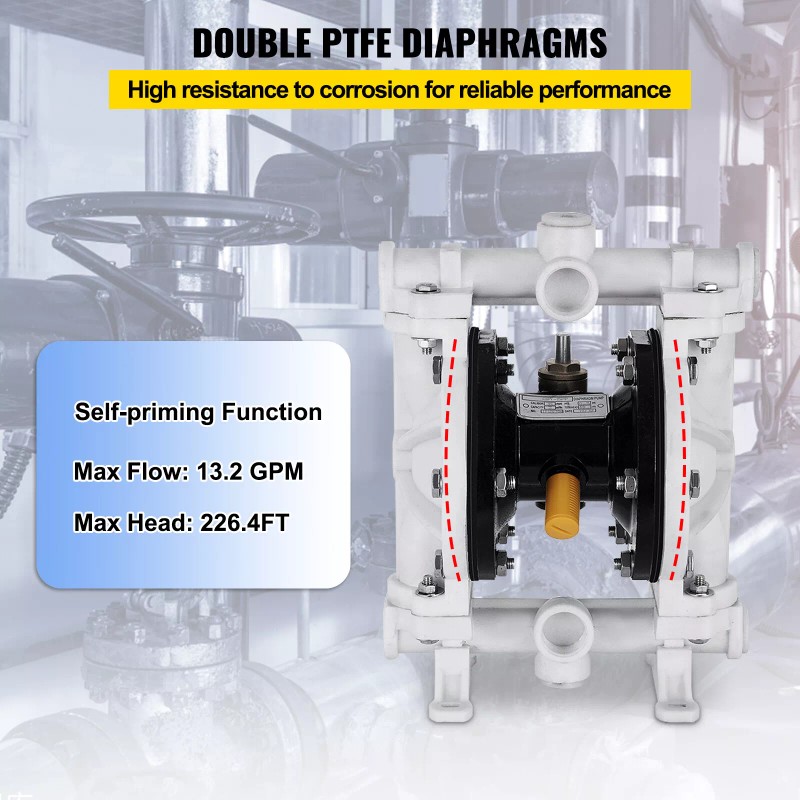

  • PTFE Double Diaphragm


    The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate:13.2 GPM; Max Head Lift:226.4 ft/69 m.



  • Professional Air-Operated Designs


    Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1/2 inch (12.7 mm); Air Inlet Size: FNPT 1/4 inch (6.35 mm).



  • Sealed Ball Valve


    It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.



  • Handle Various Material


    This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.



  • Versatile Uses


    The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.

Specification

  • Model: QBY-15PP
  • Body Material: Polypropylene
  • Inlet Port: 1/2 inch (12.7 mm)
  • Outlet Port: 1/2 inch (12.7 mm)
  • Air Inlet Size: FNPT 1/4 inch (6.35 mm)
  • Max Flow Rate: 13.2 GPM
  • Suction: 0-5 m (0-16.4 ft)
  • Max Suspended Solids: 2.38 mm (3/32 inch)
  • Max Head: 69 m (226.4 ft)
  • Max PSI: 100 psi
  • Temp. Rating: -20℉ ~ 150 ℉
  • Self-Priming Dry: 3 m (10 ft)
  • Self-Priming Wet: 4.6 m (15 ft)
  • Ball Material: Santoprene(R)

Package & Content

  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual


Features & Details


  • Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi; Max. Flow Rate:13.2 GPM; Max Head Lift:226.4 ft/69 m.
  • Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
  • Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch (12.7 mm); Air Inlet Size: FNPT 1/4 inch (6.35 mm). A high-quality glyd ring, the double-acting sealing, strengthens air performance.
  • Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
  • Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries,  such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.

People Who Bought This Item Also Bought

SHIPPING ABOUT US PAYMENT RETURNS CONTACT WARRANTY
Welcome to our eBay store. As a leading and emerging company in manufacturer and exporting business, we are specialized in Business and Industrial Products, Sporting Goods, Pet Products, Home and Garden products for more than 10 years. We believe that it is our vision and mission to provide innovative products with best service and competitive price to satisfy you. Our goal is to make sure that you can find exactly what you are looking for and make it easy for you to place your orders.
  • We accept PayPal payment,PayPal Credit,Credit card or debit card and so on.
  • Payment should be completed within 4 (Four) days of auction closing. Or unpaid dispute will be filed for closing auction.
  • We will leave a positive feedback immediately after payment is received. We appreciate a positive feedback as much as you do. If for some reason there is any issue with the purchase, please contact us prior to leaving feedback, we will be glad to work together and provide a satisfying solution.
  • Please be aware that PO Box cannot receive items,please DO NOT fill in the PO Box address.

    • DELIVERY DAYS: 3-7 BUSINESS DAYS
    • 3 BUSINESS DAYS SHIPPING OUT
    • SHIP FROM CA & TX & NJ & GA & NC &OR WAREHOUSE


    California Warehouse: City of Industry, CA

    Texas Warehouse: Houston, TX

    New Jersey Warehouse: Perth Amboy, NJ

    New York State Warehouse: Perth Amboy, NJ

    Georgia Warehouse: Austell,GA

    North Carolina Warehouse: Grove NC

    Oregon Warehouse: AIRPORT WAY Portland,OR

    • All of our items are backed with a 30-day return policy. We ensure all our items are new and in excellent condition prior to shipping. In case you receive the item that is not to the standards above, please contact us via e-Bay messages. All returns must be in new original condition as received and should be shipped with delivery confirmation
    • Please note that all returns must be pre-approved by us. Unauthorized returns will not be accepted. If you need to return, please check twice to confirm the item not work and contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation.
    • We ONLY accept returns with original package. Please make sure that item has NO man-made sabotage. Used items will not be accepted for return.
    • Email Customer Support:
    • 9:00am-2:00am PST Sunday-Friday
    • All emails will be responded to within 12-24 hours
    • This item comes with 12 months Warranty from the date of customers purchased it. Special circumstances will be listed clearly in the listing.
    • If your item has been damaged in transit or become faulty in warranty period, please email us with pictures or video to show the problem.
    • Please do check everything carefully after you received the parcel, any the damage except DOA (Dead-On-Arrival) would not be covered if it's your fault.
    • Replacement products are provided with the same warranty as the returned products.
    Tough Equipment & Tools, Pay Less

    VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

    Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Air-Operated Double Diaphragm Pump
    Polypropylene Construction & PTFE Diaphragm & 13.2 GPM Flow Rate
    Our self-priming diaphragm pump features an all-bolted polypropylene body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
    • Premium Double PTFE Diaphragms
    • Sturdy & Leak-proof Construction
    • Excellent Air-operated Performance
    • Unique & Professional Designs

    Key Features

    • Sturdy Polypropylene Body

      The shell of the air-operated diaphragm pump adopts polypropylene construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi.

    • PTFE Double Diaphragm

      The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate:13.2 GPM; Max Head Lift:226.4 ft/69 m.

    • Professional Air-Operated Designs

      Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1/2 inch (12.7 mm); Air Inlet Size: FNPT 1/4 inch (6.35 mm).

    • Sealed Ball Valve

      It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.

    • Handle Various Material

      This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.

    • Versatile Uses

      The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.

    Package & Content

    • 1 x Air-Operated Double Diaphragm Pump
    • 1 x Product Manual

    Specification

    • Model: QBY-15PP
    • Body Material: Polypropylene
    • Inlet Port: 1/2 inch (12.7 mm)
    • Outlet Port: 1/2 inch (12.7 mm)
    • Air Inlet Size: FNPT 1/4 inch (6.35 mm)
    • Max Flow Rate: 13.2 GPM
    • Suction: 0-5 m (0-16.4 ft)
    • Max Suspended Solids: 2.38 mm (3/32 inch)
    • Max Head: 69 m (226.4 ft)
    • Max PSI: 100 psi
    • Temp. Rating: -20℉ ~ 150 ℉
    • Self-Priming Dry: 3 m (10 ft)
    • Self-Priming Wet: 4.6 m (15 ft)
    • Ball Material: Santoprene(R)

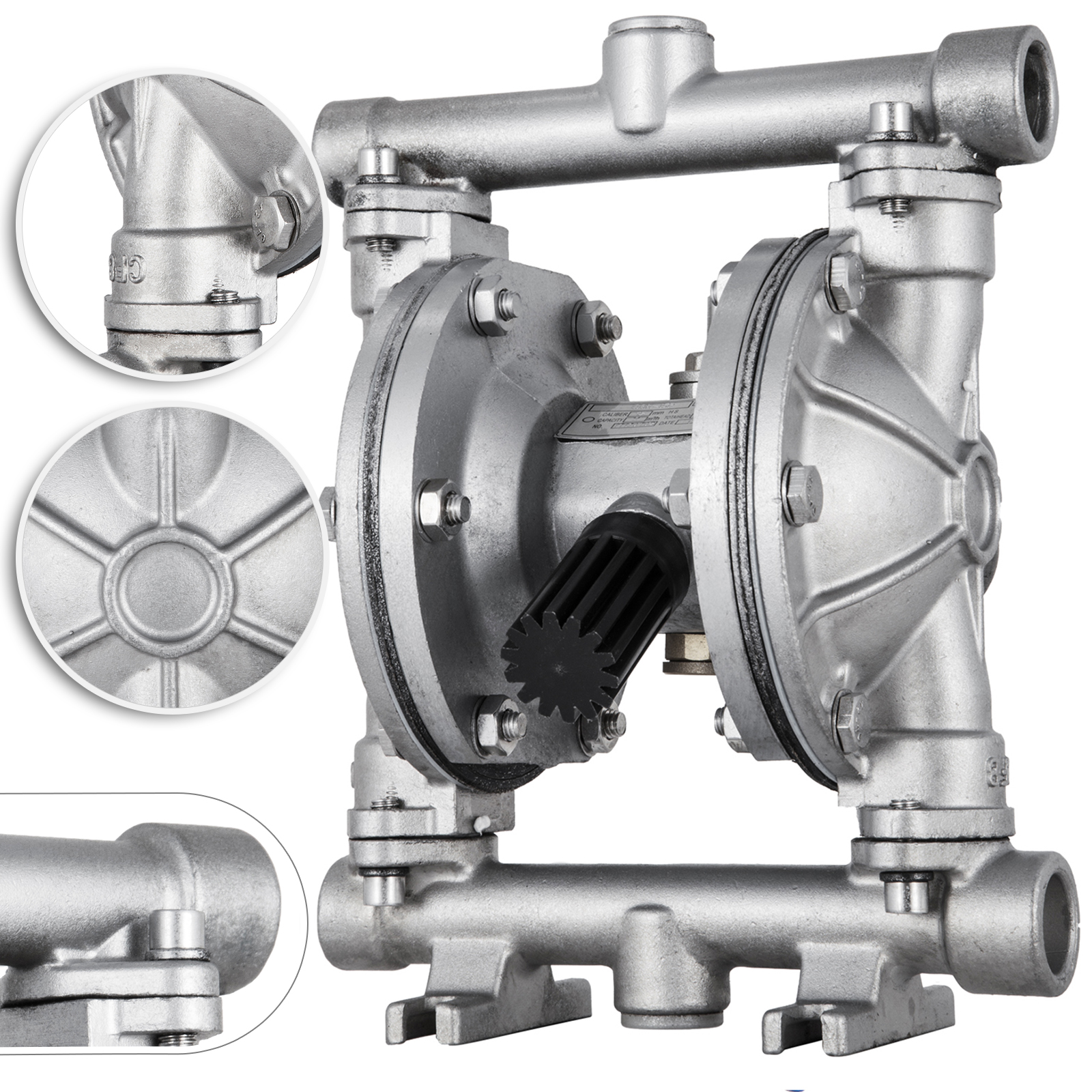

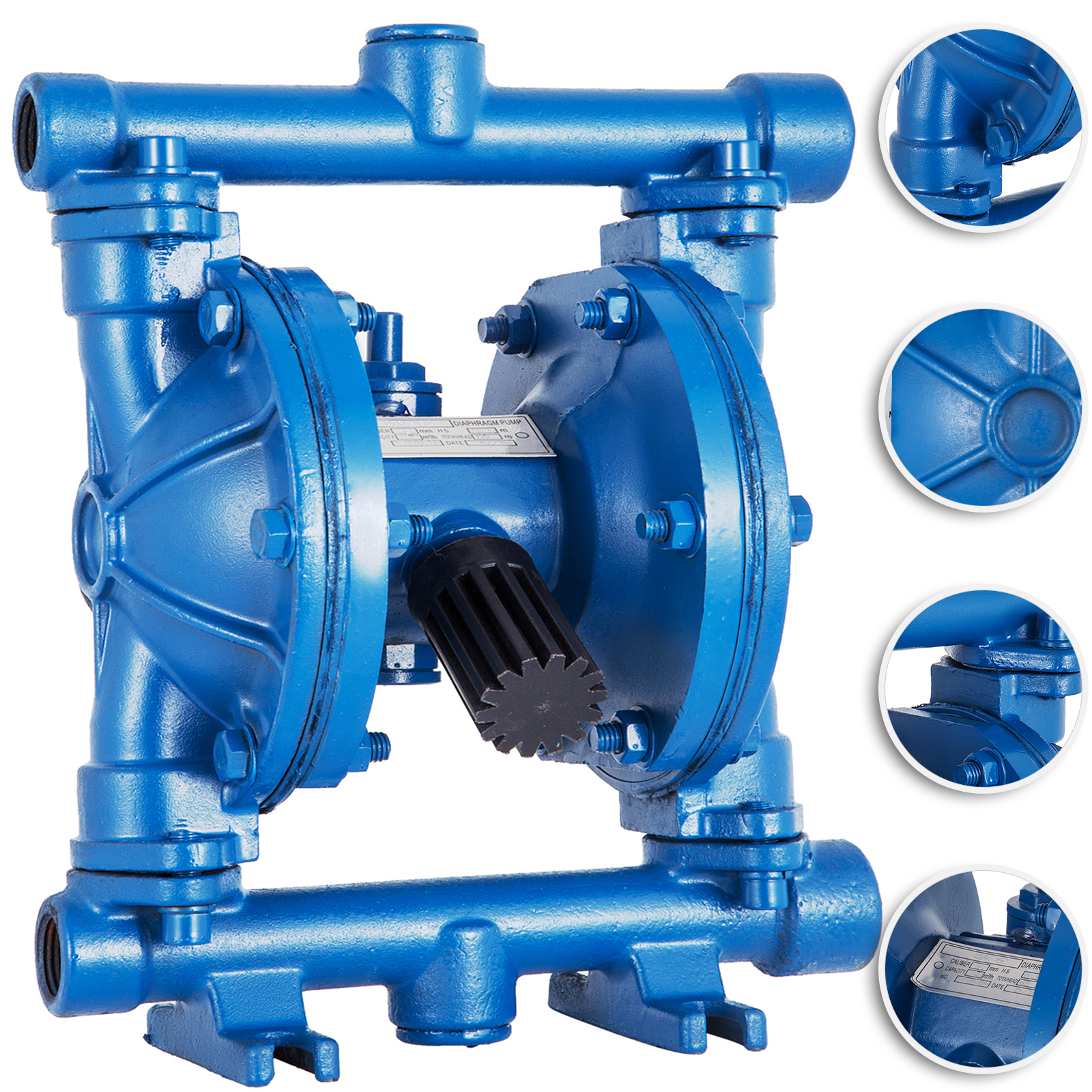

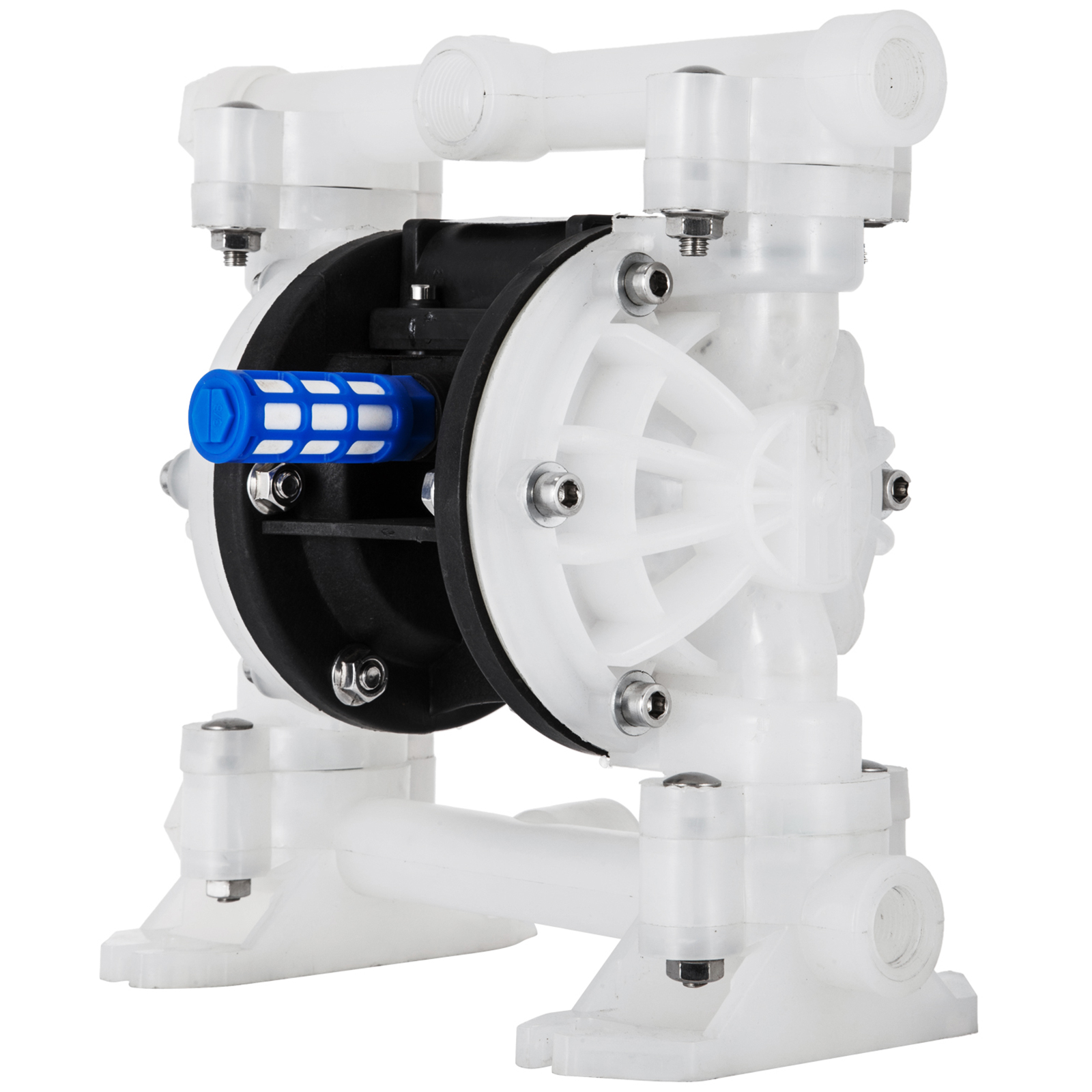

    QBK-15 QBK-15P QBY-15PP QBY4-15
    Color Blue Gray White White
    Body Material Cast iron Stainless Steel Polypropylene Polypropylene
    Inlet/Outlet Port 1/2 inch (12.7 mm) 1/2 inch (12.7 mm) 1/2 inch (12.7 mm) 1/2 inch (12.7 mm)
    Air Inlet Size 1/4 inch (6.35 mm) 1/4 inch (6.35 mm) 1/4 inch (6.35 mm) 1/4 inch (6.35 mm)
    Max Flow 12 GPM 12 GPM 13 GPM 7 GPM
    Max Head 69 m/226.4 ft 69 m/226.4 ft 69 m/226.4 ft 69 m/226.4 ft
    Diaphragm Material Nitrile Nitrile Nitrile Nitrile

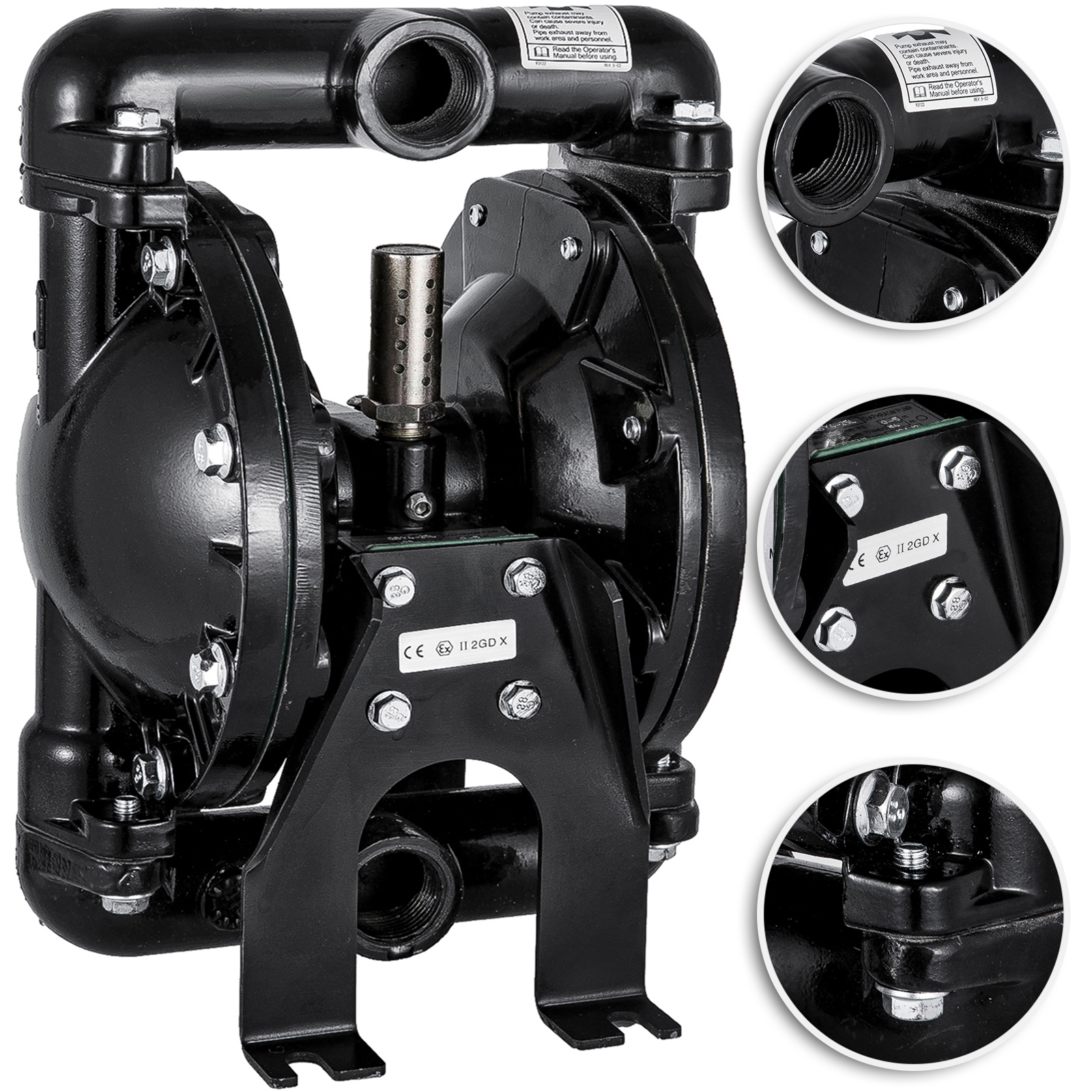

    QBY4-25L QBY4-25L F46 QBY4-25PP QBY4-50L
    Color Black Black White Black
    Body Material Aluminum Aluminum Polypropylene Aluminum
    Inlet/Outlet Port 1 inch (25 mm) 1 inch (25 mm) 1 inch (25 mm) 2 inch (50 mm)
    Air Inlet Size 1/2 inch (12.7 mm) 1/2 inch (12.7 mm) 1/2 inch (12.7 mm) 1/2 inch (12.7 mm)
    Max Flow 35 GPM 35 GPM 30 GPM 140 GPM
    Max Head 84 m (275.59 ft) 84 m (275.59 ft) 84 m (275.59 ft) 84 m (275.59 ft)
    Diaphragm Material Nitrile PTFE Nitrile Nitrile


    Features & Details


    • Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi; Max. Flow Rate:13.2 GPM; Max Head Lift:226.4 ft/69 m.
    • Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
    • Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch (12.7 mm); Air Inlet Size: FNPT 1/4 inch (6.35 mm). A high-quality glyd ring, the double-acting sealing, strengthens air performance.
    • Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
    • Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries,  such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
