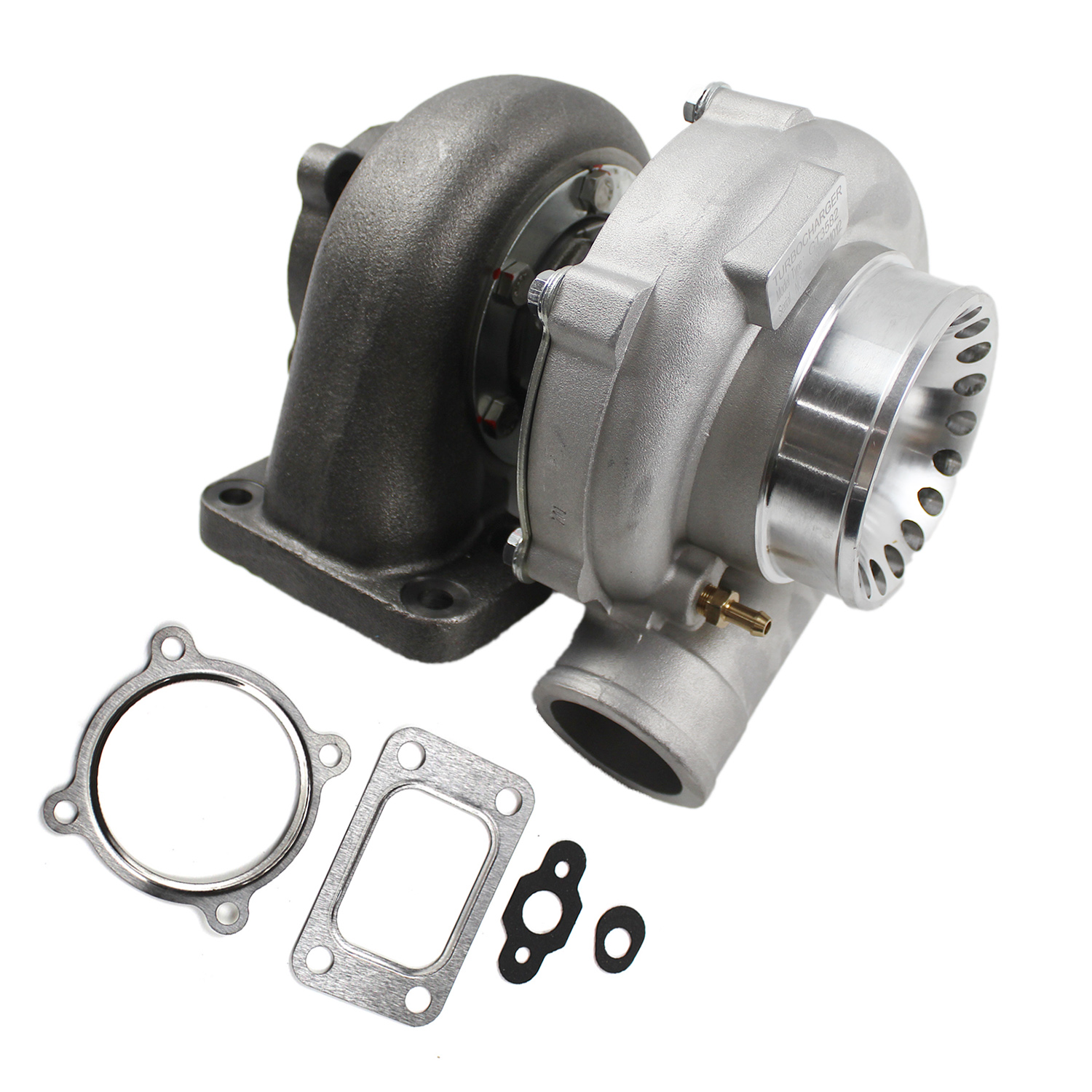

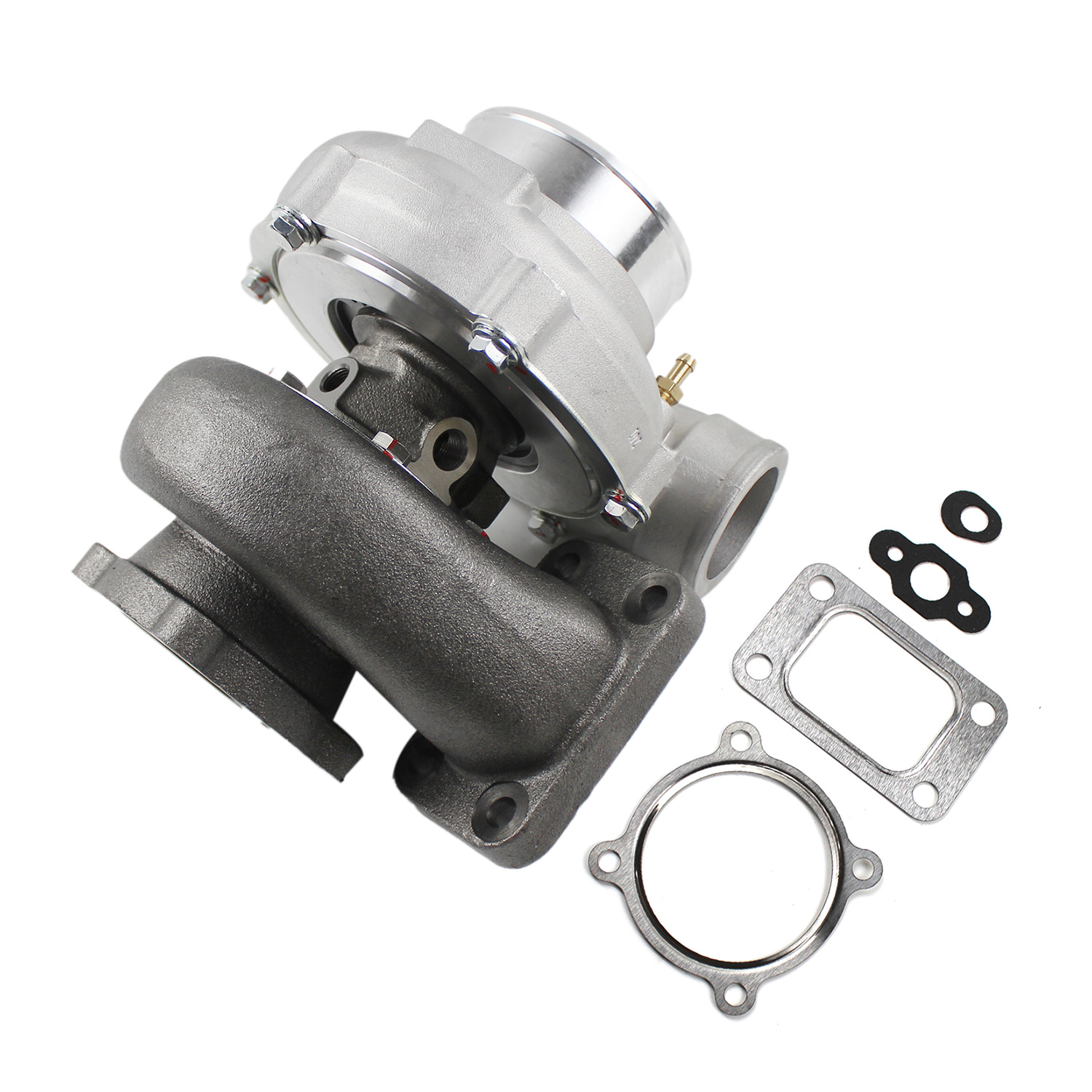

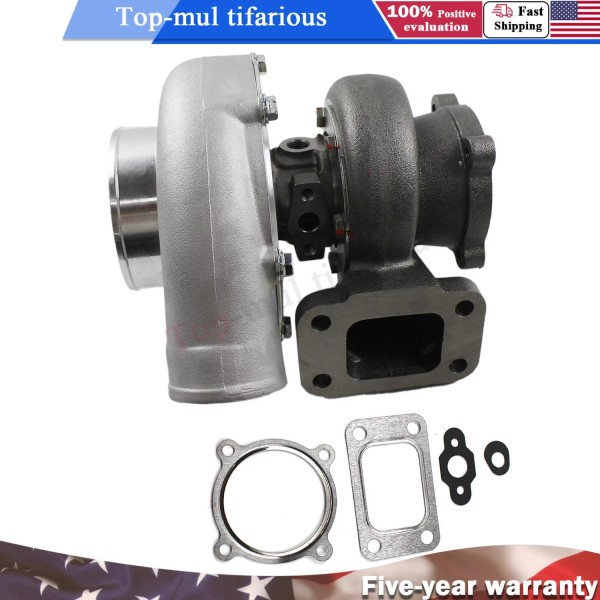

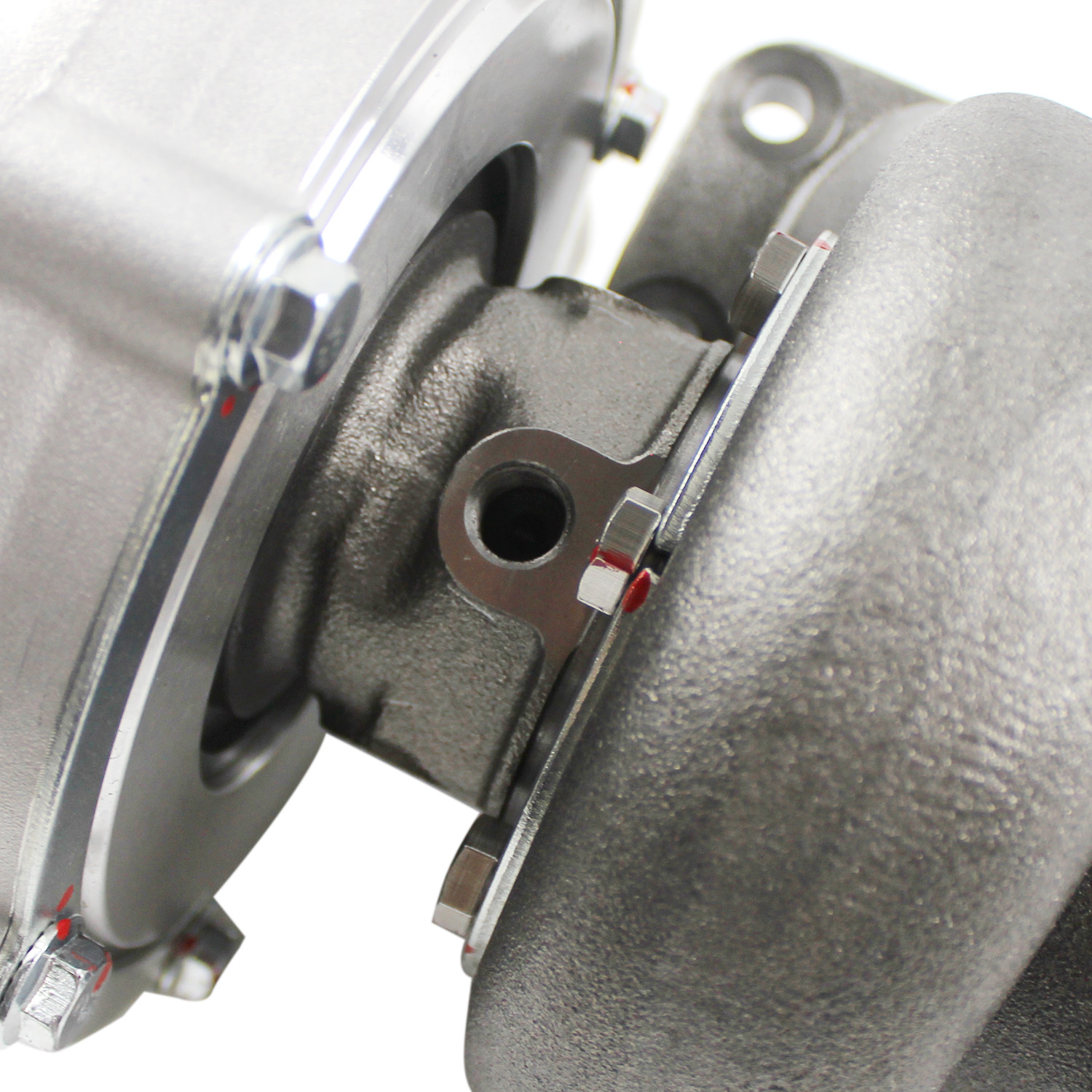

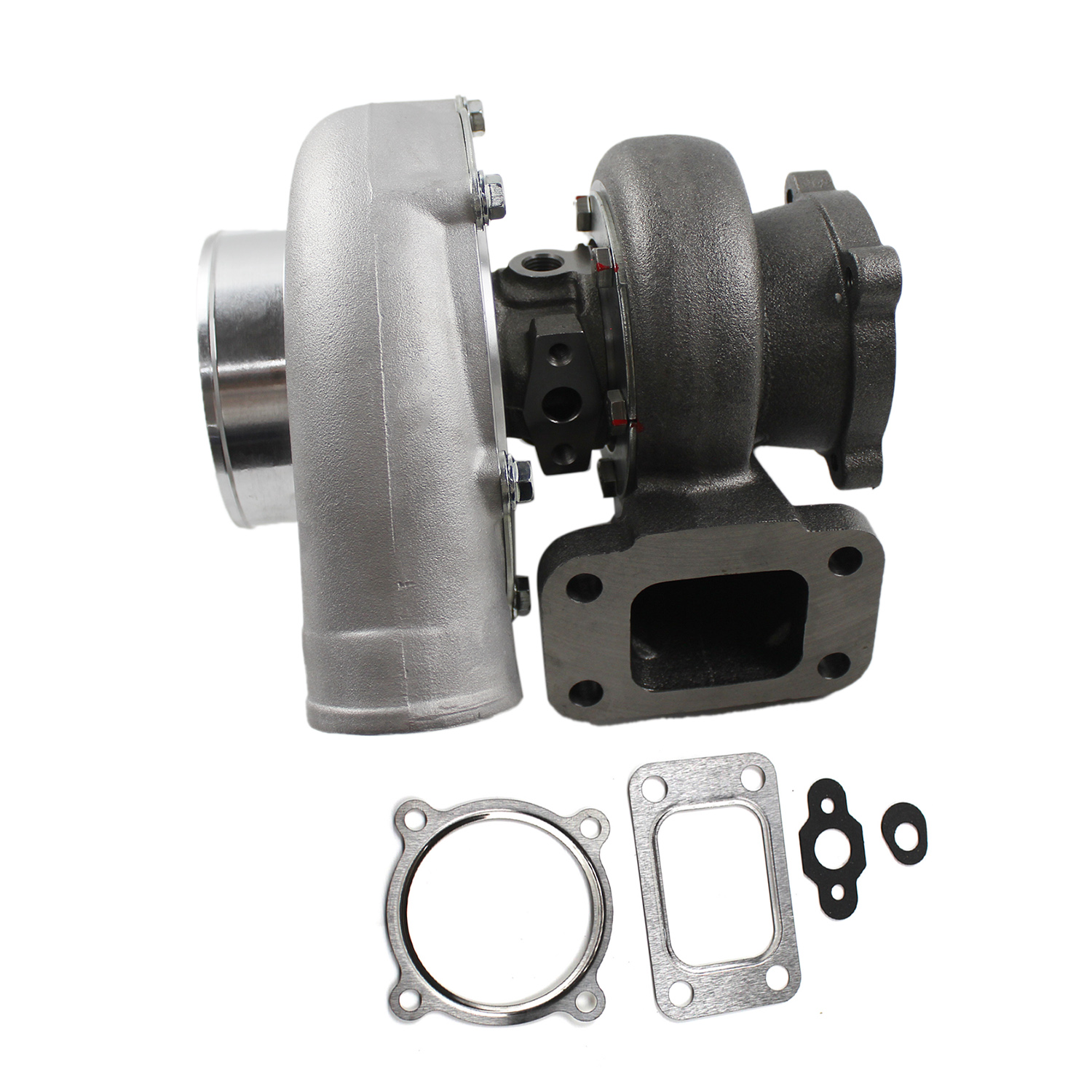

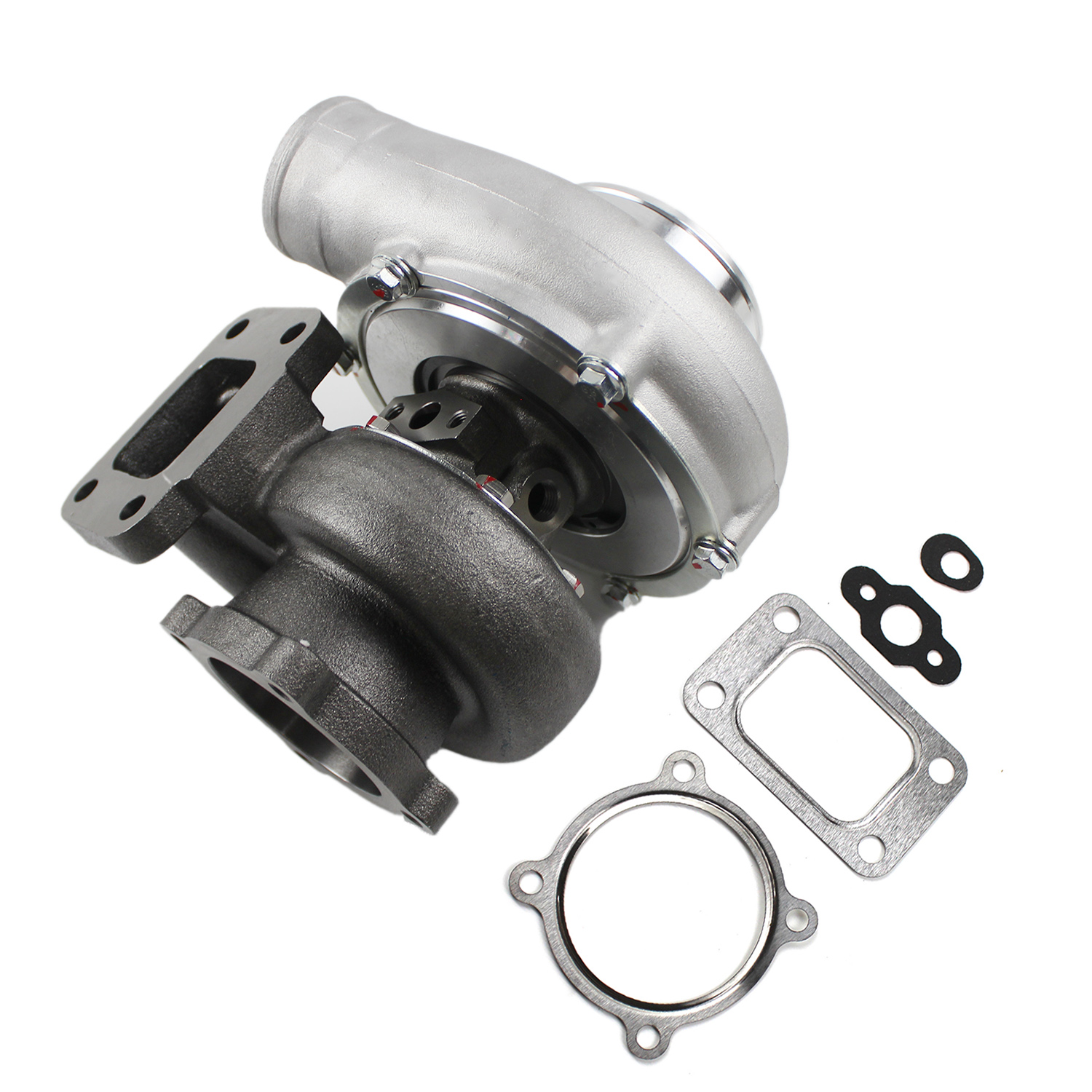

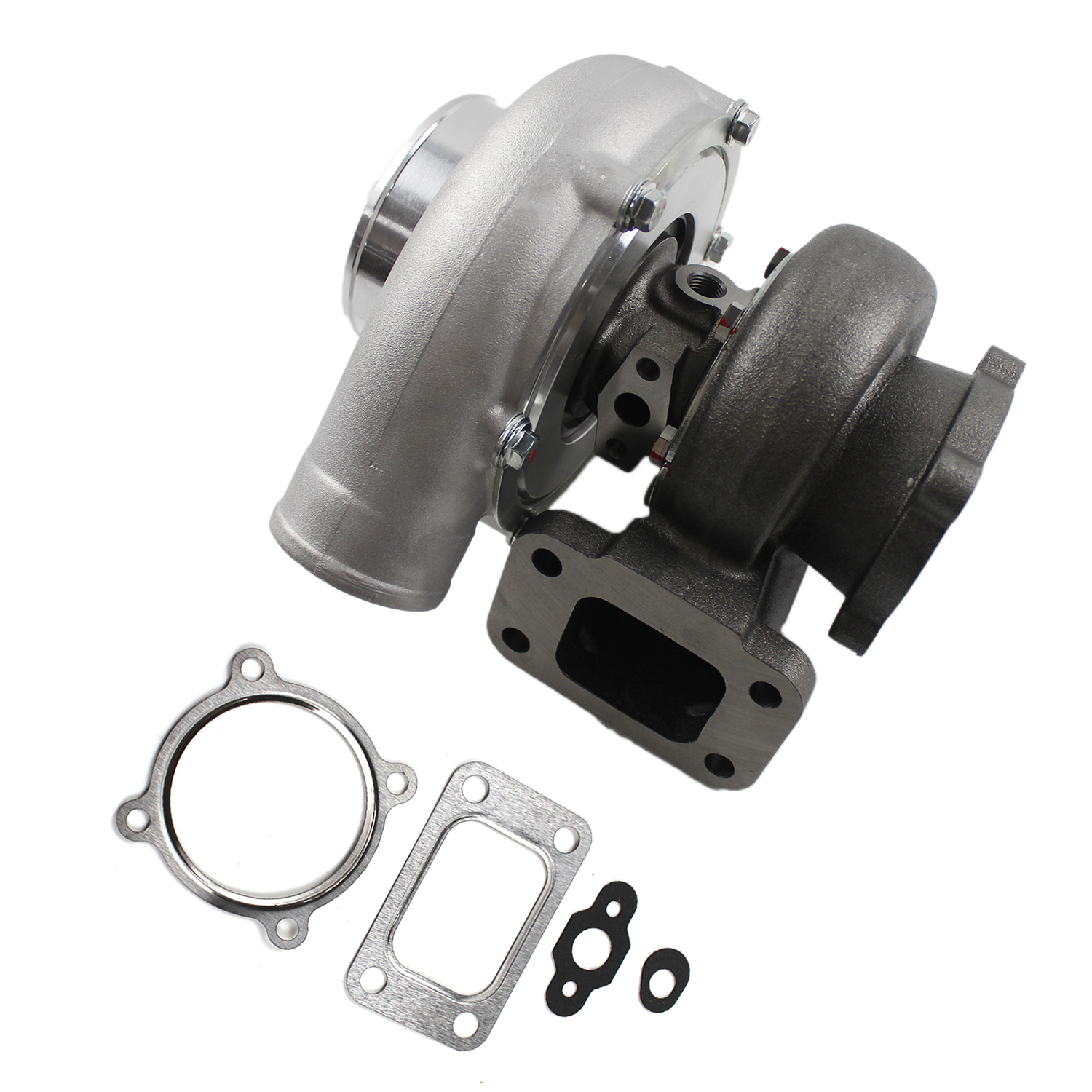

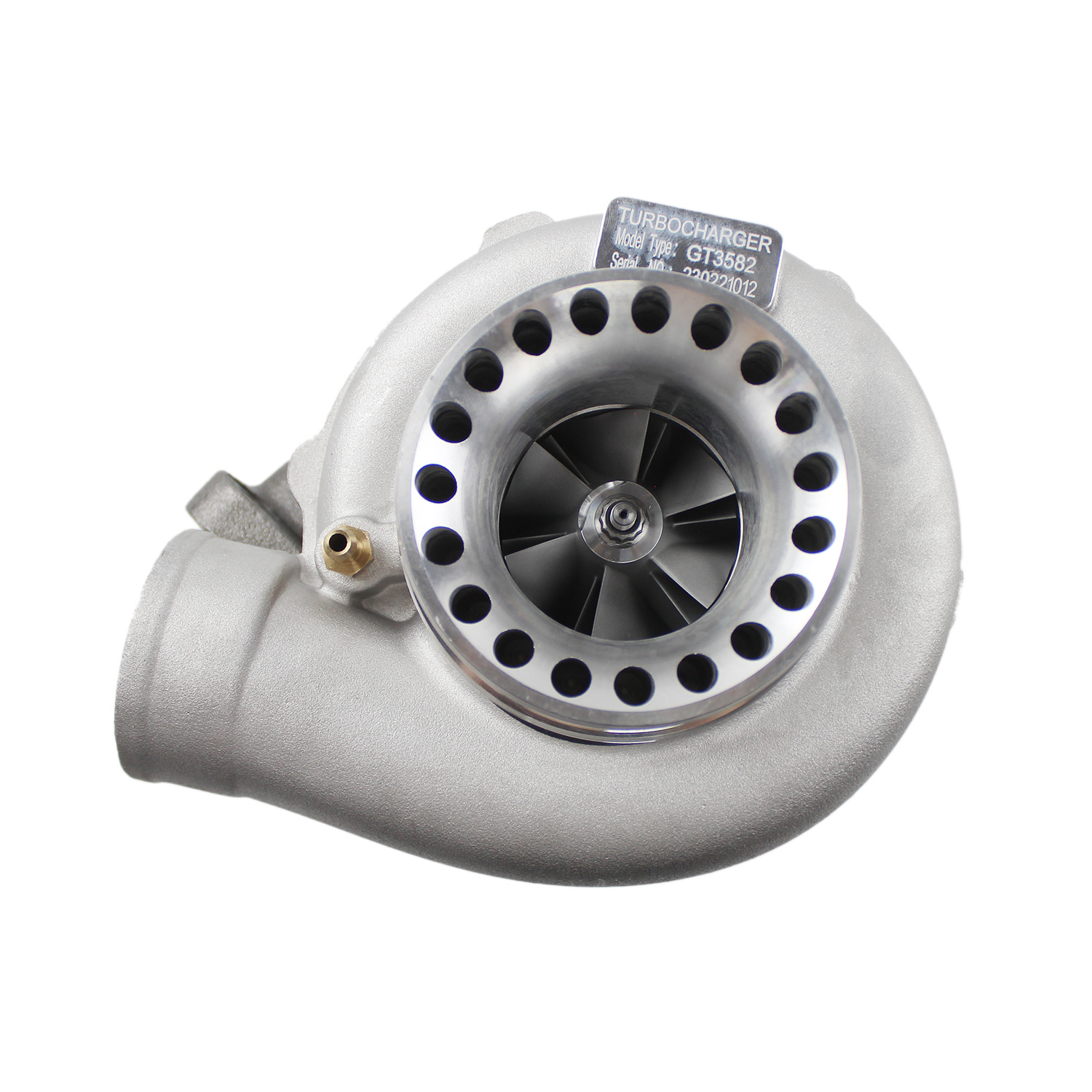

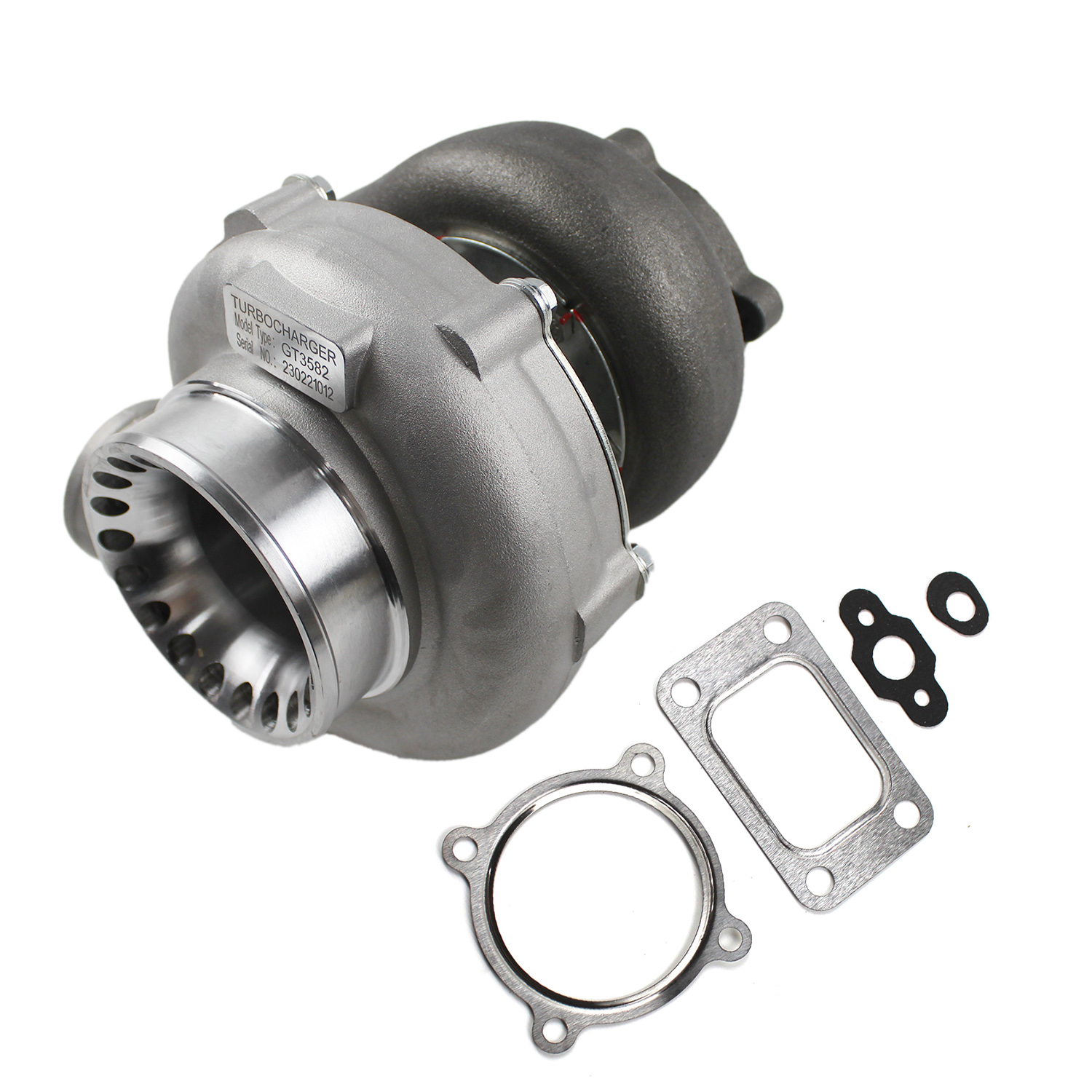

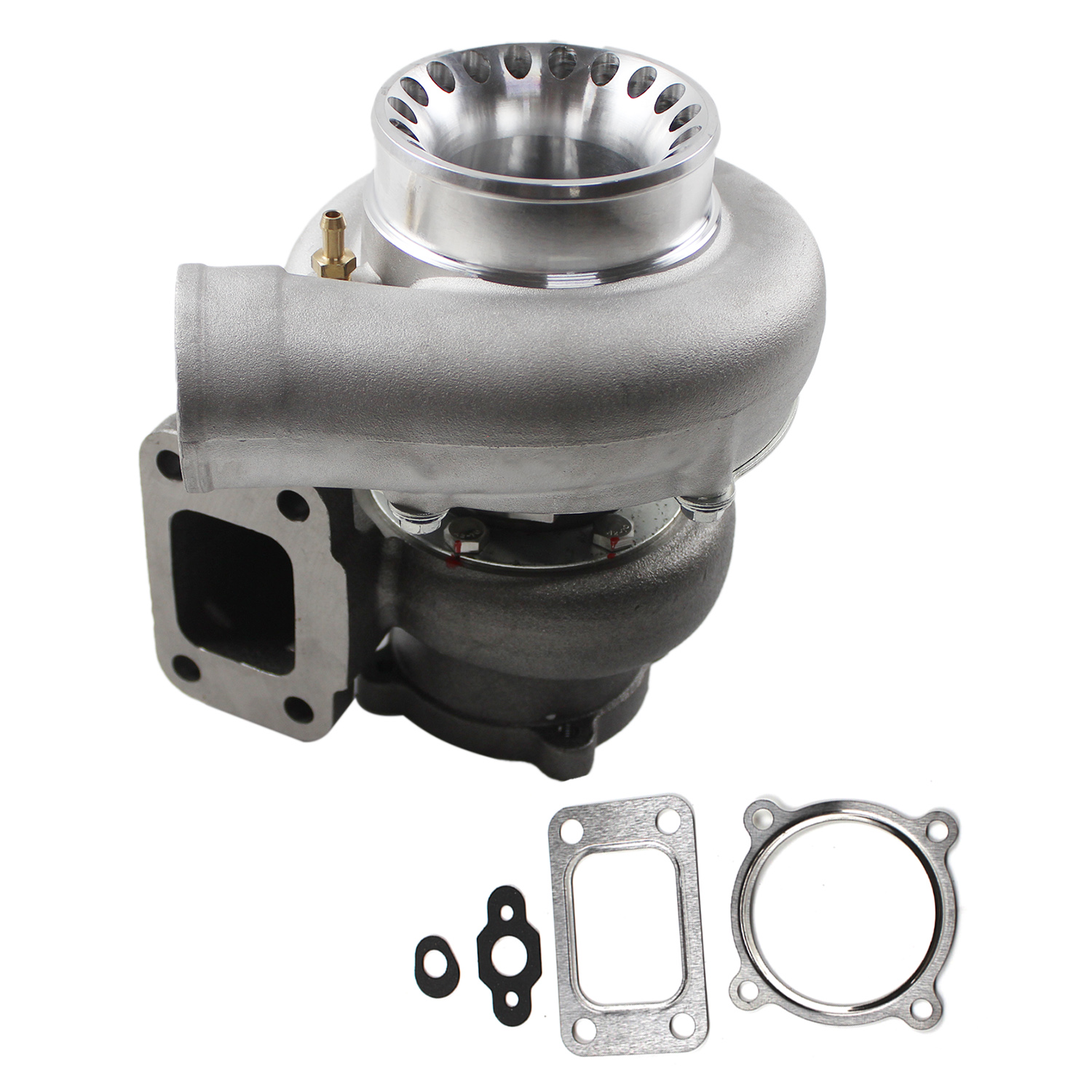

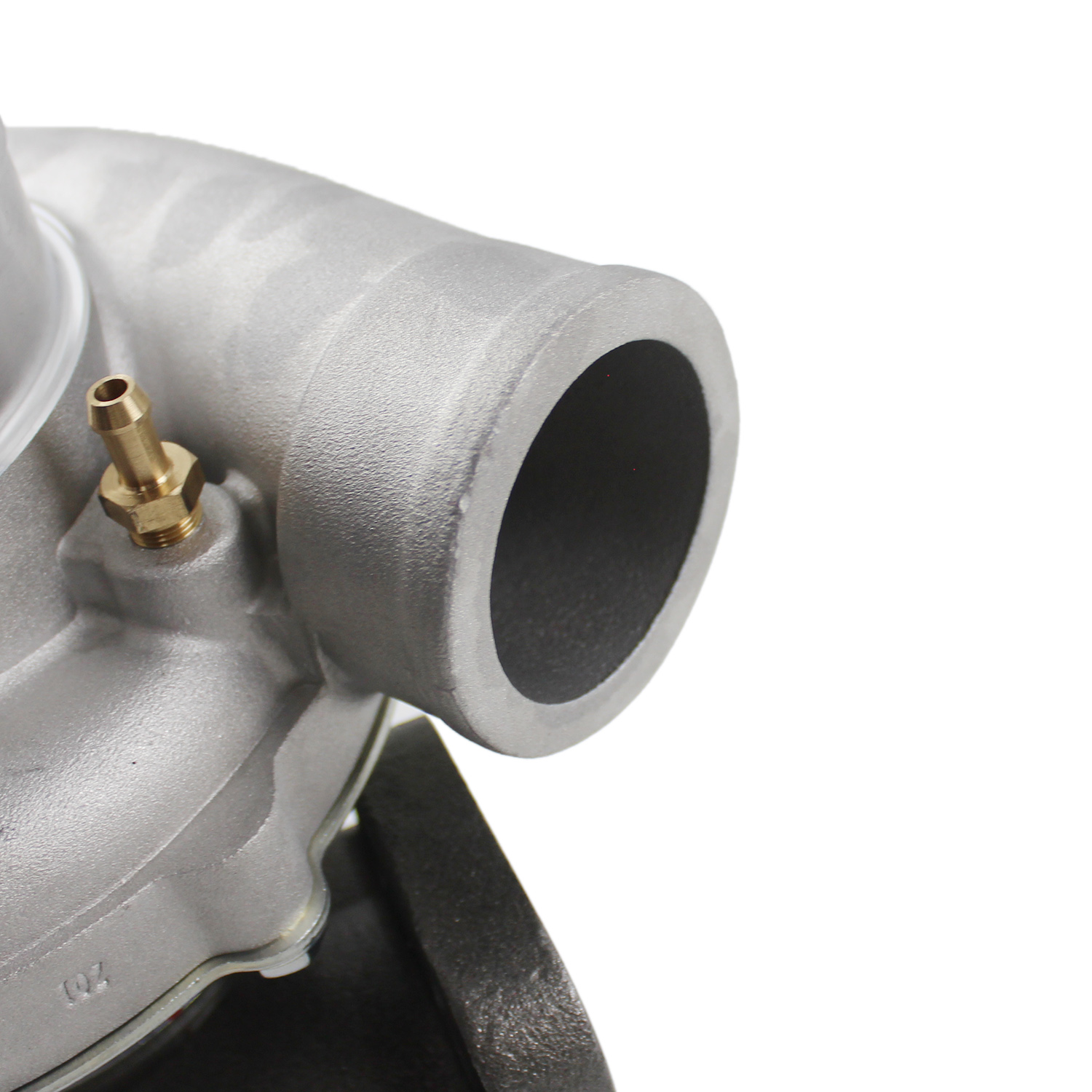

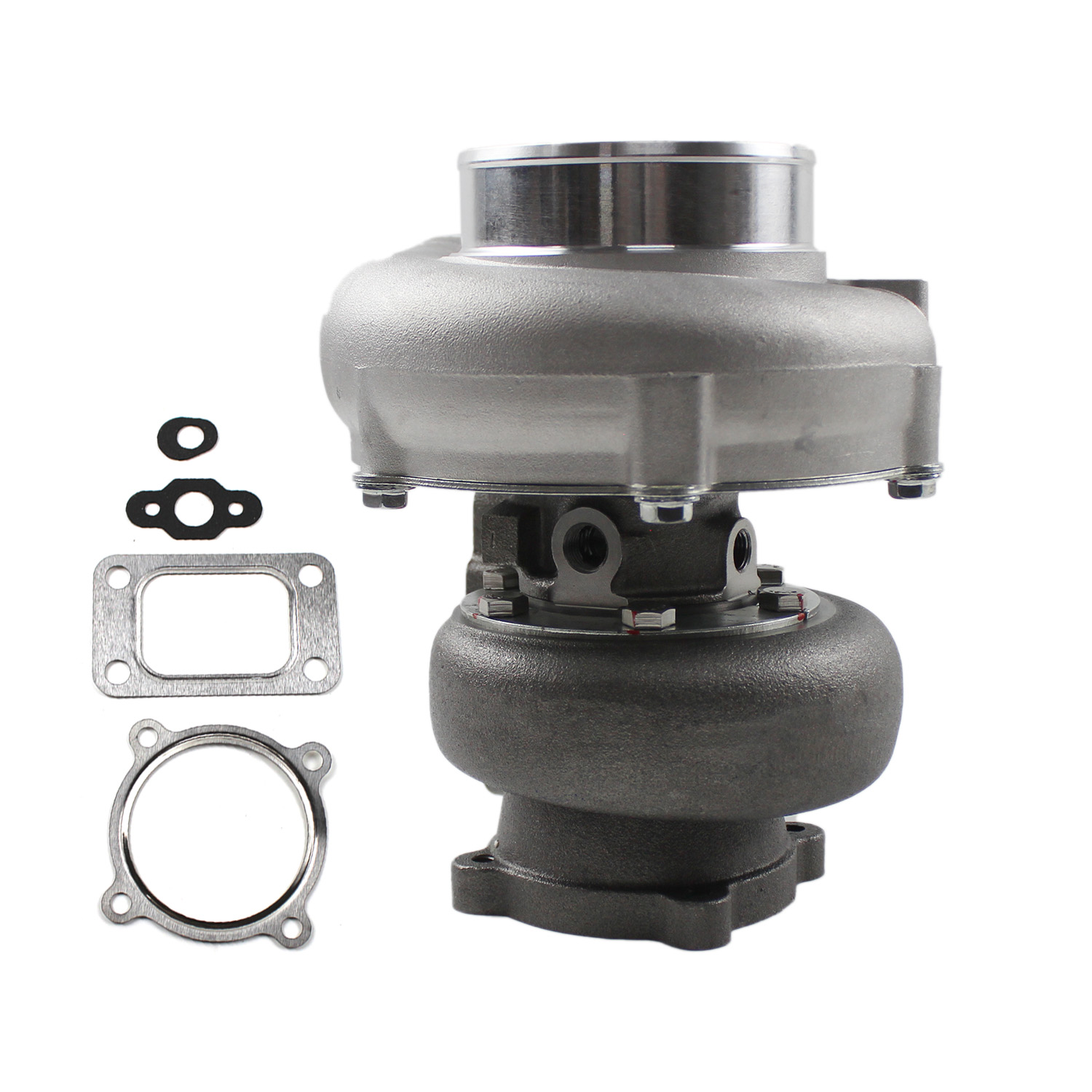

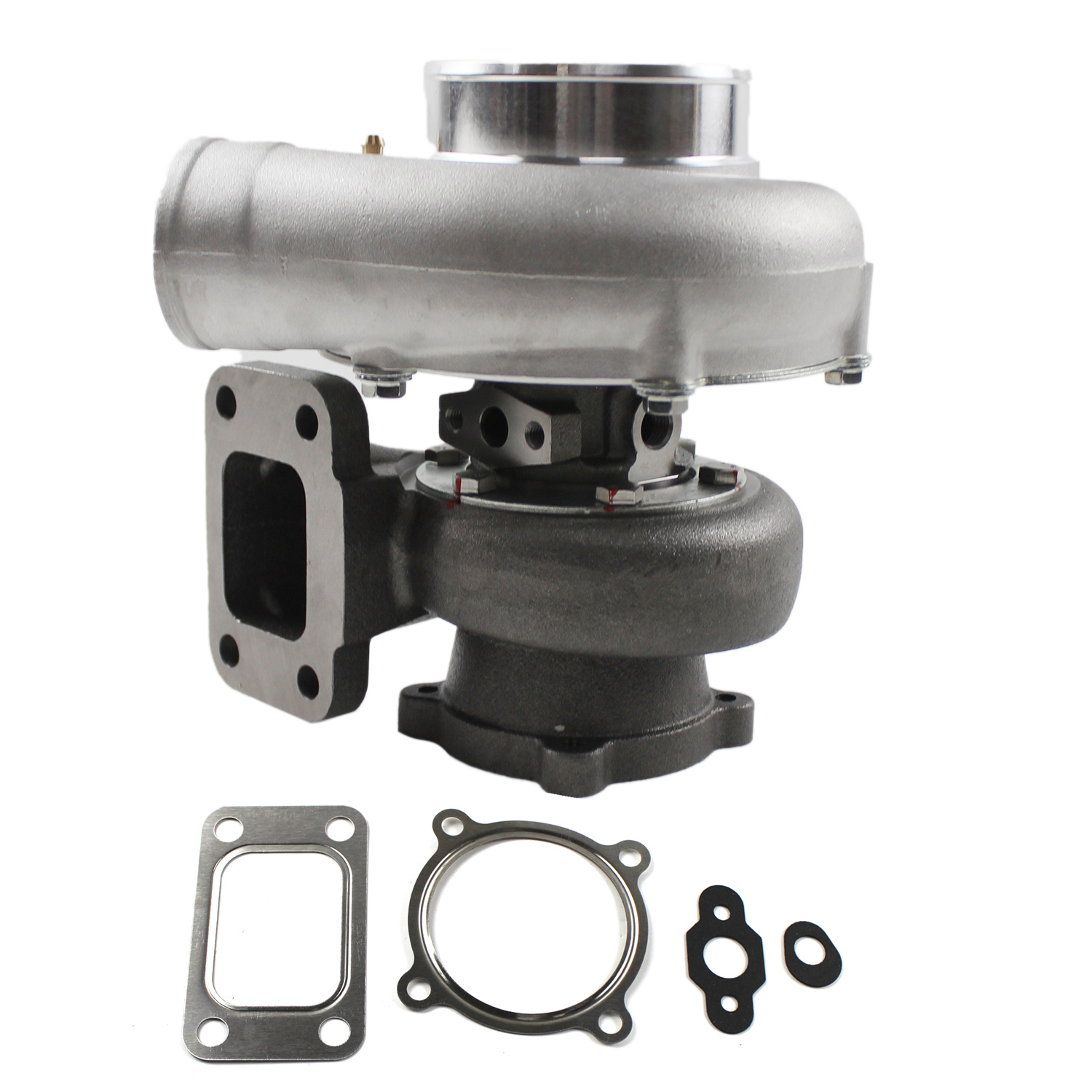

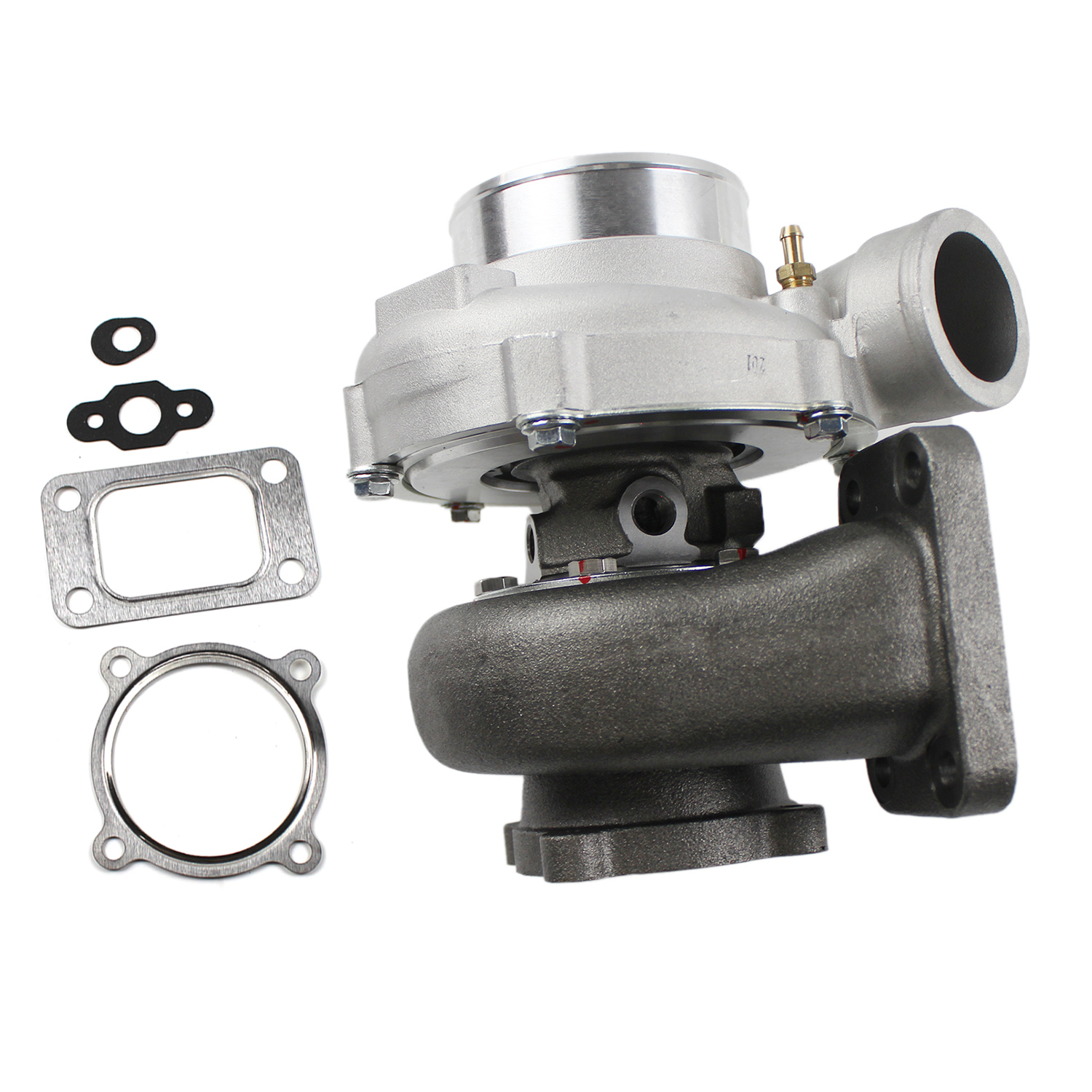

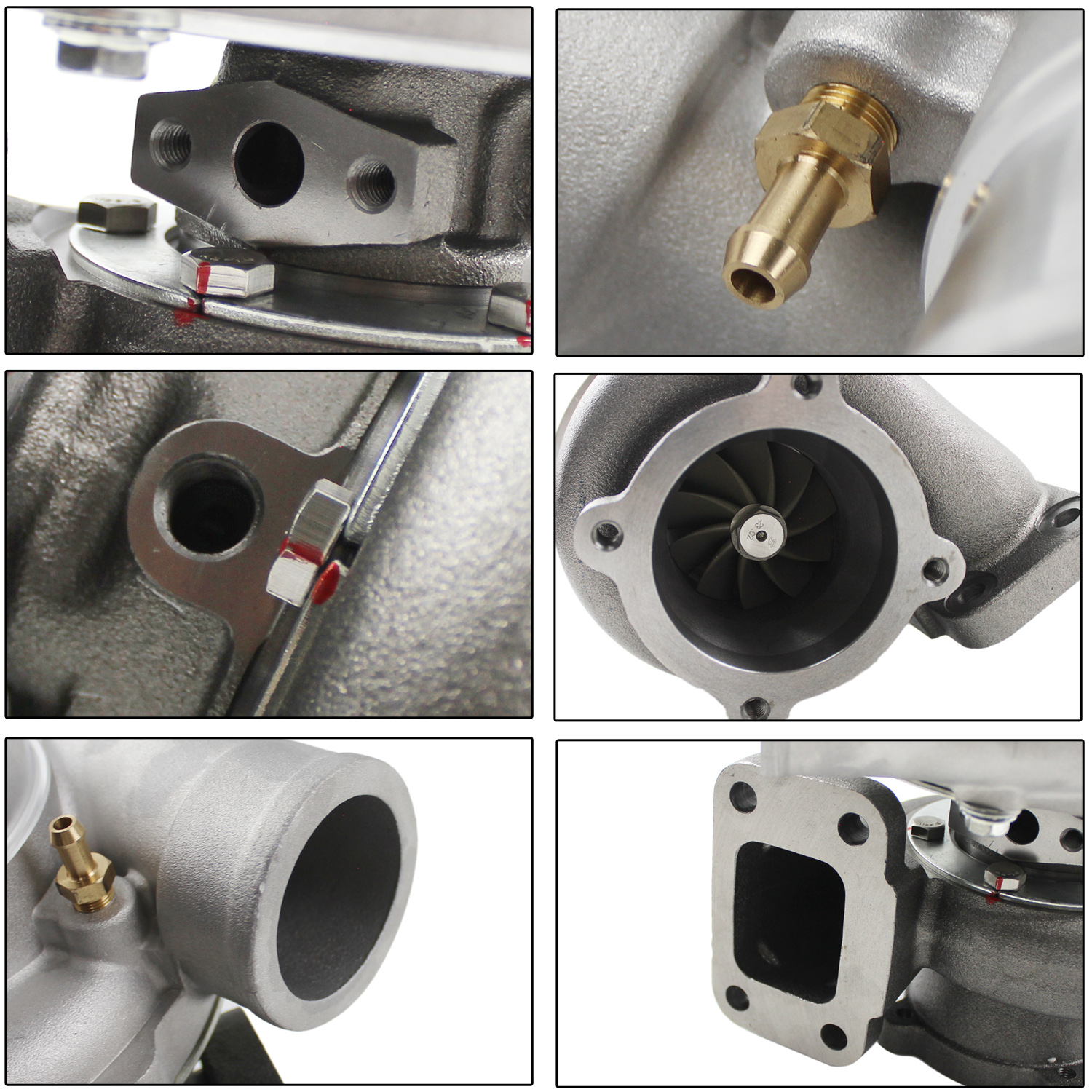

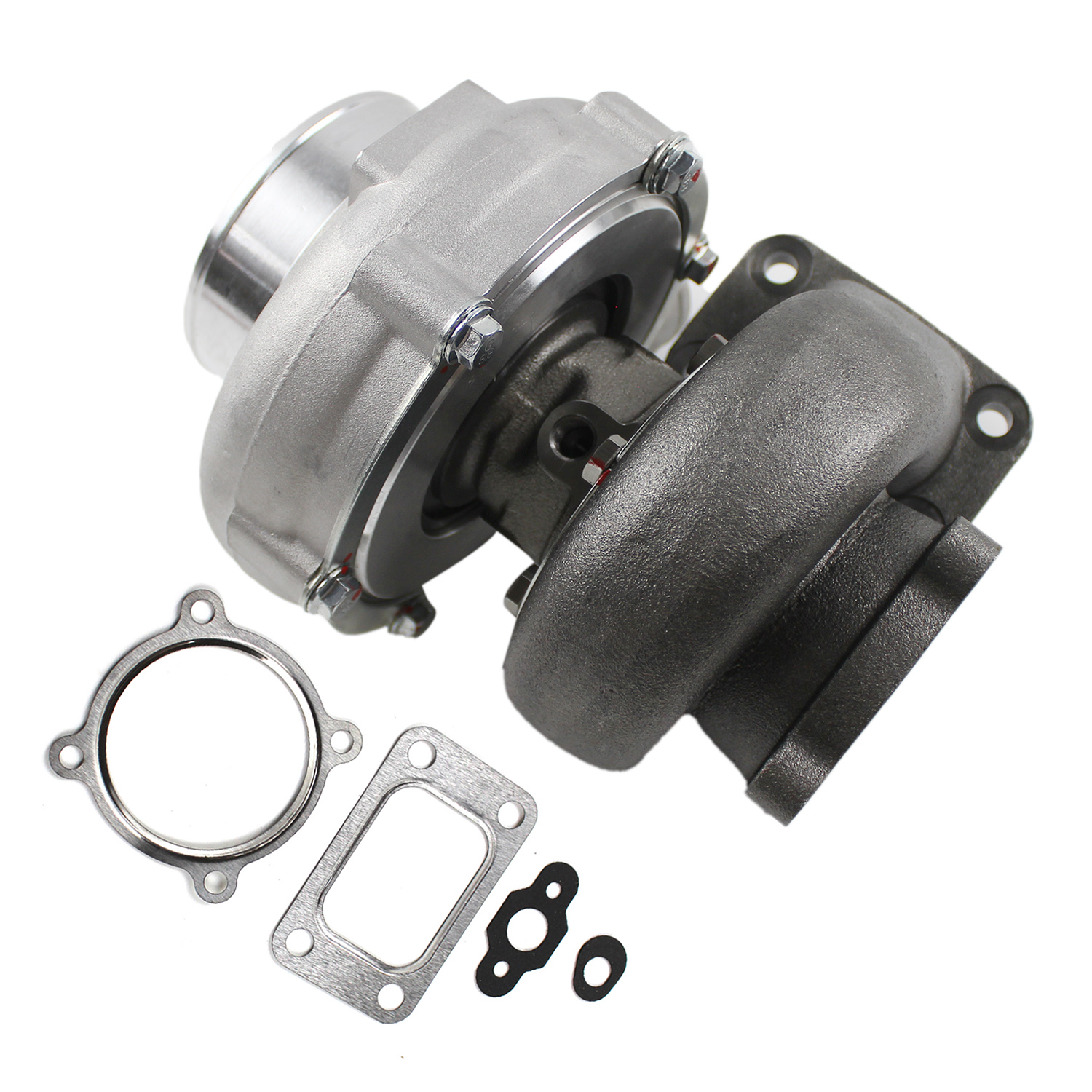

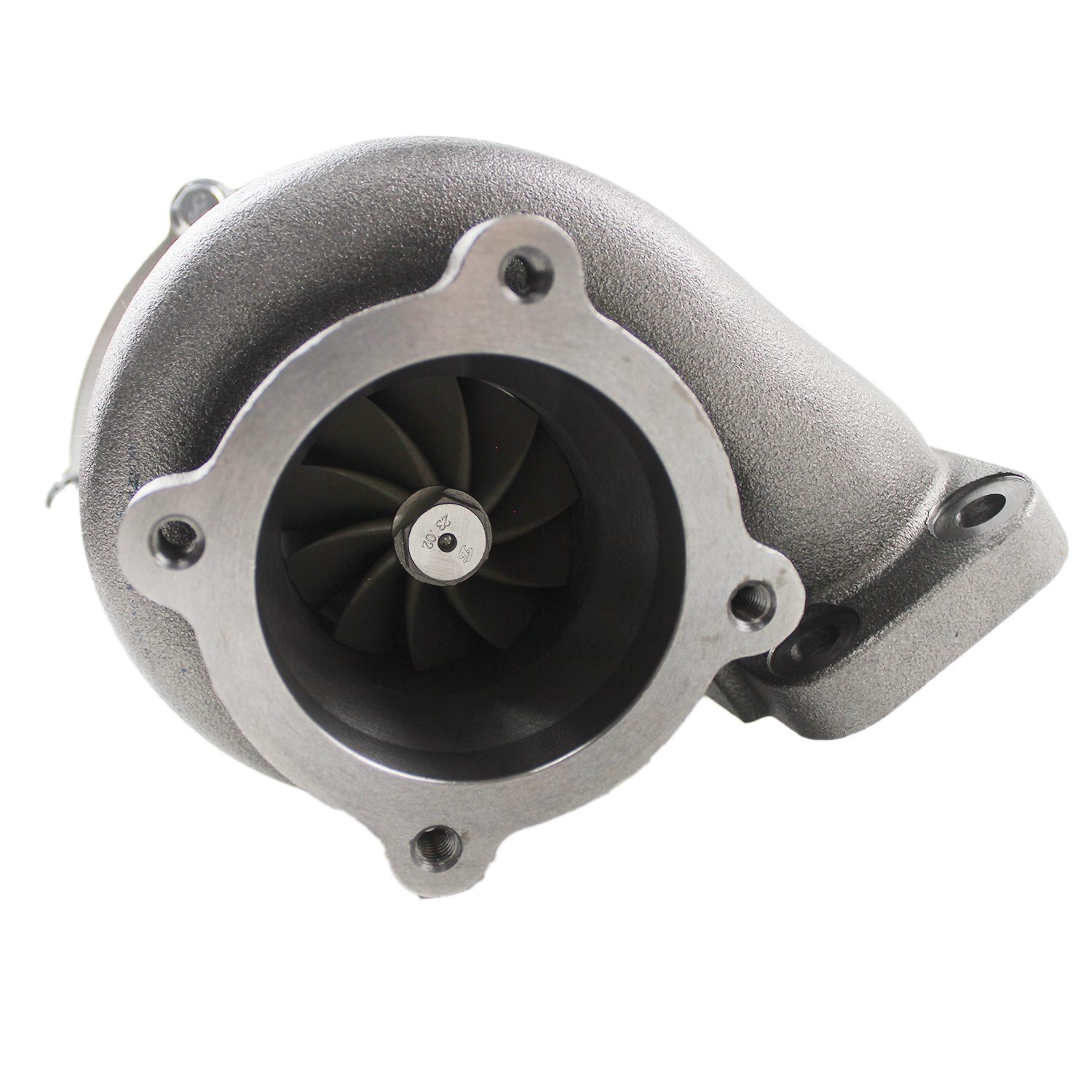

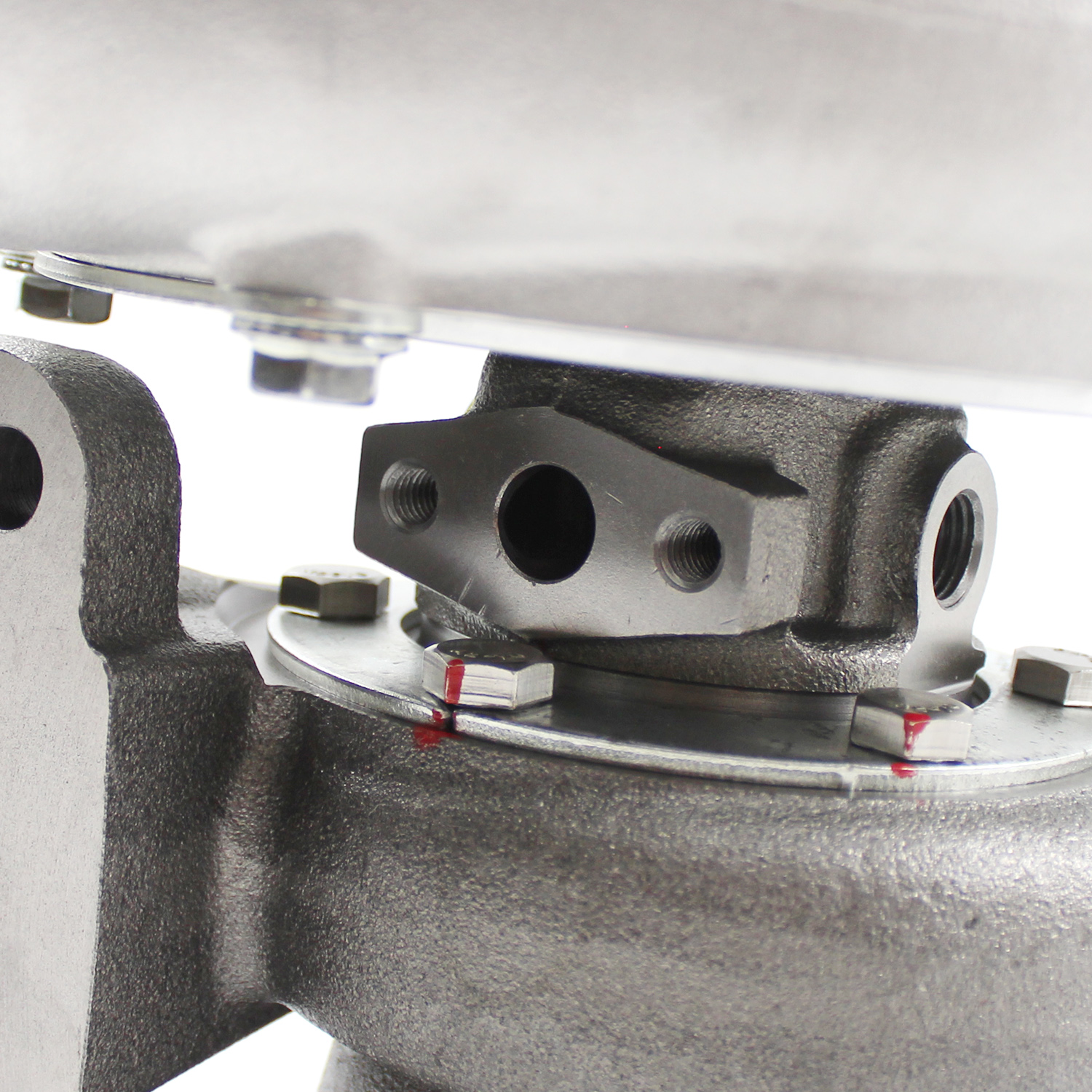

GT35 GT3582 Turbo Charger T3 AR.70/63 Anti-Surge Compressor Turbocharger Bearing
Product Description
GT35 GT3582 Turbo Charger T3 AR.70/63 Anti-Surge Compressor Turbocharger Bearing
Specifications
Size: 30x27x23cm
Weight: 8.85kg
Material: Iron
Color: Silver
Placement on Vehicle: Front
Compressor A/R: 0.7
Compressor Inducer Diamter: 61.5mm
Compressor Exducer Diamter: 81.5mm
Turbine A/R: 0.63
Turbine Inducer Diamter: 68mm
Turbine Exducer Diamter: 62.4mm

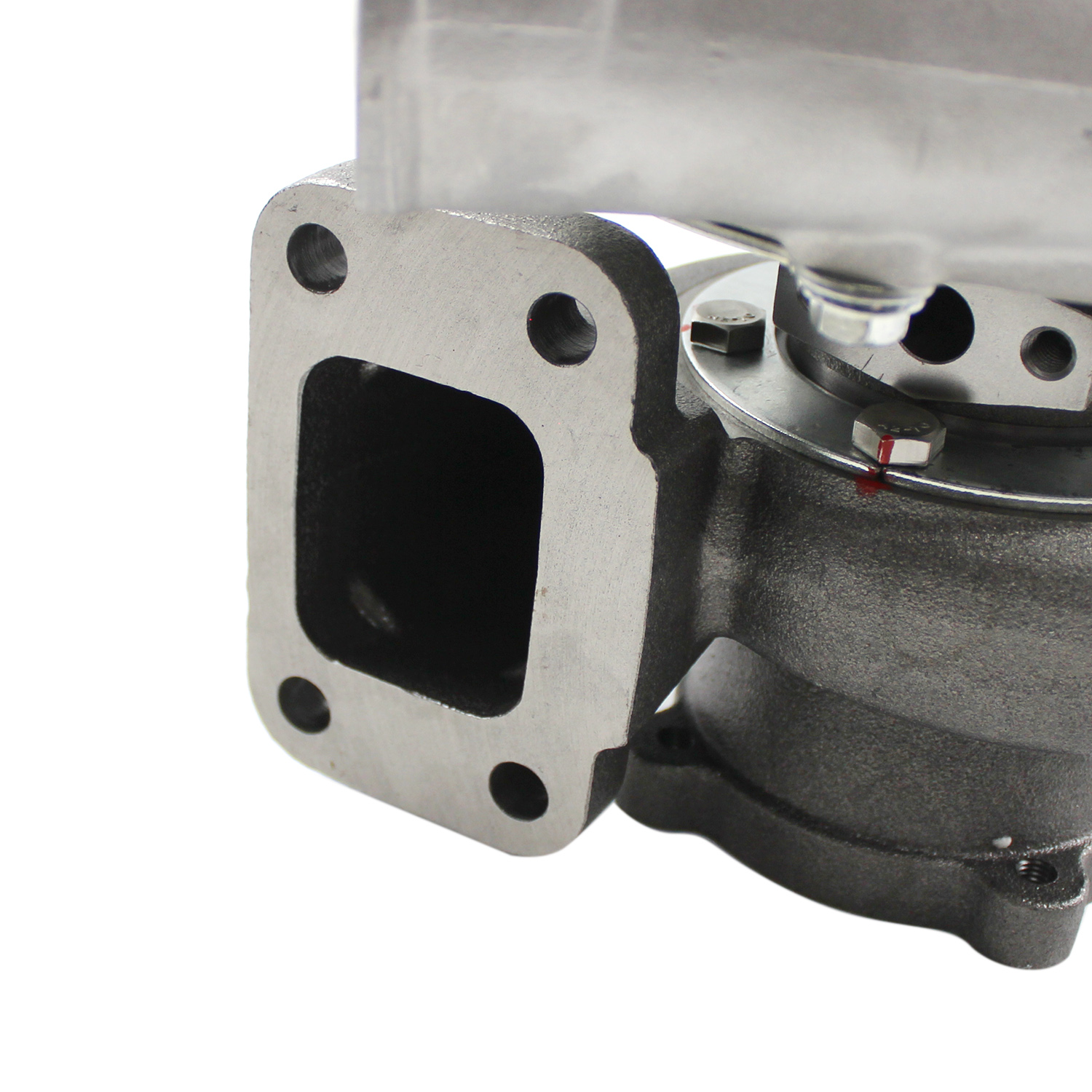

Exhaust (Turbo Manifold) Flange: T3 Flange
Fitment:
Bigger HP Applications, perfect for all 4/6 cylinder and2.5L-6.0L engines
for Honda B16/B18, K20, H22, F22 Engines
for Nissan SR20DET, RB20/25,
for Toyota 1JZ/2JZ, 7MGTE.
Also Works for Twin Turbos Applications for GM for SBC, for LSx,
for Ford 4.6, 5.0 Engines
Package Include:
One Piece of TURBO COMPRESSOR
Features:
1. Built to strict quality control standards 100% factory tested
2. OEM quality and size, almost no need to modify
3. The turbine housing is made of cast iron and can withstand temperatures up to 700 degrees Celsius or more
4. Cast aluminum blades have good air tightness and corrosion resistance
5. The steel turbine impeller made of special K418 alloy can achieve high oxidation resistance and stability at high temperatures up to 900 degrees Celsius
6. Durable: Water-cooled/oil-cooled structure extends turbine service life
7. 100% BALANCING TEST：This Turbocharger you will receive has been balanced using the VSR machine technology.
Attention:
We highly recommend you make sure the points below before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately. Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.
Note:
Regarding the Accidental Oil Leakage of The Turbocharger and The Treatment Method
Phenomenon 1: The oil consumption is large, but the exhaust smoke is normal and the power is not reduced.
Approach:
1. First, check whether the external oil pipes of the engine lubrication system (including the inlet and return pipes of the turbocharger)
are leaking.
2. Check the exhaust outlet of the turbocharger for organic oil. If there is organic oil, it can be determined that the seal ring at one end of the
turbine is damaged, and the seal ring should be replaced.
Phenomenon 2: The oil consumption is large, the exhaust gas emits blue smoke, but the power does not decrease.
Approach:
1.Open the air outlet of the compressor or the straight pipe (rubber hose) of the engine's air intake, and check whether the oil is adhered to
the nozzle and pipe wall. If yes, please check if the turbocharger return pipe is unblocked. If it is not unblocked, it is caused by excessive oil accumulation at the intermediate support. The oil return pipe should be dredged and reinstalled.
2.If it is unblocked, it is caused by damage to the seal ring or oil sling ring at one end of the impeller, and the turbocharger should be disassembled for repair.
Phenomenon 3: High oil consumption, blue or black smoke from exhaust, and power drop.
Approach:
1. Check whether there is inorganic oil in the wall of the air inlet straight hose, whether it is squashed, and the air flow is blocked or the
air filter element is blocked.
2. If the nozzle and pipe wall have organic oil, the air filter element should be cleaned or replaced.
Welcome to our eBay store!
Your one stop parts shop stockists of quality branded parts for your car.
We are a company completely dedicated to providing high quality improved design vehicle components.
Spare parts available for most models! We pride ourselves on supplying the part you need at affordable prices.
Our customer service team are second to none.
Please check out our items listed and do not hesitate to call us with any queries you may have.
We will be pleased to help in any way we can!
1.We accept PayPal, VISA, MasterCard, Debit Card through PayPal.
2. Import duties, taxes and customs clearance fees are not included in the item price or shipping charges.
These charges are the buyer’s responsibility.
1.For inventory items in the United States, your order is usually shipped within 1-2 days.
2.For products in stock in China：
Economy Shipping(Post/Airmail/DHL e-commerce): To USA 7-12 Working days , To other countries 20-50 Working days；
Expedited Shipping(FedEx/DHL/TNT/UPS): To USA 3-6 Working days ,To other countries 3-8 Working days.
3.Please make sure to provide us with correct , precise and detailed shipping address(home or office address) ,
correct phone number and full name.But not a postal mailbox/APO/FPO address .
4.If you don't receive package over 30 working days , please contact us via eBay message.
1. Any returned item(s) without Return authorization number will be rejected.
2. Please return your item(s) in original packaging and ensure that all packages are securely wrapped.
3. We will not accept responsibility for loss or damage of goods during transit,
please ensure that the insurance cover option is taken where possible.
4. Upon receipt, all products will be inspected at our discretion in 3-7 business days.
Then, the updated result will be informed.
1.Warranty against manufacture defect.
2.Replace/return are available if buyers receive wrong/damaged/defective items.
3.For replacement or return , buyer should keep the item in acceptable packing.
4.Before replace or return ,buyer should submit proof to us by pics if possible.
5.Anyway ,by nice communications ,we can find a way to make you satisfied
Copyright © 2022 Tongtool
| Brand: | Veiculos |
|---|---|
| Isin: | IXDZISGWIV6O |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
SAFE & SECURE SHOPPING
100% SATISFACTION GUARANTEED
FAST SHIPPING
Store Categories
- Other
- Others
- Engine Parts
- Camshafts
- Pistons, Rings, Rods & Parts
- Power Steering Pump
- Water Pumps
- Ignition Systems
- Engine Rebuild
- Turbos
- Side mirror
- Automatic Transmission
- Engine Overhaul kit
- Timing Kits
- Sensors
- Switches & Controls
- Air & Fuel Delivery
- Carburetors
- Starter
- A/C Compressors & Clutches
- Driveshafts
- A/C Condensers
- Engine Mounts
- Throttle Body
- Lift Kits
- Steering & Suspension
- Headlight Assemblies
- Alternator
- Brake Parts
- Emission Control System
- Radiator systems
- Intercooler systems
GT35 GT3582 Turbo Charger T3 AR.70/63 Anti-Surge Compressor Turbocharger Bearing
Product Description
GT35 GT3582 Turbo Charger T3 AR.70/63 Anti-Surge Compressor Turbocharger Bearing
Specifications
Size: 30x27x23cm
Weight: 8.85kg
Material: Iron
Color: Silver
Placement on Vehicle: Front
Compressor A/R: 0.7
Compressor Inducer Diamter: 61.5mm
Compressor Exducer Diamter: 81.5mm
Turbine A/R: 0.63
Turbine Inducer Diamter: 68mm
Turbine Exducer Diamter: 62.4mm
Exhaust (Turbo Manifold) Flange: T3 Flange
Fitment:
Bigger HP Applications, perfect for all 4/6 cylinder and2.5L-6.0L engines
for Honda B16/B18, K20, H22, F22 Engines
for Nissan SR20DET, RB20/25,
for Toyota 1JZ/2JZ, 7MGTE.
Also Works for Twin Turbos Applications for GM for SBC, for LSx,
for Ford 4.6, 5.0 Engines
Package Include:
One Piece of TURBO COMPRESSOR
Features:
1. Built to strict quality control standards 100% factory tested
2. OEM quality and size, almost no need to modify
3. The turbine housing is made of cast iron and can withstand temperatures up to 700 degrees Celsius or more
4. Cast aluminum blades have good air tightness and corrosion resistance
5. The steel turbine impeller made of special K418 alloy can achieve high oxidation resistance and stability at high temperatures up to 900 degrees Celsius
6. Durable: Water-cooled/oil-cooled structure extends turbine service life
7. 100% BALANCING TEST：This Turbocharger you will receive has been balanced using the VSR machine technology.
Attention:
We highly recommend you make sure the points below before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately. Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.
Note:
Regarding the Accidental Oil Leakage of The Turbocharger and The Treatment Method
Phenomenon 1: The oil consumption is large, but the exhaust smoke is normal and the power is not reduced.
Approach:
1. First, check whether the external oil pipes of the engine lubrication system (including the inlet and return pipes of the turbocharger)
are leaking.
2. Check the exhaust outlet of the turbocharger for organic oil. If there is organic oil, it can be determined that the seal ring at one end of the
turbine is damaged, and the seal ring should be replaced.
Phenomenon 2: The oil consumption is large, the exhaust gas emits blue smoke, but the power does not decrease.
Approach:
1.Open the air outlet of the compressor or the straight pipe (rubber hose) of the engine's air intake, and check whether the oil is adhered to
the nozzle and pipe wall. If yes, please check if the turbocharger return pipe is unblocked. If it is not unblocked, it is caused by excessive oil accumulation at the intermediate support. The oil return pipe should be dredged and reinstalled.
2.If it is unblocked, it is caused by damage to the seal ring or oil sling ring at one end of the impeller, and the turbocharger should be disassembled for repair.
Phenomenon 3: High oil consumption, blue or black smoke from exhaust, and power drop.
Approach:
1. Check whether there is inorganic oil in the wall of the air inlet straight hose, whether it is squashed, and the air flow is blocked or the
air filter element is blocked.
2. If the nozzle and pipe wall have organic oil, the air filter element should be cleaned or replaced.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| |
|  |
|  |
|  |
 |  |
|  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |
Welcome to our eBay store!
Your one stop parts shop stockists of quality branded parts for your car.
We are a company completely dedicated to providing high quality improved design vehicle components.
Spare parts available for most models! We pride ourselves on supplying the part you need at affordable prices.
Our customer service team are second to none.
Please check out our items listed and do not hesitate to call us with any queries you may have.
We will be pleased to help in any way we can!
1.We accept PayPal, VISA, MasterCard, Debit Card through PayPal.
2. Import duties, taxes and customs clearance fees are not included in the item price or shipping charges.
These charges are the buyer’s responsibility.
1.For inventory items in the United States, your order is usually shipped within 1-2 days.
2.For products in stock in China：
Economy Shipping(Post/Airmail/DHL e-commerce): To USA 7-12 Working days , To other countries 20-50 Working days；
Expedited Shipping(FedEx/DHL/TNT/UPS): To USA 3-6 Working days ,To other countries 3-8 Working days.
3.Please make sure to provide us with correct , precise and detailed shipping address(home or office address) ,
correct phone number and full name.But not a postal mailbox/APO/FPO address .
4.If you don't receive package over 30 working days , please contact us via eBay message.
1. Any returned item(s) without Return authorization number will be rejected.
2. Please return your item(s) in original packaging and ensure that all packages are securely wrapped.
3. We will not accept responsibility for loss or damage of goods during transit,
please ensure that the insurance cover option is taken where possible.
4. Upon receipt, all products will be inspected at our discretion in 3-7 business days.
Then, the updated result will be informed.
1.Warranty against manufacture defect.
2.Replace/return are available if buyers receive wrong/damaged/defective items.
3.For replacement or return , buyer should keep the item in acceptable packing.
4.Before replace or return ,buyer should submit proof to us by pics if possible.
5.Anyway ,by nice communications ,we can find a way to make you satisfied
Copyright © 2022 Tongtool
- Brand: Veiculos
- Color: Silver
- Compress Inlet Size(Air intake): 4 inch (103.5mm)
- Compressor A/R: 0.7
- Compressor Inducer/Exducer: 61.5mm/81.5mm
- Compressor Outlet Size: 2.5 inch (63.6mm)
- Cooling Type: Water and Oil Cooled
- Country/Region of Manufacture: Unknown
- Features: ANTI-surge
- Fitment Type: Direct Replacement
- Flange (Downpipe): 4-Bolt
- Flange (Turbo Exhaust): T3 Flange

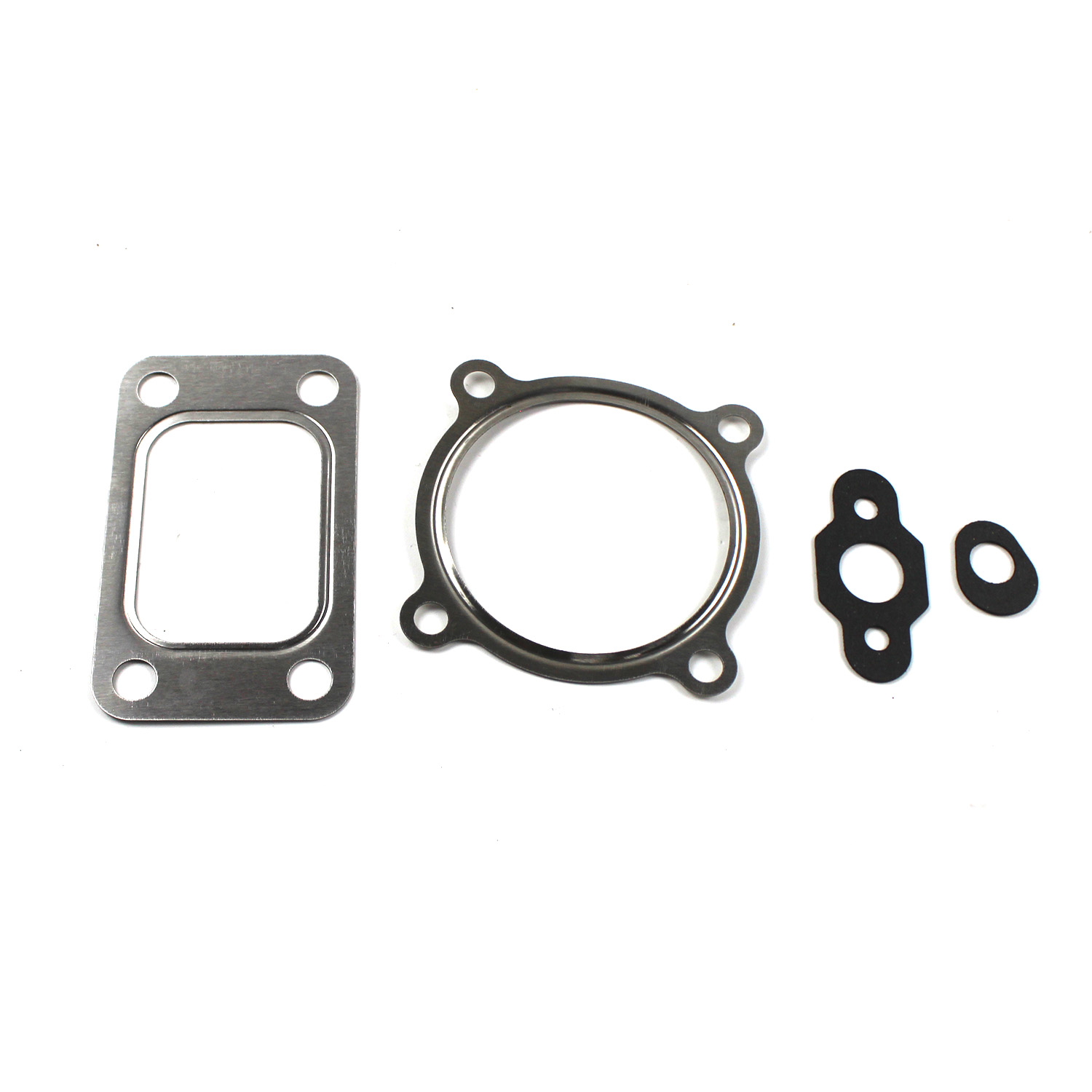

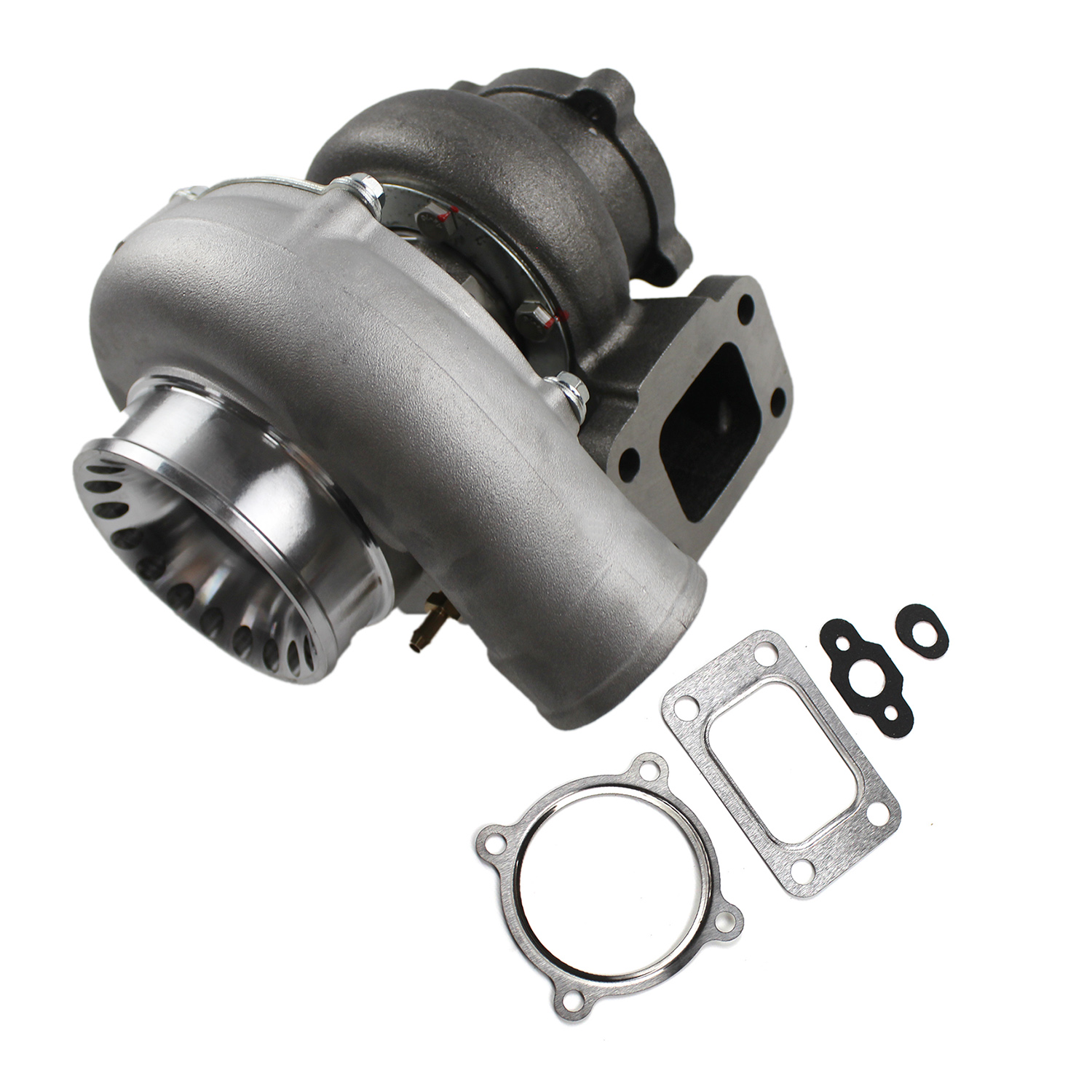

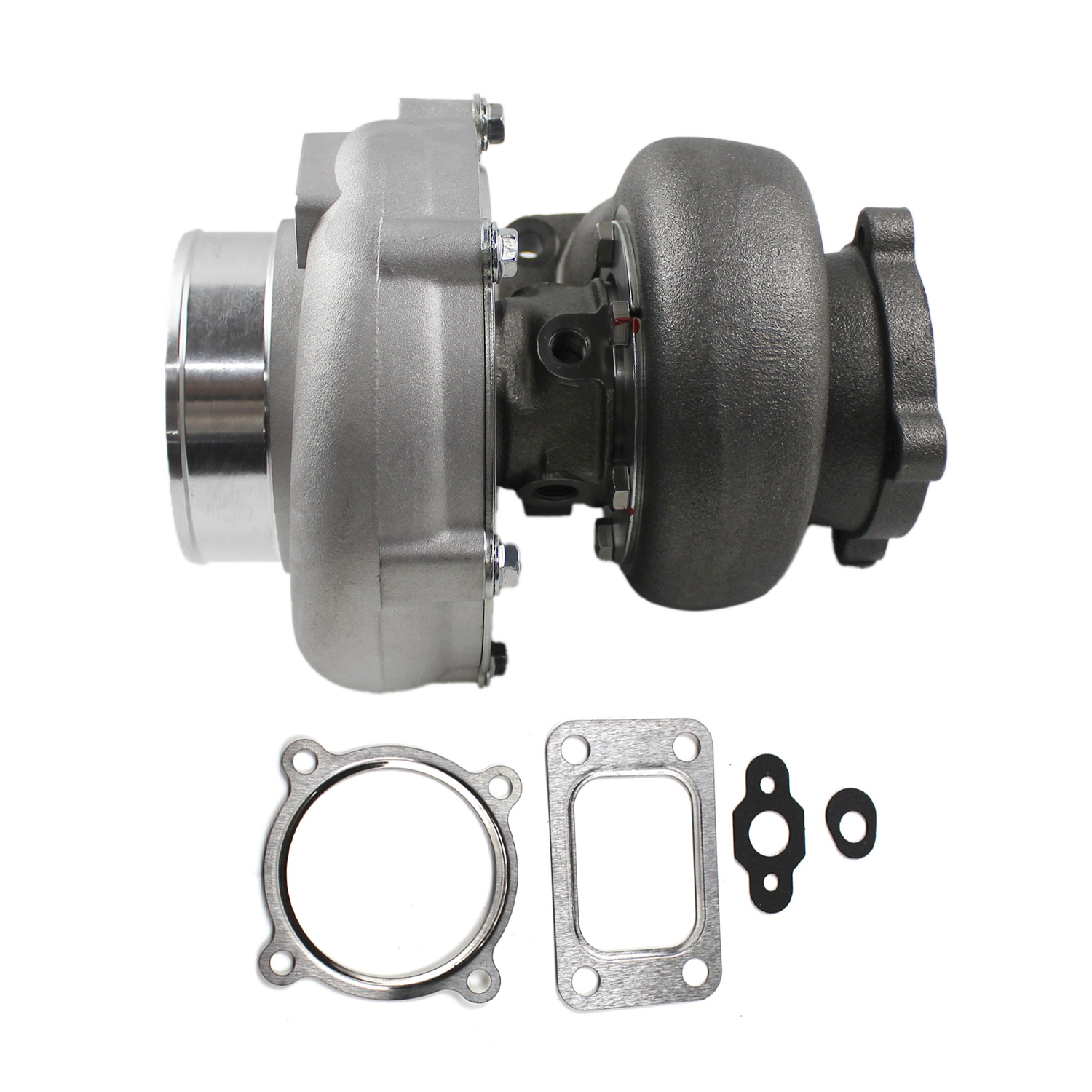

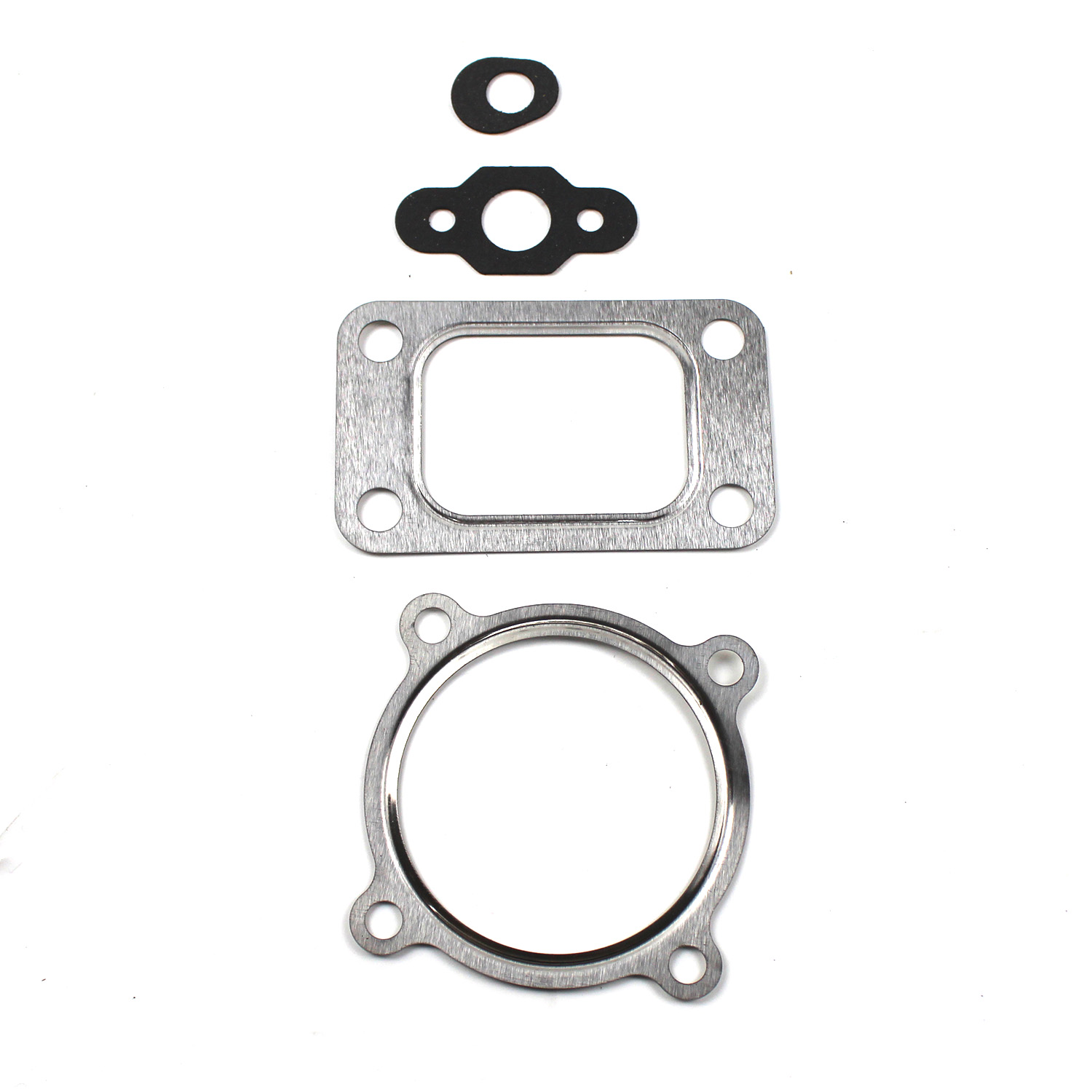

- Items Included: gasket
- Manufacturer Part Number: GT3582
- Manufacturer Warranty: 6 Months
- Note: No Instruction Included
- OE/OEM Part Number: T3 AR.70
- Placement on Vehicle: Front
- Turbine A/R: 0.63
- Turbine Inducer/Exducer: 68mm/62.4mm

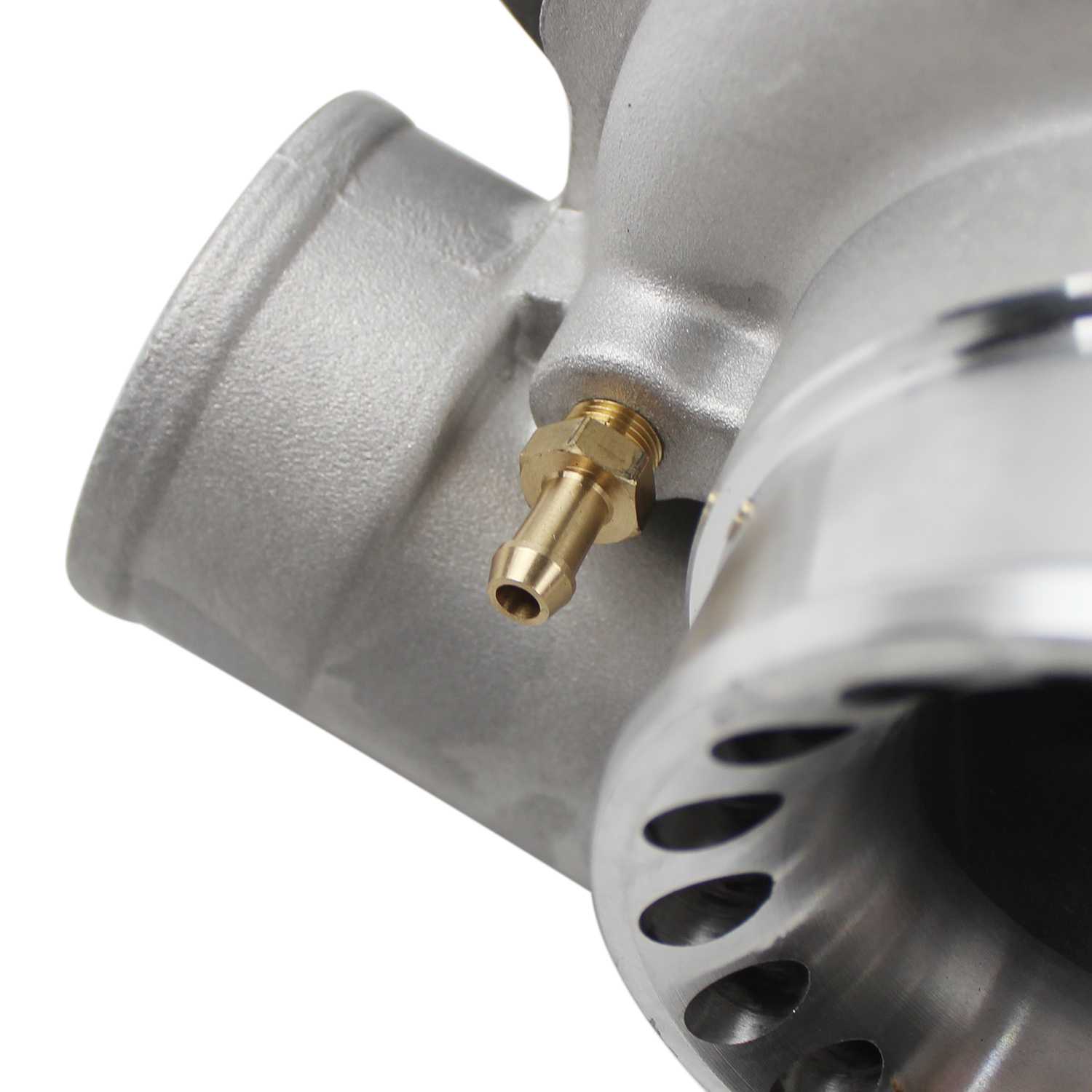

- Type: Turbo Charger
Processing Time
- We process and ship orders Monday through Friday, excluding holidays.
- Most orders are processed within 1–3 business days, depending on product availability.
- Processing time does not include delivery time, which varies based on your location and the product’s shipping origin.
Shipping Coverage
We currently ship to addresses within the United States only.
Products may ship from:
- Our U.S. warehouses, or
- Our international fulfillment centers (including Korea, Japan, China, Australia, Mexico, Canada, the United Kingdom, and the EU).
Each product page clearly displays the “Ships From” location before checkout.
Shipping Methods & Estimated Delivery
| Shipping Method | Estimated Delivery | Cost |
|---|---|---|
| Free Shipping (US) | 5–10 business days | Free, available on eligible items |
| Standard Shipping (US to US by Item) | 5–10 business days | $6.50 for the first item, $3.00 each additional |
| Standard Shipping (From US Warehouse by Weight) | 3–7 business days | Starts at $6.50, increasing by $2 for every additional 4 oz (0.25 lb) up to 1 lb, then by $4 for each additional pound beyond 1 lb. |
| Extended Delivery (Ships from Overseas Warehouse) | 10–15 business days | $14.50 for the first item, $4.00 each additional |
Shipping costs vary by product weight, quantity and origin. Exact rates and delivery estimates are displayed on each product page and confirmed during checkout.
Free Shipping
We offer free standard shipping on select products or during promotional periods. Availability of free shipping will be displayed on the product page and at checkout.
Carriers
We primarily use USPS and UPS for U.S. deliveries. Items shipped from international warehouses may be handled by partner carriers depending on the country of origin.
Import Duties & Taxes
All import duties and taxes for goods imported into the United States are included in the product price. There are no hidden fees or additional charges at checkout.
Tracking & Notifications
Every order is fully trackable. You will receive a tracking number via email once your order ships. If your order ships in multiple packages, each package will have its own tracking number. If you don’t receive a shipping confirmation immediately, your order is still being processed and will arrive within the estimated timeframe shown at checkout.
You can track your shipment anytime using the Track Your Order page on our website.
Order Changes & Cancellations
If you need to modify or cancel an order, please contact our customer support team as soon as possible. Orders can only be canceled before they ship. Once shipped, cancellations are not possible, but you may request a return after the item is delivered.
Contact: support@ibspot.com
Item Not Received
If your tracking number shows “Delivered” but you haven’t received your package:
- Check with your local USPS or UPS office.
- Confirm that the shipping address provided was correct.
- If the issue remains unresolved, contact support@ibspot.com for assistance.
Damaged or Lost Parcels
If your package arrives damaged or fails to arrive, please contact us immediately. For deliveries to P.O. boxes, ibspot is not responsible for damage caused by weather, temperature, or theft.
Customer Support
For any questions about shipping, tracking, or delivery, our customer support team is here to help.
Email: support@ibspot.com
We’re always happy to help.
Please read our policy carefully before making a purchase.
We aim to ensure every customer has a smooth and transparent experience with ibspot.com.
Order Cancellation Policy
Customers may request to cancel an order before it has been shipped.
Once the package has been shipped, cancellations are no longer possible; however, you may still request a return after receiving your order.
How to Request a Cancellation
You can contact us through:
-
Email: support@ibspot.com
-
Contact Form: Submit a request through our Contact Us page
Please submit your cancellation request as soon as possible after placing the order to allow us to process it before shipment.
Return Policy
We accept returns for most items within 30 days of delivery for a full refund.
To be eligible for a return:
-
The item must be unused, in the same condition as received, and in its original packaging.
-
A tracking number must be provided to confirm the return shipment.
Non-Returnable Items
Certain products cannot be returned, including:
-
Perishable goods (for example, food, flowers, newspapers, magazines)
-
Intimate or sanitary goods
-
Hazardous materials or flammable liquids/gases
-
Gift cards
-
Downloadable software
-
Some health and personal care items
Partial Refunds (If Applicable)
Partial refunds may be granted in specific situations, such as:
-
Books with obvious signs of use
-
Opened CDs, DVDs, software, or vinyl records
-
Items not in their original condition, damaged, or missing parts not due to our error
-
Items returned more than 30 days after delivery
How to Return an Item
To initiate a return, please contact us at support@ibspot.com with your order number and details about the product you wish to return.
Our team will provide you with return instructions and a prepaid return label.
Shipping Cost for Returns
Please contact us before returning any item.
We will provide a free return shipping label.
If a return is sent back without prior contact or without our provided label, we cannot be held responsible for return shipping costs.
For items valued over $75, we recommend using a trackable shipping service or purchasing shipping insurance.
We cannot guarantee that we will receive your returned item if shipped independently.
Refund Processing
Once your return is received and inspected:
-
In-store returns are refunded to the original form of payment or issued as a gift card.
-
Mail-in returns using our prepaid label are refunded to the original payment method within 3–5 business days after we receive your return.
Please allow:
-
5–7 business days for the return to reach our Returns Center.
-
An additional 3–10 business days for your bank to post the refund to your account.
Damages, Issues & Claims
Please inspect your order immediately upon receipt.
If you receive a defective, damaged, or incorrect item, contact us right away at support@ibspot.com.
We’ll evaluate the issue promptly and make it right.
Product Claims
Before purchasing, please review product details carefully.
If there is a problem with your order upon arrival, visit our Support Center or contact us directly to arrange return shipping or replacement.
Exchanges
We do not process direct exchanges.
The fastest way to get what you need is to return the original item and place a new order once your return is accepted.
Return Address
IBSPOT Return Center
15 Sawmill Ln
Dover Plains, NY 12522
United States
Customer Support
Our support team is available 24/7 to assist with cancellations, returns, or general inquiries.
Email: support@ibspot.com
Contact Form: Contact Us page
Oops!
Sorry, it looks like some products are not available in selected quantity.
