Variable Speed Controller SCR Voltage Controller Fit for Router Fan Electric Motor Rheostat AC 120V 220V/ 15A/ 4000W Max Black
Variable Speed Controller SCR Voltage Controller Fit for Router Fan Electric Motor Rheostat AC 120V 220V/ 15A/ 4000W Max Black
Variable Speed Controller SCR Voltage Controller Fit for Router Fan Electric Motor Rheostat AC 120V 220V/ 15A/ 4000W Max Black
- Compatible with 120V or 220V power input, 15A maximum current, the output voltage is 0-120V when the input is 120V, and the output voltage is 0-220V when the input is 220V.

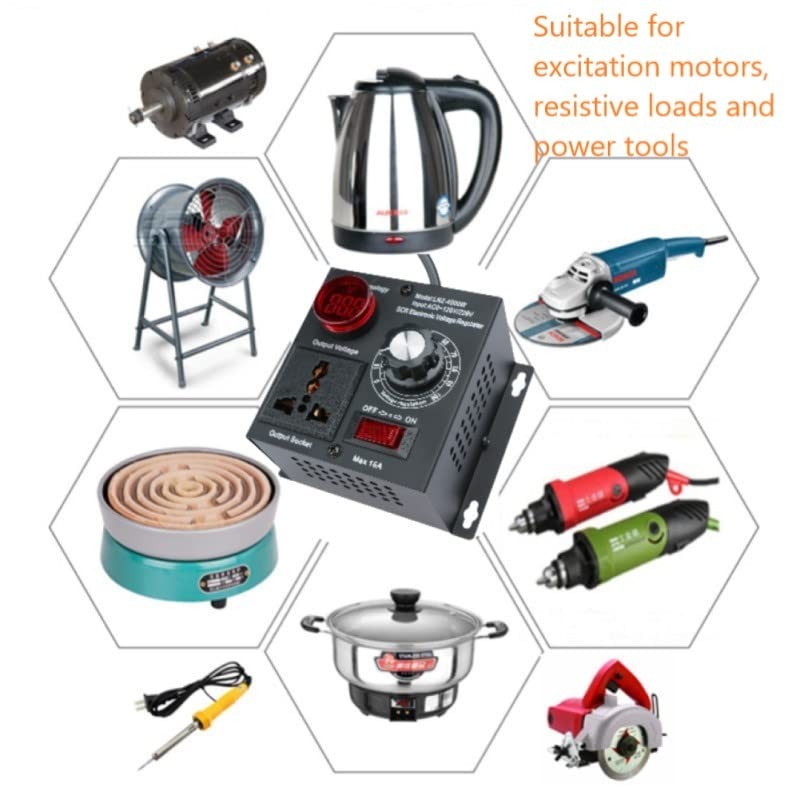

- Suitable for excitation motors, power tools and resistive loads, such as fans, hand-held routers, electric kettles, electric stoves, electric soldering irons, etc.;
- The maximum power of connecting inductive loads (such as fans and routers) is about 1500W, and the limit power of connecting resistive loads (such as electric furnaces, heating wires) is 4000W;

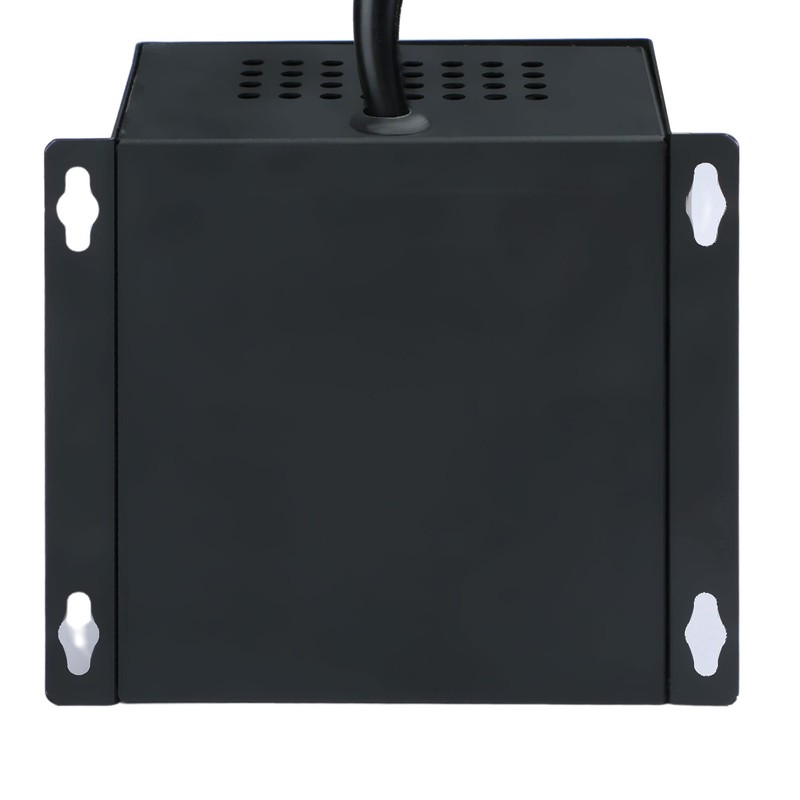

- Sturdy and durable metal casing, continuously adjustable output voltage, with holes on the back for easy installation and fixation;
- Warning, not suitable for smart appliances with complex circuit boards.
- Note, the above mentioned 4000W refer to the maximum power when working under ohmic load. The inductive load is 1/3 of the ohmic load. So it can only be used with devices within 100-2000W.
Brand: | L&Z |
---|---|
Color: | Black |
Manufacturer: | L&Z |
Part Number: | LXSCR00001 |
Product Dimensions: | 4.37 x 4.69 x 5.67 inches; 1.23 pounds |
Isin: | ILLSFXMD2TID |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Specifications:
Input voltage: AC 110-220V, 50/60Hz
Output voltage: 0-110V(110V input), 0-220V(220V input)
Normal current: 9A
Max current: 18A
Fuse: 15A
Maximum output power: 4000W
Material: metal, plastic
Weight: 1.08lb
Dimensions: 4.53*3.74*3.15*in
Notice:
1. Some motors do NOT support voltage regulation (for example, single-phase motors, dual-value capacitor motors, asynchronous motors, pumps, etc. are NOT supported.)
motor-type equipment can only be adjusted:
1): without the capacitor fan
2): power tools: hand drill, angle grinder, electric screwdriver, etc.
2.The input voltage is 0-110V, then the output voltage is 0-110V.
The input voltage is 0-220V, then the output voltage is 0-220V.
So both 110v and 220v can be used as the input voltage, But both cannot work at the same time. And it Input alternating current, the output is also alternating current, not direct current.
3. The measurement of the output voltage in the empty state is a virtual voltage. It must be connected to a load of 100W or more to measure the correct output voltage.
4.The above mentioned 4000 W refer to the maximum power when working under ohmic load. The inductive load is 1/3 of the ohmic load. The ohmic load relates to the tungsten light bulb, the heating wire, etc. The inductive load relates to the series exciter motor. There are electronic products for printed circuit boards that are used with caution.
5. This product is a metal housing and must be securely earthed.
