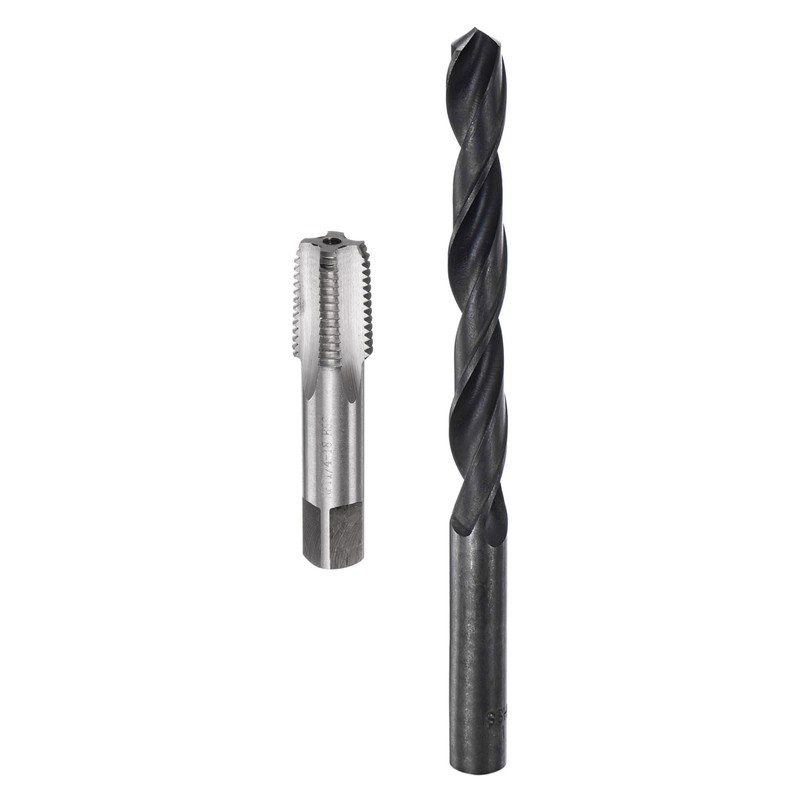

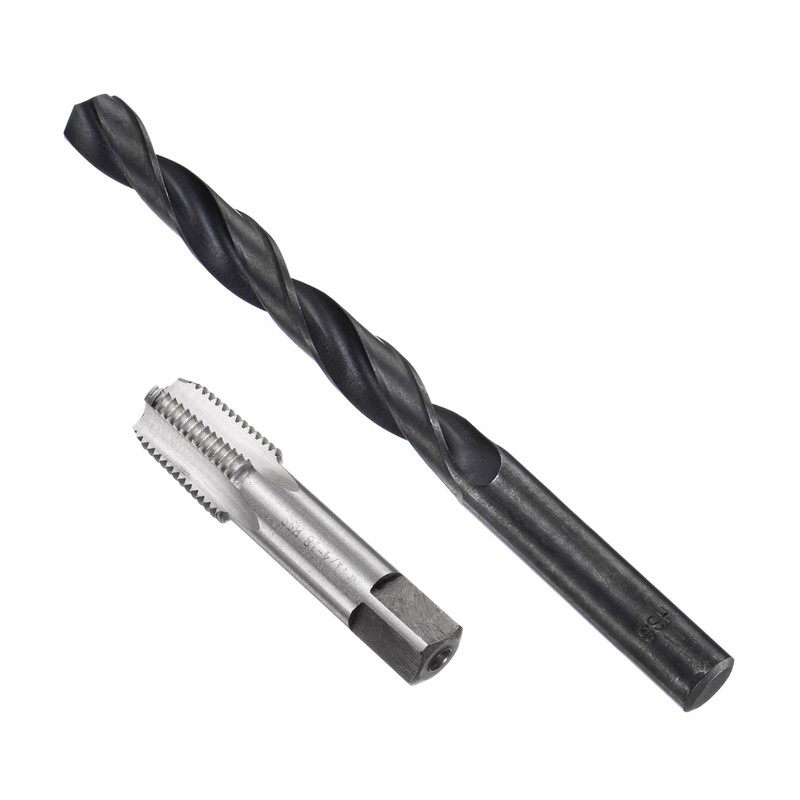

uxcell Tap and Drill Bit Set, 1/4-18 NPT Thread Tap & 7/16" Black Oxide Twist Drill Bit, Straight Flute Tap Tapping Threading Repair Tool Kit
uxcell Tap and Drill Bit Set, 1/4-18 NPT Thread Tap & 7/16" Black Oxide Twist Drill Bit, Straight Flute Tap Tapping Threading Repair Tool Kit
uxcell Tap and Drill Bit Set, 1/4-18 NPT Thread Tap & 7/16" Black Oxide Twist Drill Bit, Straight Flute Tap Tapping Threading Repair Tool Kit
- Tap and Drill Bit Set: Tap thread size: 1/4-18 NPT; drill bit size: 11.1mm / 7/16". 6542 (M2) high speed steel tap and drill bit set offers excellent heat resistance and hardness for durability and longevity, and good cutting performance.
- Wide Applications: Create new threads or re-thread damaged or jammed threads. Thread tap can process through holes or shallow blind holes, with downward chip removal, right-hand cutting, and fast and accurate tapping. Suitable for most metals, cast iron, aluminum, stainless steel, aluminum alloy, bronze and hard plastics.
- Features: Black oxide coating on drill bits improves durability, corrosion resistance and lubricity, and helps reduce friction and heat, extending tool life. Twist drill bit has sharp cutting edges and large spiral grooves, which provide neat and smooth cuts and facilitate the export of metal chips.
- Easy to Use: Machine taps are used in drill presses, tapping, CNC and milling machines. Use with appropriate lubricant (such as cutting fluid or oil) to get higher quality threads and more durable tap & drill bit. Not recommended for hand use and electric drill tapping.
- Tips: Drill holes with a twist drill bit first, then tap with a thread tap. Tapping and drilling angle should be 90 degrees vertical and stable. The higher the hardness, the slower the speed. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, the diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)
Brand: | uxcell |
---|---|
Size: | 1/4-18 NPT |
Color: | Black |
Manufacturer: | uxcell |
Part Number: | SFF3GWH |
Material Type: | 6542 (M2) High Speed Steel |
Isin: | IURJNGANQJPY |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Thread Size: 1/4-18 NPT; Thread Length: 20mm / 0.79"; Square Shank Size: 9mm / 0.35"; Total Length: 60mm / 2.36"; Accuracy: H2
1pcs Twist Drill Bit:
Cutting Edge Diameter: 11.1mm / 7/16"; Shank Diameter: 11.1mm / 7/16"; Cutting Edge Length: 92mm / 3.62"; Total Length: 143mm / 5.63"
Descriptions:6542 (M2) high speed steel tap and drill bit set offers excellent heat resistance and hardness for durability and longevity, and good cutting performance. Uncoated thread tap is great for a wide range of applications.

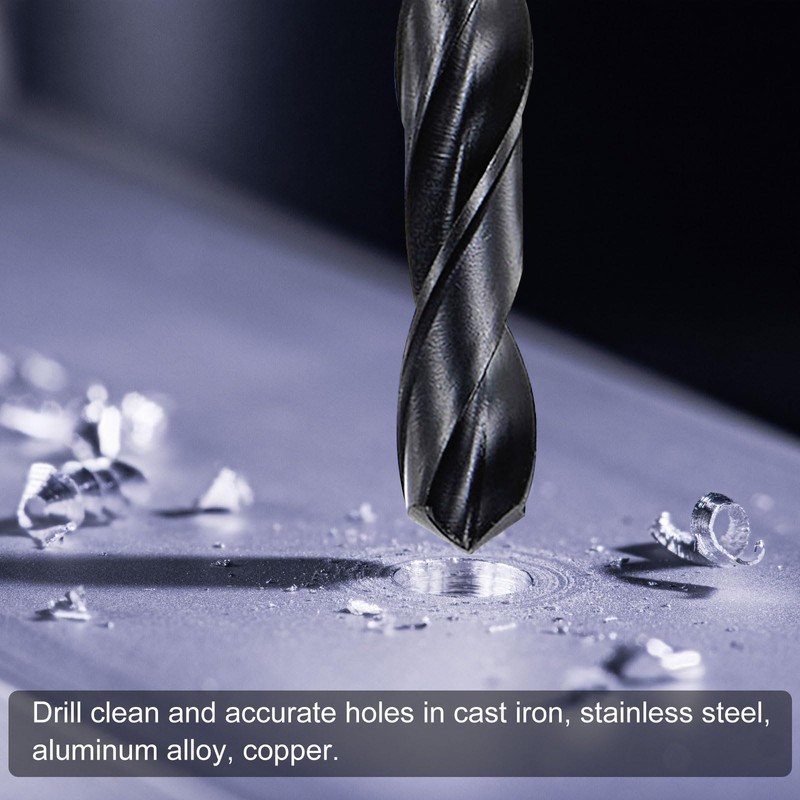

Black oxide coating on drill bits improves durability, corrosion resistance and lubricity, and helps reduce friction and heat, extending tool life. Twist drill bit has sharp cutting edges and large spiral grooves, which provide neat and smooth cuts and facilitate the export of metal chips.

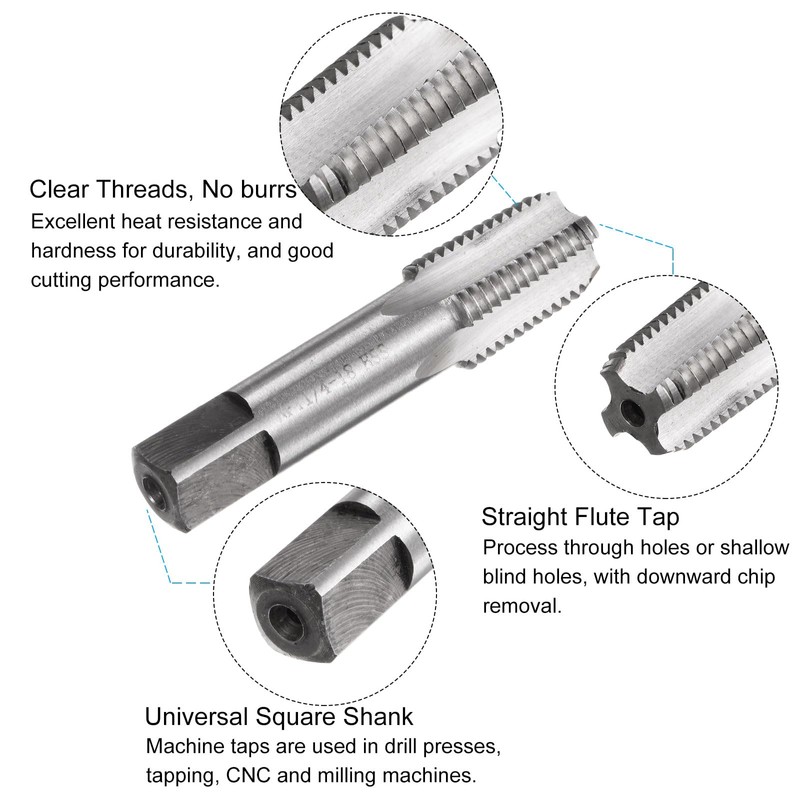

Straight flute tap can process through holes or shallow blind holes, with downward chip removal, clear threads, no burrs, right-hand cutting, and fast and accurate tapping. Suitable for most metals, cast iron, aluminum, stainless steel, aluminum alloy, bronze and hard plastics.
Machine taps are used in drill presses, tapping, CNC and milling machines. Use with appropriate lubricant (such as cutting fluid or oil) to get higher quality threads and more durable tap & drill bit. Not recommended for hand use and electric drill tapping.
Tips: Drill holes with a twist drill bit first, then tap with a thread tap. The tapping and drilling angle should be 90 degrees vertical and stable. The higher the hardness, the slower the speed.
The tapping depth should not exceed 1.5 times the diameter of the tap (for example, the diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)
