Unbranded Premium Analog Audio To Digital PCM Audio Converter

Brand: Unbranded
Analog Audio To Digital Optical S/PDIF Audio Converter

Analog Stereo Audio To Digital Optical S/PDIF Audio Format Converter
This high quality ADC (Analog to Digital Converter) is designed for converting from stereo L/R input to Coaxial S/PDIF and Toslink Optical outputs simultaneously.

A great ADC unit for converting from analog audio devices like DVD player, iPod/MP3, computer to digital audio for audio receiver, amplifier, home theater system, speaker and other receiving devices.

Real-Time Audio Signal Conversion
This unit adopts the advanced audio encoding hardware chip to transcode the audio information digitally with precision. The digital output audio signal of this A/D converter is 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz, which is the standard form for digital audio on audio compact disks.

Dual Digital Audio Outputs
This analog to digital audio converter is very useful when audio equipments to be interfaced with do not have matching audio interconnects. Its simultaneous digital optical and digital coaxial outputs can be used at the same time for maximum installation flexibility.

Also great when pre-installed audio wiring requires stereo audio to travel over one coaxial cable. It is also perfect for use with baluns that only offer digital audio pathways.

24-Bit Bit Stream With 96kHz Sampling Rate
This audio converter supports sampling rate at 32,44.1,48 and 96kHz with 24-bit S/PDIF bit stream.

Digital Audio Repeater
This digital audio converter can be used as audio signal repeater.

Both Optical Fiber and Coaxial cables connected to the outputs of this digital audio converter can run up to 16 feet while maintaining the audio signal level true to the original all the way during the signal transmission with no degradation for maximum fidelity.

Professional AD Converter
This unit adopts the advanced audio encoding hardware chip to transcode the audio information digitally with precision.

The resulting digital audio output from this multi-purposed audio processor is 2-channel uncompressed LPCM type with sampling rate.

  • High-performance stereo audio analog-to-digital (A/D) S/PDIF converter designed for professional and home audio applications.
  • Adopts the advanced audio encoding hardware chip to transcode the audio information digitally with precision.
  • Converts any analog stereo audio signal into both digital coaxial and digital optical audio formats.
  • Provides simultaneous digital optical output and coaxial S/PDIF output for maximum installation flexibility.
  • Supports uncompressed 2-channel PCM digital audio output.
  • Supports digital audio output sampling rate at 48KHz.
  • Supports sampling rate at 32,44.1,48 and 96kHz.
  • 24-bit S/PDIF bit stream on left and right channels.
  • Legacy audio sources such as a tape deck or VCR can be converted to 2.0 PCM for integration with an amplifier's digital input.
  • This digital audio converter can be used as audio signal repeater.
  • Audio cables connected to the outputs of this converter can run up to 16 feet with the original sonic quality retained  all the way with no degradation for maximum fidelity.
  • Provides electromagnetic-noise-free transmission.
  • Compact size with low power consumption.

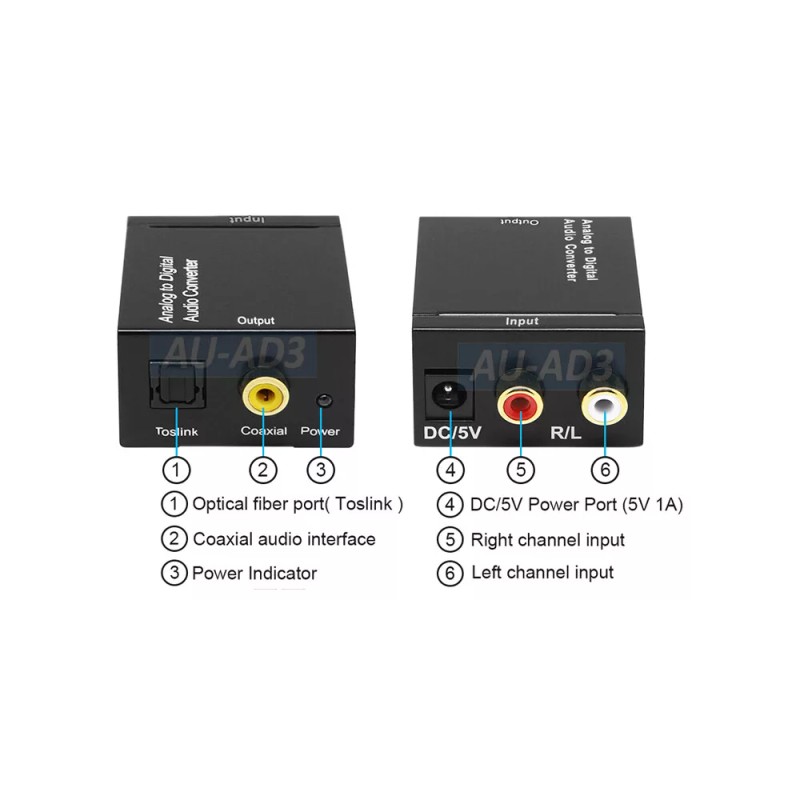

  • Analog Audio Inputs:
    • Stereo RCA L/R
    • 3.5mm
  • Digital Audio Outputs:
    • Optical digital audio output x 1 via Toslink Connector
    • Coaxial digital output x 1 via RCA Connector
  • Frequency Response: < +/- 0.5dB 20Hz-20kHz
  • Crosstalk: < -85dB
  • RMS Level: 1.0 Vrms analog input at the -7.4 dBFS digital output level
  • Operating temperature: 0 to-70C
  • Bandwidth: 20Hz to 20 KHz
  • Audio Sampling Rate: 48kHz
  • Power Supply: 110-240V AC input with 5V DC 1A output
  • Digital audio converter
  • 5V DC power adapter
Brand: Unbranded
Isin: IXNZ6JMNCUUU

$50.09

$50.44
1% off
  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Unbranded Premium Analog Audio To Digital PCM Audio Converter

Unbranded Premium Analog Audio To Digital PCM Audio Converter

$50.09 $50.44 (1% off)

Analog Audio To Digital Optical S/PDIF Audio Converter

Analog Stereo Audio To Digital Optical S/PDIF Audio Format Converter
This high quality ADC (Analog to Digital Converter) is designed for converting from stereo L/R input to Coaxial S/PDIF and Toslink Optical outputs simultaneously.

A great ADC unit for converting from analog audio devices like DVD player, iPod/MP3, computer to digital audio for audio receiver, amplifier, home theater system, speaker and other receiving devices.

Real-Time Audio Signal Conversion
This unit adopts the advanced audio encoding hardware chip to transcode the audio information digitally with precision. The digital output audio signal of this A/D converter is 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz, which is the standard form for digital audio on audio compact disks.

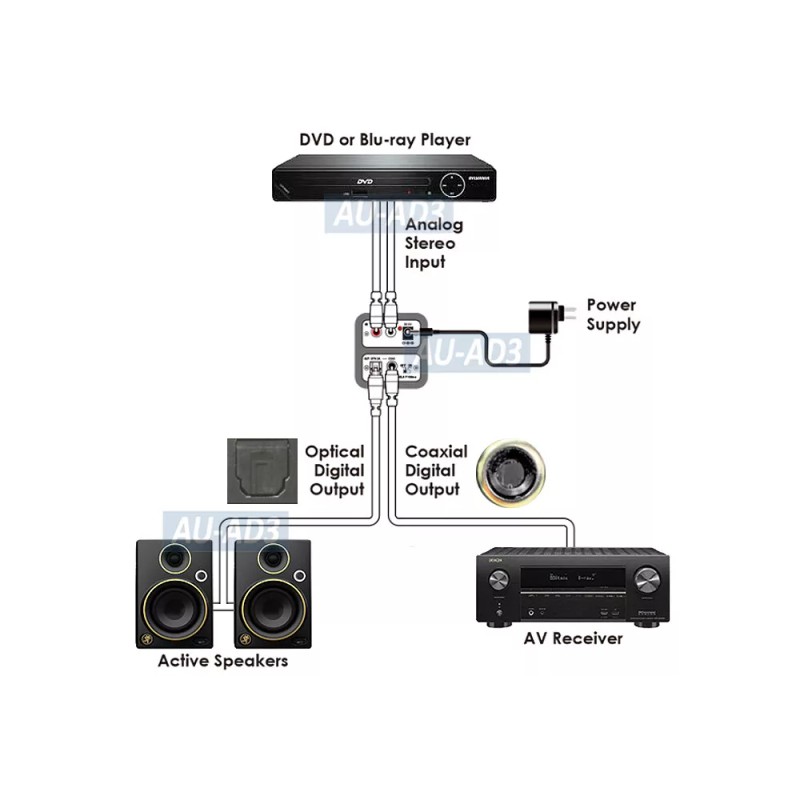

Application Diagram For Analog Stereo To Digital Optical S/PDIF Audio Converter

Dual Digital Audio Outputs
This analog to digital audio converter is very useful when audio equipments to be interfaced with do not have matching audio interconnects. Its simultaneous digital optical and digital coaxial outputs can be used at the same time for maximum installation flexibility.

Also great when pre-installed audio wiring requires stereo audio to travel over one coaxial cable. It is also perfect for use with baluns that only offer digital audio pathways.

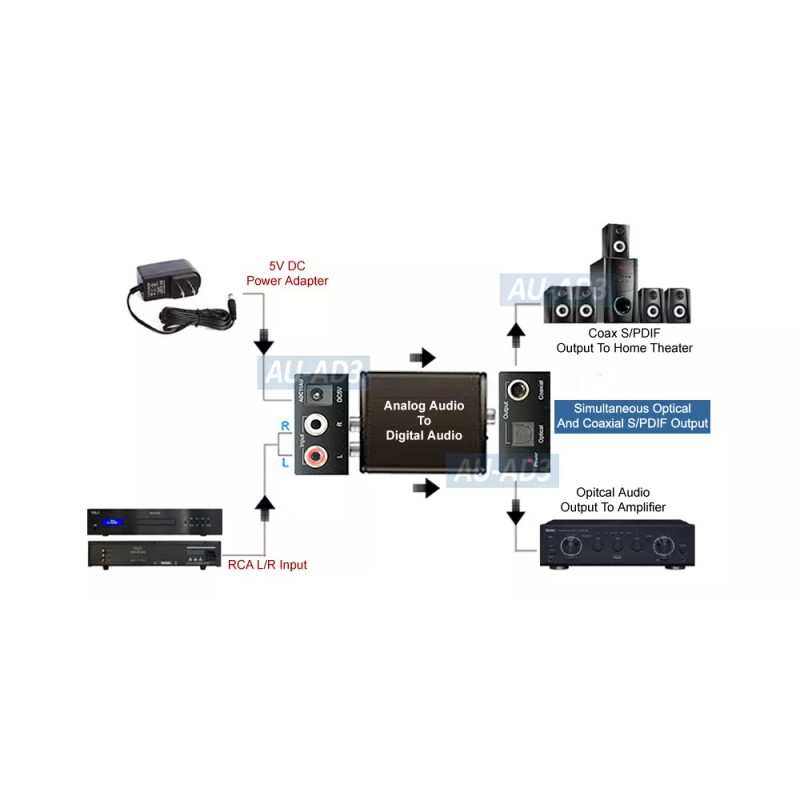

Application Diagram For Analog Stereo To Digital Optical S/PDIF Audio Converter
