Mini 4-Channel USB Quad Video DVR Adapter For
Computer
This 4-channel mini quad video DVR combines 4 BNC or RCA video inputs together into different styles of split-screen views for one screen display and recording too.
It is ideal for security surveillance, nursery care, home entertainment, driving vehicle, game playing and so on.
Users have the option to connect the quad video processor to a PC or Mac for recording
through using the supplied USB DVR adapter for recording, viewing and
playback on computer monitor.
This multi-view screen video processor can also provides various split screen mode options for viewing multiple video feeds or cameras at the same time.
Compatible with all analog video camera such as wired or wireless surveillance camera, microscope or camcorder.
For a fast, easy, and economical home surveillance solution, this quad video DVR kit is the premium product of choice.
Multiple Composite Video Inputs
Unit is built with 4 RCA video inputs with 1 RCA output. It is also able to accommodate
BNC video inputs and BNC video output too through using RCA to BNC adapters (not
included)
Stand Alone Operation
The quad video processor can work alone for displaying the cameras or videos
on TV or monitor directly.
Users can use the IR remote or push buttons on the front panel for selecting video output mode, auto channel switching or video input channel.

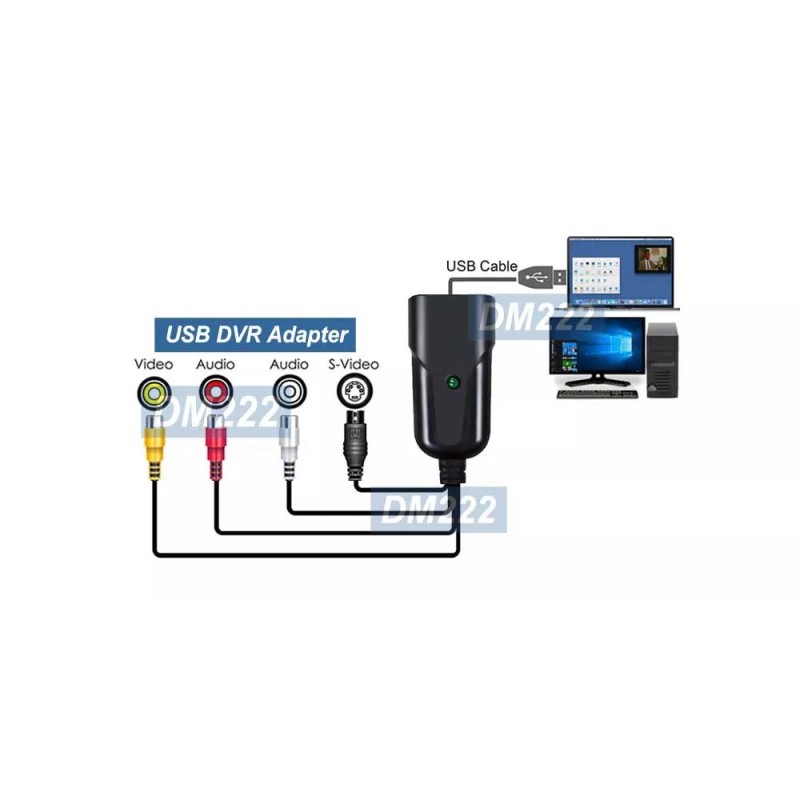

Plug And Play Setup - No Driver Needed
The USB DVR adapter included in the package is for
optional recording use. It is fully plug and play with no driver
installation needed for all Windows including Win10, Win8/8.1, Win7, XP and Mac OS.

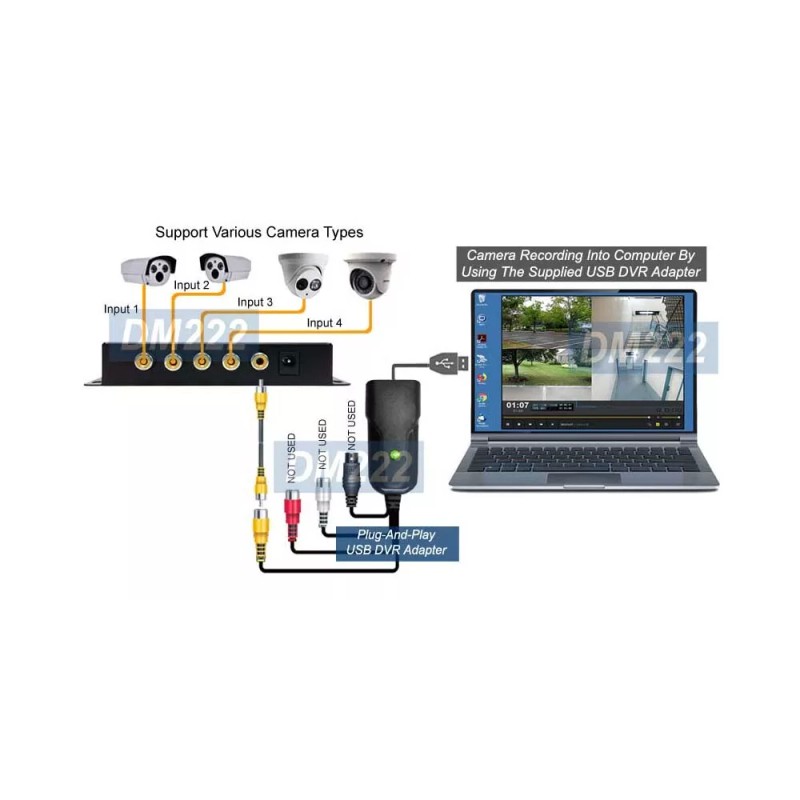

Surveillance Camera Live View On Computer Screen
Users can connect any type of analog video camera such as wired or wireless surveillance camera, microscope or camcorder to
quad video multiplexer first and then output to the USB DVR adapter installed in
computer so they can see or record the live camera feeds or video on the computer monitor
screen.
DVR Recording
This 4-channel video mulitplexer supports recording function through using
the included USB DVR adapter for hookup with computer.
This DVR video adapter can work with various free software such as OBS, Potplayer or VLC player for recording video audio feeds and save the recorded video clips into computer hard drive for playback or further video editing.

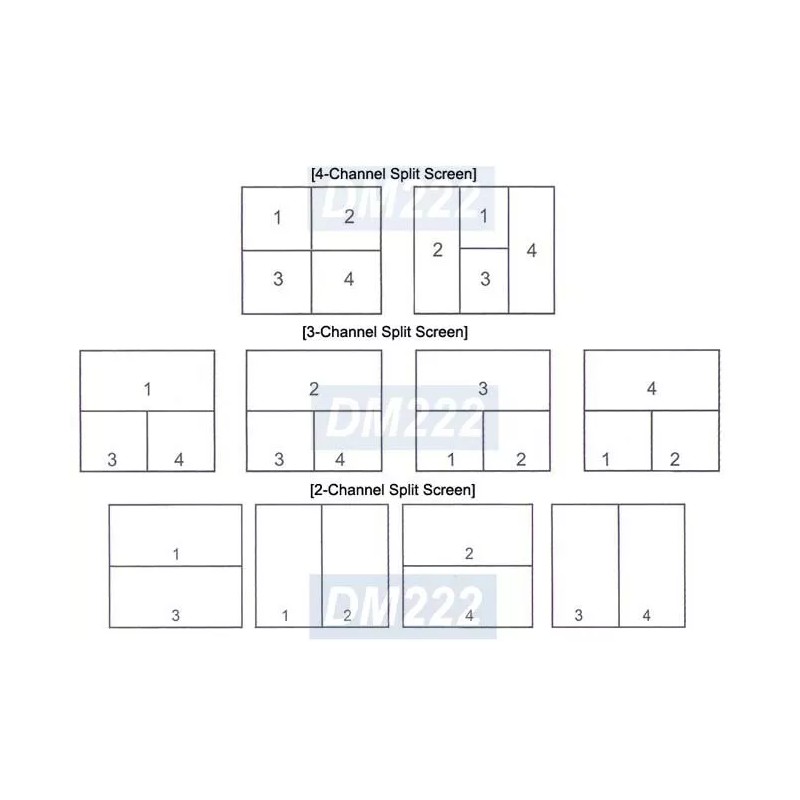

Real-Time Split Screen Modes
All video channels can be presented in the
following 7 different modes:
- 4-channel quad screen mode
- 4-channel H-type split screen mode
- 3-channel split screen modes with overlay of 3 video channels
- 2-channel split mode in horizontal split fashion
- 2-channel split mode in vertical split fashion
- 1-channel full screen
- Auto sequential channel switching mode
Each split screen mode is easily activated through using the front push button or IR remote.

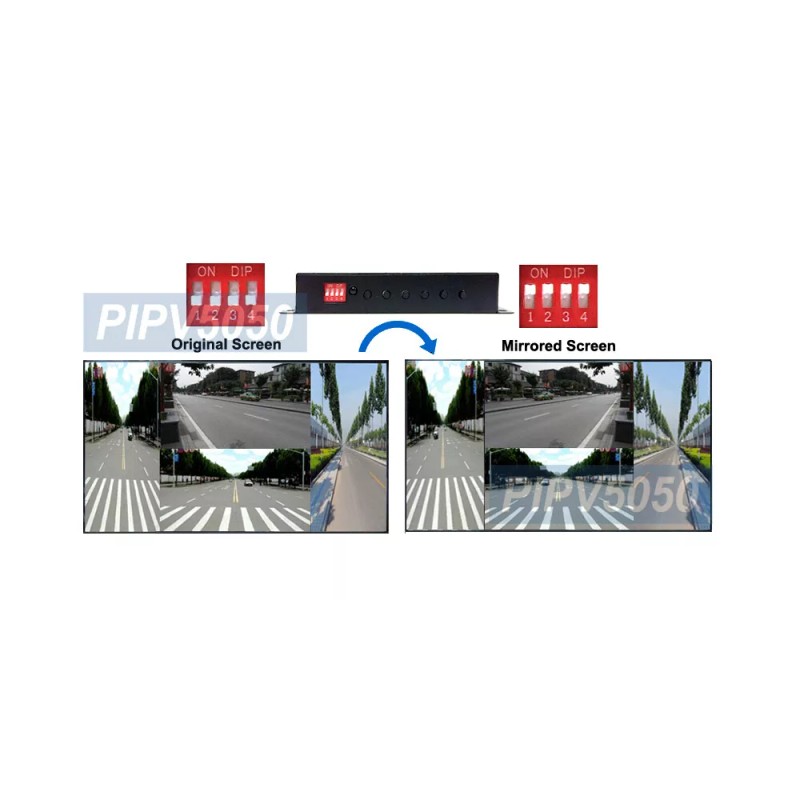

Image Mirroring Support
This split-screen video processor provides users with a dip switch so users
can select either normal image or mirror image if needed.
Automatic Sequence Switching Support
This quad video processor supports automatic channel switching, which will cycle through all video inputs from various cameras or video devices
and can be
activated by the IR remote or the front push button.
Mini Compact Size With Universal Video System
Support
Built with metal enclosure in mini size at 4.2" (W) x 2.1" (D) x
1" (H) or 107mm(W) x 53mm(D)x 21mm(H).
- 4-channel video surveillance DVR system for monitoring or recording video on your TV or computer screen.
- Stand alone quad video processor bundled with a plug-and-play USB DVR adapter for recording use in Win10, Win8/8.1, Win7, XP and Mac OS.
- Combine all 4 or selected input video feeds into different styles of split-screen views on one display for preview, live monitoring or video recording.
- Supports recording function through using the included USB DVR adapter for hookup with computer.
- Supports any type of analog video camera such as wired or wireless surveillance camera, microscope or camcorder.
- Easy and fast switching between video/audio inputs, split-screen modes by using IR remote control or push buttons on the front panel.
- Supports total 7 screen modes including 4-channel split, 3-channel split, 2-channel split, 1-channel full-screen and auto sequence.
- A dip switch for mirroring view so users can select either normal image or mirror image if needed.
- Supports auto sequential channel switching function.
- Able to accept a mix of both NTSC and PAL video or camera inputs at the same time and still provide clear color picture screen.
- Built with metal enclosure in compact mini size.
- Video Inputs: RCA/BNC x 4, 1.0Vp-p composite 75 ohms
- Video Output: RCA/BNC x 1, 1.0Vp-p composite 75 ohms
- Video Resolution: NTSC:720×480 pixels at 60Hz : PAL:720×576 pixels at 50Hz
- Split-Screen Output Mode Support:
- 4-channel quad screen mode
- 4-channel vertical split screen mode
- 3-channel split screen modes with overlay of 3 video channels
- 2-channel split mode in horizontal split fashion
- 2-channel split mode in vertical split fashion
- 1-channel full screen
- Auto sequential channel switching mode
- USB DVR Adapter:
- Video Inputs: RCA Video Input + S-Video Input + RCA L/R stereo audio Input
- OS Support: Plug and play for use in Win10, Win8/8.1, Win7, XP and Mac OS
- Operation Temperature: -30ºC ~ 60ºC (-22°F ~ 140°F)
- Power Supply: DC 5V ~12V
- Dimension: 4.2" (W) x 2.1" (D) x 1" (H) or 107mm(W) x 53mm(D)x 21mm(H)
- Mini quad video mixer unit
- USB DVR adapter
- IR remote
- AC/DC power adapter
- User manual
| Brand: | Unbranded |
|---|---|
| Isin: | INZCRYLHJV8L |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Mini 4-Channel USB Quad Video DVR Adapter For
Computer
This 4-channel mini quad video DVR combines 4 BNC or RCA video inputs together into different styles of split-screen views for one screen display and recording too.
It is ideal for security surveillance, nursery care, home entertainment, driving vehicle, game playing and so on.
Users have the option to connect the quad video processor to a PC or Mac for recording
through using the supplied USB DVR adapter for recording, viewing and
playback on computer monitor.
This multi-view screen video processor can also provides various split screen mode options for viewing multiple video feeds or cameras at the same time.
Compatible with all analog video camera such as wired or wireless surveillance camera, microscope or camcorder.
For a fast, easy, and economical home surveillance solution, this quad video DVR kit is the premium product of choice.
 |
Multiple Composite Video Inputs
Unit is built with 4 RCA video inputs with 1 RCA output. It is also able to accommodate
BNC video inputs and BNC video output too through using RCA to BNC adapters (not
included)
Stand Alone Operation
The quad video processor can work alone for displaying the cameras or videos
on TV or monitor directly.
Users can use the IR remote or push buttons on the front panel for selecting video output mode, auto channel switching or video input channel.
 |
 |
Plug And Play Setup - No Driver Needed
The USB DVR adapter included in the package is for
optional recording use. It is fully plug and play with no driver
installation needed for all Windows including Win10, Win8/8.1, Win7, XP and Mac OS.
Surveillance Camera Live View On Computer Screen
Users can connect any type of analog video camera such as wired or wireless surveillance camera, microscope or camcorder to
quad video multiplexer first and then output to the USB DVR adapter installed in
computer so they can see or record the live camera feeds or video on the computer monitor
screen.
 |
DVR Recording
This 4-channel video mulitplexer supports recording function through using
the included USB DVR adapter for hookup with computer.
This DVR video adapter can work with various free software such as OBS, Potplayer or VLC player for recording video audio feeds and save the recorded video clips into computer hard drive for playback or further video editing.
 |
Real-Time Split Screen Modes
All video channels can be presented in the
following 7 different modes:
- 4-channel quad screen mode
- 4-channel H-type split screen mode
- 3-channel split screen modes with overlay of 3 video channels
- 2-channel split mode in horizontal split fashion
- 2-channel split mode in vertical split fashion
- 1-channel full screen
- Auto sequential channel switching mode
Each split screen mode is easily activated through using the front push button or IR remote.
 |
Image Mirroring Support
This split-screen video processor provides users with a dip switch so users
can select either normal image or mirror image if needed.
 |
Automatic Sequence Switching Support
This quad video processor supports automatic channel switching, which will cycle through all video inputs from various cameras or video devices
and can be
activated by the IR remote or the front push button.
 |
Mini Compact Size With Universal Video System
Support
Built with metal enclosure in mini size at 4.2" (W) x 2.1" (D) x
1" (H) or 107mm(W) x 53mm(D)x 21mm(H).
 |
- 4-channel video surveillance DVR system for monitoring or recording video on your TV or computer screen.
- Stand alone quad video processor bundled with a plug-and-play USB DVR adapter for recording use in Win10, Win8/8.1, Win7, XP and Mac OS.
- Combine all 4 or selected input video feeds into different styles of split-screen views on one display for preview, live monitoring or video recording.
- Supports recording function through using the included USB DVR adapter for hookup with computer.
- Supports any type of analog video camera such as wired or wireless surveillance camera, microscope or camcorder.
- Easy and fast switching between video/audio inputs, split-screen modes by using IR remote control or push buttons on the front panel.
- Supports total 7 screen modes including 4-channel split, 3-channel split, 2-channel split, 1-channel full-screen and auto sequence.
- A dip switch for mirroring view so users can select either normal image or mirror image if needed.
- Supports auto sequential channel switching function.
- Able to accept a mix of both NTSC and PAL video or camera inputs at the same time and still provide clear color picture screen.
- Built with metal enclosure in compact mini size.
Video Inputs: RCA/BNC x 4, 1.0Vp-p composite 75 ohms - Video Output: RCA/BNC x 1, 1.0Vp-p composite 75 ohms
- Video Resolution: NTSC:720×480 pixels at 60Hz : PAL:720×576 pixels at 50Hz
- Split-Screen Output Mode Support:
- 4-channel quad screen mode
- 4-channel vertical split screen mode
- 3-channel split screen modes with overlay of 3 video channels
- 2-channel split mode in horizontal split fashion
- 2-channel split mode in vertical split fashion
- 1-channel full screen
- Auto sequential channel switching mode
- USB DVR Adapter:
- Video Inputs: RCA Video Input + S-Video Input + RCA L/R stereo audio Input
- OS Support: Plug and play for use in Win10, Win8/8.1, Win7, XP and Mac OS
- Operation Temperature: -30ºC ~ 60ºC (-22°F ~ 140°F)
- Power Supply: DC 5V ~12V
- Dimension: 4.2" (W) x 2.1" (D) x 1" (H) or 107mm(W) x 53mm(D)x 21mm(H)
- Mini quad video mixer unit
- USB DVR adapter
- IR remote
- AC/DC power adapter
- User manual
- Model: DM222fb
- External Interfaces: Composite RCA Input
- Type: Video Capture
- MPN: DM222fb
- UPC: Does not apply
- Video Capture: Analog only
- Brand: Unbranded
Processing Time
- We process and ship orders Monday through Friday, excluding holidays.
- Most orders are processed within 1–3 business days, depending on product availability.
- Processing time does not include delivery time, which varies based on your location and the product’s shipping origin.
Shipping Coverage
We currently ship to addresses within the United States only.
Products may ship from:
- Our U.S. warehouses, or
- Our international fulfillment centers (including Korea, Japan, China, Australia, Mexico, Canada, the United Kingdom, and the EU).
Each product page clearly displays the “Ships From” location before checkout.
Shipping Methods & Estimated Delivery
| Shipping Method | Estimated Delivery | Cost |
|---|---|---|
| Free Shipping (US) | 5–10 business days | Free, available on eligible items |
| Standard Shipping (US to US by Item) | 5–10 business days | $6.50 for the first item, $3.00 each additional |
| Standard Shipping (From US Warehouse by Weight) | 3–7 business days | Starts at $6.50, increasing by $2 for every additional 4 oz (0.25 lb) up to 1 lb, then by $4 for each additional pound beyond 1 lb. |
| Extended Delivery (Ships from Overseas Warehouse) | 10–15 business days | $14.50 for the first item, $4.00 each additional |
Shipping costs vary by product weight, quantity and origin. Exact rates and delivery estimates are displayed on each product page and confirmed during checkout.
Free Shipping
We offer free standard shipping on select products or during promotional periods. Availability of free shipping will be displayed on the product page and at checkout.
Carriers
We primarily use USPS and UPS for U.S. deliveries. Items shipped from international warehouses may be handled by partner carriers depending on the country of origin.
Import Duties & Taxes
All import duties and taxes for goods imported into the United States are included in the product price. There are no hidden fees or additional charges at checkout.
Tracking & Notifications
Every order is fully trackable. You will receive a tracking number via email once your order ships. If your order ships in multiple packages, each package will have its own tracking number. If you don’t receive a shipping confirmation immediately, your order is still being processed and will arrive within the estimated timeframe shown at checkout.
You can track your shipment anytime using the Track Your Order page on our website.
Order Changes & Cancellations
If you need to modify or cancel an order, please contact our customer support team as soon as possible. Orders can only be canceled before they ship. Once shipped, cancellations are not possible, but you may request a return after the item is delivered.
Contact: support@ibspot.com
Item Not Received
If your tracking number shows “Delivered” but you haven’t received your package:
- Check with your local USPS or UPS office.
- Confirm that the shipping address provided was correct.
- If the issue remains unresolved, contact support@ibspot.com for assistance.
Damaged or Lost Parcels
If your package arrives damaged or fails to arrive, please contact us immediately. For deliveries to P.O. boxes, ibspot is not responsible for damage caused by weather, temperature, or theft.
Customer Support
For any questions about shipping, tracking, or delivery, our customer support team is here to help.
Email: support@ibspot.com
We’re always happy to help.
Please read our policy carefully before making a purchase.
We aim to ensure every customer has a smooth and transparent experience with ibspot.com.
Order Cancellation Policy
Customers may request to cancel an order before it has been shipped.
Once the package has been shipped, cancellations are no longer possible; however, you may still request a return after receiving your order.
How to Request a Cancellation
You can contact us through:
- Email: support@ibspot.com
- Contact Form: Submit a request through our Contact Us page
Please submit your cancellation request as soon as possible after placing the order to allow us to process it before shipment.
Return Policy
We accept returns for most items within 30 days of delivery for a full refund.
To be eligible for a return:
- The item must be unused, in the same condition as received, and in its original packaging.
- A tracking number must be provided to confirm the return shipment.
Non-Returnable Items
Certain products cannot be returned, including:
- Perishable goods (for example, food, flowers, newspapers, magazines)
- Intimate or sanitary goods
- Hazardous materials or flammable liquids/gases
- Gift cards
- Downloadable software
- Some health and personal care items
Partial Refunds (If Applicable)
Partial refunds may be granted in specific situations, such as:
- Books with obvious signs of use
- Opened CDs, DVDs, software, or vinyl records
- Items not in their original condition, damaged, or missing parts not due to our error
- Items returned more than 30 days after delivery
How to Return an Item
To initiate a return, please contact us at support@ibspot.com with your order number and details about the product you wish to return.
Our team will provide you with return instructions and a prepaid return label.
Shipping Cost for Returns
Please contact us before returning any item.
We will provide a free return shipping label.
If a return is sent back without prior contact or without our provided label, we cannot be held responsible for return shipping costs.
For items valued over $75, we recommend using a trackable shipping service or purchasing shipping insurance.
We cannot guarantee that we will receive your returned item if shipped independently.
Refund Processing
Once your return is received and inspected:
- In-store returns are refunded to the original form of payment or issued as a gift card.
- Mail-in returns using our prepaid label are refunded to the original payment method within 3–5 business days after we receive your return.
Please allow:
- 5–7 business days for the return to reach our Returns Center.
- An additional 3–10 business days for your bank to post the refund to your account.
Damages, Issues & Claims
Please inspect your order immediately upon receipt.
If you receive a defective, damaged, or incorrect item, contact us right away at support@ibspot.com.
We’ll evaluate the issue promptly and make it right.
Product Claims
Before purchasing, please review product details carefully.
If there is a problem with your order upon arrival, visit our Support Center or contact us directly to arrange return shipping or replacement.
Exchanges
We do not process direct exchanges.
The fastest way to get what you need is to return the original item and place a new order once your return is accepted.
Return Address
IBSPOT Return Center
15 Sawmill Ln
Dover Plains, NY 12522
United States
Customer Support
Our support team is available 24/7 to assist with cancellations, returns, or general inquiries.
Email: support@ibspot.com
Contact Form: Contact Us page
Oops!
Sorry, it looks like some products are not available in selected quantity.
