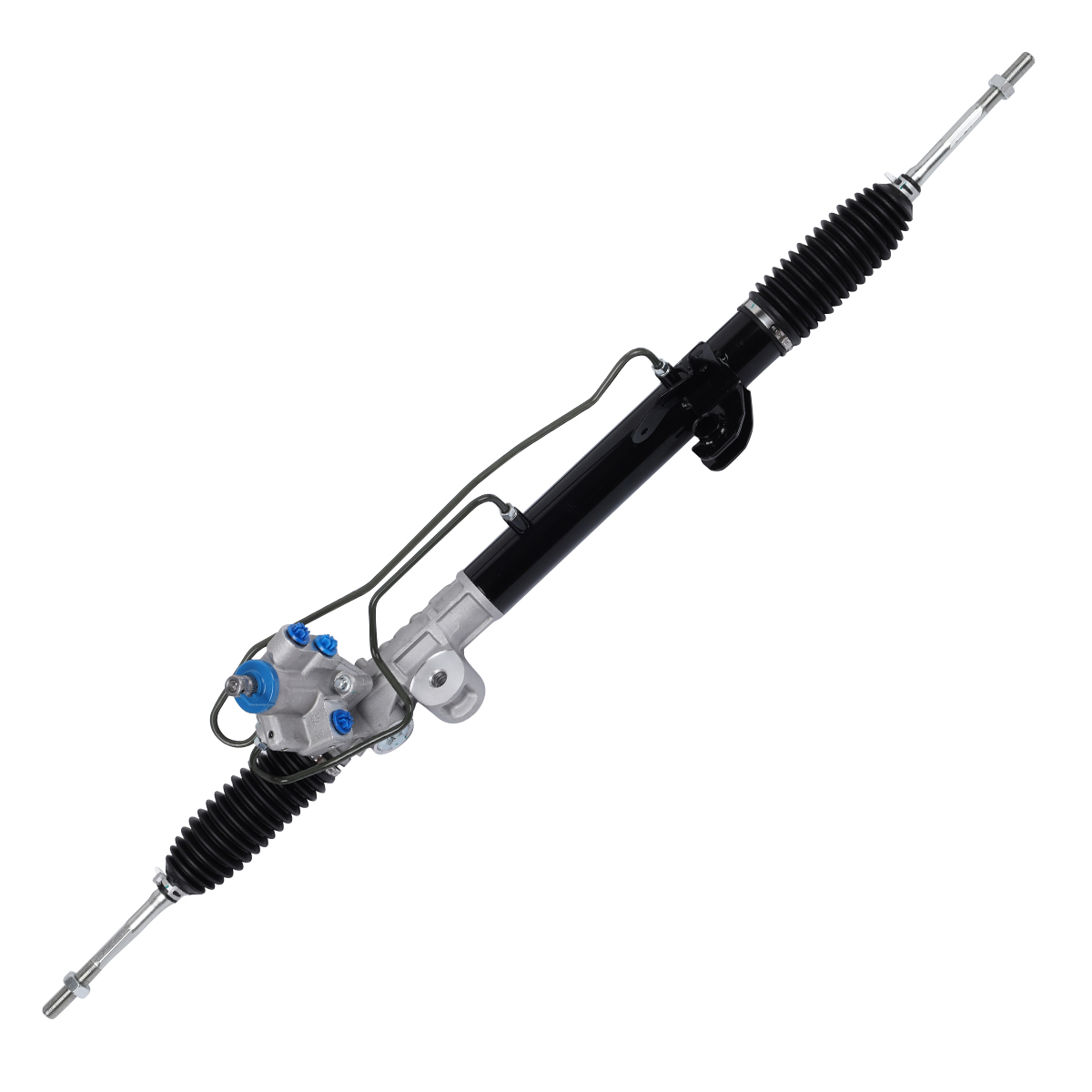

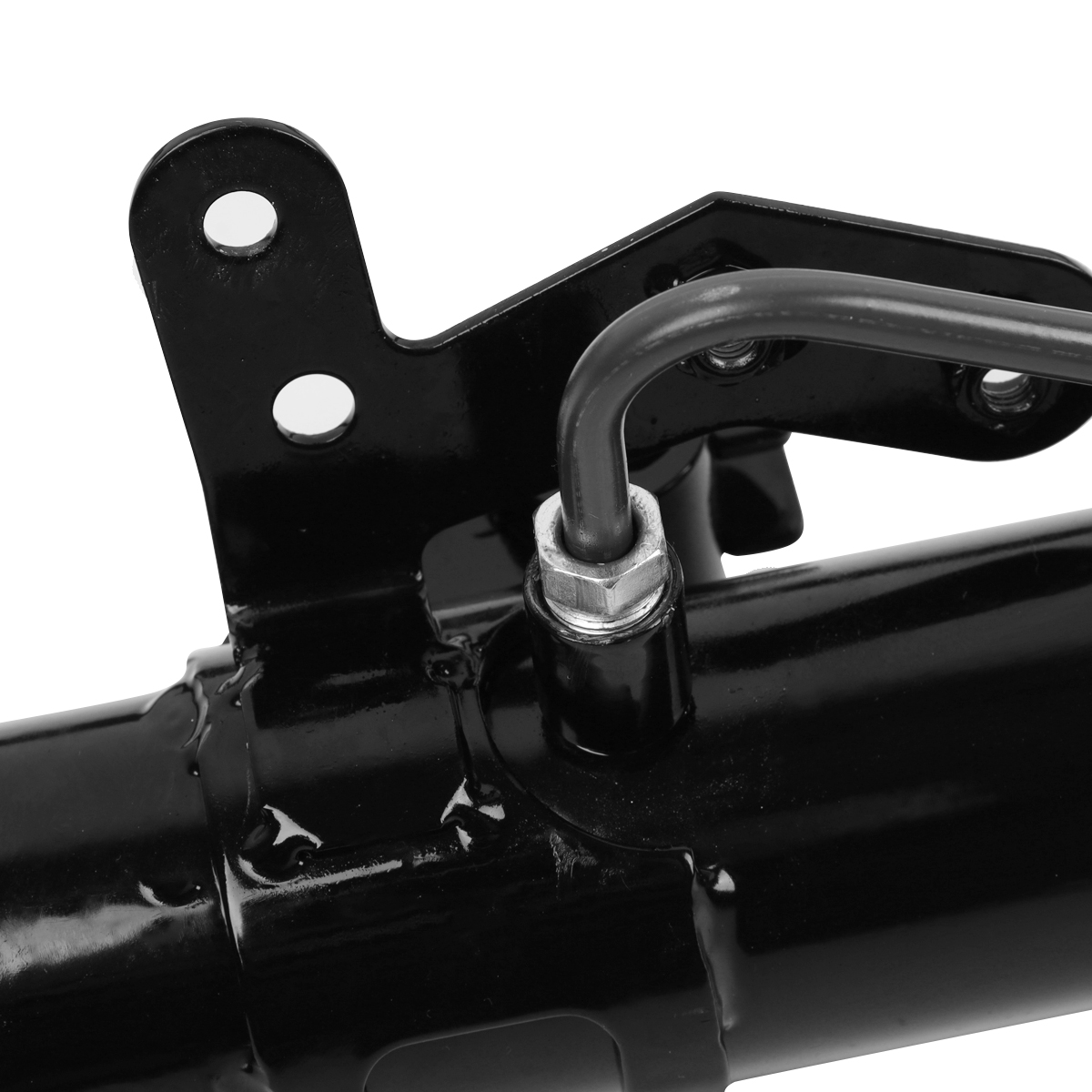

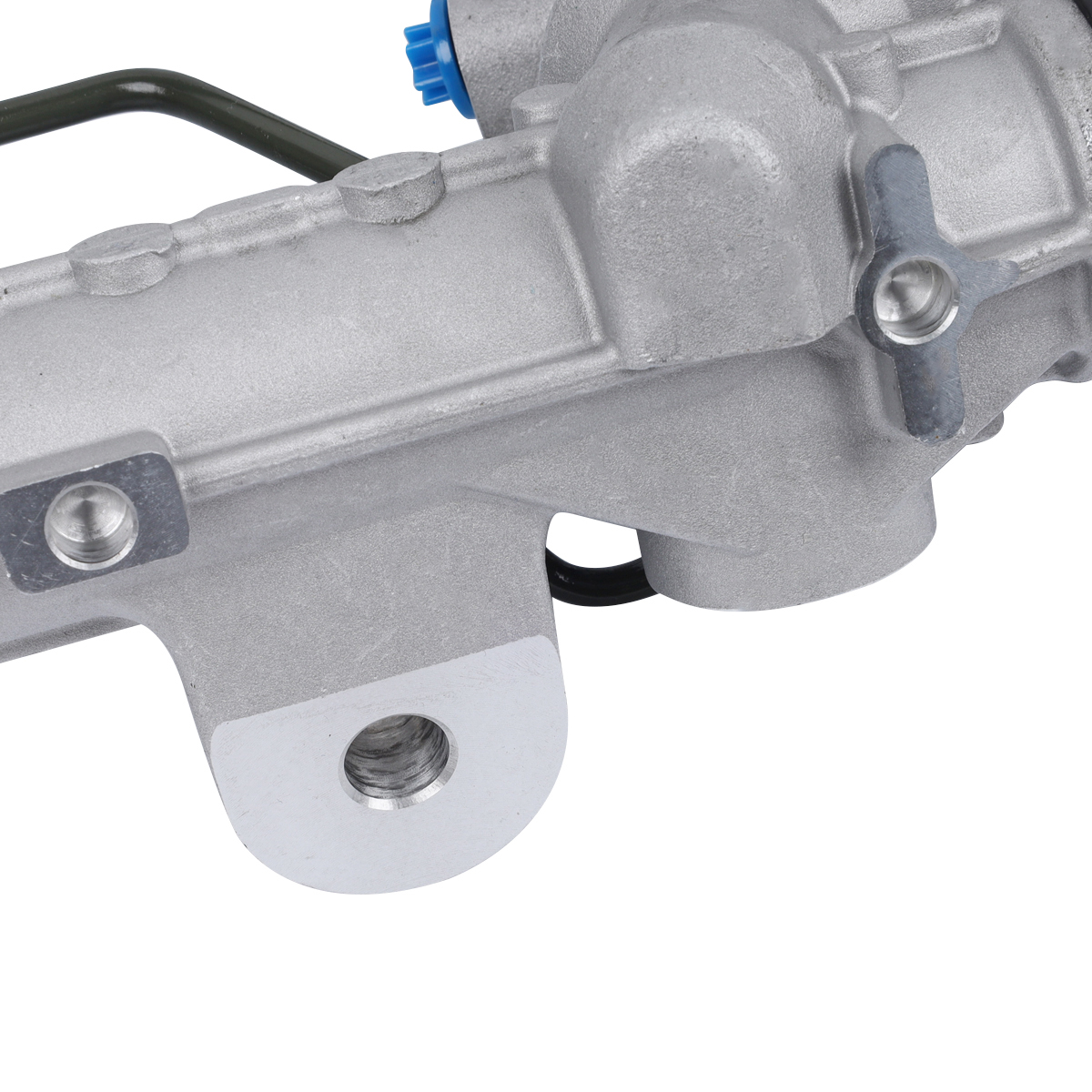

Unbranded NEW Power Steering Rack and Pinion For 2009-2014 Nissan Maxima 3.5L V6 26-3083
Unbranded NEW Power Steering Rack and Pinion For 2009-2014 Nissan Maxima 3.5L V6 26-3083
Unbranded NEW Power Steering Rack and Pinion For 2009-2014 Nissan Maxima 3.5L V6 26-3083
Product Description
Features:
Built to strict quality control standards 100% factory tested.
IATF16949 Approved.
High Performance:The steering rack solves abnormal noise and oil leakage problems, ensures that the steering wheel rotation angle is proportional to the tire rotation angle, and reduces the steering wheel's control force when turning, which makes driving safer.
2 in 1 Function:Conversion of the steering wheel's rotationalmotion into the linear motion needed for thevehicle's wheels to turn
Reduction of gears, which makes it easierfor the steering wheel to turn the wheels.
Premium Material:With the premium aluminum alloy and steel construction, this steering rack assembly has a great anti-rust and anti-corrosive quality for its long service life.
We put moderate lubricating oil into this assembly so that it can prevent rust and oxidation.
Humanized Design:Ensure a tight seal and smooth steering operation. The hydraulic lines are fully fluid tested at high pressure. And the steel clamps and rubber bellow boots improve steering efficiency.
Specifications:
Material:Steel/Aluminum
Color:Black/Silver
Placement on Vehicle:Front

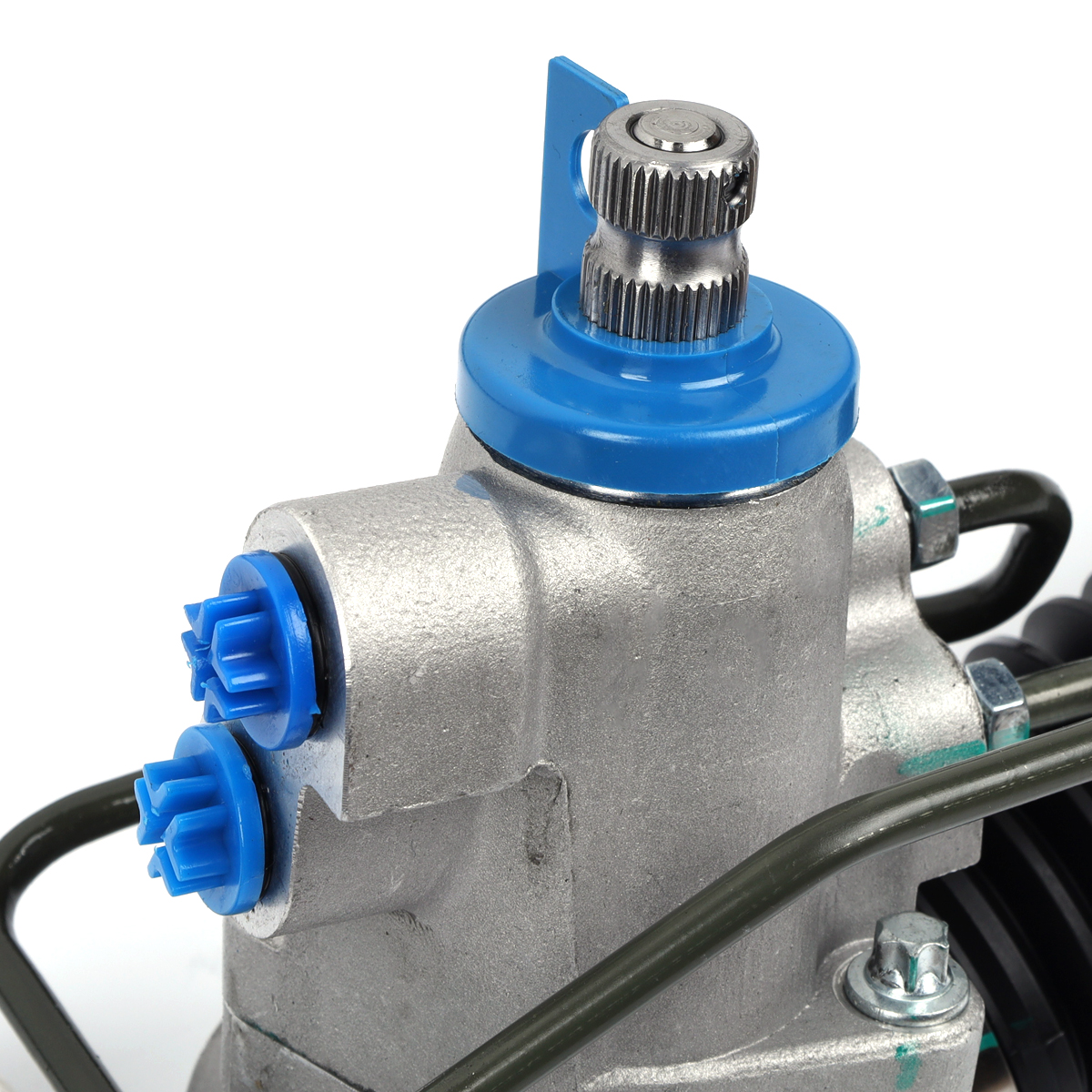

Input Shaft Diameter(IN):0.68
Input Shaft Length(IN):1.09
Pressure Port Thread Size:M14*1.5
Return Port Thread Size:M16*1.5
Number of Mounting Holes:2
Distance Between Mounting Holes (IN):11.57
Rack Length(IN):43.98
Part Numbers:
490019N00A, 49001-9N00A
490019N00B, 26-3083
Fitment:

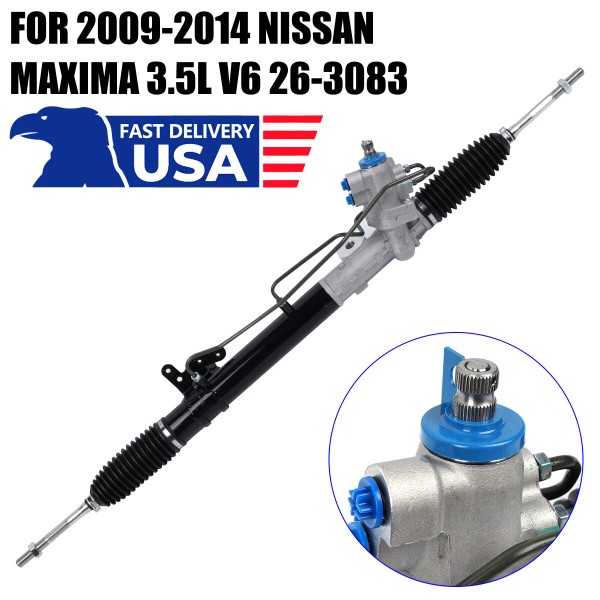

Nissan Maxima 2009-2014 V6 3.5L w/ Hydraulic Power Steering
sensor capable,but not supplied
Packag include:
⭐1x Power Steering Rack and Pinion
Attention:
1.Put the wheels in a straight-ahead position
2.Crack loose all the wheel lug nuts
3.Raise and support the vehicle with approved jack stands.
4.Remove both front wheels.
5.Remove the Steering Shaft Coupler Outer Seal and unbolt the upper pinch bolt on the Steering Shaft Coupler assembly
6.Detach the outer tie rod ends
7.Remove any parts required to gain access to the rack mounting bolts, lines and steering coupling.
8.Remove the power steering rack mounting bolts, or crack the power steering high pressure and return lines
9.Place a drain pan under the vehicle and remove the hydraulic power steering pressure hose and power steering return hose from the power steering rack
10.Twist and turn and jiggle it out through one of the wheel well openings
11.Reconnect the Steering Shaft Coupler assembly and bolt the rack back into place
12.Reattach the tie rod ends to the steering knuckles
13.Put the wheels back on and torque the lug nuts to specifications.
14.Remove the return line from the power steering pump and place the end into a bucket.
15.Fill the power steering pump and start the engine until clean fluid comes out of the return hose.
16.Have the front end aligned to reset the toe-in adjustment to specification or the vehicle will handle poorly and wear out the tire quickly.
17.Bleed the trapped air out of the system
(Professional installation is highly recommended)
Note:
Oil leakage: The oil seal in the steering gear can break due to aging and wear, resulting in loss or leakage of hydraulic oil. Oil leakage can cause difficulty or malfunction in steering operation.
Abnormal noise: A snap, noise, or hiss may be caused by worn steering gear, pin shaft, or rack.
Excessive steering force: Blockage or wear of the steering gear oil pipes or passages can cause excessive hydraulic oil pressure, excessive steering force, or even steering failure.
Steering failure: Steering failure can be caused by reasons such as damage to the steering gear, blockage in the oil circuit, and failure of the oil pump, which will affect driving safety.
Shake or shake: Worn or loose parts in the steering gear can easily cause the vehicle to shake or shake during steering.
Dead center: When turning, if the steering wheel needs to be rotated for a long time until the vehicle turns significantly, this may be a dead center problem with the steering gear.
For any issues with Defects, Return, Item Exchange request, please contact us first and send us a message first before opening any type of case or request. We devote ourselves making EVERY CUSTOMER in 100% Satisfactory and resolve any problem. We highly value and appreciate your business. Thank you.
No returns will be accepted without an RMA number. Please contact us for the RMA number.
Return is acceptable within 30 days of delivery.
Return for replacement or money back is optional.
Returned items must be in the brand new, unaltered and resalable condition.
Seller is not responsible for any labor cost, expense in a dealer store, or damage due to wrong installation.
Handling time: 1 business day (Orders are not processed on weekends & holidays)
Tracking information will be sent once item is shipped.
Local pick-up is unavailable at the moment.
For international shipping and shipping to Guam, Hawaii and Alaska, Please contact us before placing the order.
Item is shipped to ebay address. Leaving correct address can minimize delay.
Return is accepted within 14 days after the buyer's receiving the item. (Excluding contrived damagement or misusage).100% money-back Guaranteed!
All product will be tested in 100% before delivery.If the item is defected by the processing of postage,Buyer has up to 14 days from date of receipt for
exchange of a new one.All shipping charges for returned products are to be paid by the buyer,Please contact us for the return address
All product will be tested in 100% before delivery.If the item is defected by the processing of postage,Buyer has up to 14 days from date of receipt for
exchange of a new one.All shipping charges for returned products are to be paid by the buyer,Please contact us for the return address
All messages will be answered within 24 office hours.
Please contact us either by clicking "contact seller" in the "purchase history" section or simply click "ask a question" at the bottom of this page.
If you are unsatisfied with our item or service, please contact us before leaving any feedback. We are committed to resolve all issues in a friendly and satisfactory manner. We always reply to messages within 2 business days (off-duty at weekend). If you do not get a response from us, then please check your junk or spam mailbox.
If you are satisfied with the purchase and our total service, your comment is very important in our business success. Please take a minute to leave us a positive feedback with an overall Detailed Selling Rating (DSR) of 5.
Our eBay account setup auto feedback, so eBay system gives you automatically Positive feedback back after your positive feedback left.
If you plan to give us a neutral/negative feedback Or open ebay/paypal case, please write to us immediately so that we can do our best to resolve your problem.
Terms
For any issues with Defects, Return, Item Exchange request, please contact us first and send us a message first before opening any type of case or request. We devote ourselves making EVERY CUSTOMER in 100% Satisfactory and resolve any problem. We highly value and appreciate your business. Thank you.
No returns will be accepted without an RMA number. Please contact us for the RMA number.
Return is acceptable within 30 days of delivery.
Return for replacement or money back is optional.
Returned items must be in the brand new, unaltered and resalable condition.
Seller is not responsible for any labor cost, expense in a dealer store, or damage due to wrong installation.
Shipping
Handling time: 1 business day (Orders are not processed on weekends & holidays)
Tracking information will be sent once item is shipped.
Local pick-up is unavailable at the moment.
For international shipping and shipping to Guam, Hawaii and Alaska, Please contact us before placing the order.
Item is shipped to ebay address. Leaving correct address can minimize delay.
Returns
Return is accepted within 14 days after the buyer's receiving the item. (Excluding contrived damagement or misusage).100% money-back Guaranteed!
All product will be tested in 100% before delivery.If the item is defected by the processing of postage,Buyer has up to 14 days from date of receipt for
exchange of a new one.All shipping charges for returned products are to be paid by the buyer,Please contact us for the return address
All product will be tested in 100% before delivery.If the item is defected by the processing of postage,Buyer has up to 14 days from date of receipt for
exchange of a new one.All shipping charges for returned products are to be paid by the buyer,Please contact us for the return address
Chontact US
All messages will be answered within 24 office hours.
Please contact us either by clicking "contact seller" in the "purchase history" section or simply click "ask a question" at the bottom of this page.
If you are unsatisfied with our item or service, please contact us before leaving any feedback. We are committed to resolve all issues in a friendly and satisfactory manner. We always reply to messages within 2 business days (off-duty at weekend). If you do not get a response from us, then please check your junk or spam mailbox.
Feebback
If you are satisfied with the purchase and our total service, your comment is very important in our business success. Please take a minute to leave us a positive feedback with an overall Detailed Selling Rating (DSR) of 5.
Our eBay account setup auto feedback, so eBay system gives you automatically Positive feedback back after your positive feedback left.
If you plan to give us a neutral/negative feedback Or open ebay/paypal case, please write to us immediately so that we can do our best to resolve your problem.
powered by
| Brand: | Unbranded |
|---|---|
| Isin: | IBE8R5V5SRGR |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Product Description
Features:
Built to strict quality control standards 100% factory tested.
IATF16949 Approved.
High Performance:The steering rack solves abnormal noise and oil leakage problems, ensures that the steering wheel rotation angle is proportional to the tire rotation angle, and reduces the steering wheel's control force when turning, which makes driving safer.
2 in 1 Function:Conversion of the steering wheel's rotationalmotion into the linear motion needed for thevehicle's wheels to turn
Reduction of gears, which makes it easierfor the steering wheel to turn the wheels.
Premium Material:With the premium aluminum alloy and steel construction, this steering rack assembly has a great anti-rust and anti-corrosive quality for its long service life.
We put moderate lubricating oil into this assembly so that it can prevent rust and oxidation.
Humanized Design:Ensure a tight seal and smooth steering operation. The hydraulic lines are fully fluid tested at high pressure. And the steel clamps and rubber bellow boots improve steering efficiency.
Specifications:
Material:Steel/Aluminum
Color:Black/Silver
Placement on Vehicle:Front
Input Shaft Diameter(IN):0.68
Input Shaft Length(IN):1.09
Pressure Port Thread Size:M14*1.5
Return Port Thread Size:M16*1.5
Number of Mounting Holes:2
Distance Between Mounting Holes (IN):11.57
Rack Length(IN):43.98
Part Numbers:
490019N00A, 49001-9N00A
490019N00B, 26-3083
Fitment:
Nissan Maxima 2009-2014 V6 3.5L w/ Hydraulic Power Steering
sensor capable,but not supplied
Packag include:
⭐1x Power Steering Rack and Pinion
Attention:
1.Put the wheels in a straight-ahead position
2.Crack loose all the wheel lug nuts
3.Raise and support the vehicle with approved jack stands.
4.Remove both front wheels.
5.Remove the Steering Shaft Coupler Outer Seal and unbolt the upper pinch bolt on the Steering Shaft Coupler assembly
6.Detach the outer tie rod ends
7.Remove any parts required to gain access to the rack mounting bolts, lines and steering coupling.
8.Remove the power steering rack mounting bolts, or crack the power steering high pressure and return lines
9.Place a drain pan under the vehicle and remove the hydraulic power steering pressure hose and power steering return hose from the power steering rack
10.Twist and turn and jiggle it out through one of the wheel well openings
11.Reconnect the Steering Shaft Coupler assembly and bolt the rack back into place
12.Reattach the tie rod ends to the steering knuckles
13.Put the wheels back on and torque the lug nuts to specifications.
14.Remove the return line from the power steering pump and place the end into a bucket.
15.Fill the power steering pump and start the engine until clean fluid comes out of the return hose.
16.Have the front end aligned to reset the toe-in adjustment to specification or the vehicle will handle poorly and wear out the tire quickly.
17.Bleed the trapped air out of the system
(Professional installation is highly recommended)
Note:
Oil leakage: The oil seal in the steering gear can break due to aging and wear, resulting in loss or leakage of hydraulic oil. Oil leakage can cause difficulty or malfunction in steering operation.
Abnormal noise: A snap, noise, or hiss may be caused by worn steering gear, pin shaft, or rack.
Excessive steering force: Blockage or wear of the steering gear oil pipes or passages can cause excessive hydraulic oil pressure, excessive steering force, or even steering failure.
Steering failure: Steering failure can be caused by reasons such as damage to the steering gear, blockage in the oil circuit, and failure of the oil pump, which will affect driving safety.
Shake or shake: Worn or loose parts in the steering gear can easily cause the vehicle to shake or shake during steering.
Dead center: When turning, if the steering wheel needs to be rotated for a long time until the vehicle turns significantly, this may be a dead center problem with the steering gear.
| |
| |
| |
| |
|
For any issues with Defects, Return, Item Exchange request, please contact us first and send us a message first before opening any type of case or request. We devote ourselves making EVERY CUSTOMER in 100% Satisfactory and resolve any problem. We highly value and appreciate your business. Thank you.
No returns will be accepted without an RMA number. Please contact us for the RMA number.
Return is acceptable within 30 days of delivery.
Return for replacement or money back is optional.
Returned items must be in the brand new, unaltered and resalable condition.
Seller is not responsible for any labor cost, expense in a dealer store, or damage due to wrong installation.
Handling time: 1 business day (Orders are not processed on weekends & holidays)
Tracking information will be sent once item is shipped.
Local pick-up is unavailable at the moment.
For international shipping and shipping to Guam, Hawaii and Alaska, Please contact us before placing the order.
Item is shipped to ebay address. Leaving correct address can minimize delay.
Return is accepted within 14 days after the buyer's receiving the item. (Excluding contrived damagement or misusage).100% money-back Guaranteed!
All product will be tested in 100% before delivery.If the item is defected by the processing of postage,Buyer has up to 14 days from date of receipt for
exchange of a new one.All shipping charges for returned products are to be paid by the buyer,Please contact us for the return address
All product will be tested in 100% before delivery.If the item is defected by the processing of postage,Buyer has up to 14 days from date of receipt for
exchange of a new one.All shipping charges for returned products are to be paid by the buyer,Please contact us for the return address
All messages will be answered within 24 office hours.
Please contact us either by clicking "contact seller" in the "purchase history" section or simply click "ask a question" at the bottom of this page.
If you are unsatisfied with our item or service, please contact us before leaving any feedback. We are committed to resolve all issues in a friendly and satisfactory manner. We always reply to messages within 2 business days (off-duty at weekend). If you do not get a response from us, then please check your junk or spam mailbox.
If you are satisfied with the purchase and our total service, your comment is very important in our business success. Please take a minute to leave us a positive feedback with an overall Detailed Selling Rating (DSR) of 5.
Our eBay account setup auto feedback, so eBay system gives you automatically Positive feedback back after your positive feedback left.
If you plan to give us a neutral/negative feedback Or open ebay/paypal case, please write to us immediately so that we can do our best to resolve your problem.
Terms
For any issues with Defects, Return, Item Exchange request, please contact us first and send us a message first before opening any type of case or request. We devote ourselves making EVERY CUSTOMER in 100% Satisfactory and resolve any problem. We highly value and appreciate your business. Thank you.
No returns will be accepted without an RMA number. Please contact us for the RMA number.
Return is acceptable within 30 days of delivery.
Return for replacement or money back is optional.
Returned items must be in the brand new, unaltered and resalable condition.
Seller is not responsible for any labor cost, expense in a dealer store, or damage due to wrong installation.
Shipping
Handling time: 1 business day (Orders are not processed on weekends & holidays)
Tracking information will be sent once item is shipped.
Local pick-up is unavailable at the moment.
For international shipping and shipping to Guam, Hawaii and Alaska, Please contact us before placing the order.
Item is shipped to ebay address. Leaving correct address can minimize delay.
Returns
Return is accepted within 14 days after the buyer's receiving the item. (Excluding contrived damagement or misusage).100% money-back Guaranteed!
All product will be tested in 100% before delivery.If the item is defected by the processing of postage,Buyer has up to 14 days from date of receipt for
exchange of a new one.All shipping charges for returned products are to be paid by the buyer,Please contact us for the return address
All product will be tested in 100% before delivery.If the item is defected by the processing of postage,Buyer has up to 14 days from date of receipt for
exchange of a new one.All shipping charges for returned products are to be paid by the buyer,Please contact us for the return address
Chontact US
All messages will be answered within 24 office hours.
Please contact us either by clicking "contact seller" in the "purchase history" section or simply click "ask a question" at the bottom of this page.
If you are unsatisfied with our item or service, please contact us before leaving any feedback. We are committed to resolve all issues in a friendly and satisfactory manner. We always reply to messages within 2 business days (off-duty at weekend). If you do not get a response from us, then please check your junk or spam mailbox.
Feebback
If you are satisfied with the purchase and our total service, your comment is very important in our business success. Please take a minute to leave us a positive feedback with an overall Detailed Selling Rating (DSR) of 5.
Our eBay account setup auto feedback, so eBay system gives you automatically Positive feedback back after your positive feedback left.
If you plan to give us a neutral/negative feedback Or open ebay/paypal case, please write to us immediately so that we can do our best to resolve your problem.
powered by
- Brand: Unbranded
- Color: Black/Silver
- Country/Region of Manufacture: Unknown
- Distance Between Mounting Holes (IN): 11.57
- Input Shaft Diameter(IN): 0.68
- Input Shaft Length(IN): 1.09
- Interchange Part Number: 26-3083, 49001-9N00A, 490019N00A, 490019N00B
- Manufacturer Warranty: 5 Years
- Material: Steel/Aluminum
- Number of Mounting Holes: 2
- OE/OEM Part Number: 26-3083, 49001-9N00A, 490019N00A, 490019N00B
- Performance Part: Yes
- Placement on Vehicle: Front
- Pressure Port Thread Size: M14*1.5
- Rack Length(IN): 43.98
- Return Port Thread Size: M16*1.5

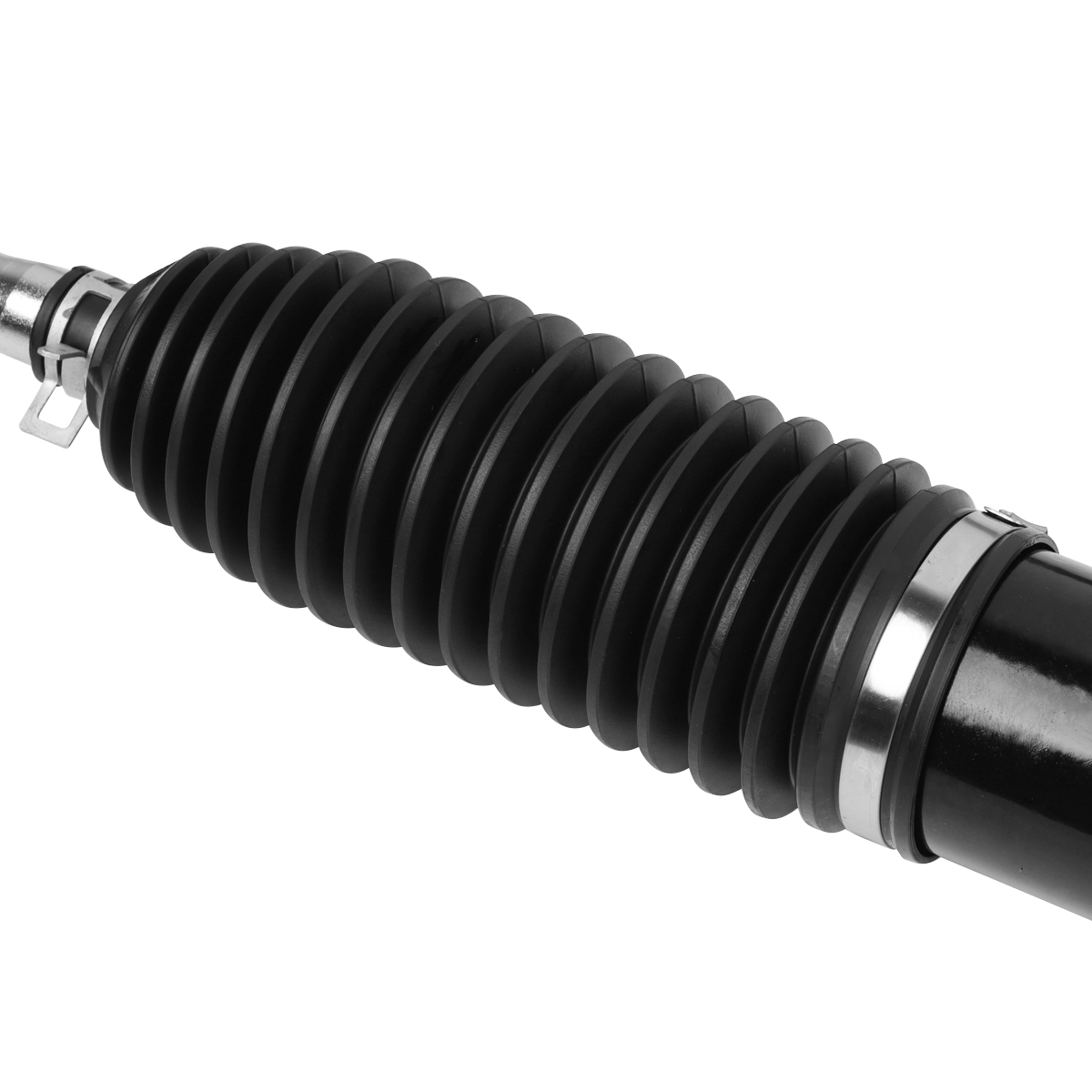

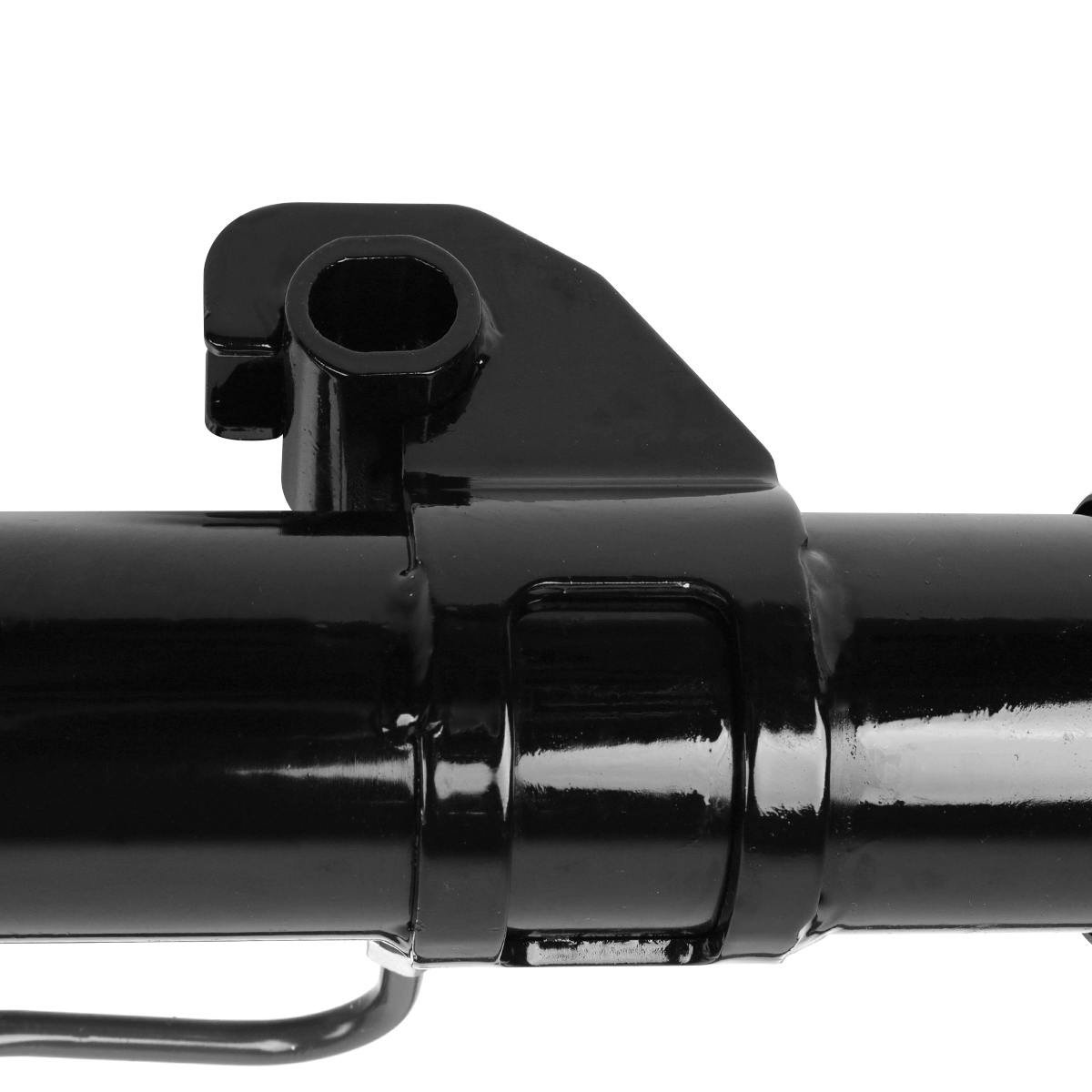

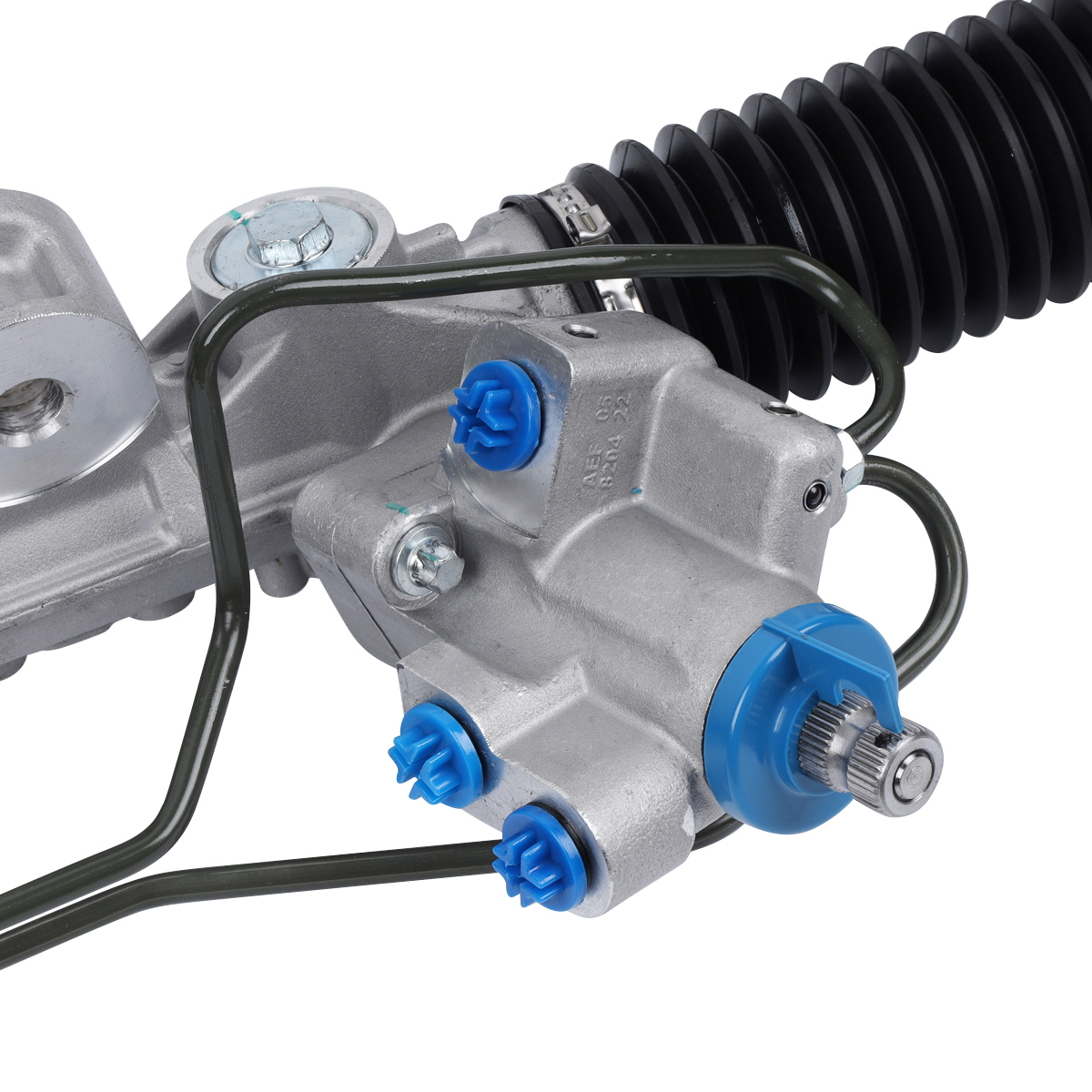

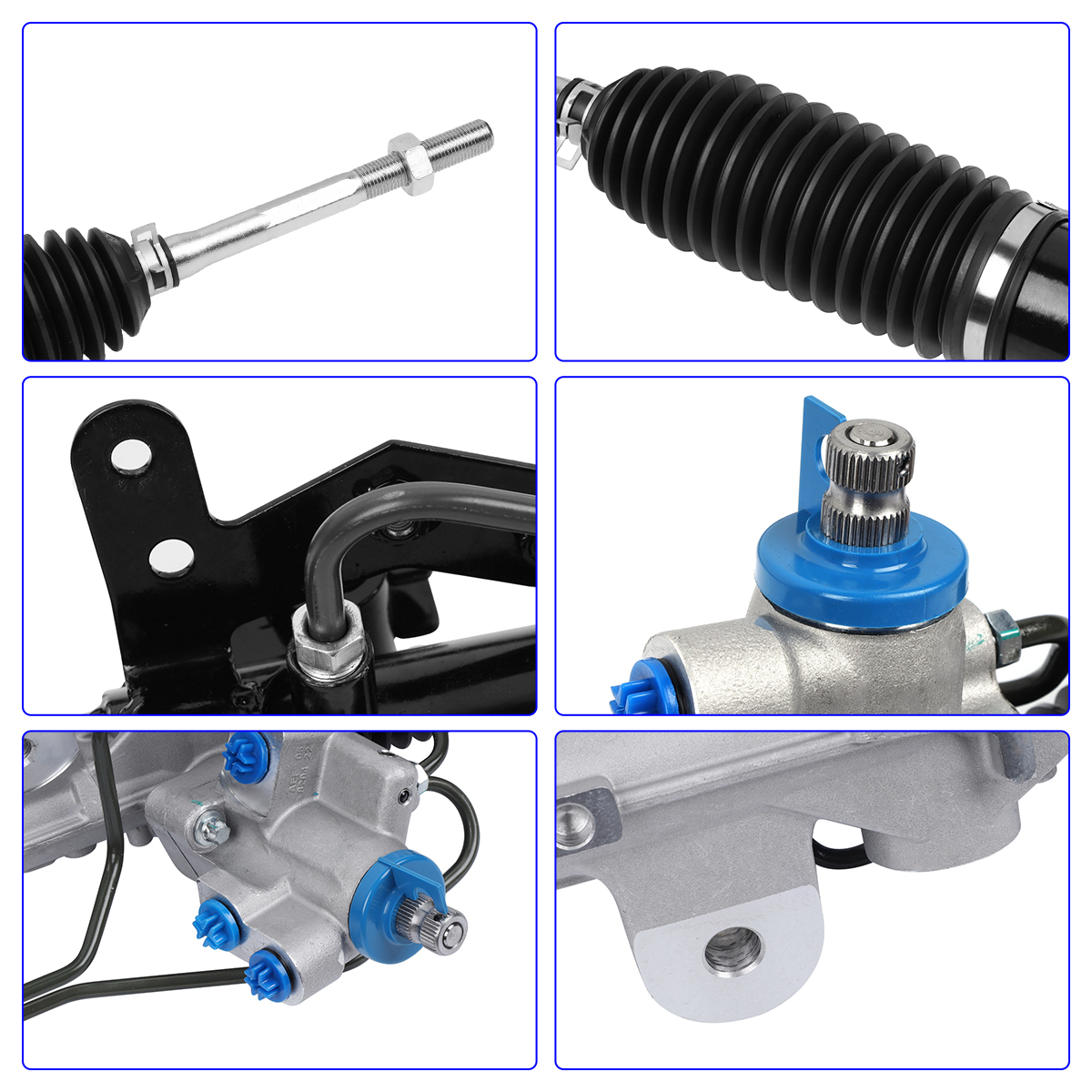

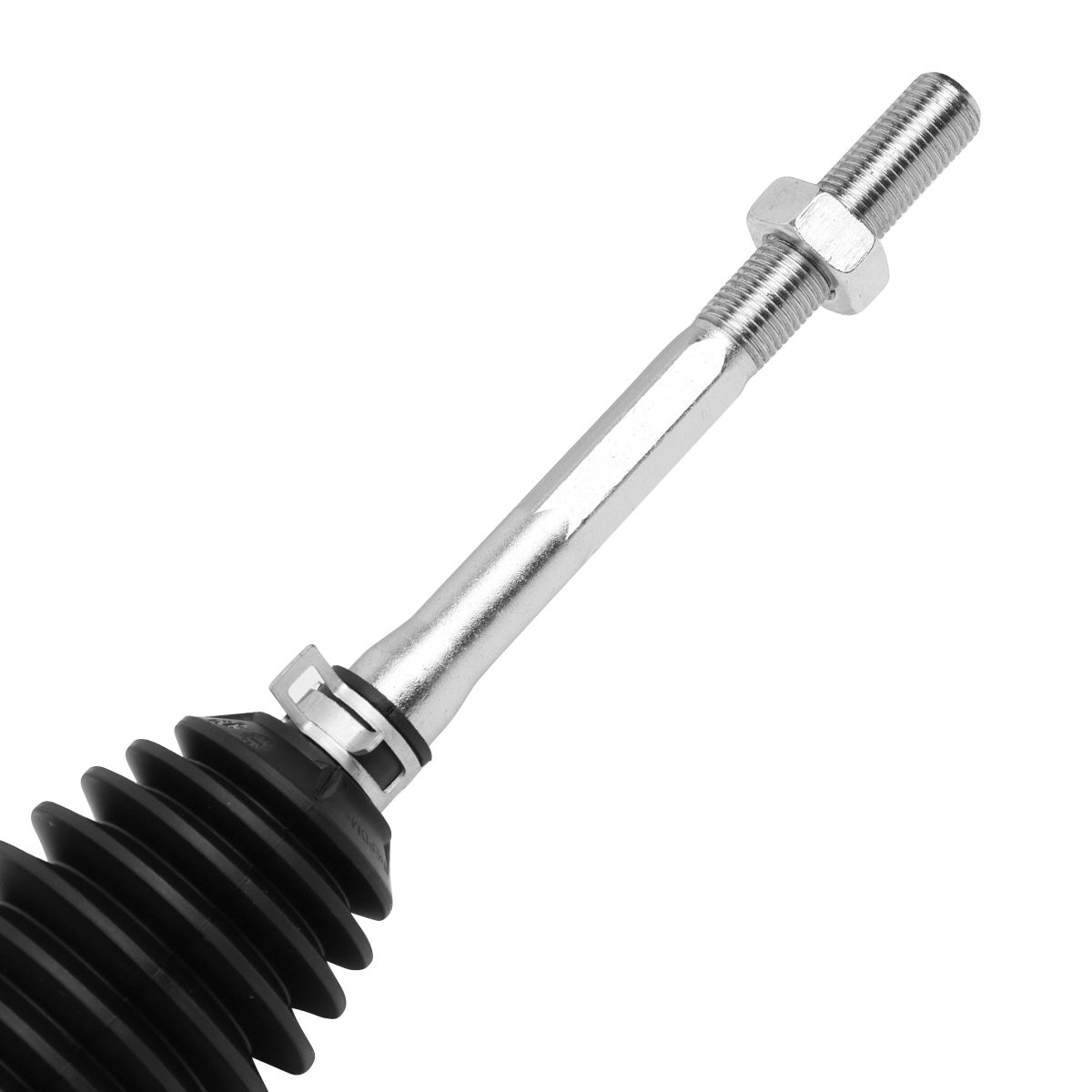

- Type: Power Steering Rack and Pinion
- Universal Fitment: No
- Vintage Part: No
- UPC: Does not apply
Processing Time
- We process and ship orders Monday through Friday, excluding holidays.
- Most orders are processed within 1–3 business days, depending on product availability.
- Processing time does not include delivery time, which varies based on your location and the product’s shipping origin.
Shipping Coverage
We currently ship to addresses within the United States only.
Products may ship from:
- Our U.S. warehouses, or
- Our international fulfillment centers (including Korea, Japan, China, Australia, Mexico, Canada, the United Kingdom, and the EU).
Each product page clearly displays the “Ships From” location before checkout.
Shipping Methods & Estimated Delivery
| Shipping Method | Estimated Delivery | Cost |
|---|---|---|
| Free Shipping (US) | 5–10 business days | Free, available on eligible items |
| Standard Shipping (US to US by Item) | 5–10 business days | $6.50 for the first item, $3.00 each additional |
| Standard Shipping (From US Warehouse by Weight) | 3–7 business days | Starts at $6.50, increasing by $2 for every additional 4 oz (0.25 lb) up to 1 lb, then by $4 for each additional pound beyond 1 lb. |
| Extended Delivery (Ships from Overseas Warehouse) | 10–15 business days | $14.50 for the first item, $4.00 each additional |
Shipping costs vary by product weight, quantity and origin. Exact rates and delivery estimates are displayed on each product page and confirmed during checkout.
Free Shipping
We offer free standard shipping on select products or during promotional periods. Availability of free shipping will be displayed on the product page and at checkout.
Carriers
We primarily use USPS and UPS for U.S. deliveries. Items shipped from international warehouses may be handled by partner carriers depending on the country of origin.
Import Duties & Taxes
All import duties and taxes for goods imported into the United States are included in the product price. There are no hidden fees or additional charges at checkout.
Tracking & Notifications
Every order is fully trackable. You will receive a tracking number via email once your order ships. If your order ships in multiple packages, each package will have its own tracking number. If you don’t receive a shipping confirmation immediately, your order is still being processed and will arrive within the estimated timeframe shown at checkout.
You can track your shipment anytime using the Track Your Order page on our website.
Order Changes & Cancellations
If you need to modify or cancel an order, please contact our customer support team as soon as possible. Orders can only be canceled before they ship. Once shipped, cancellations are not possible, but you may request a return after the item is delivered.
Contact: support@ibspot.com
Item Not Received
If your tracking number shows “Delivered” but you haven’t received your package:
- Check with your local USPS or UPS office.
- Confirm that the shipping address provided was correct.
- If the issue remains unresolved, contact support@ibspot.com for assistance.
Damaged or Lost Parcels
If your package arrives damaged or fails to arrive, please contact us immediately. For deliveries to P.O. boxes, ibspot is not responsible for damage caused by weather, temperature, or theft.
Customer Support
For any questions about shipping, tracking, or delivery, our customer support team is here to help.
Email: support@ibspot.com
We’re always happy to help.
Please read our policy carefully before making a purchase.
We aim to ensure every customer has a smooth and transparent experience with ibspot.com.
Order Cancellation Policy
Customers may request to cancel an order before it has been shipped.
Once the package has been shipped, cancellations are no longer possible; however, you may still request a return after receiving your order.
How to Request a Cancellation
You can contact us through:
-
Email: support@ibspot.com
-
Contact Form: Submit a request through our Contact Us page
Please submit your cancellation request as soon as possible after placing the order to allow us to process it before shipment.
Return Policy
We accept returns for most items within 30 days of delivery for a full refund.
To be eligible for a return:
-
The item must be unused, in the same condition as received, and in its original packaging.
-
A tracking number must be provided to confirm the return shipment.
Non-Returnable Items
Certain products cannot be returned, including:
-
Perishable goods (for example, food, flowers, newspapers, magazines)
-
Intimate or sanitary goods
-
Hazardous materials or flammable liquids/gases
-
Gift cards
-
Downloadable software
-
Some health and personal care items
Partial Refunds (If Applicable)
Partial refunds may be granted in specific situations, such as:
-
Books with obvious signs of use
-
Opened CDs, DVDs, software, or vinyl records
-
Items not in their original condition, damaged, or missing parts not due to our error
-
Items returned more than 30 days after delivery
How to Return an Item
To initiate a return, please contact us at support@ibspot.com with your order number and details about the product you wish to return.
Our team will provide you with return instructions and a prepaid return label.
Shipping Cost for Returns
Please contact us before returning any item.
We will provide a free return shipping label.
If a return is sent back without prior contact or without our provided label, we cannot be held responsible for return shipping costs.
For items valued over $75, we recommend using a trackable shipping service or purchasing shipping insurance.
We cannot guarantee that we will receive your returned item if shipped independently.
Refund Processing
Once your return is received and inspected:
-
In-store returns are refunded to the original form of payment or issued as a gift card.
-
Mail-in returns using our prepaid label are refunded to the original payment method within 3–5 business days after we receive your return.
Please allow:
-
5–7 business days for the return to reach our Returns Center.
-
An additional 3–10 business days for your bank to post the refund to your account.
Damages, Issues & Claims
Please inspect your order immediately upon receipt.
If you receive a defective, damaged, or incorrect item, contact us right away at support@ibspot.com.
We’ll evaluate the issue promptly and make it right.
Product Claims
Before purchasing, please review product details carefully.
If there is a problem with your order upon arrival, visit our Support Center or contact us directly to arrange return shipping or replacement.
Exchanges
We do not process direct exchanges.
The fastest way to get what you need is to return the original item and place a new order once your return is accepted.
Return Address
IBSPOT Return Center
15 Sawmill Ln
Dover Plains, NY 12522
United States
Customer Support
Our support team is available 24/7 to assist with cancellations, returns, or general inquiries.
Email: support@ibspot.com
Contact Form: Contact Us page
Oops!
Sorry, it looks like some products are not available in selected quantity.
