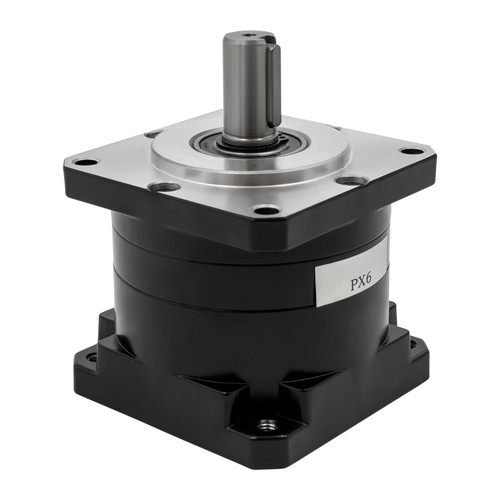

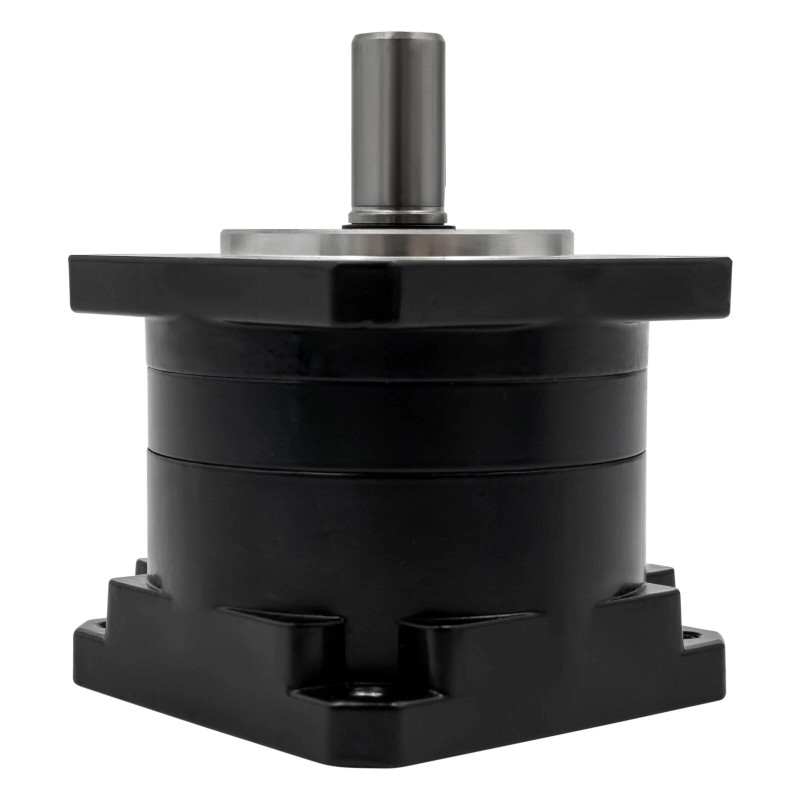

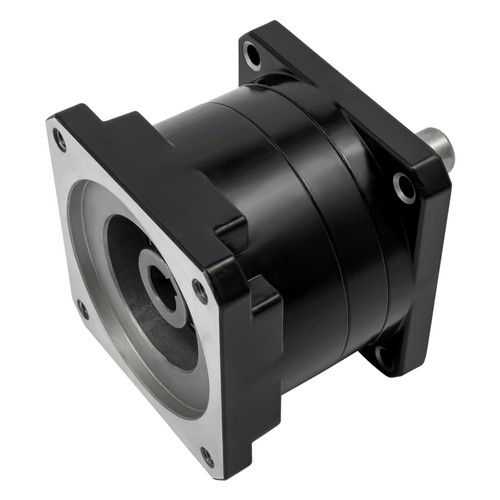

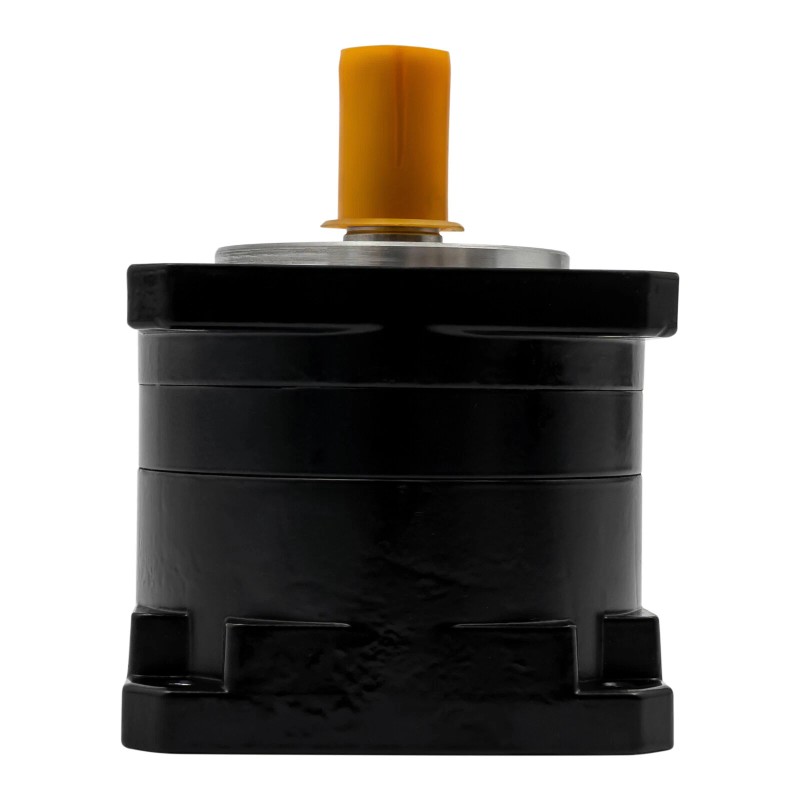

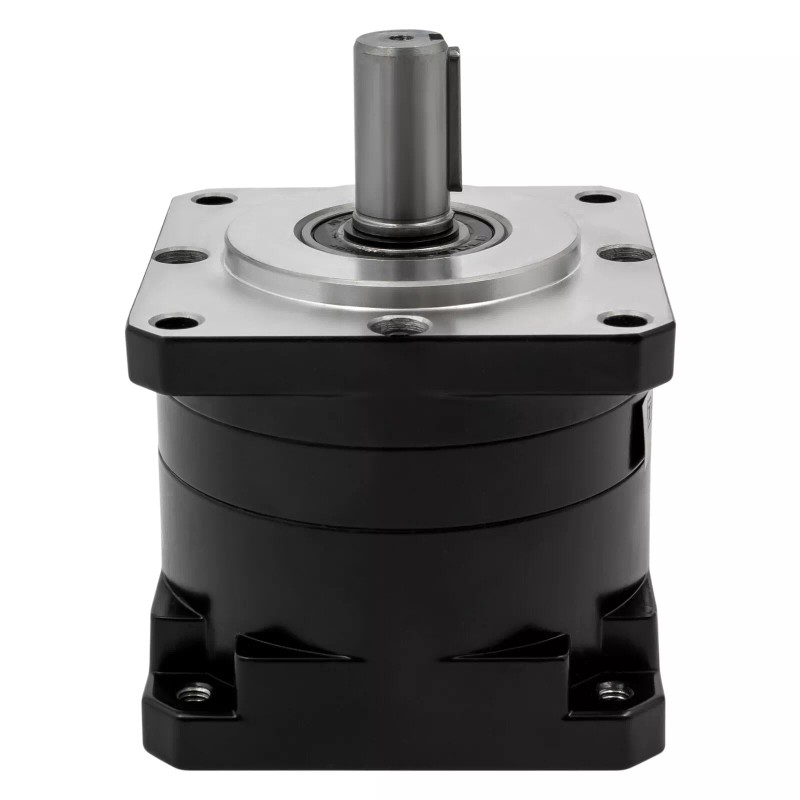

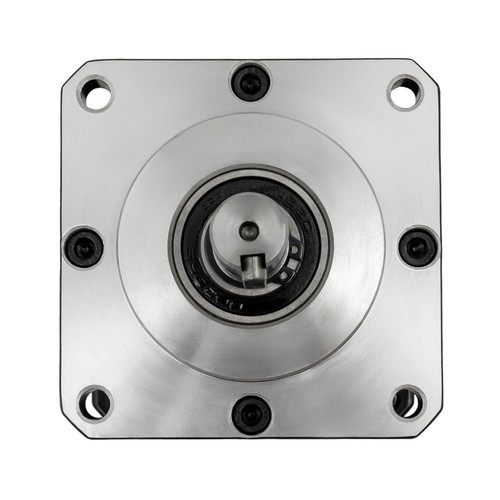

Unbranded 86 Stepper Motor Planetary Gearbox Speed Reducer Gear Head for CNC Stepper Motor
Unbranded 86 Stepper Motor Planetary Gearbox Speed Reducer Gear Head for CNC Stepper Motor
Unbranded 86 Stepper Motor Planetary Gearbox Speed Reducer Gear Head for CNC Stepper Motor
Specifications
Material: Cast Aluminum, 45#Steel
Process: Hobbing
Color: Black
Style: Modern
Assembly Required: No
Installation Form: Vertical
Gear Type: Cylindrical Gear Reducer
Input Speed: 100-3000rpm
Output Speed: 16-500rpm
Max. Holding Torque: 40N·m
Reduction Ratio: 6:1
Operating Noise: ≤ 70dB

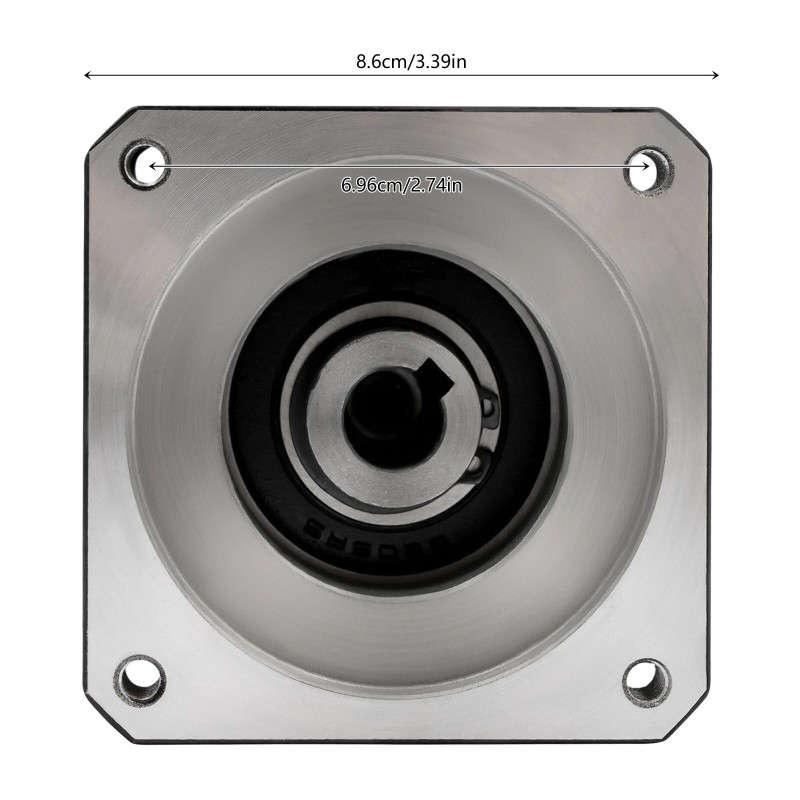

Input Hole Spacing: 69.6mm/2.74in

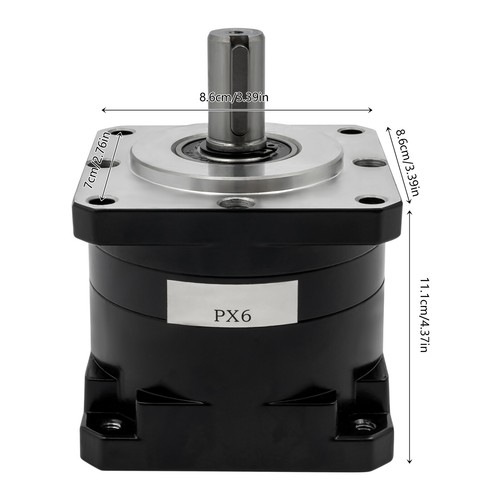

Output Hole Spacing: 70mm/2.76in
Product Size: 8.6*8.6*11.1cm/ 3.39*3.39*4.37in
Package Size: 11*11.5*13cm/4.33*4.53*5.12in
Gross Weight: 1.8kg/3.97 lbs
Net Weight: 1.76kg/3.88 lbs

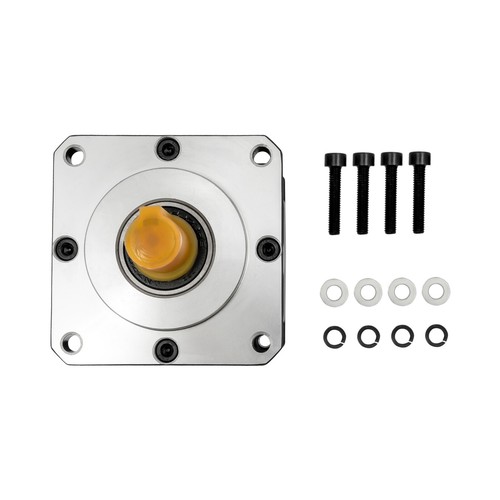

Package Included
1* 86 Stepper Motor Reducer Gearbox
Other Accessories Required for Installation
86 Stepper Motor Planetary Gearbox Speed Reducer Gear Head for CNC Stepper Motor
Specifications
Material: Cast Aluminum, 45#Steel
Process: Hobbing
Color: Black
Style: Modern
Assembly Required: No
Installation Form: Vertical
Gear Type: Cylindrical Gear Reducer
Input Speed: 100-3000rpm
Output Speed: 16-500rpm
Max. Holding Torque: 40N·m
Reduction Ratio: 6:1
Operating Noise: ≤ 70dB
Input Hole Spacing: 69.6mm/2.74in
Output Hole Spacing: 70mm/2.76in
Product Size: 8.6*8.6*11.1cm/ 3.39*3.39*4.37in
Package Size: 11*11.5*13cm/4.33*4.53*5.12in
Gross Weight: 1.8kg/3.97 lbs
Net Weight: 1.76kg/3.88 lbs
Package Included
1* 86 Stepper Motor Reducer Gearbox
Other Accessories Required for Installation
Description
A high-quality 86 stepper motor reducer gearbox is a model of precision craftsmanship and efficient transmission. It is made of high-strength materials, which have a long service life and can work continuously and stably under high load conditions. Advanced design concepts and precise gear structures enable it to output high torque and improve transmission efficiency. Its compact design not only saves installation space but also greatly reduces the burden on the overall equipment, making it an ideal choice for space-limited applications.
Key Features
High-quality Material: It is made of high-quality cast aluminum and 45 # steel and processed by hobbing, which is wear-resistant, impact-resistant, and rust-resistant, protecting the internal parts well and ensuring longer service life.
High Efficiency: It adopts an efficient gear meshing design, low friction bearings and compact internal machinery to improve transmission efficiency, reduce energy loss during operation, and lower operating costs.
Excellent Performance: Its input shaft and sun gear adopt an integrated structure, which provides higher accuracy and concentricity and withstands greater torque, thus providing greater accuracy and stability. It has a reduction ratio of 6:1, so you can change your motor speed more easily.
Low Noise: The optimized gear design and lubrication mechanism can reduce the noise level during operation(≤ 70dB), creating a quieter working environment for you.
Space-saving: Its compact design and lightweight(3.88 lbs) allow it to be installed on machines that have limited space for a gearbox, making it particularly suitable for integration into small automation equipment.
Easy Maintenance: It supports disassembly-free external maintenance, which reduces downtime and maintenance costs and increases productivity. The bearings at both ends also act as dust protection, relieving you of the burden of maintenance.
High Compatibility: The bottom standard interface makes it easy to connect with stepper motors, simplifying the installation process and shortening the equipment commissioning time.
Customer Service: Communication is the best way to solve problems. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Details
Smooth Edges: The smooth and burr-free edges enhance the beauty of the product and ensure your safety when installing and cleaning it.
Positioning Pin: The horizontal structure and positioning pin make your installation more convenient and efficient.
Rectangular Base: It increases the contact area with the plane to ensure its stability when working.

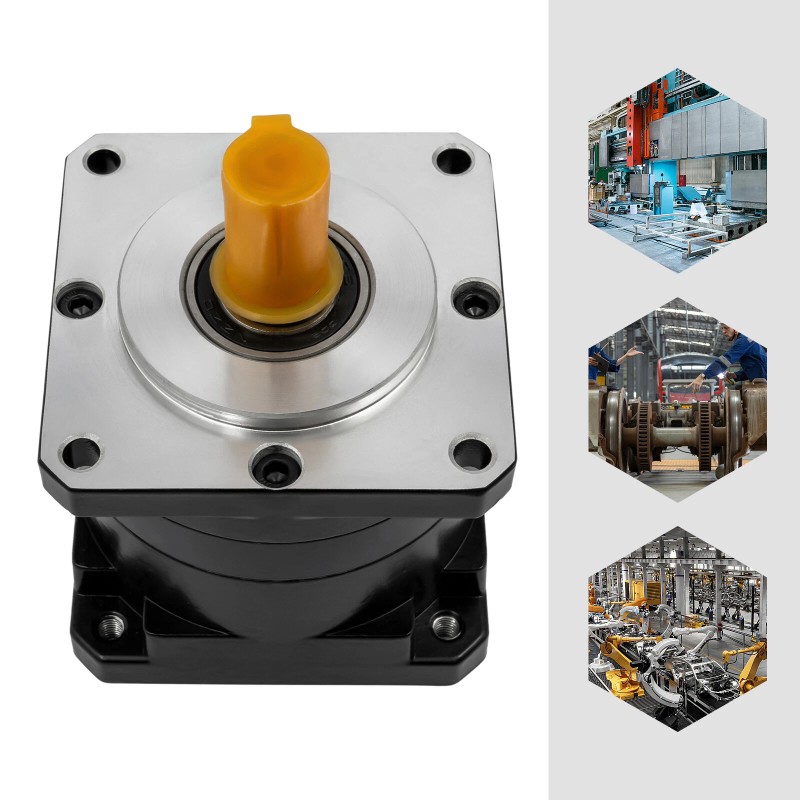

Application
It is mainly used to reduce the speed of 86 stepper motors and increase holding torque. It is widely applied in CNC machines, such as engraving machines, mills, lathes, work benches, benches, bandsaw machines, grinding machines, etc.
Notes
- Please note that the output shaft is not recommended to be disassembled by non-professionals.
- Please note that the gear reducer output shaft-mounted fittings shall not be knocked downward with force to avoid excessive up-and-down tampering. When installing the circular gearbox, the length of the mounting screws should be controlled, and the screws screwed in too long will damage the internal structural parts of the box.
- Please note that the reducer must not be rotated directly on the output, which may cause internal gear breakage.
