UHPPOTE Enhanced Alarm Output Fire Control Expansion Board Panel for Access Controller

Brand: UHPPOTE

Product Overview

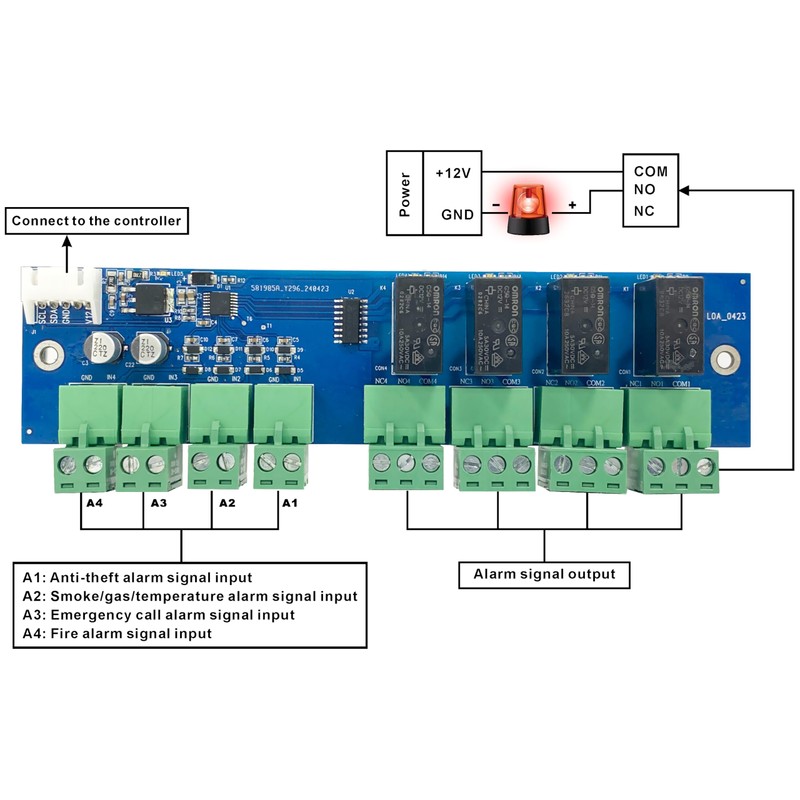

  • Four-way alarm output, free to define the functions for a certain door and several doors of the controller.
  • Can connect the output signal of anti-theft alarm, smoke/gas/temperature alarm and emergency call alarm, and the output status of each alarm signal can be freely defined through the software, that is, set to normally open or normally closed.
  • Can connect the output signal of fire alarm. It will automatically open all doors of the controller when receiving the fire signal and generate a fire alarm record for future reference.
  • Can control illegal intrusion alarm, long time unlocking alarm, threatened entry alarm, door open linkage output, invalid card alarm, fire alarm linkage, and so on.
  • Can set the delay time of each output from 0 to 600 seconds.
Brand: UHPPOTE
Manufacturer: UHPPOTE
Part Number: N1BBJLC
Isin: ILICVKFDHGBQ

$88.69

  • Free shipping in US
  • $14.5 Extended Delivery from Canada
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

More seller options

Starting from

Compare all sellers
scroll to top arrow
UHPPOTE Enhanced Alarm Output Fire Control Expansion Board Panel for Access Controller

UHPPOTE Enhanced Alarm Output Fire Control Expansion Board Panel for Access C...

$88.69

Product Overview

  • Four-way alarm output, free to define the functions for a certain door and several doors of the controller.
  • Can connect the output signal of anti-theft alarm, smoke/gas/temperature alarm and emergency call alarm, and the output status of each alarm signal can be freely defined through the software, that is, set to normally open or normally closed.
  • Can connect the output signal of fire alarm. It will automatically open all doors of the controller when receiving the fire signal and generate a fire alarm record for future reference.
  • Can control illegal intrusion alarm, long time unlocking alarm, threatened entry alarm, door open linkage output, invalid card alarm, fire alarm linkage, and so on.
  • Can set the delay time of each output from 0 to 600 seconds.
Brand: UHPPOTE
Manufacturer: UHPPOTE
Part Number: N1BBJLC
Isin: ILICVKFDHGBQ

Specifications:
Expansion board for access control board (Please search ASIN:B00UX02JWE to get access control board)
For access control function expansion with alarm
4-way alarm output. You can specify which function to which door of the controlled area
This item can connect the fire control output, when fire signal received, doors in the controlled area will be open automatically, and fire alarm will be recorded
Allow to change anti-intimidation password
Can set long time unlocking alarm time: 0-6000 seconds
Can set the time delay of each output from 0 to 6000 seconds

Support for:
Invalid break in alarm
Long time unlocking alarm
Intimidation break in alarm
Unlocking linkage output
Invalid card swiping alarm
Integrated fire control alarm and so on

Package:

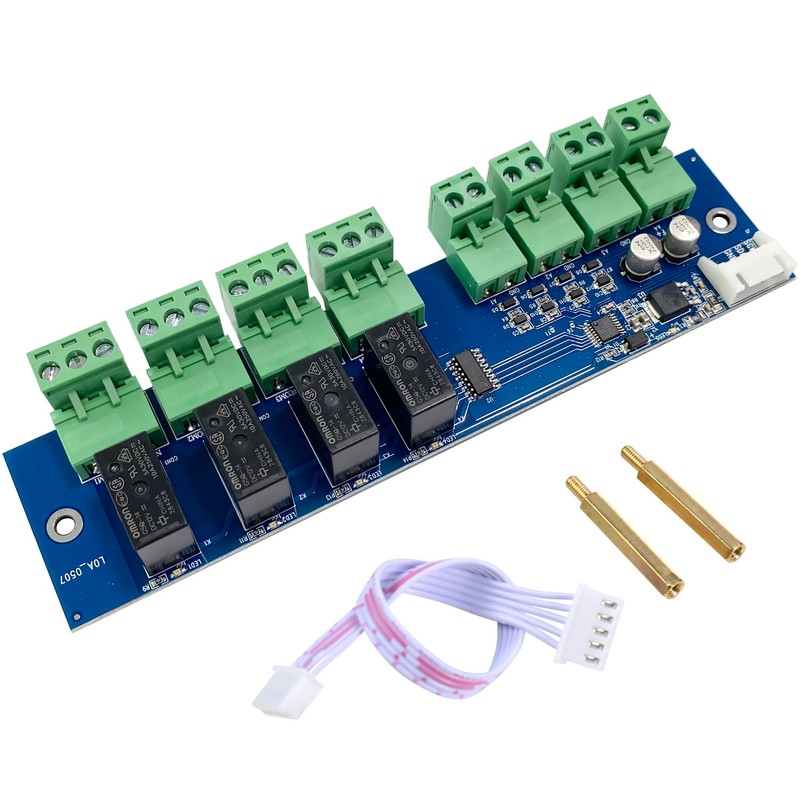

1 x Alarm Output and Integrated Fire Control Expansion Board
1 x Cable
1 x Installation Kit
