Three Phase Sequence Meter 60V‑600V AC Phase Rotation Tester Detector with LED Indicator Circuit Breaker Finder circuit finder
Three Phase Sequence Meter 60V‑600V AC Phase Rotation Tester Detector with LED Indicator Circuit Breaker Finder circuit finder
Three Phase Sequence Meter 60V‑600V AC Phase Rotation Tester Detector with LED Indicator Circuit Breaker Finder circuit finder
- Live Power Detection&Circuit Break Detection: Phase rotation meter can detect whether the wire is live or not, and can also judge if there is a fault in the line, quickly find the location of the circuit break. Clamp any one of the clamps to the wire under test, if the wire has electricity (AC 70~600V within the voltage setting range of the live wire), the corresponding A,B,C phase indicators will be on; if the wire lacks electricity, the corresponding A,B,C phase indicators will not light up.
- Non-contact Inductive Detection: Different from the traditional phase sequence detection,which must pull 3 phase wire and connect to exposed live wire.Our phase rotation meter adopts a clamp-type non-contact inductive measurement,without removing phase wire or touching exposed high-volt live wire.Phase sequence can be detected by simply clamping insulating sheath of 3 phase live wire with three clamps,which greatly improves safety of the test,effectively the safety of operator.

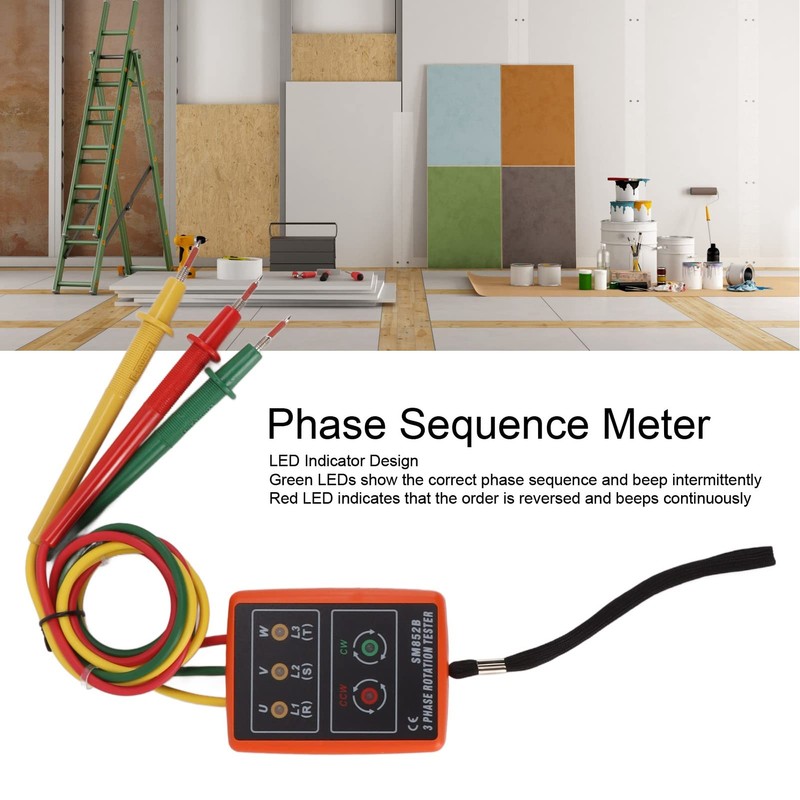

- LED Indicator Design: Green LEDs show the correct phase sequence and beep intermittently. The red LED indicates that the order is reversed and beeps continuously.
- Phase Sequence/Open Phase Detection Phase Rotation Meter: When the A, B, C phase indicators are all on, the R indicator will be on when the phase is positive, and the L indicator will be on when the phase is negative. When one or more of the A, B, C phase indicators are not on, it means that the corresponding phase line of the phase indicator is lack of power. Please check the lack of power of the corresponding phase, and the positive and negative phase indications are meaningless at this time.
- Multifunctional: Phase sequence detection (Positive phase, reverse phase and phaseloss), it also has the functions of live wire examination, simple power detection, fire-wire identification, phase deficiency determination, break location detection, DC line break and line maintenance, equivalent to 3 induction electric pens.
| Brand: | Marhynchus |
|---|---|
| Color: | Green,Red |
| Manufacturer: | Marhynchus |
| Part Number: | V31PRB9 |
| Isin: | I2TOGN3JMGJL |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Item Type: Phase Sequence Meter
Material: ABS
Size: Approx. 8.3x6.2x2.5cm/3.27x2.44x0.98in
Gross Weight: Approx. 223g/0.49lb

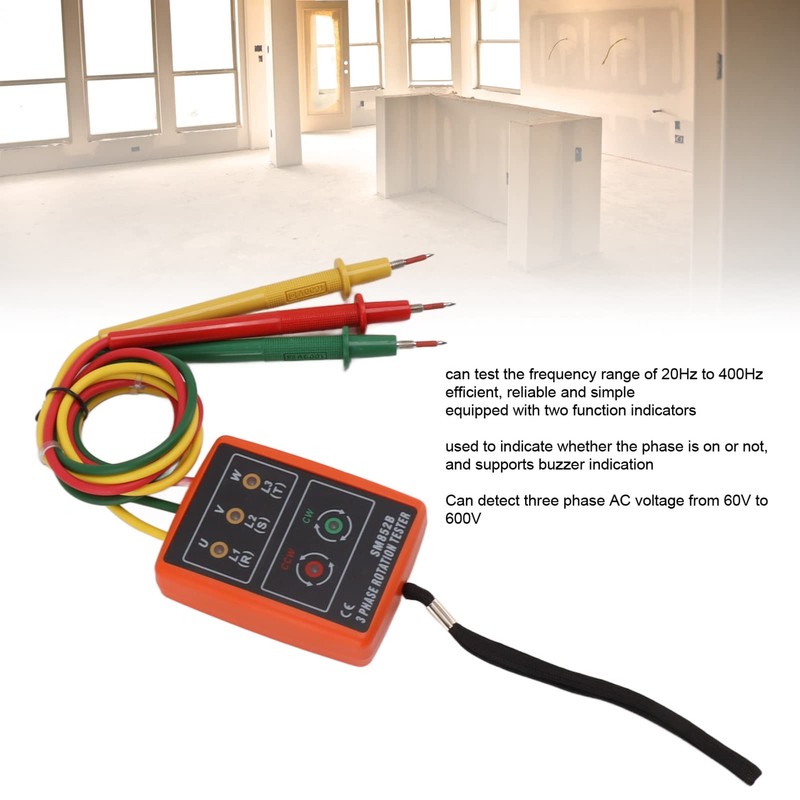

Voltage: 60V-600V
Working Frequency: 20Hz-400Hz

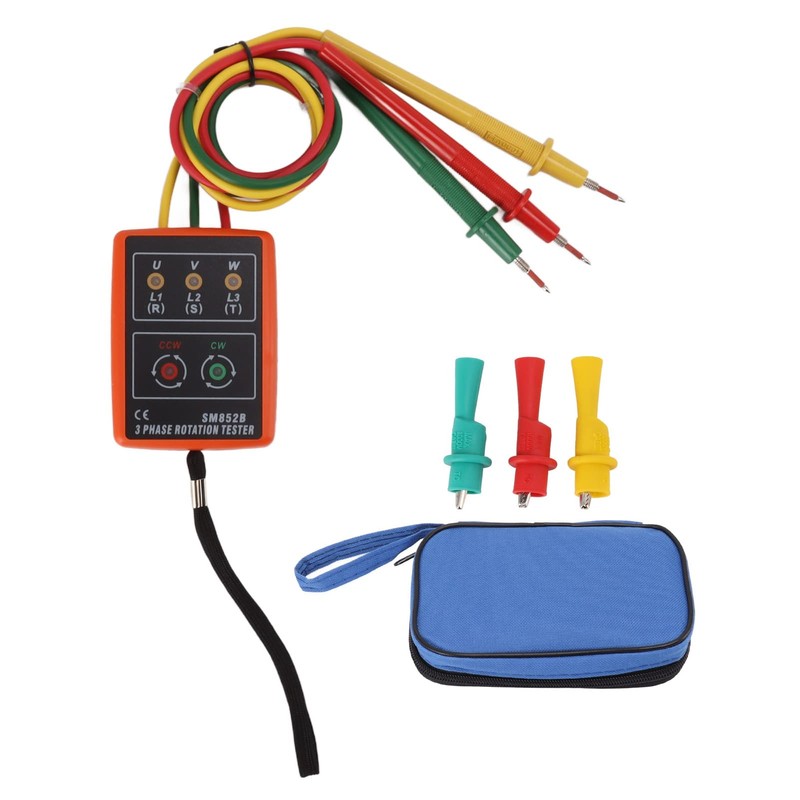

Package List:
1 x Phase Sequence Meter
3 x Clip
1 x Bag
1 x Manual
