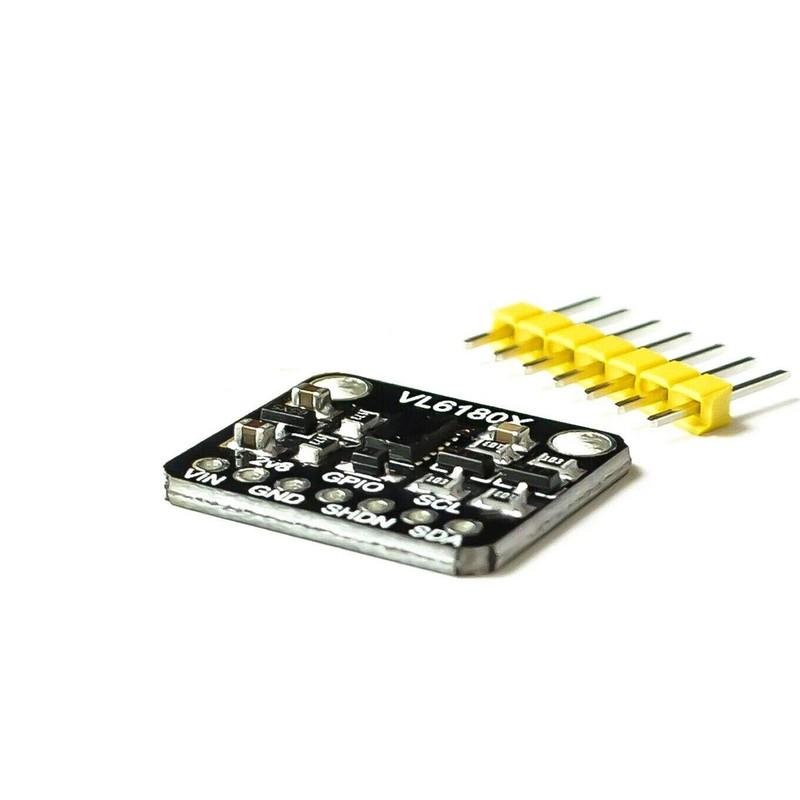

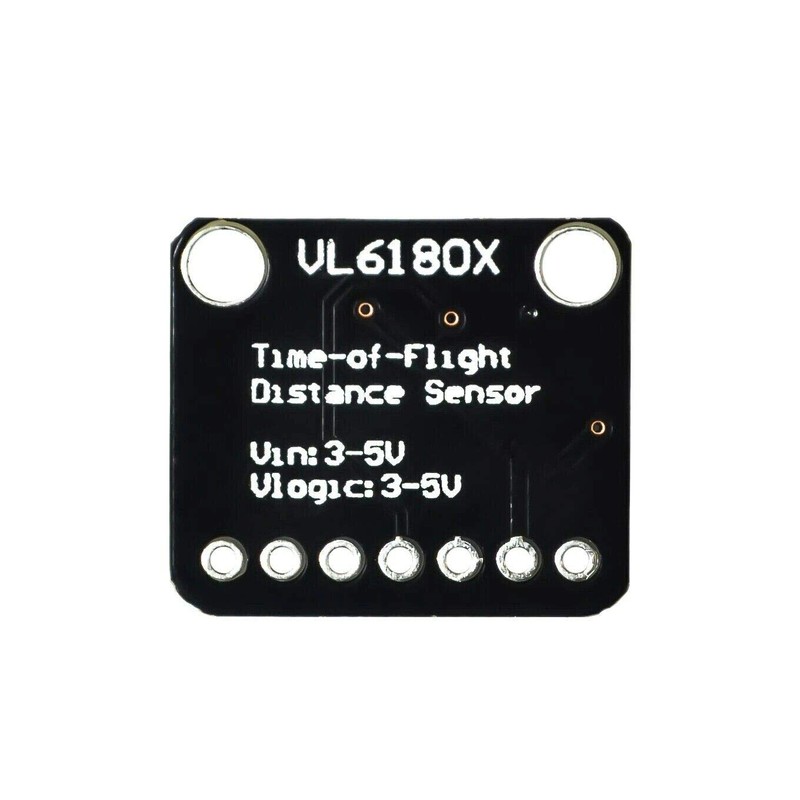

TECNOULAB 5pcs VL6180 VL6180X Optical Rangefinder Time of Flight Distance Sensor
TECNOULAB 5pcs VL6180 VL6180X Optical Rangefinder Time of Flight Distance Sensor
TECNOULAB 5pcs VL6180 VL6180X Optical Rangefinder Time of Flight Distance Sensor
- 【VL6180X】The VL6180x three-in-one optoelectronic module integrates an IR VSEL (vertical cavity surface-emitting laser) source, a proximity sensor and an ambient light sensor (ALS).
- 【Compact Design】The VL6180X module implements a proximity sensor that uses the time-of-flight (ToF) measurement principle; The VL6180X includes a single photon avalanche diode (SPAD) detector array that detects the moment at which a single photon is transmitted from one target to another and back to the module, calculated together with the amplitude of the signal.
- 【High Performance】Real distance, regardless of the reflectivity of the object, this true distance measurement capability can also produce simple but reliable one-dimensional gesture control.
- 【Applications】The ambient light sensor also has high sensitivity and accuracy in extremely low light conditions, wide sensing dynamic range and correct ambient light output (Lux).
- 【Applications】All components used to support proximity sensors and ambient light sensors are integrated into a packaged optical module. The integrated design can be completed without the need for a mechanical spacer or additional lens system.
| Brand: | TECNOULAB |
|---|---|
| Manufacturer: | TECNOULAB |
| Part Number: | HRHDMKS |
| Isin: | IBTF0AYHYELJ |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
X5pcs VL6180 VL6180X Range Finder Optical Ranging Time-of-Flight ToF Distance Sensor Module 3.3V 5V Gesture Recognition
The VL6180x three-in-one optoelectronic module integrates an IR VSEL (vertical-cavity surface-emitting laser) infrared vertical cavity surface emitting laser source, proximity sensor, and ambient light sensor (ALS). The VL6180X module implements a proximity sensor using the time-of-flight (ToF) measurement principle; the VL6180X includes a SPAD (Single Photon Avalanche Diode) detector array that detects the time at which a single photon is transmitted from the target to the target and back to the module, calculated in conjunction with the signal amplitude. The actual distance, independent of the reflectivity of the object, this actual distance measurement capability can also produce simple but reliable one-dimensional gesture control. The ambient light sensor also has high sensitivity and precision under ultra-low light, wide sensing dynamic range, and ambient light (Lux) corrected output. All components used to support proximity sensors and ambient light sensors are integrated into one packaged optical module.
Infrared laser wavelength: 850nm
Communication interface: IIC (400kHz), address 0x29 (7-bit), two programmable GPIO
Range (near) range: 0 to 100mm Error 13mm Under certain external environmental conditions, such as 100mm in dark environments
Temperature drift: 9 ~ 15mm Voltage drift: 3 ~ 5mm
Conversion time: 15ms
Ambient light range: 1~100kLux 16-bit output
Ambient light gain range: 1 to 40 (eight)
Ambient light sensitivity: 0.36 Lux/count (535 nm LED @ 1 kLux.Measured @ gain 20)
Angle response: 42 degrees
Linearity error: 5% (1 to 300 Lux), 10% (300 to 7500 Lux)
Gain error: 1% (gain 20), 7% (gain 1 to 10)
Packet Contains:
5pcs VL6180X Optical Ranging Sensor Module
