Role of an Alternator

As the engine provides only mechanical energy, it does not generate electricity. So we need a power source which produces electricity to power all the electrical accessories in your car. And that's where the alternator comes in. The vehicle's charging system consists of a car battery, the voltage regulator, and the alternator. Your alternator converts mechanical energy to electrical energy with an alternating current. The stator and rotor inside the alternator work as magnets and rotate to generate the alternating current. Then the alternating current(AC) is transformed into a direct current(DC) that charges the battery. Both overcharging and undercharging your battery can be a serious issue. The voltage regulator sends the power from the alternator to the battery, controls the amount of energy to provide a steady flow of power to the battery.

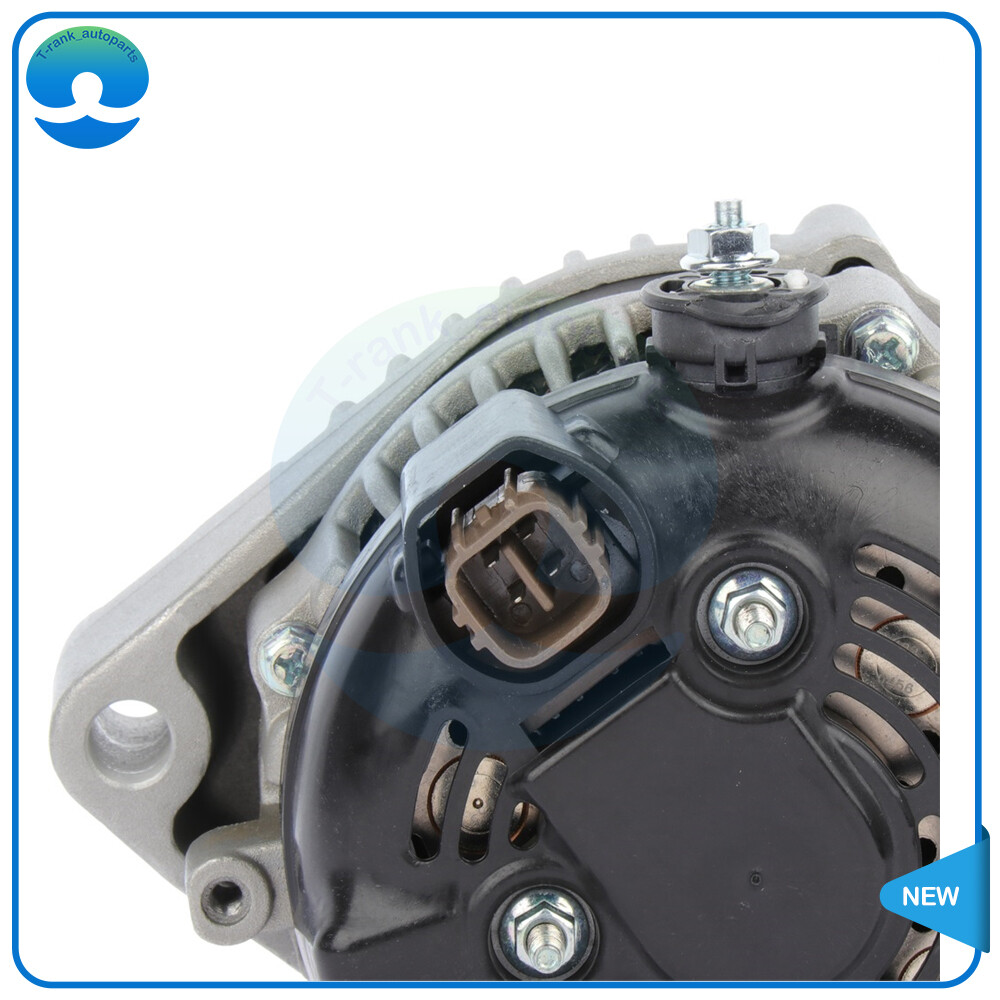

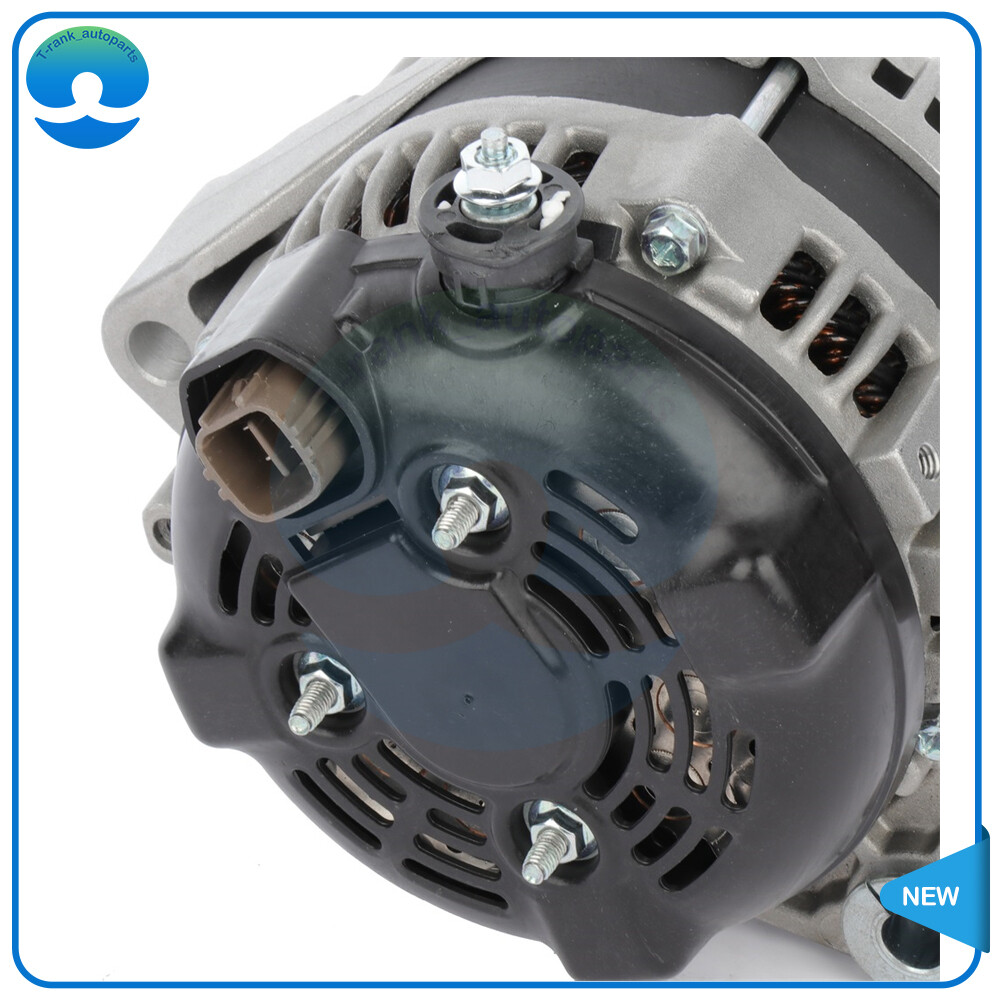

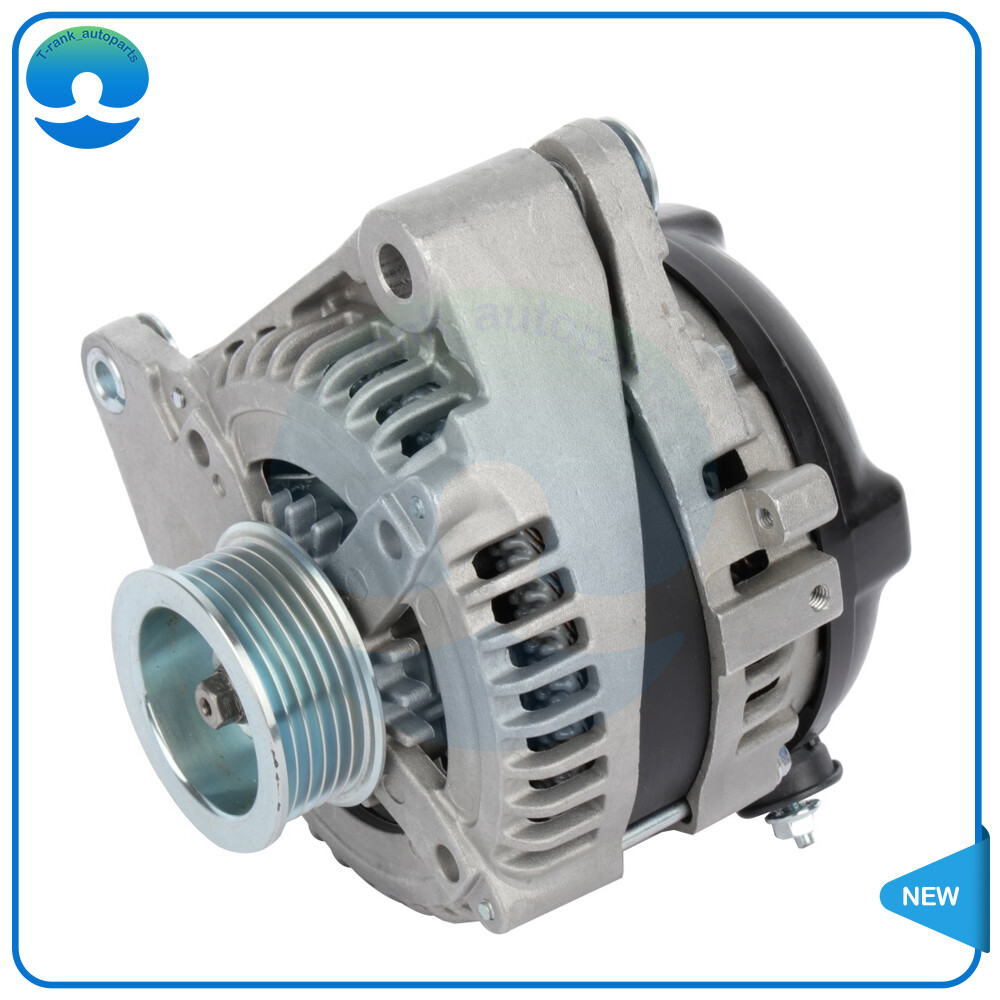

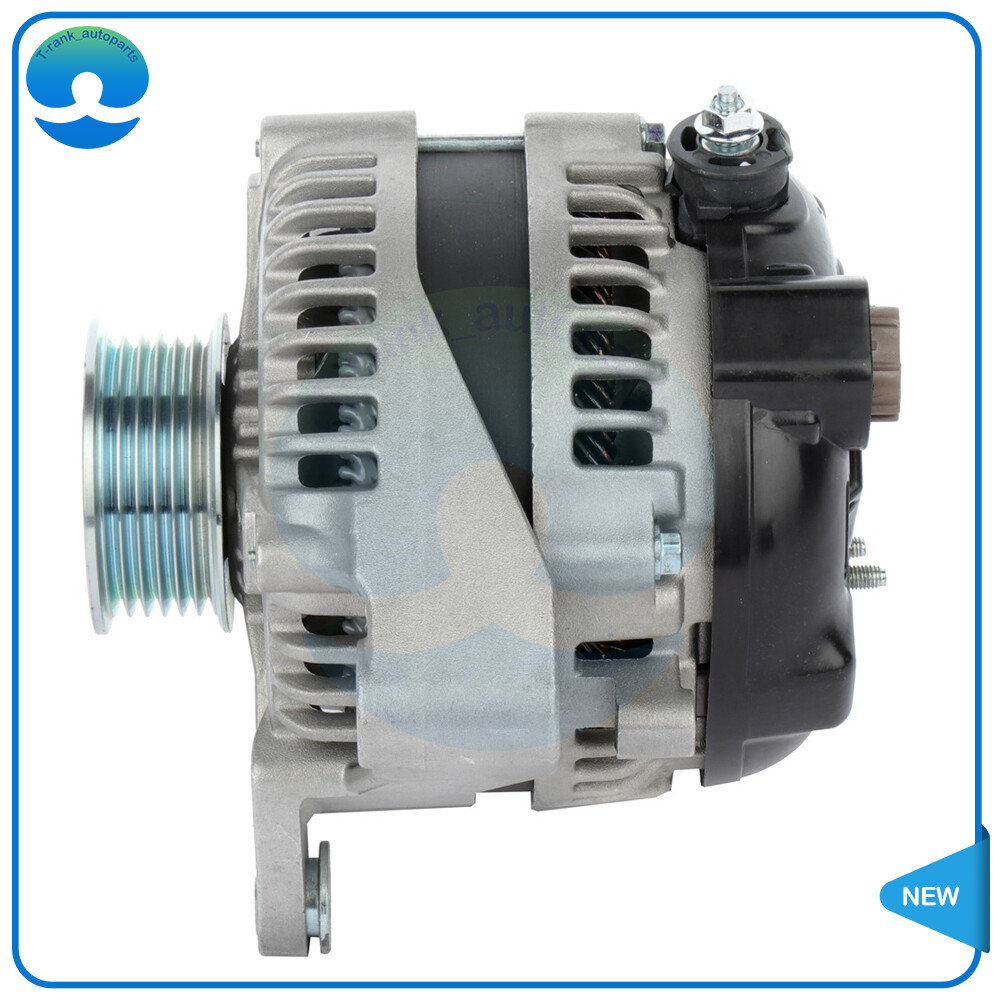

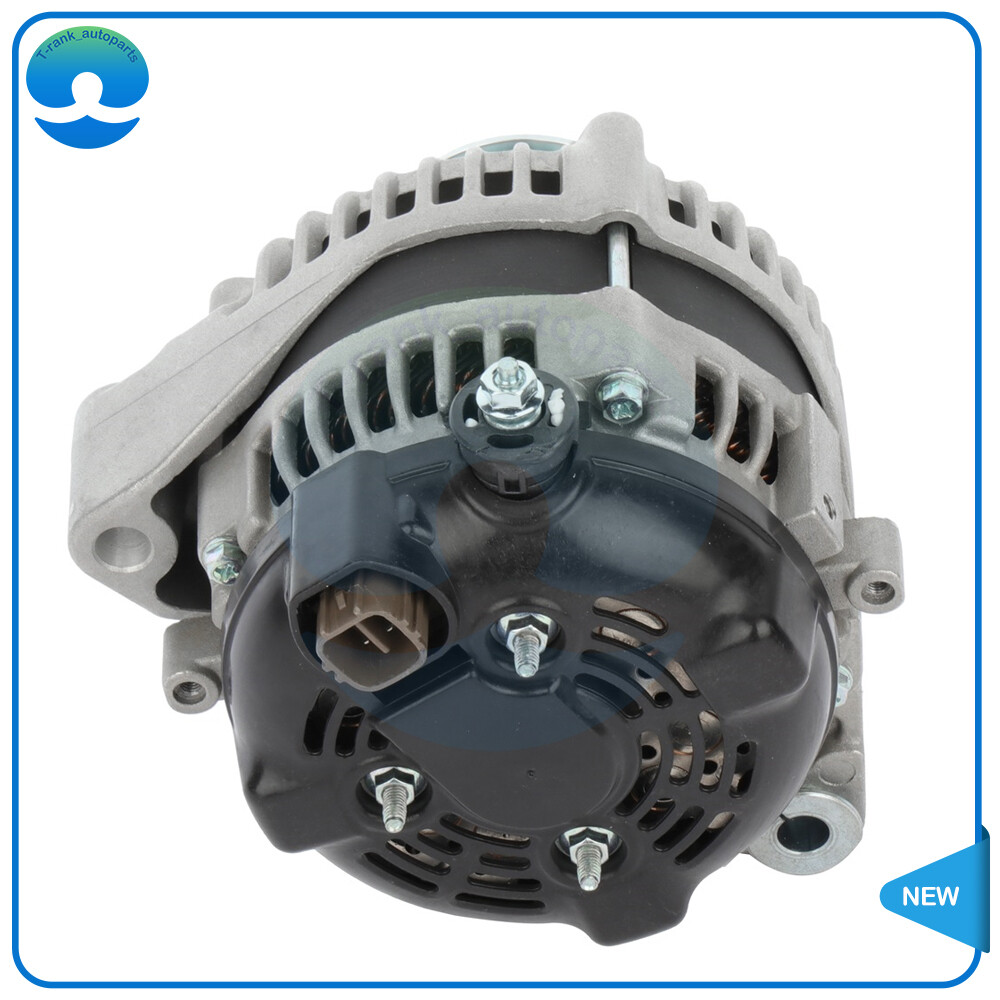

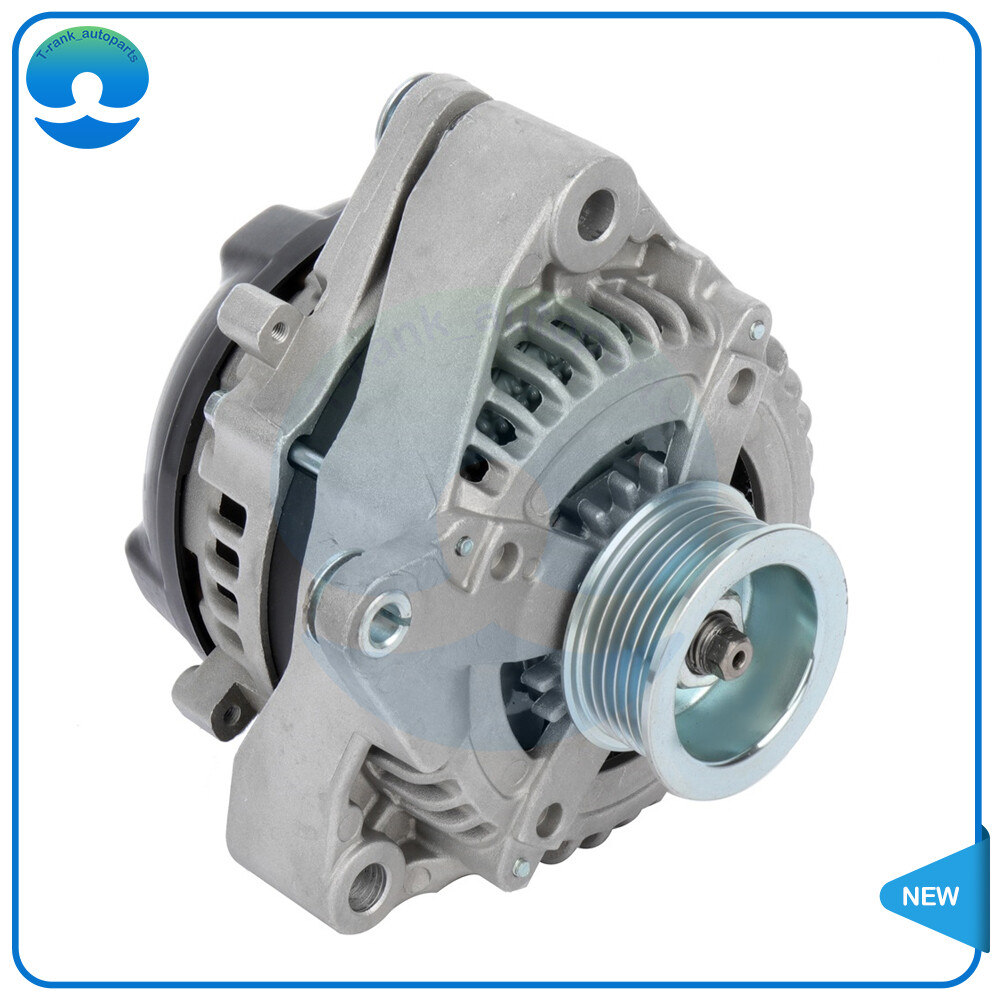

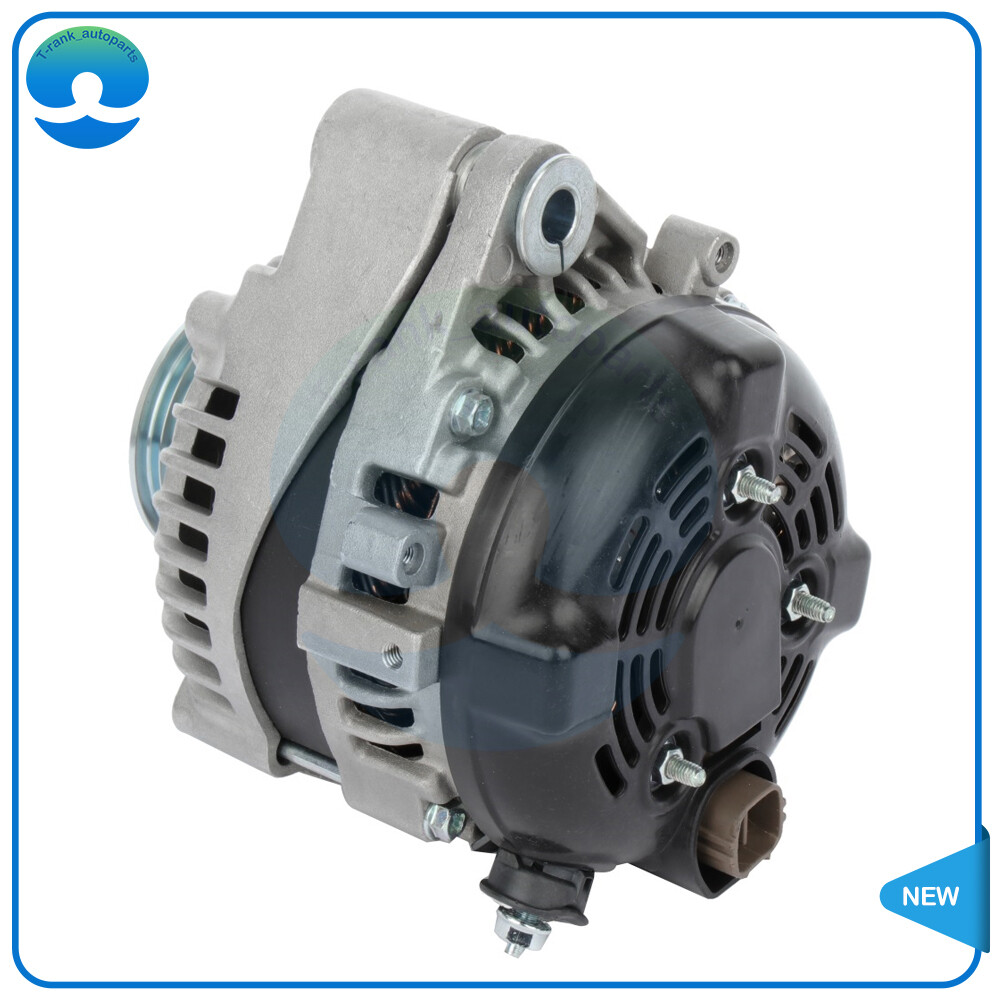

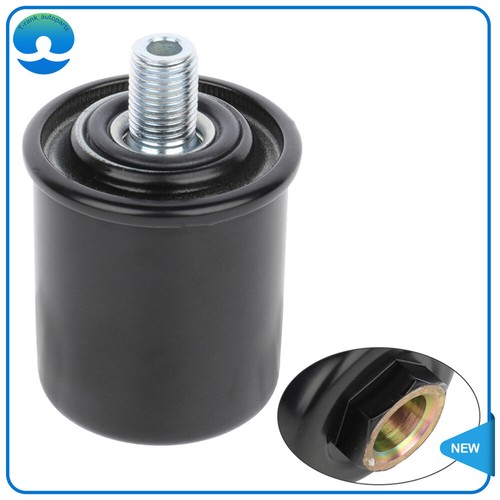

Feature

• Voltage: 12
• Rotation: CW
• Amperage: 130
• Regulator: IR
• Fan Type: IF

Signs of a worn alternator

Alternators usually do not require much attention unless they are worn out. Most of them last between 7 to 10 years in optimum conditions. However, there are several ways to tell if your alternator is exhausted.


1. Battery needing a constant boost.If you constantly need to boost your battery, it could be the sign of your alternator needing replacement as it fails to recharge the battery.
2. Difficult to Start.If your car stalls, there can be various causes, but a bad alternator could be one of them. If your vehicle can't get the electricity from your alternator, it cannot run so it stalls.
3. Dim lights.The most common cause of dim lights from your dashboard is due to a faulty alternator.
4. Delaying Electrical Accessories.If your electrical accessories are moving slower, then it can be a sign that your alternator is bad.

Part Number

Toyota: 27060-0F040, 27060-0F040-84, 27060-0F070, 27060-0F070-84
Denso: 104210-3380, 9664219-338, 104210-5120
Lester: 13994
PIC: 290-5150, 290-5242
Arrowhead: VND0392, AND0392
J & N Automotive: 400-52168R
TYC: 2-13994, 2-11153
Remy Remanufactured: 12452, 12455
Rayloc: 139568
NAPA: 213-9568
MPA: 13994
NAPA Pro Series: 13994
BBB Ind: 13994
Wilson: 90-29-5568
Carquest: 13994A
Bosch Remanufactured: AL3327X
Hollander: 60861
BBB New: N13994
Rayloc New: 1N9568
Denso First Time Fit: 210-0537
Remy New: 94755, 94743
J & N Automotive Old: 400-52168
Romaine Electric: 13994N, 36-13994
Dixie Electric: A-80054, A-80361

Fit for

Toyota Sequoia 03-09 V8 4.7L 4663cc 285cid Std, 130 Amp
Toyota Tundra 03-06 V8 4.7L 4663cc 285cid Opt, 130 Amp
Toyota Tundra 07-09 V8 4.7L 4663cc 285cid w/Towing, 130 Amp

Package Include

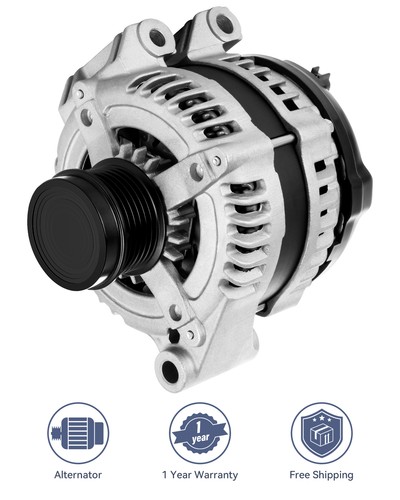

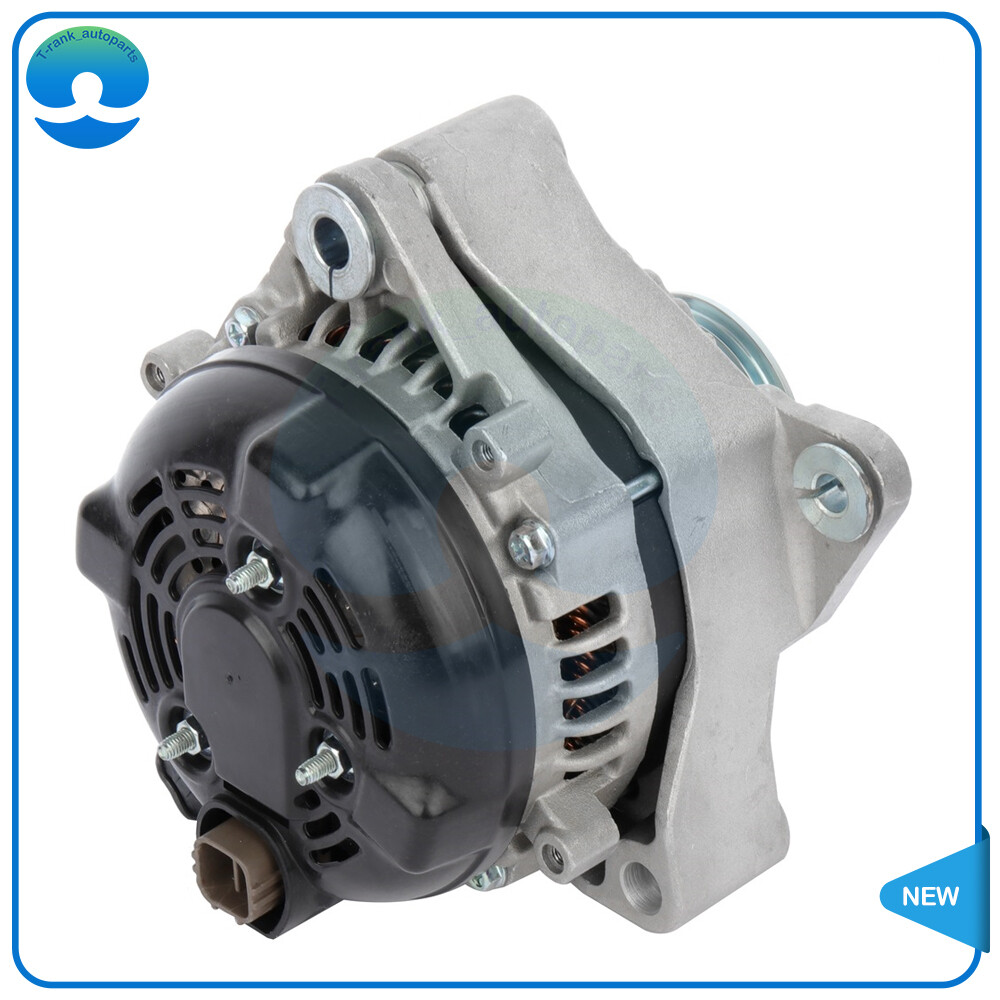

1 Alternator

How to Replace the Alternator

Disconnect the battery. Find the right socket to loosen the bolt that keeps the cable on the negative terminal tight. It’s the terminal of the battery with a visible (-) sign. Once it’s loose, slide the cable off the terminal to disconnect the battery. Never work in the engine bay of a vehicle without first disconnecting the battery for safety.

Remove the main power cable from the alternator. The main power cable will be the thick cable attached to the alternator that runs from the battery. Depending on how much space you have in your specific vehicle, you may be able to use a ratchet, but in some, you may only be able to fit an open-ended wrench. Unscrew the bolt holding it in place and pull it from where it’s connected.

Release the safety clip connecting the wiring harness. The only other wiring heading into the alternator is the control harness. Use your finger or a flat head screwdriver to release the clip holding the harness together, then slide it apart.

Relieve tension on the belt with the auto-tensioner (if equipped). Some vehicles use the alternator itself to apply tension to the serpentine or accessory belt, but others use an auto tensioner pulley. Insert the square drive from a breaker bar into the hole in the auto-tensioner pulley and apply pressure in a clockwise direction to relieve tension on the belt.

Loosen the bolts on the alternator if there is no auto-tensioner. In cars without an auto-tensioner pulley, you can relieve the tension on the belt simply by loosening the two bolts that secure the alternator to the engine. These will often require a 14mm or 1⁄2 inch (1.3 cm) socket, though you may need to try others.

Inspect the serpentine belt for damage. Look for signs of glossing or glazing (shinier portions) on the edges and underside of the belt. Inspect both the top and underside for signs of cracking as well.If you find any of those issues, you’ll need to replace it.

Remove the alternator from the engine bay. With the belt pulled off of the alternator pulley and the wires disconnected, the alternator should come out freely.

Compare the new alternator to the old one. Before installing the new alternator, set it down on a table next to the old one you just removed. Make sure the mounting holes and wire connectors are in the same place and that the two parts are the same size.

Slide the new alternator into place. You might have to wiggle the alternator around to squeeze it back into place in a crowded engine bay. Be sure to hold loose wires or the serpentine belt out of the way as you get it into place.

Insert the mounting bolts. Slide the mounting bolts through the alternator and into the mounting bracket. Tighten them by hand until they’re snug. In cars with an auto-tensioner pulley, you can completely tighten the bolts at this point, otherwise keep the bolts loose.

Run the belt over the new alternator pulley. Either install the new belt or run the old belt back through all of the appropriate pulleys. If you aren’t sure how to properly route the belt, look for a diagram on the body of the car inside the engine bay to guide you. The belt will need to go around any accessories it is supposed to power in your specific vehicle.

Tighten the bolts and the belt. With tension on the belt applied via the alternator and pry bar, use the appropriate socket and a ratchet to tighten the two mounting bolts up the rest of the way. This will allow the alternator to keep the tension on the belt.

Connect the power cable and monitor harness. Reconnect the wire harness and insert the bolt that secures the main power cable to the alternator in the same order you removed them. They should install exactly as they were in the old alternator.

Reconnect the battery. With the new alternator in place, all you have left to do is reconnect the negative lead to the battery. Make sure you tighten it firmly so it can’t shake loose while driving.
