SY-Auto KK-4835 Air Compressor Connecting Rod Kit for Craftsman, Porter Cable, Devildiss

Brand: SY-Auto





Great Value & Great Quality!


KK-4835 Air Compressor Piston Kit for Porter Cable Craftsman Devildiss Dewalt


🚗【Application Models】

Compatible with Craftsman Devildiss Dewalt and Porter Cable. Fits for the following models: AC-0102 AC-0051 D-20954 Z-D24959 Z-D24960 MO-3024 Z-D26718 Z-D26717 919.152811 919.727270 919.152932 919.165230 919.167330 919.165600 919.166600 919.167320 919.152811 919.152813 919.152921 919.152931 919.155730 919.166330 919-165310, 919-165330.


🚗【Function】

To rebuild the oil free air compressor. You can replace the piston , cylinder sleeve ,o-rings on valve plateand piston ring in the compressor.


🚗【Material】

Made from solid 6061 Aluminum, CNC process precision manufacturing, impact-resistant, corrosion and wear resistance, features with the capability of handling literally tons of pressure, ensures long term reliable service.

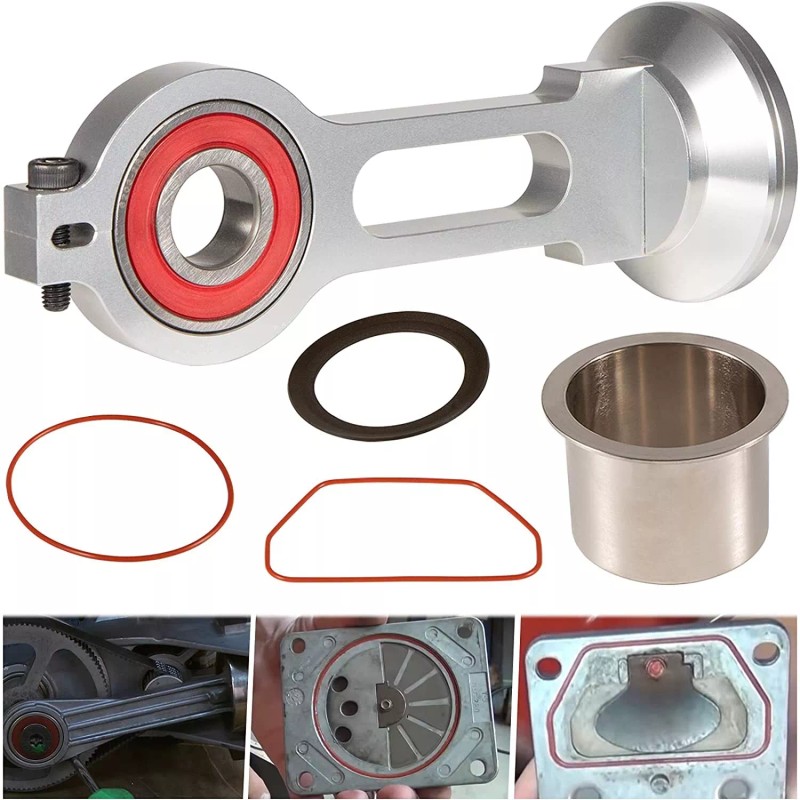

Package Includes

1 x Connecting Rod

1 x Piston Ring

1 x Cylinder Sleeve

2 x O-Ring that go on the valve plate

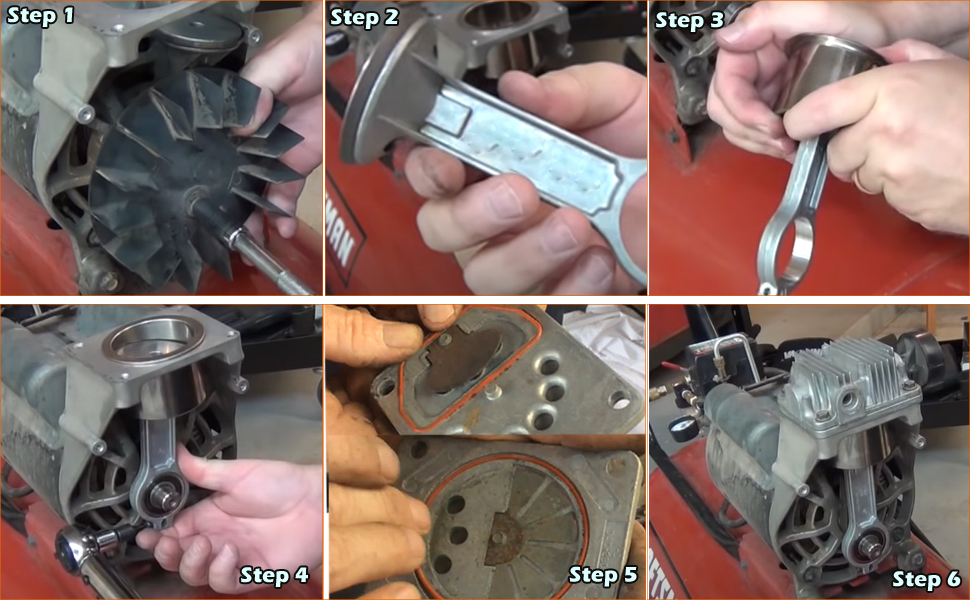

Installtion Guide

Step 1. After disassemble the pump head, Remove the fan mounting bolt and pull the fan off

  • Remove the piston and old sleeve.



Step 2. Install the new compression ring

  • Place the new compression ring on the top of the piston. Reinstall the piston cap and Torx screw.



Step 3. Insert the piston rod into the sleeve.

  • Slide the piston into the new cylinder sleeve. Insert the piston and cylinder sleeve into the pump body.



Step 4. Reinstall the piston and the fan

  • Push the piston connecting rod onto the eccentric bearing. Align the piston connecting rod flush with the eccentric bearing.
  • Tighten the piston connecting rod Torx screw to 48 inch-pounds using a torque wrench



Step 5. Replace the both new valve plate seals on the valve plate assembly, then cover to the piston back.

  • Install the new upper valve plate seal. Install the new lower valve plate seal.



Step 6.Reinstall the pump head mounting bolts.

  • Position the pump head over the new valve plate with the muffler side of the pump head over the reed valves on the valve plate.












Payment


We accept Payoneer/Paypal/Google Pay/Visa/Master Card/Amex/Discover for Payment.

Delivery Details


1.Orders will be ship out within 1 business days after payment has cleared.

2.Orders from Saturdays, Sundays or holidays will process on next business day and will be ship within 24 hours.

3.All of the items are shipped from our Warehouse in USA,Ship via USPS or UPS.It usually takes about 2-5 business days to reach you.

Terms of Sales


1.Any defective items received can be replaced or refunded. Please contact us with the item number, eBay ID and defect description within 7 days after the date of package arrived.

2.Support 12 months' Warranty. All product will be tested in 100% before delivery. If the item is was damaged in transit, kindly please contact us for a replacement or refund (Excluding contrived damage or misuse).

About Us


We offers a wide range of accessories to enhance and upgrade both the look and function of your vehicle.We sincerely appreciate your decision to purchase our products, we always committed to providing the high-quality, safe automotive decorative products and the excellent ,professional and customer service

If you have any questions, please feel free to email our service specialists 24 Hours a Day, and we will reply you ASAP. If no response within 24 Hours, please check the spam of mail box or kindly re-send it to us.

Brand: SY-Auto
Isin: ID59YLQK9CBZ

$155.04

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
SY-Auto KK-4835 Air Compressor Connecting Rod Kit for Craftsman, Porter Cable, Devildiss

SY-Auto KK-4835 Air Compressor Connecting Rod Kit for Craftsman, Porter Cable...

$155.04






Great Value & Great Quality!


KK-4835 Air Compressor Piston Kit for Porter Cable Craftsman Devildiss Dewalt


🚗【Application Models】

Compatible with Craftsman Devildiss Dewalt and Porter Cable. Fits for the following models: AC-0102 AC-0051 D-20954 Z-D24959 Z-D24960 MO-3024 Z-D26718 Z-D26717 919.152811 919.727270 919.152932 919.165230 919.167330 919.165600 919.166600 919.167320 919.152811 919.152813 919.152921 919.152931 919.155730 919.166330 919-165310, 919-165330.


🚗【Function】

To rebuild the oil free air compressor. You can replace the piston , cylinder sleeve ,o-rings on valve plateand piston ring in the compressor.


🚗【Material】

Made from solid 6061 Aluminum, CNC process precision manufacturing, impact-resistant, corrosion and wear resistance, features with the capability of handling literally tons of pressure, ensures long term reliable service.


Package Includes

1 x Connecting Rod

1 x Piston Ring

1 x Cylinder Sleeve

2 x O-Ring that go on the valve plate

1

Air Compressor Cylinder Sleeve & Ring Kit

Installtion Guide

Step 1. After disassemble the pump head, Remove the fan mounting bolt and pull the fan off

  • Remove the piston and old sleeve.



Step 2. Install the new compression ring

  • Place the new compression ring on the top of the piston. Reinstall the piston cap and Torx screw.



Step 3. Insert the piston rod into the sleeve.

  • Slide the piston into the new cylinder sleeve. Insert the piston and cylinder sleeve into the pump body.



Step 4. Reinstall the piston and the fan

  • Push the piston connecting rod onto the eccentric bearing. Align the piston connecting rod flush with the eccentric bearing.
  • Tighten the piston connecting rod Torx screw to 48 inch-pounds using a torque wrench



Step 5. Replace the both new valve plate seals on the valve plate assembly, then cover to the piston back.

  • Install the new upper valve plate seal. Install the new lower valve plate seal.



Step 6.Reinstall the pump head mounting bolts.

  • Position the pump head over the new valve plate with the muffler side of the pump head over the reed valves on the valve plate.












Payment


We accept Payoneer/Paypal/Google Pay/Visa/Master Card/Amex/Discover for Payment.

Delivery Details


1.Orders will be ship out within 1 business days after payment has cleared.

2.Orders from Saturdays, Sundays or holidays will process on next business day and will be ship within 24 hours.

3.All of the items are shipped from our Warehouse in USA,Ship via USPS or UPS.It usually takes about 2-5 business days to reach you.

Terms of Sales


1.Any defective items received can be replaced or refunded. Please contact us with the item number, eBay ID and defect description within 7 days after the date of package arrived.

2.Support 12 months' Warranty. All product will be tested in 100% before delivery. If the item is was damaged in transit, kindly please contact us for a replacement or refund (Excluding contrived damage or misuse).

About Us


We offers a wide range of accessories to enhance and upgrade both the look and function of your vehicle.We sincerely appreciate your decision to purchase our products, we always committed to providing the high-quality, safe automotive decorative products and the excellent ,professional and customer service

If you have any questions, please feel free to email our service specialists 24 Hours a Day, and we will reply you ASAP. If no response within 24 Hours, please check the spam of mail box or kindly re-send it to us.

  • Brand: SY-Auto
  • Type: Compressor Piston Kit
  • Manufacturer Part Number: Does Not Apply
  • OE/OEM Part Number: KK-4835 KK-5081 & A02743
  • Manufacturer Warranty: 1 Year
  • Material: 6061 Aluminum
  • Fitment: For Craftsman Devildiss Dewalt Porter
  • UPC: Does not apply
