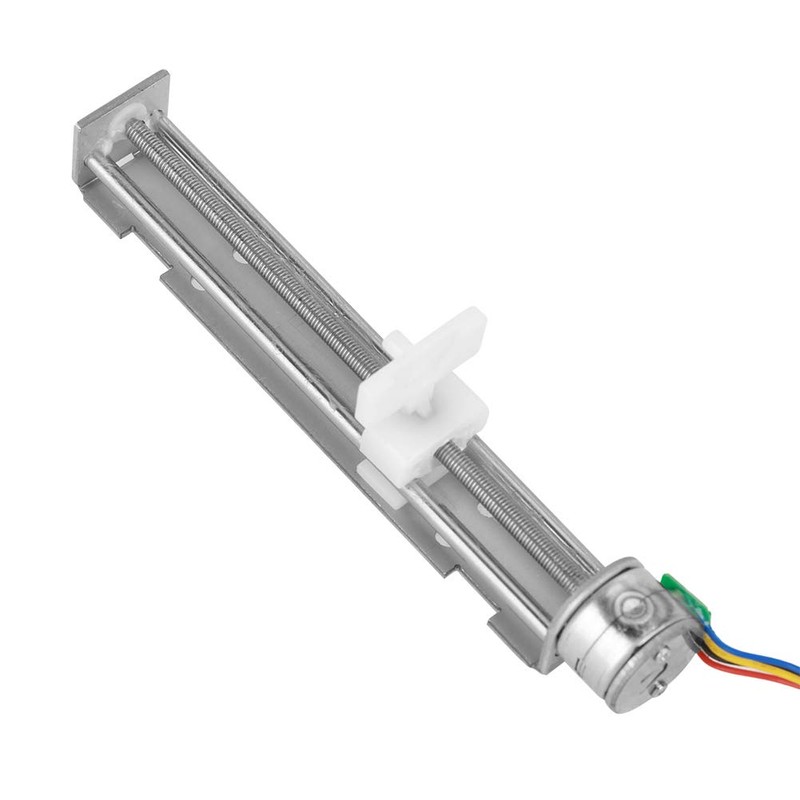

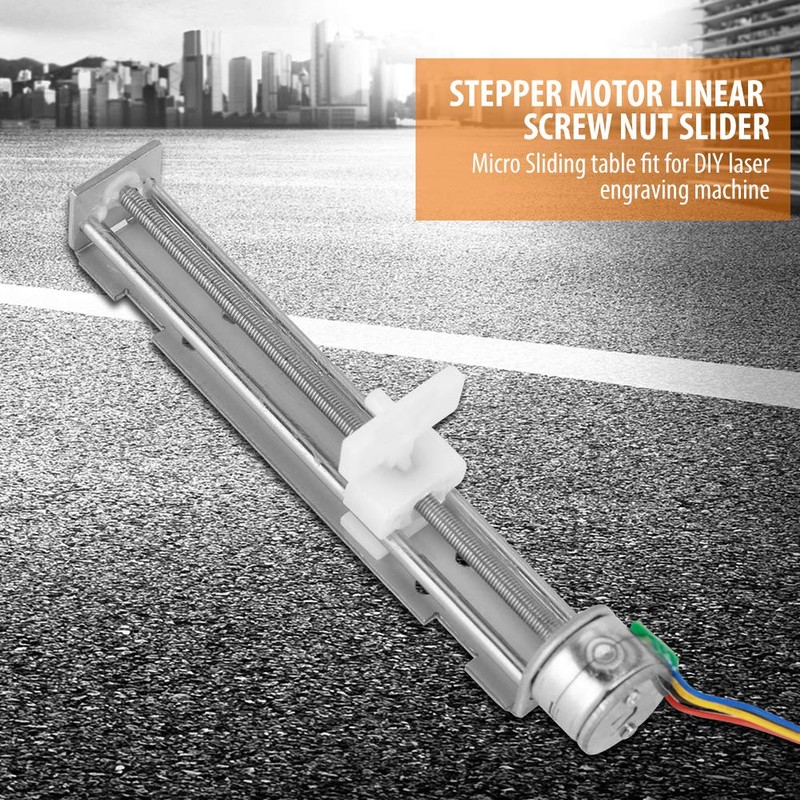

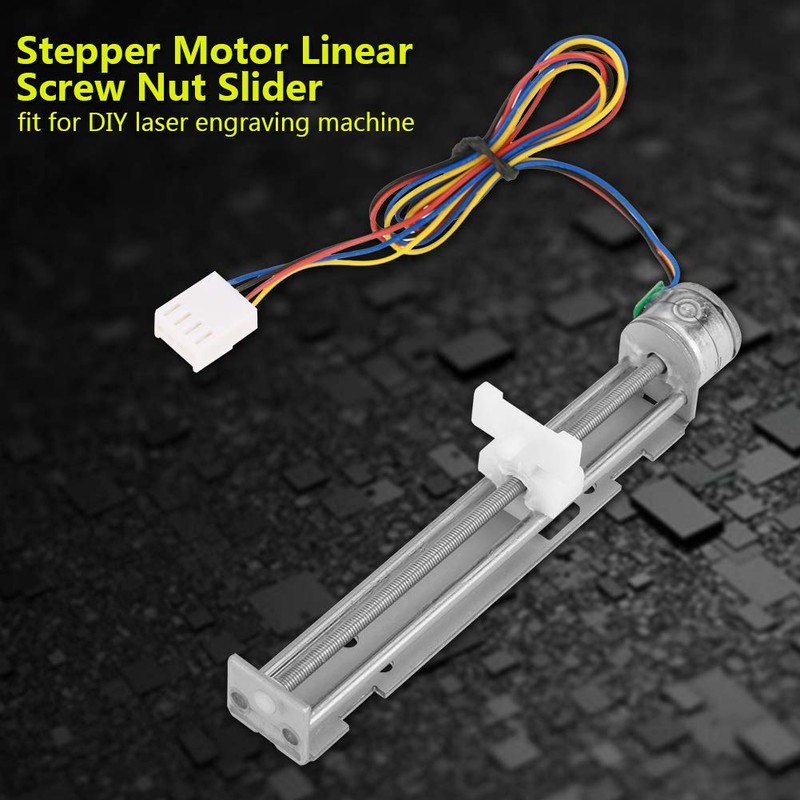

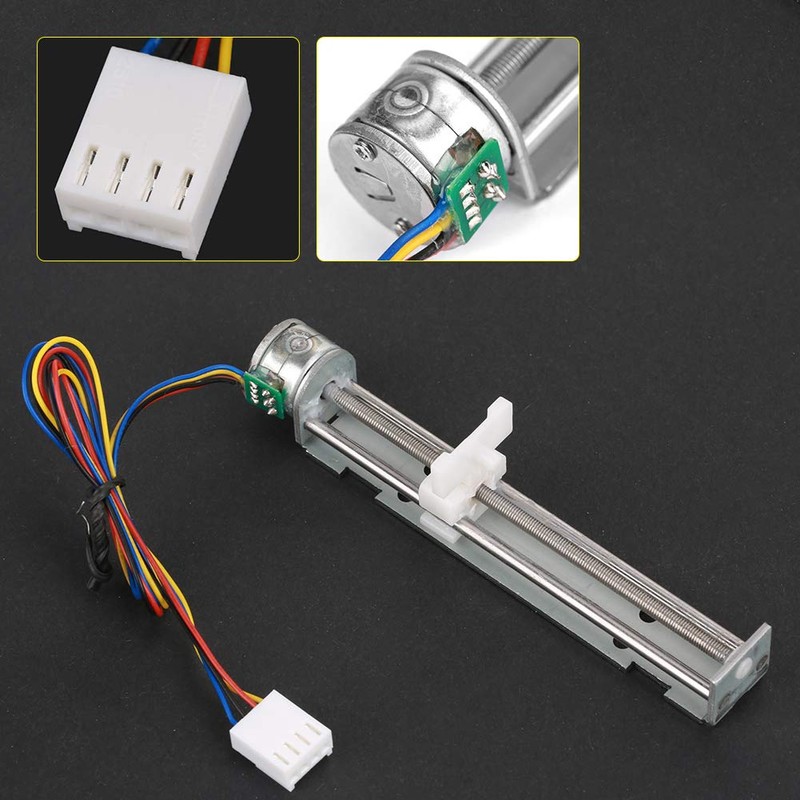

Stepper Motor Screw, Motor with Linear Slide DC 12V Linear Screw Rail Nut Slider for DIY Engraving Machine

  • Precision Movement: The stepper motor screw offers precise movement of 0.25mm per step, making it an excellent choice for applications where accuracy is paramount, such as in robotics and automation
  • Flexible Speed Control: Capable of achieving a maximum linear speed of 25mm per second, this motor adapts easily to a variety of tasks, enhancing the performance of your equipment
  • Microstepping Capabilities: When paired with a microstep driver, the motor can execute even smaller increments, providing users with greater control over their precise applications and improving overall functionality
  • Versatile Applications: This motor is ideally suited for use in compact devices including medical equipment and engraving machines, making it a choice for diverse industrial needs
  • Driver Requirement: Designed to operate with an A4988 driver, this stepper motor ensures optimal performance through precise control, emphasizing the importance of proper setup for achieving desired outcomes
Brand: Yosoo Health Gear
Manufacturer: Yosoo Health Gear
Part Number: FHSP76V
Material Type: Metal
Isin: IEKEQ1ZKKNYQ

$41.25

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Stepper Motor Screw, Motor with Linear Slide DC 12V Linear Screw Rail Nut Slider for DIY Engraving Machine

Stepper Motor Screw, Motor with Linear Slide DC 12V Linear Screw Rail Nut Sli...

$41.25

Features:

- brand new and high quality.

- Moving 0.25mm for one step, can use microstep driver if need smaller.

- The maximum linear speed is 25mm per second.

- Widely used for small devices such as medical equipment, engraving machine, etc.

- The motor need a A4988 driver(not included) to drive, can not directly connect to power.



Specifications:

ModelD8-MOTOR80

Drive voltage12V DC (drive: 16219)

Current per phase800 ma/phase

Coil resistance15  10%Ω/phase

No.of phases2 phases

Step angle18 ./step

Excitation method1-2 phase excitation

Drive modeBipolar drive

Pull-out thrust500g  above at 125pps

Max response frequency1600 pps above

Max starting frequency1100 pps above

Insulation classClass E

Insulation strength100vac one second

Insulation resistance50M DC 500V

Operating temperature0~+55℃

Motor temperature80℃

Thread Rod Diameter3mm

Thread Rod Length90mm

Slide Block Stroke80mm

Thread Rod Pitch±0.5mm

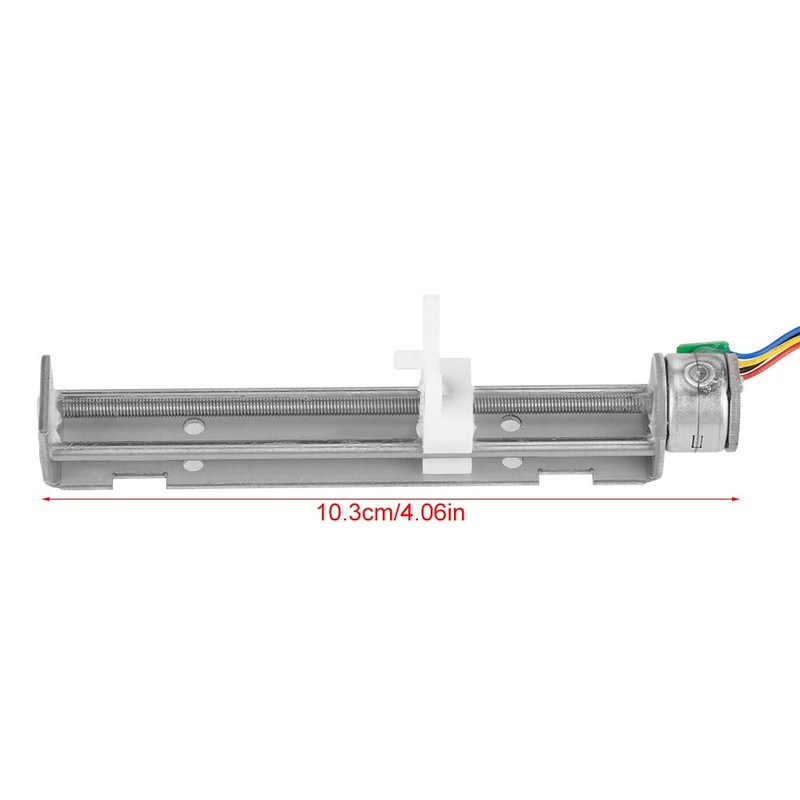

Length10.3cm/4.1in

Weight50g (approx.)



Package Includes:

1 x Motor with Linear Slide
