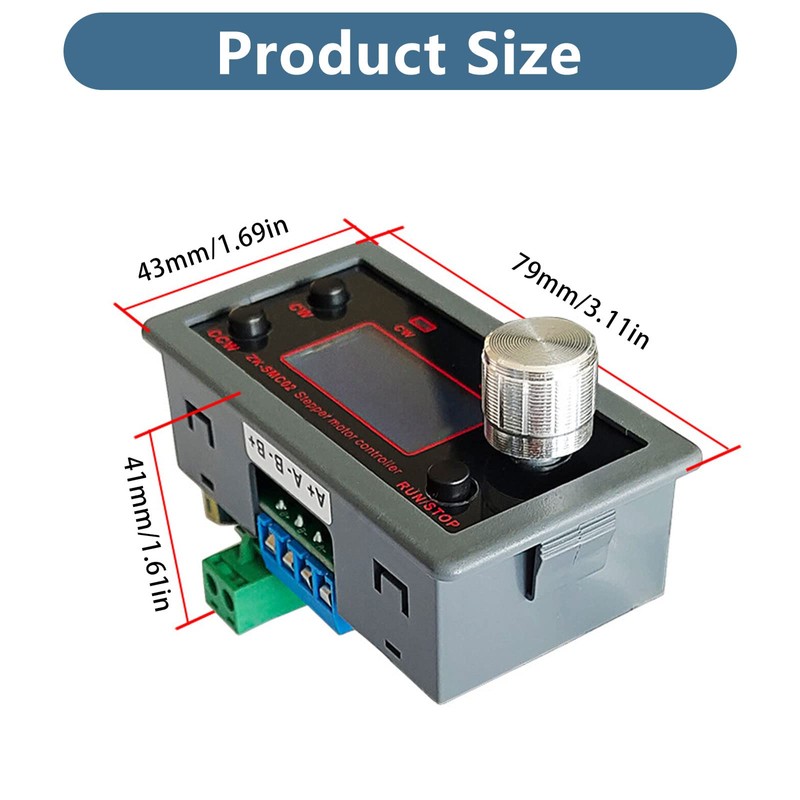

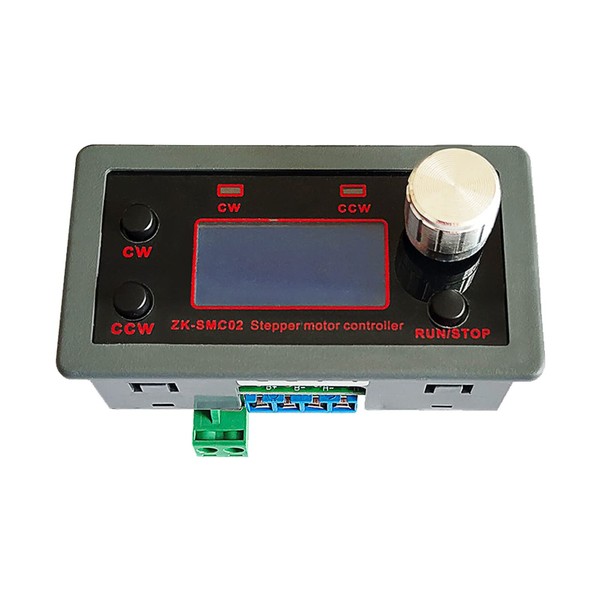

Stepper Motor Driver and Controller, ZK-SMC02 Integrated Board Forward/Reverse Control Drive Angle Pulse Speed PLC Serial Communication Adjustable Stepper Universal for NEMA 17/23 Motor
Stepper Motor Driver and Controller, ZK-SMC02 Integrated Board Forward/Reverse Control Drive Angle Pulse Speed PLC Serial Communication Adjustable Stepper Universal for NEMA 17/23 Motor
Stepper Motor Driver and Controller, ZK-SMC02 Integrated Board Forward/Reverse Control Drive Angle Pulse Speed PLC Serial Communication Adjustable Stepper Universal for NEMA 17/23 Motor
- Versatile and Efficient Stepper Motor Control: The ZK-SMC02 Integrated Board offers seamless control for single-axis stepper motors, making it an ideal choice for various applications. With its ability to support 2-phase stepper motors with different wire configurations, including 4-wire, 5-wire, 6-wire, and 8-wire, this controller provides flexibility and compatibility.
- Simplified Operation and Multiple Motion Modes: This module comes with multiple pre-programmed operation modes, allowing users to easily select the desired motion path. Whether you need automatic or manual control, or want to configure specific settings, the ZK-SMC02 offers a user-friendly interface that simplifies the control process.
- Reliable Power Supply and Protection Features: With a wide power supply range of DC 5-30V, this stepper motor driver ensures compatibility with various power sources. Additionally, it incorporates input reverse protection, safeguarding the module and connected components from potential damage. This feature enhances the longevity and reliability of the system.
- Precise Speed and Position Control: The ZK-SMC02 offers precise control over speed and position, allowing users to set the desired speed range from 0.1 to 999 laps per minute. It also provides adjustable pulse counts for both forward and reverse rotation, enabling accurate positioning and smooth operation. This level of control is essential for applications requiring precise movements.
- Convenient Serial Communication and Memory Function: Equipped with a TTL serial port, this stepper motor controller allows for remote communication, enabling seamless integration with other devices or systems. Moreover, it features a memory function that saves and retains distance, speed, delay, and cycle time settings even after power-off. This ensures convenience and consistency in operation, eliminating the need for reconfiguration each time the system is powered on.
| Brand: | SWTHM |
|---|---|
| Manufacturer: | circulads |
| Part Number: | GMYY33H |
| Isin: | IZES2NRWFSWC |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Adaptive motor: stepping motor
Number of control axes: single axis
Motor signal: common negative
Power supply range: DC 5-30V universal
Driving ability: 4A
Instruction features: Simplify and optimize multiple common instructions
Acceleration and deceleration control: Yes
Input reverse protection: Yes
Remote communication control: TTL serial port
The main functions of the system: automatic, manual, setting, serial port control
Speed range: 0.1-999 laps/min
Number of positive/reverse pulses: 1-9999 pulses
Number of cycles: 1-9999 times
Forward/reverse rotation delay time: 0.0-999.9 seconds
Subdivision selection range: 1-32 subdivision
Product operating environment: -59C-60°C(no condensation)
Feature:
1. This is an operation control module specially designed for single axis stepper motors.
2. The module has multiple built-in fixed operation modes, and you can quickly select the appropriate motion path.
3. You can save and set the distance/speed/delay/cycle times when power off.

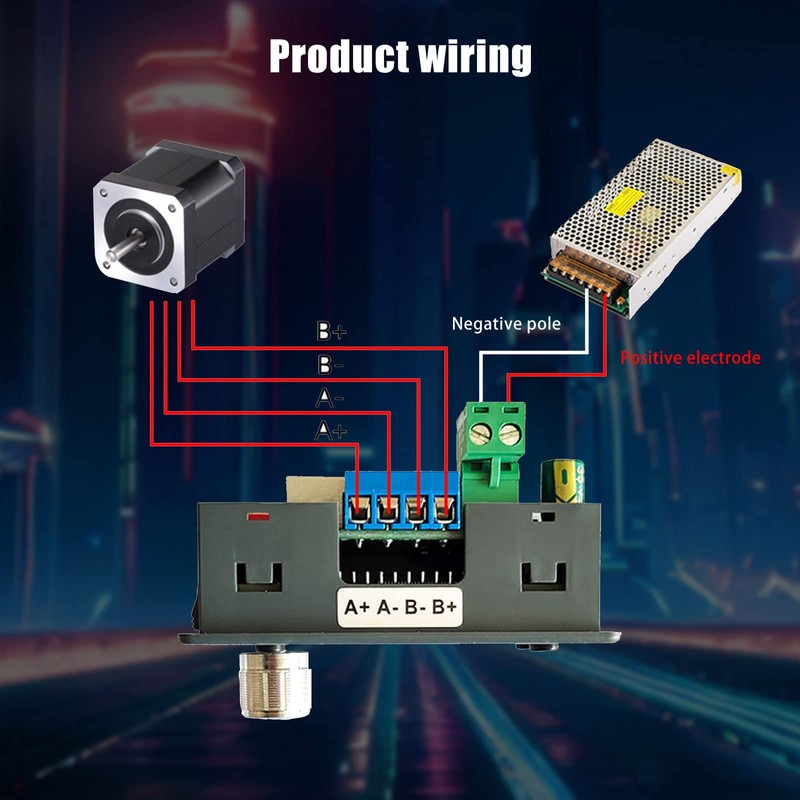

4. It is suitable for 2 phase stepper motors whether it is 4-wire or 5-wire or 6-wire or 8-wire.
5. It has built-in drivers and controllers, but can also control similar interface drivers.
Note:
It can be used in general industrial control occasions, but can't be used in special industries such as medical treatment or fire fighting or life-critical fields.
