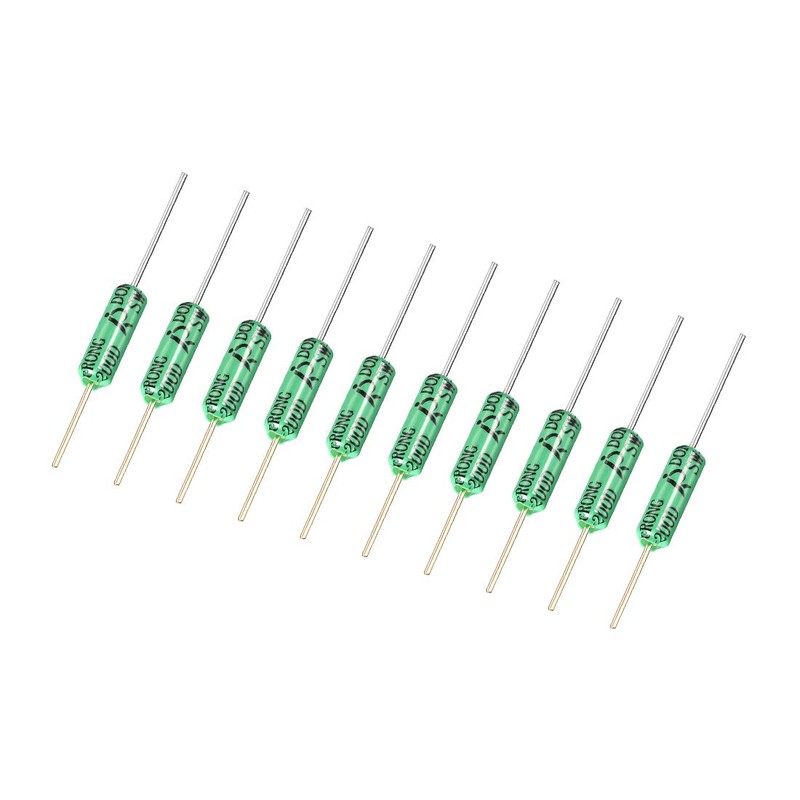

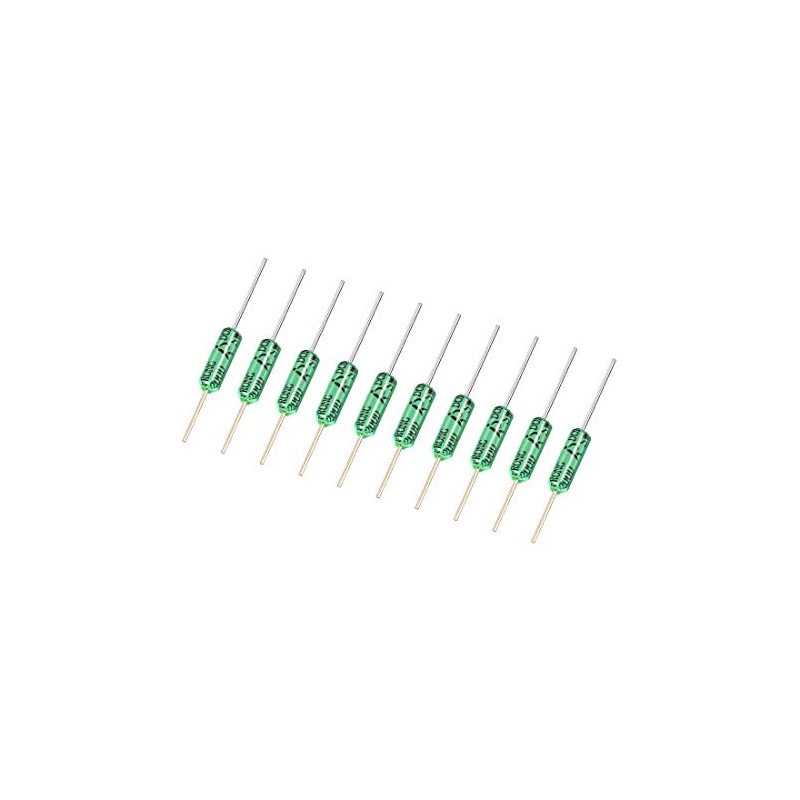

sourcing map Electronic Vibration Sensor SW-200D Shake Switch 12 V 2 mA Pack of 10
sourcing map Electronic Vibration Sensor SW-200D Shake Switch 12 V 2 mA Pack of 10
sourcing map Electronic Vibration Sensor SW-200D Shake Switch 12 V 2 mA Pack of 10
- Model number: SW-200; Max.Voltage: 12V; Rated heat current: 1mA
- Insulation resistance: 5 m ohm; line time: 2 MS; max. Temperature resistance: 100℃
- Features: the SW-200D appearance is sealed with a heat shrink tube to protect against dust and moisture.
- Advantage: Made of metal, the electrical properties are similar to the mercury switch, but are not as dangerous as the mercury switch and have environmental problems. When shaking, it has a unique passage characteristic and is more convenient and safer to assemble.
- Use: This switch is suitable for listening to the small circuit, which is not suitable as a power switch. Application for electronic toys, small household appliances, sports equipment and anti-theft devices.
| Brand: | sourcing map |
|---|---|
| Size: | SW-200D 10Pcs |
| Color: | Green |
| Manufacturer: | sourcing map |
| Part Number: | SPYH6MT |
| Material Type: | Metal |
| Isin: | IYWMXP0MMPP1 |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Description:

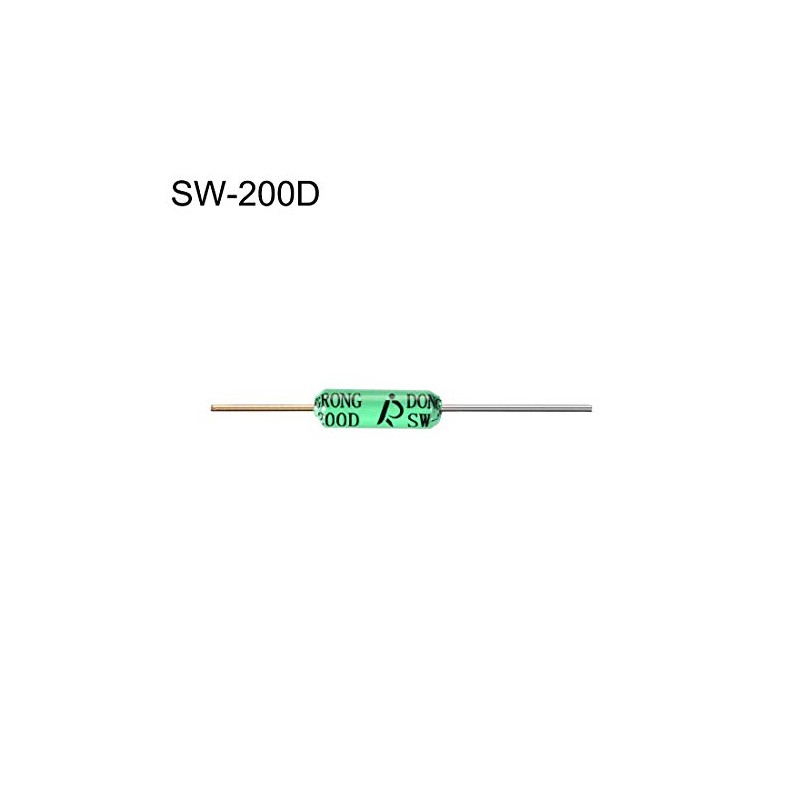

1. SW-200D pushes the switch for the ball type double bead unidirectionally, it has a longer transfer time than the SW-20. The appearance is sealed with a heat shrink tube to protect against dust and moisture.
2. This switch is suitable for listening to the small circuit that does not act as a power switch. Application for electronic toys, small household appliances, sports equipment and anti-theft devices.
3. The electrical properties are similar to metal mercury switches, but they are not as dangerous as mercury switches and have environmental problems. It has a single passing feature when shaking, and it is more convenient and safer to assemble.
Working characteristics:
The golden end is the cable trigger end (ON) and the silver end is the OFF. Open end. When the external strength is shaken to achieve the appropriate pendulum power, or the golden end is adjusted at an angle smaller than the correct horizontal angle, the electrical properties of the conductive contact can cause a short-term line state or a continuous line state (ON). If the electrical properties are to be reset to the open state (OFF), the environment to adjust the switch must be stationary, and the silver end should be adjusted at an angle of less than 10 degrees.
When the switch is set horizontally, it can be easily triggered when shaken, and when the silver end is facing down, the shaking is extremely difficult to trigger.
1. SW-200D pushes the switch for the ball type double bead unidirectionally, it has a longer transfer time than the SW-20. The appearance is sealed with a heat shrink tube to protect against dust and moisture.
2. This switch is suitable for listening to the small circuit that does not act as a power switch. Application for electronic toys, small household appliances, sports equipment and anti-theft devices.
3. The electrical properties are similar to metal mercury switches, but they are not as dangerous as mercury switches and have environmental problems. It has a single passing feature when shaking, and it is more convenient and safer to assemble.
Working characteristics:
The golden end is the cable trigger end (ON) and the silver end is the OFF. Open end. When the external strength is shaken to achieve the appropriate pendulum power, or the golden end is adjusted at an angle smaller than the correct horizontal angle, the electrical properties of the conductive contact can cause a short-term line state or a continuous line state (ON). If the electrical properties are to be reset to the open state (OFF), the environment to adjust the switch must be stationary, and the silver end should be adjusted at an angle of less than 10 degrees.
When the switch is set horizontally, it can be easily triggered when shaken, and when the silver end is facing down, the shaking is extremely difficult to trigger.
