Serial Server Port D224 RS485/232/TTL to TCP/IP Ethernet Converter DeviceUS

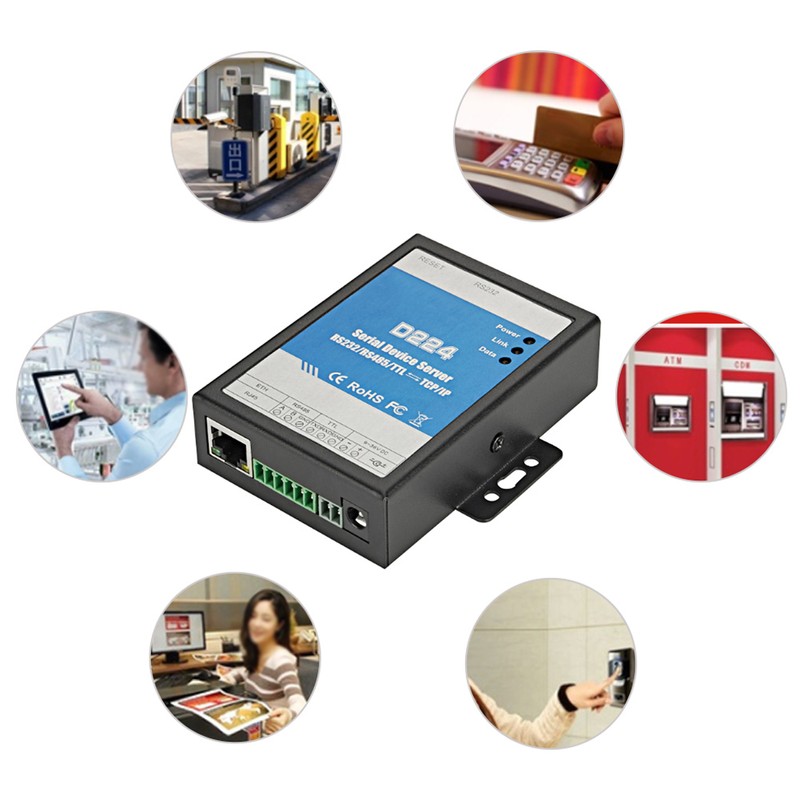

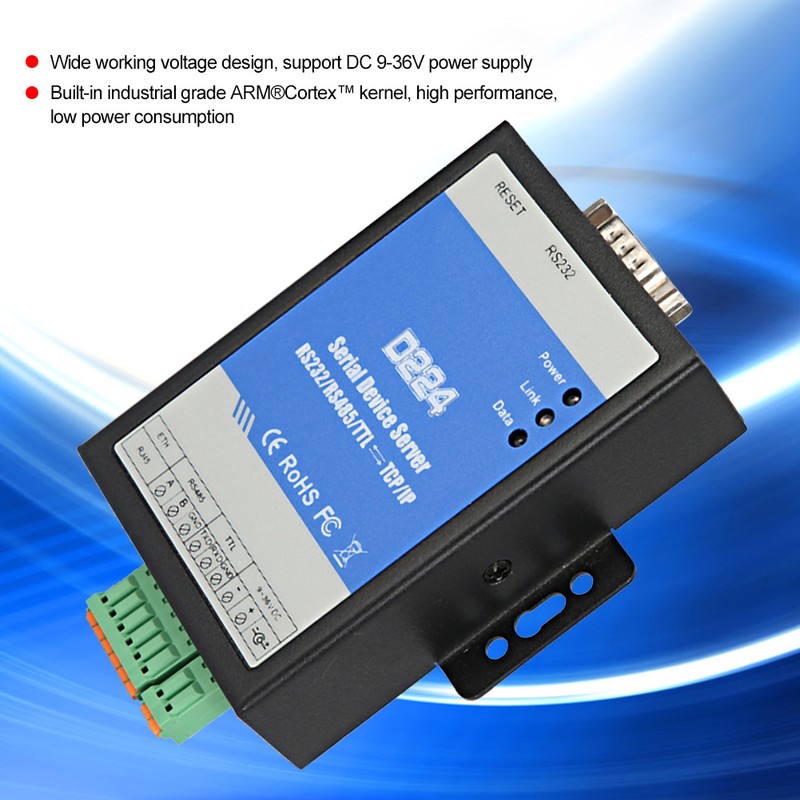

1、The server can easily connect PLC, instrumentation and sensors based on RS-232, RS-485 and TTL serial port devices to ethernet, making it convenient for access to the cloud platform, also allows your software to access serial devices from anywhere via a local LAN or the internet. 2、Practical accessory, support the standard TCP/IP protocol, support data passthrough mode and Modbus RTU to Modbus TCP model, support the freely choose data path (including RS - 232, RS - 485 and TTL data between passthrough), support the TCP Server, TCP Client and UDP mode, support as a client as well as a server, also supports remote control of serial port equipment by using virtual serial port software. 3、Wide working voltage design, support DC 9-36V power supply, DC Q2.1 jack and terminal 2interface mode, and with anti-reverse connection protection. 4、Built-in industrial grade ARM®Cortex™ kernel, high performance, low power consumption, stable and reliable. 5、Support 1 channel RS-232, 1 channel RS-485 and 1 channel TTL, which cna bring much convenience for you. 6、Serial port baud rate support 4800bps-128000 BPS, and support None, Odd, Even verification mode. 7、Support 1 channel RJ45 ethernet port, with link and data indicator light, the network port built-in isolation transformer, up to 2KV electromagnetic isolation. 8、Support RESET button to restore factory function (press 3 seconds to restore), prevent parameter setting error. 9、Quality metal shell, IP30 protection grade, safer for using, especially suitable for industrial control site application. 10、Small size, 3.8x2.7x1in, supports wall mounted installation and DIN 1.4in industrial guide installation. 11、Configuration software is adopted to set device parameters, which supports for WIN XP, for WIN 7, for WIN 8 and for WIN 10 with friendly interface. 12、Support static IP address or DHCP to automatically obtain IP address, and can query the network device through UDP broadcast protocol. 13、Support set the device name for easy user identification, and support server domain name resolution. 14、Built-in TCP/IP protocol stack, support transparent transmission and Modbus RTU to Modbus TCP two ways. 15、Support TCP Server, TCP Client, UDP Server, UDP Client a variety of working modes. 16、Support D224 as a client as well as a server. As a server, support access to up to 5 TCP/UDP clients; As a client, support connect to up to 5 TCP/UDP target servers. 17、Support to set up registration package and heartbeat package, which can facilitate the cloud platform for device ID identification and data communication. 18、Support automatically reconnect function after the TCP protocol active connect to server and dropped the line. 19、Support serial port policy function, the data path can be freely selected, such as :RS232 and RS485 mutual transmission, RS232 and server 1 mutual transmission. 20、Support to upgrade firmware through TTL, which is more convenient.

Isin: IDRMDQFCFJ9O

$28.88

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow

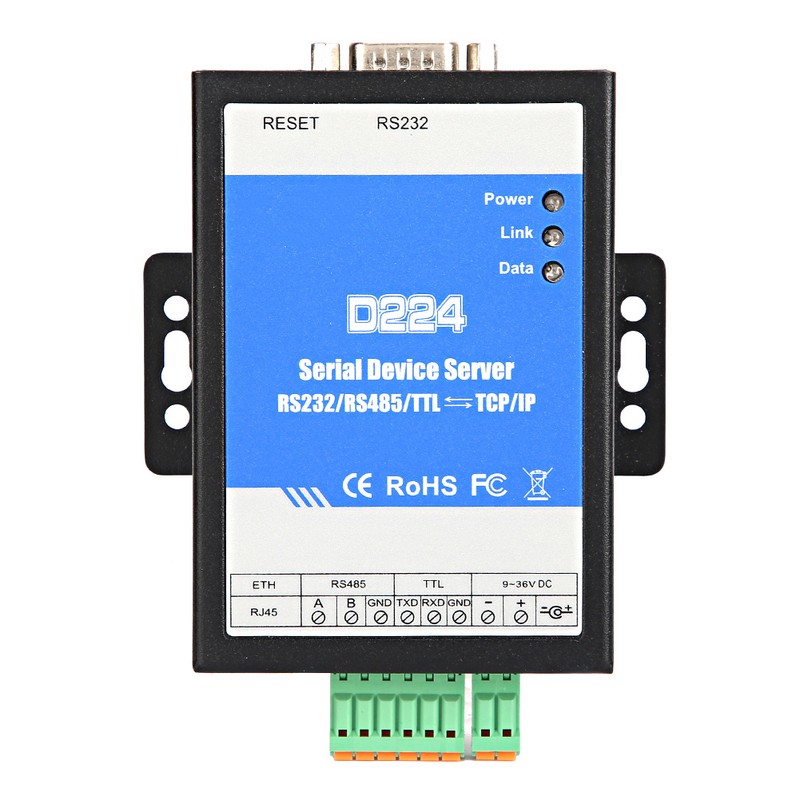

Serial Server Port D224 RS485/232/TTL to TCP/IP Ethernet Converter DeviceUS

Serial Server Port D224 RS485/232/TTL to TCP/IP Ethernet Converter DeviceUS

$28.88

1、The server can easily connect PLC, instrumentation and sensors based on RS-232, RS-485 and TTL serial port devices to ethernet, making it convenient for access to the cloud platform, also allows your software to access serial devices from anywhere via a local LAN or the internet. 2、Practical accessory, support the standard TCP/IP protocol, support data passthrough mode and Modbus RTU to Modbus TCP model, support the freely choose data path (including RS - 232, RS - 485 and TTL data between passthrough), support the TCP Server, TCP Client and UDP mode, support as a client as well as a server, also supports remote control of serial port equipment by using virtual serial port software. 3、Wide working voltage design, support DC 9-36V power supply, DC Q2.1 jack and terminal 2interface mode, and with anti-reverse connection protection. 4、Built-in industrial grade ARM®Cortex™ kernel, high performance, low power consumption, stable and reliable. 5、Support 1 channel RS-232, 1 channel RS-485 and 1 channel TTL, which cna bring much convenience for you. 6、Serial port baud rate support 4800bps-128000 BPS, and support None, Odd, Even verification mode. 7、Support 1 channel RJ45 ethernet port, with link and data indicator light, the network port built-in isolation transformer, up to 2KV electromagnetic isolation. 8、Support RESET button to restore factory function (press 3 seconds to restore), prevent parameter setting error. 9、Quality metal shell, IP30 protection grade, safer for using, especially suitable for industrial control site application. 10、Small size, 3.8x2.7x1in, supports wall mounted installation and DIN 1.4in industrial guide installation. 11、Configuration software is adopted to set device parameters, which supports for WIN XP, for WIN 7, for WIN 8 and for WIN 10 with friendly interface. 12、Support static IP address or DHCP to automatically obtain IP address, and can query the network device through UDP broadcast protocol. 13、Support set the device name for easy user identification, and support server domain name resolution. 14、Built-in TCP/IP protocol stack, support transparent transmission and Modbus RTU to Modbus TCP two ways. 15、Support TCP Server, TCP Client, UDP Server, UDP Client a variety of working modes. 16、Support D224 as a client as well as a server. As a server, support access to up to 5 TCP/UDP clients; As a client, support connect to up to 5 TCP/UDP target servers. 17、Support to set up registration package and heartbeat package, which can facilitate the cloud platform for device ID identification and data communication. 18、Support automatically reconnect function after the TCP protocol active connect to server and dropped the line. 19、Support serial port policy function, the data path can be freely selected, such as :RS232 and RS485 mutual transmission, RS232 and server 1 mutual transmission. 20、Support to upgrade firmware through TTL, which is more convenient.

More Information

Condition: 100% Brand New
Item Type: Serial Server
Power Consumption: Normal: 100mA@12V, Maximum: 120mA@12v
Power Protection: Anti-reverse Connection, ESD Air: 15KV, Surge: 4KV

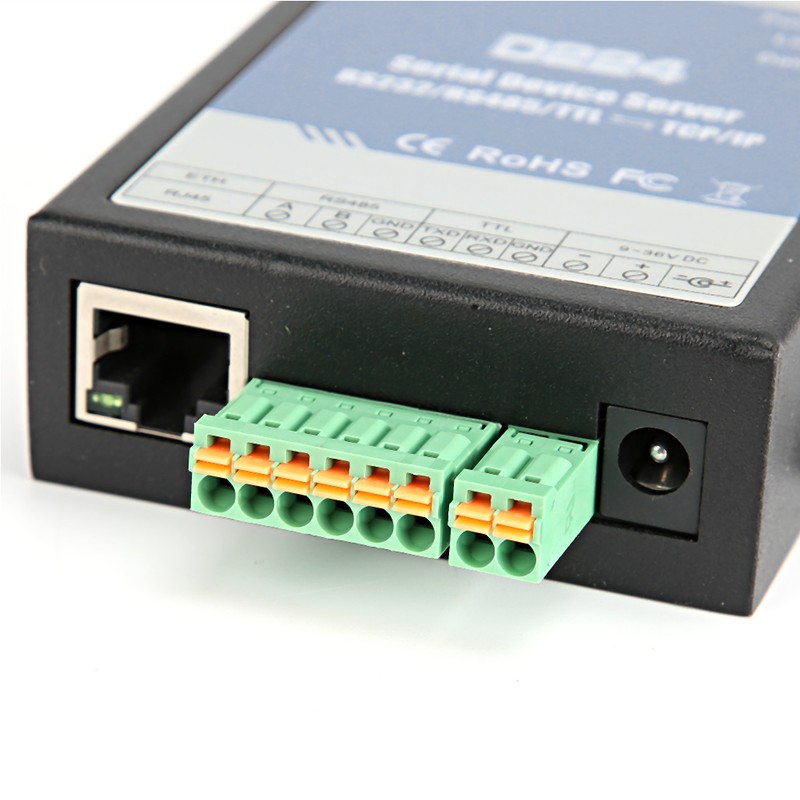

Network Port Specifications :1x Rj45, 10mbps
Network Port Protection:
ESD Contact: 8KV, Surge: 4KV (10/1000us)

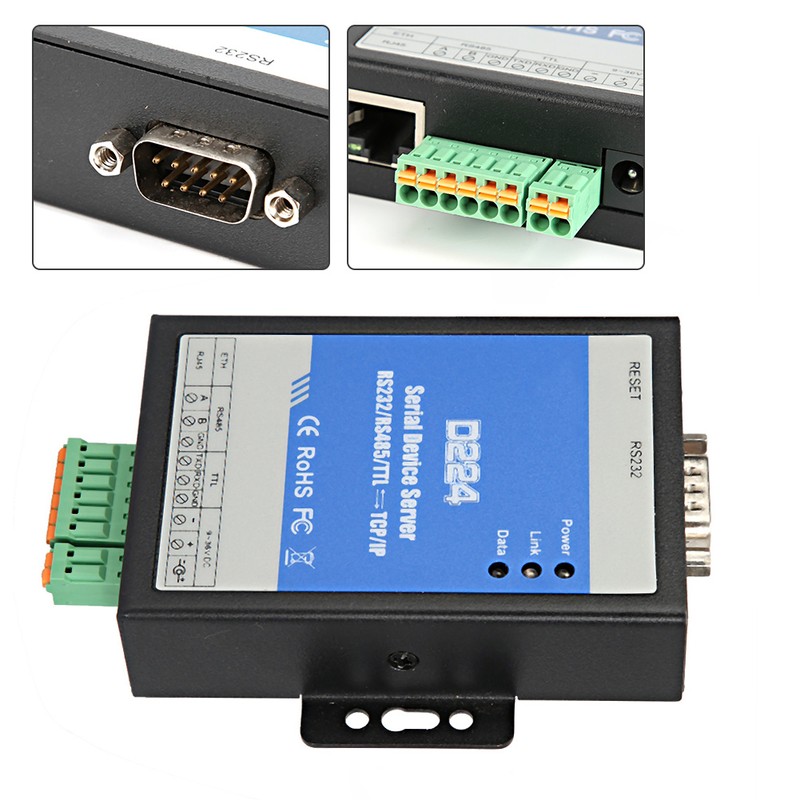

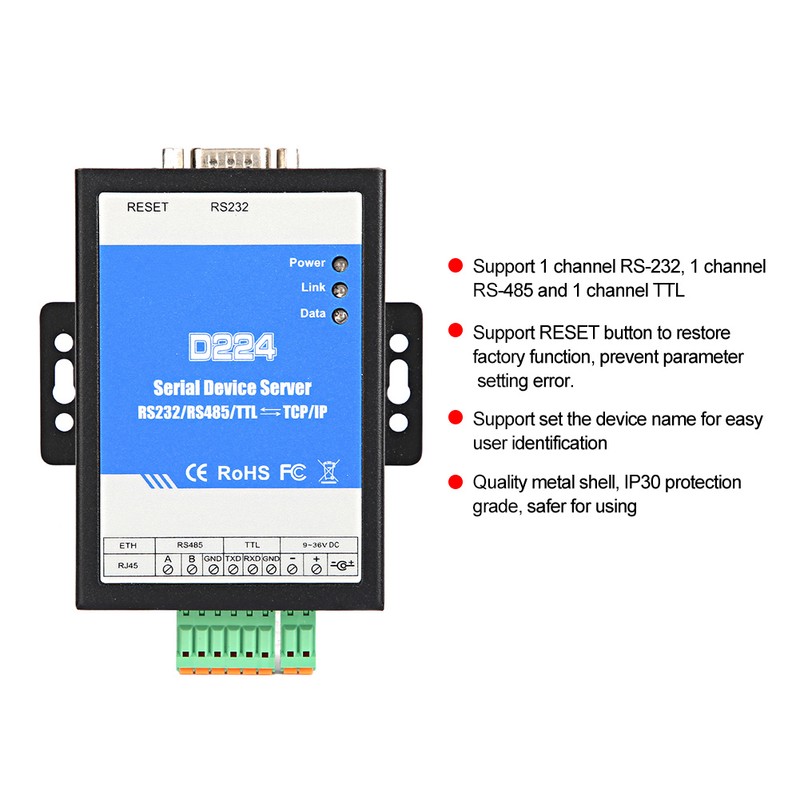

Serial Port Number: 1 x RS232, 1 x RS485, 1 x TTL
Serial Port Baud Rate: 4800bps-128000bps
Data Bits: 5,6,7,8,9
Check Bits: None, Even, Odd
Stop Bits: 1, 1.5, 2
Serial Port Protection: ESD Contact: 8KV, Surge: 4KV (8/20us)
Network Protocol: IPV4, TCP/UDP, DHCP, DNS, Modbus RTU, Modbus TCP, Modbus TCP
Ip Access: Static IP/DHCP
Domain Name Resolution: Supported
User Configuration: PC Software Configuration, Supporting for WIN XP, for WIN 7, for WIN 8 and for WIN10

Maximum Number of Links: Supports Simultaneous Linking of 5-way TCP/UDP Target Server and 5-way TCP/UDP Client
Data Path: Support Custom Selection RS485, RS232 and TTL Mutual Transmission, Support Custom Selection Link Target Server
Transparent Transport: Supported
Modbus Gateway: Supports Modbus RTU to Modbus TCP
Network Cache: Send: 8kbyte; reception: 8kbyte
Registration Package: Support Custom Registration Package
Heartbeat Package: Support Custom Heartbeat Package
Operating Temperature, Humidity -45 - 85℃, 5 - 95%RH
Storage Temperature, Humidity -45 - 105℃, 5 - 95%RH

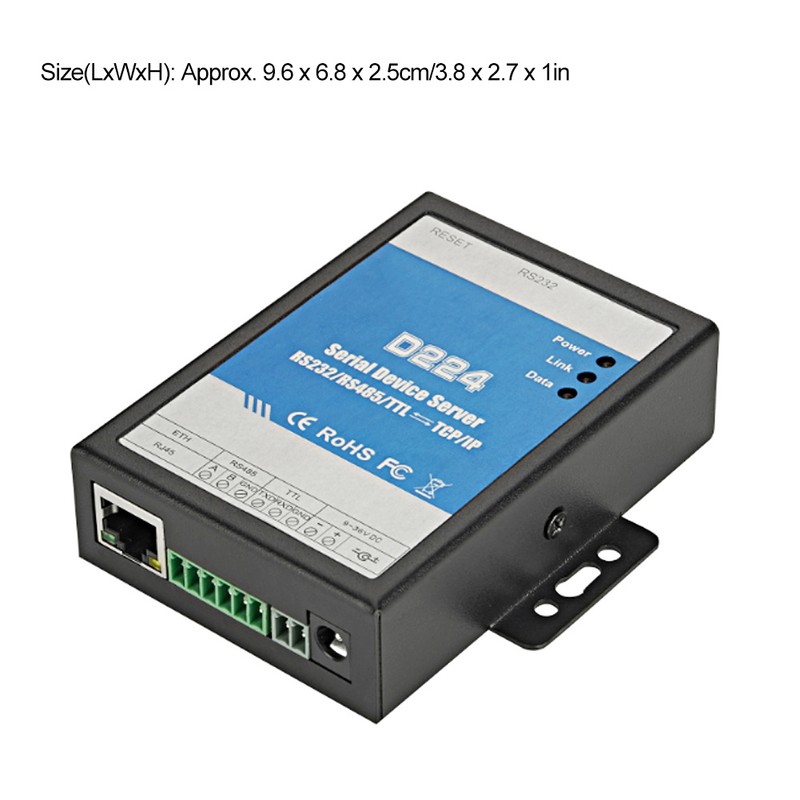

Size(LxWxH): Approx. 9.6 x 6.8 x 2.5cm/3.8 x 2.7 x 1in
Protection Level: IP30
Installation: Wall-mounted, Guideway
