Seeeduino XIAO The Smallest Arduino Microcontroller Based on SAMD21, with Rich Interfaces, 100% Arduino IDE Compatible, Designed for Projects Need Arduino Micro, 1 Piece

Brand: seeed studio
  • Powerful CPU: Seeeduino XIAO carries a powerful CPU ARM Cortex-M0+ 32bit 48MHz microcontroller (SAMD21G18), which three times as Arduino Uno and Arduino Nano. In addition, this Arduino IDE compatible board Xiao is also equipped with 256KB flash memory and 32KB SRAM.

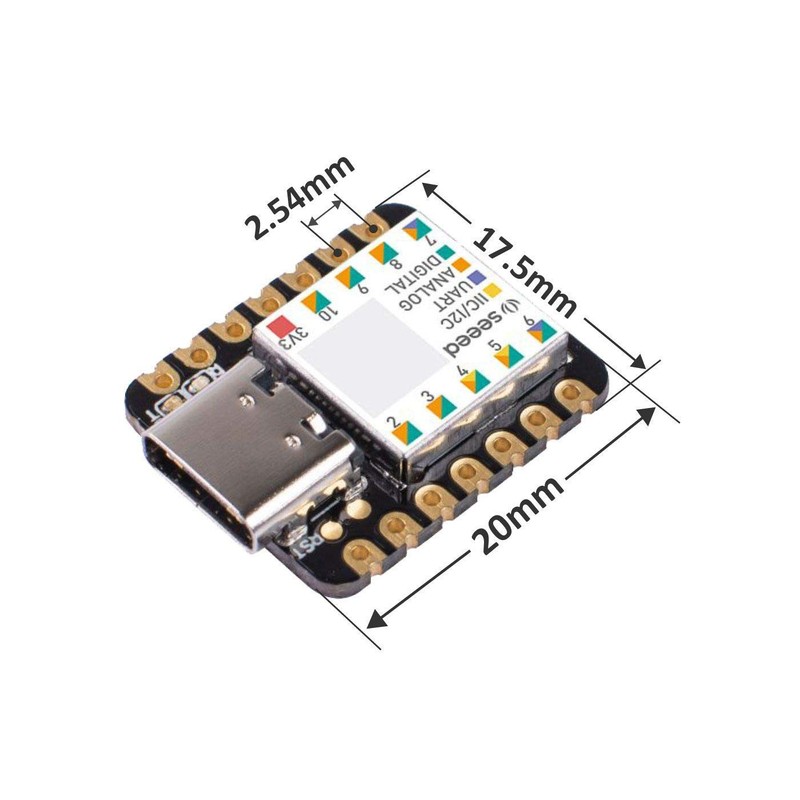

  • [Rich interfaces in a small size] There are 14 GPIO pins, which can hold 11 analogue pins, 11 digital pins, 1 I2C interface, 1 UART interface and 1 SPI interface in such a small size - only 20 mm x 17.5 mm (as small as your thumb). Seeeduino XIAO development board is the smallest Arduino compatible board in the Seeeduino series.
  • Fully compatible with Arduino IDE: The Seeeduino XIAO development board is perfectly compatible with Arduino IDE, you can easily develop some small projects with the help of the large and comprehensive Arduino library. Since it has a 2.54mm pin spacing, it is an Arduino microcontroller that can also be used when plugged into a clipboard.

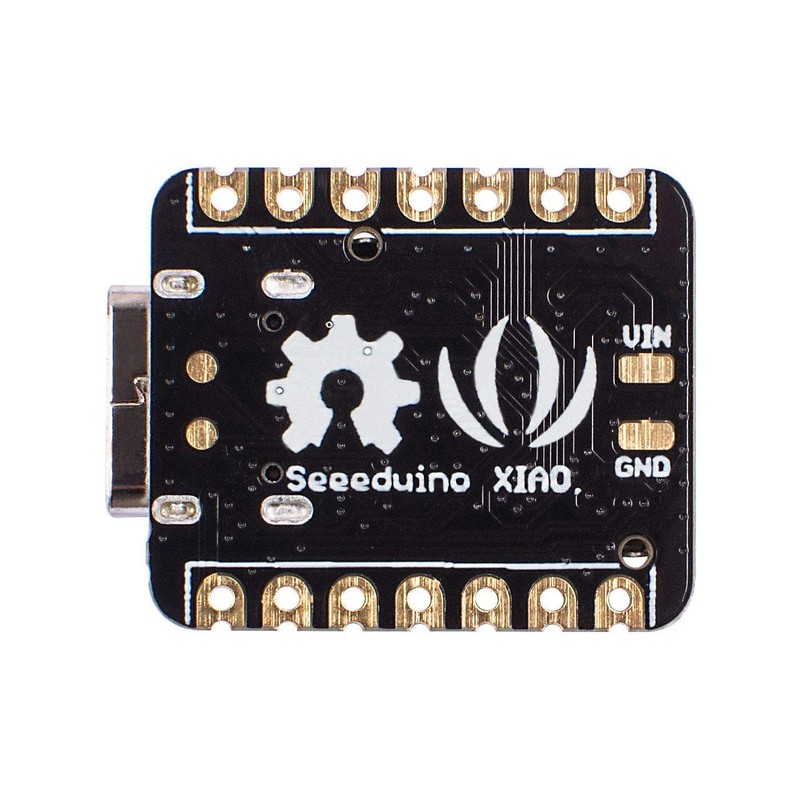

  • [USB Type C Support] Seeeduino XIAO supports the USB Type C interface, which can download power supply and code. On the back of the XIAO there are power pads that support the battery and are designed for portable devices to be realistic.
  • Perfect for portable and tiny Arduino projects: On the other hand, this small board has good performance in processing, but requires less power. In fact, it is designed in a small size and can be used for Arduino portable devices and small projects.
Brand: seeed studio
Size: 1 pcs
Color: multi-coloured
Manufacturer: seeed studio
Part Number: 5FS3PLX
Isin: IBR5JBSACCVA

$33.43

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Seeeduino XIAO The Smallest Arduino Microcontroller Based on SAMD21, with Rich Interfaces, 100% Arduino IDE Compatible, Designed for Projects Need Arduino Micro, 1 Piece

Seeeduino XIAO The Smallest Arduino Microcontroller Based on SAMD21, with Ric...

$33.43

Seeeduino XIAO is the smallest Arduino compatible board in the Seeeduino family. It is an Arduino microcontroller embedded with the SAMD21 microchip. Specifications * CPU: ARM Cortex-M0+ CPU (SAMD21G18) with up to 48MHz * Memory: 256KB Flash, 32KB SRAM * I/O PINs: 14 GPIO PINs, 11 Analog PINs, 11 Digital PINs, 1 DAC Output Pin * Interface: 1 I2C interface, 1 UAR. TT-1, 1 SPI interface * Power supply and download interface: USB Type-C interface * LEDs: 1 user LED, 1 power LED, two LEDs for downloading via the serial port * Reset button: two reset buttons short to reset * Power pads: for battery power supply * Software compatibility: compatible with the Arduino IDE * Projection cover to protect the circuit Dimensions: 20 x17.5x3.5mm Documentation / Downloads * https://wiki.seeedstudio.com/Seeeduino-XIAO/
