SCITOO Trailer Hub Kit with Black Paint Idler Hub 4 Lug on 4 L44649 x2 Bearings fir for 2,000 lbs Boat Trailer Wheel Hub
SCITOO Trailer Hub Kit with Black Paint Idler Hub 4 Lug on 4 L44649 x2 Bearings fir for 2,000 lbs Boat Trailer Wheel Hub
SCITOO Trailer Hub Kit with Black Paint Idler Hub 4 Lug on 4 L44649 x2 Bearings fir for 2,000 lbs Boat Trailer Wheel Hub
- L44649 inner cone bearings, L44649 outer cone bearings
- Fit For 2,000 lbs
- Wheel Bolt Pattern: 4 Lug on 4 Bolt Pattern
- Function:Trailer wheel hubs play an integral role in keeping trailers rolling along. The trailer wheel hub assembly connects the trailer tires to the trailer axle and facilitates their spin
- Cause of Damage:A potential cause For bearing failure is the castle nuts being over tightened. Castle nuts should be just slightly more than hand tight. If too tight this will put excessive pressure on the bearings and could lead to premature failure. I suggest an inspection of the tires on the affected wheels
Brand: | SCITOO |
---|---|
Manufacturer: | SCITOO |
Part Number: | JHWTL69 |
Material Type: | Metal |
Isin: | IZXCSTWJL5PP |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

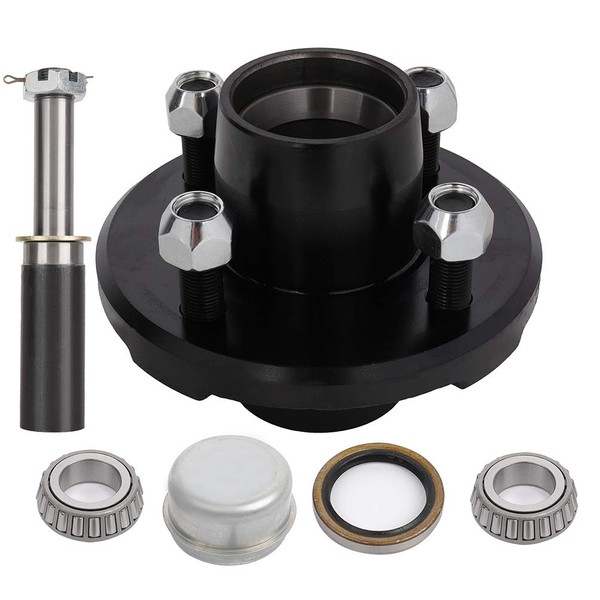

1x 1" BT8 Round Spindles
1x Hub1x Inner Bearing
1x Outer Bearing
1x d-ust cap
1x Seals
1x Cotter Keys
4x cone wheel lug nuts
1x Tang washer
1x Hexagon Castle nut
Parameter:
L44649 inner cone bearings
L44649 outer cone bearings
4 on 4" Bolt Pattern
Fit For 2,000 lbs
Installation Instructions:
Step 1: Take away the existing d-ust cap, cotter pin, castle nut, washer and hub. Take away any remaining grease from spindle. Inspect For spindle For wear or damage.
Step 2: Slide new hub onto spindle. Using a torque wrench, tighten the new castle nut to 30-40 foot-lbs. Turn hub to ensure proper bearing seating‚ Loosen the castle nut until loose enough to turn the castle nut with you fingers. Re-tighten the castle nut finger tight.
Step 3: Install cotter pin through the hole in the spindle. If the hole is covered by the castle nut, loosen the castle nut to the nearest hole so that the cotter pin can be installed. The hub should rotate freely when spun by hand, and there should be no movement when the hub is pulled back and forth. Bend the legs of the cotter pin to ensure the cotter pin and castle nut will not loosen.
Step 4: Install the d-ust cap with the d-ust cap installation tool. Use a mallet or hammer, only strike the d-ust cap tool and not the d-ust cap(Helpful hint):Place piece of wood over the d-ust cap tool.
Step 5: Start all nuts by hand to prevent cross threading. Tighten the lug nuts in stages. Following the sequence and torque stages per your specific hub and wheel size. Wood block(not supplied)
