REVODATA 3 Port PoE Extender, 10/100 Mbps PoE Repeater 100/250 Meter Extend, IEEE802.3af/at 3 PoE Output Plug and Play, PoE Amplifier with Wall/DIN Rail Mounting (POE5005-V2)
REVODATA 3 Port PoE Extender, 10/100 Mbps PoE Repeater 100/250 Meter Extend, IEEE802.3af/at 3 PoE Output Plug and Play, PoE Amplifier with Wall/DIN Rail Mounting (POE5005-V2)
REVODATA 3 Port PoE Extender, 10/100 Mbps PoE Repeater 100/250 Meter Extend, IEEE802.3af/at 3 PoE Output Plug and Play, PoE Amplifier with Wall/DIN Rail Mounting (POE5005-V2)
- 【1 Input 3 Output】 1 PoE input and 3 PoE output at 10/100 Mbps rate. Power output 25W Max (only using 1 port), 8-10W (using 3 ports ). Suitable for IP camera, Wireless AP.
- 【100m/250m Extension】Support 100m and 250m PoE extension, (switch OFF:100M; switch ON:250M), Extenders can be cascaded to reach up to 750m.

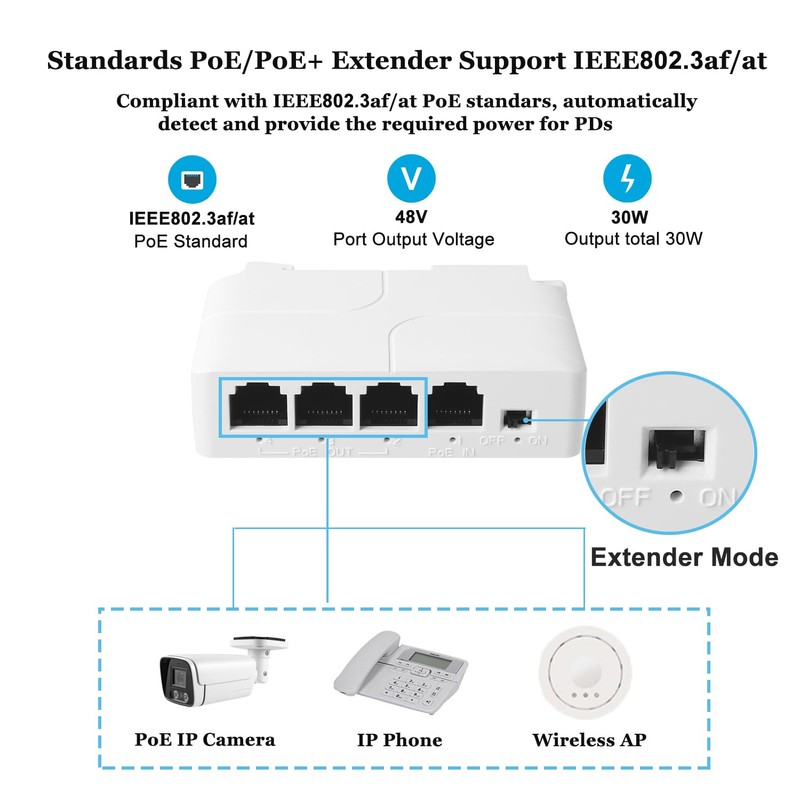

- 【Comply IEEE 802.3af/at】Support IEEE 802.3af/at PoE Standard. Power Supply Type: 1/2+,3/6-,Mode A,End-Span. Power input 30W.
- 【Plug and Play】Just connect to device, Auto detection and protection, No worry for manual configuration.

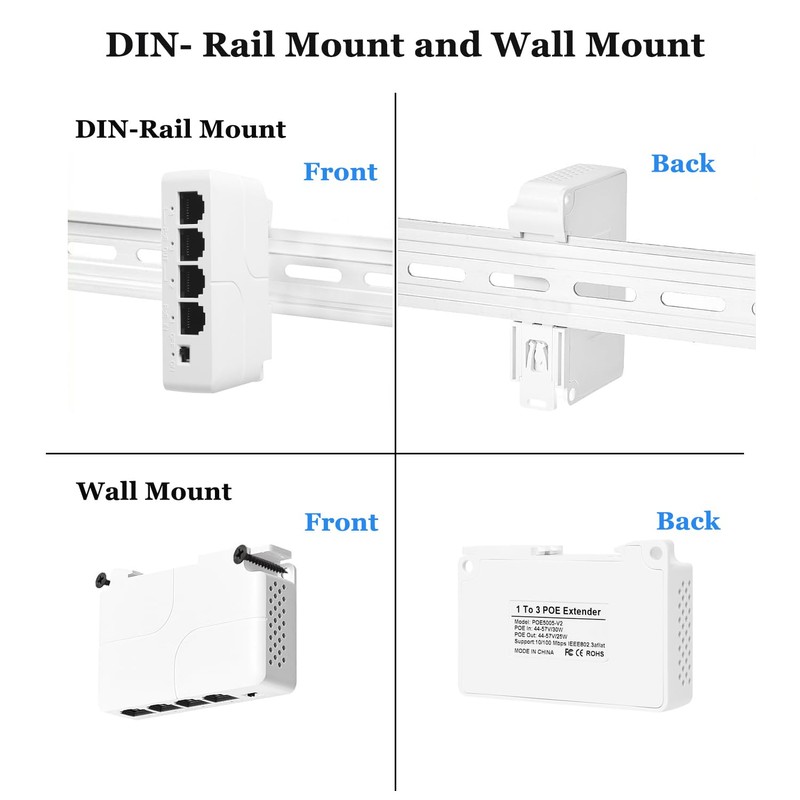

- 【Flexible to Install】Supports wall mount and DIN rail mount, can easily be installed anywhere you want. It is also compact, only size 85 x 51 x 23mm (60g).
Brand: | REVODATA |
---|---|
Color: | 3 port POE5005-V2 |
Manufacturer: | REVODATA |
Part Number: | YPCQDGH |
Isin: | IYOLGYGZQUWZ |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1. This Extender is not a PoE Switch, it can not work without powered from PoE Switch/PoE injector/PoE NVR.
2. Please don't place any heavy thing on the PoE extender;
3. To prevent the water seeping into the extender, please keep PoE extender away wet environment;
Overview:
PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m(max:250m)(switch OFF:100M; switch ON:250M), delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to long distance while complying with IEEE802.3af/at standard
Specification:
PoE input: 1 RJ45 port
PoE output: 3 RJ45 port
Input power: 30 Watts Max
Output power: 10-25 Watts
Network Medium: Cat5 or better UTP cable (less than 100m)
Daisy Chain Distance: up to 700m(6 pieces)
Repeater Mode: Store and forward
MAC Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 400Mbps
PoE Standard: IEEE 802.3af/at
PoE Cable Core: 1/2+,3/6-,Mode A,End-Span
Power Supply Type: Mode A,End-Span
Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU, EMC Directive 2004/108/EC;
Storage Humidity: 5%~90%, No Condensation
Operating temperature: -10~45℃
Dimension: 85 x 51 x 23mm (L*W*H)
Weight: 60g
Package Contents:
1 x 3 Port POE Extender (POE5005-V2)
