Relay Module with Optocoupler 5V, 2 Channel Trigger Relay Expansion Board Relay Card High Low Level Relay Module Optocoupler Isolating Relay for DIY Controller (5V)
Relay Module with Optocoupler 5V, 2 Channel Trigger Relay Expansion Board Relay Card High Low Level Relay Module Optocoupler Isolating Relay for DIY Controller (5V)
Relay Module with Optocoupler 5V, 2 Channel Trigger Relay Expansion Board Relay Card High Low Level Relay Module Optocoupler Isolating Relay for DIY Controller (5V)
Product Overview
- Basic parameters: the module uses high-quality relays with normal interface, maximum load: AC 250V/10A, DC 30V/10A; trigger current is 5mA; operating voltage: 5V, 12V, 24V (optional), you can buy the corresponding voltage relay module according to the actual needs
- Relay modules with optocoupler: 2-channel relay module with SMT optocoupler insulation, strong control ability, stable performance; can adjust high and low levels for triggering via wire bridges; fault-tolerant design, even if the control wire is interrupted, the relay will not be moved
- Easy to use: the interface design of the relay module with optocoupler is user-friendly, all interfaces can be connected directly via terminals, which is very convenient; Equipped with 4 mounting screw holes, easy to install, both amateurs and professionals can use easily
- Practical tool: the relays are used to control AC circuits. The relay acts like a switch and reacts to the signal. For this reason, it is often used in IoT projects to control lights and other electronic devices
- Quality assurance: We are committed to providing high-quality products and comprehensive customer services. If you have any questions during the purchase process, please contact us. We will reply to your questions within 24 hours
| Brand: | Ejoyous |
|---|---|
| Size: | 5V |
| Manufacturer: | Ejoyous |
| Part Number: | 1HF5RLR |
| Isin: | IL5QTFEMRQNA |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- Basic parameters: the module uses high-quality relays with normal interface, maximum load: AC 250V/10A, DC 30V/10A; trigger current is 5mA; operating voltage: 5V, 12V, 24V (optional), you can buy the corresponding voltage relay module according to the actual needs
- Relay modules with optocoupler: 2-channel relay module with SMT optocoupler insulation, strong control ability, stable performance; can adjust high and low levels for triggering via wire bridges; fault-tolerant design, even if the control wire is interrupted, the relay will not be moved
- Easy to use: the interface design of the relay module with optocoupler is user-friendly, all interfaces can be connected directly via terminals, which is very convenient; Equipped with 4 mounting screw holes, easy to install, both amateurs and professionals can use easily
- Practical tool: the relays are used to control AC circuits. The relay acts like a switch and reacts to the signal. For this reason, it is often used in IoT projects to control lights and other electronic devices
- Quality assurance: We are committed to providing high-quality products and comprehensive customer services. If you have any questions during the purchase process, please contact us. We will reply to your questions within 24 hours
| Brand: | Ejoyous |
|---|---|
| Size: | 5V |
| Manufacturer: | Ejoyous |
| Part Number: | 1HF5RLR |
| Isin: | IL5QTFEMRQNA |
Features:
1. The module adopts high quality relay with normal interface and maximum load: AC 250V/10A, DC 30V/10A.
2. With SMT optocoupler insulation, it has strong drive capacity and stable performance; trigger current is 5mA;
3. The modules can be triggered by setting high or low levels by wire bridge.
4. Fault-tolerant design, even if the control line is interrupted, the relay will not move.
5. The interface design is humanised. All interfaces can be connected directly via the terminal, which is very convenient.
6. Equipped with 4 fixed screw holes, easy to install.
Specification:
Operating voltage: 5 V, 12 V, 24 V (optional).
Maximum load: AC 250V/10A; DC 30V/10A.
Channel: 2
Product dimensions: 50 x 41 x 18.5 mm / 2 x 1.6 x 0.7 inches.
Power Light: Green
Relay Light: Red
Board colour: red.
Package list:
1 x relay module.
Note:

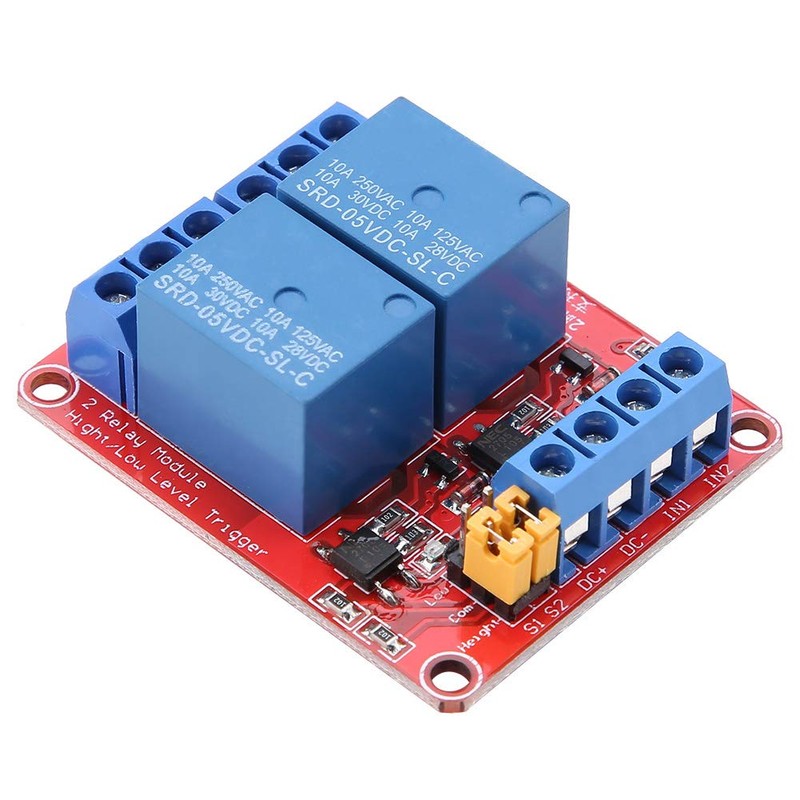

Module interface:
1. DC+: connect the positive pole of the power supply.
2. DC-: connection of the negative pole of the power supply.
3. IN1:1 signal trigger terminal, can set high or low level control relay suction.
4. IN2:2 signal trigger terminal, can adjust high or low level of control relay suction power.

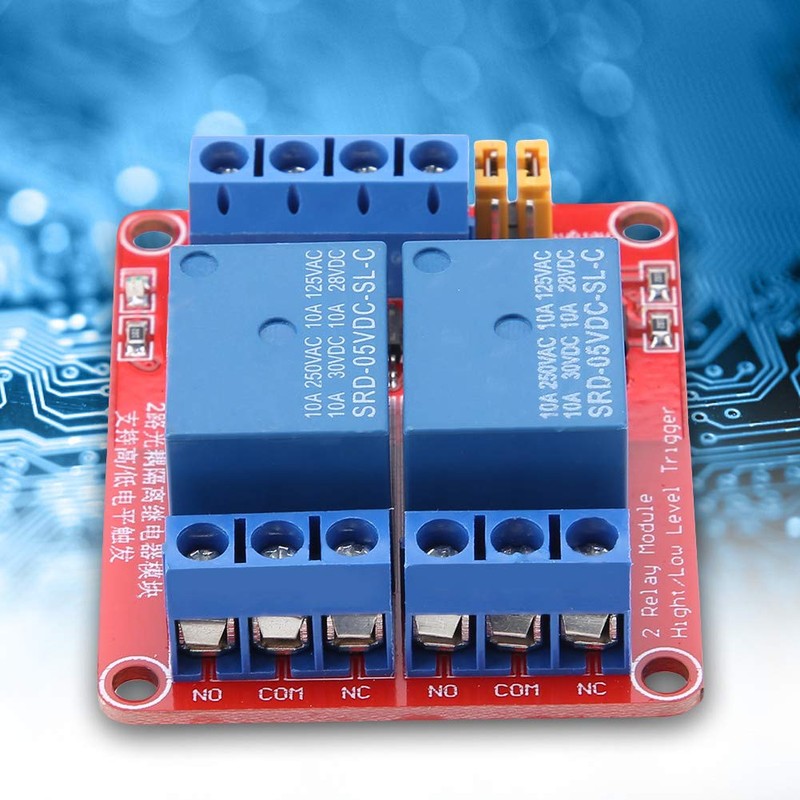

Relay output:
1. NO1: 1-channel relay normally opens the interface. The relay is suspended before extraction and short-circuited with COM1 after suction.
2. COM1: 1-channel relay common interface
3. NC1:1 channel relay normally closed interface, short connection with COM1 before sucking the relay, suspension after sucking
4. NO2: 2-channel relay frequently open interface. The relay is suspended before suction and short-circuited with COM2 after suction.
5. COM2: 2-channel relay common interface
6. NC2: 2-channel relay normal closed interface, short
1. The module adopts high quality relay with normal interface and maximum load: AC 250V/10A, DC 30V/10A.
2. With SMT optocoupler insulation, it has strong drive capacity and stable performance; trigger current is 5mA;
3. The modules can be triggered by setting high or low levels by wire bridge.
4. Fault-tolerant design, even if the control line is interrupted, the relay will not move.
5. The interface design is humanised. All interfaces can be connected directly via the terminal, which is very convenient.
6. Equipped with 4 fixed screw holes, easy to install.
Specification:
Operating voltage: 5 V, 12 V, 24 V (optional).
Maximum load: AC 250V/10A; DC 30V/10A.
Channel: 2
Product dimensions: 50 x 41 x 18.5 mm / 2 x 1.6 x 0.7 inches.
Power Light: Green
Relay Light: Red
Board colour: red.
Package list:
1 x relay module.
Note:
Module interface:
1. DC+: connect the positive pole of the power supply.
2. DC-: connection of the negative pole of the power supply.
3. IN1:1 signal trigger terminal, can set high or low level control relay suction.
4. IN2:2 signal trigger terminal, can adjust high or low level of control relay suction power.
Relay output:
1. NO1: 1-channel relay normally opens the interface. The relay is suspended before extraction and short-circuited with COM1 after suction.
2. COM1: 1-channel relay common interface
3. NC1:1 channel relay normally closed interface, short connection with COM1 before sucking the relay, suspension after sucking
4. NO2: 2-channel relay frequently open interface. The relay is suspended before suction and short-circuited with COM2 after suction.
5. COM2: 2-channel relay common interface
6. NC2: 2-channel relay normal closed interface, short
