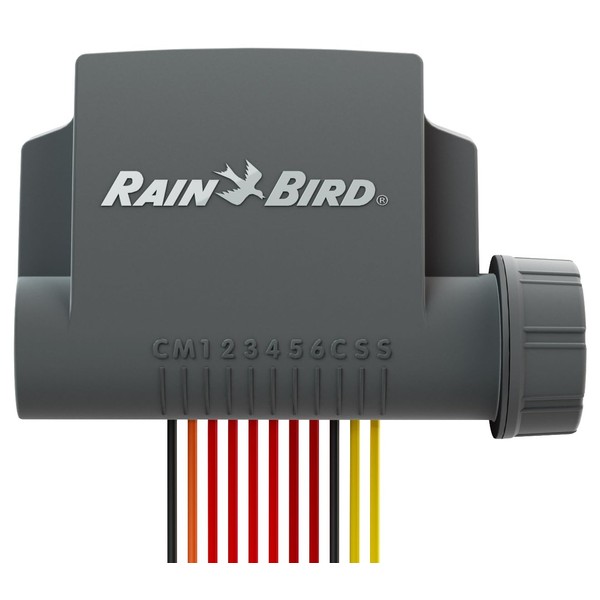

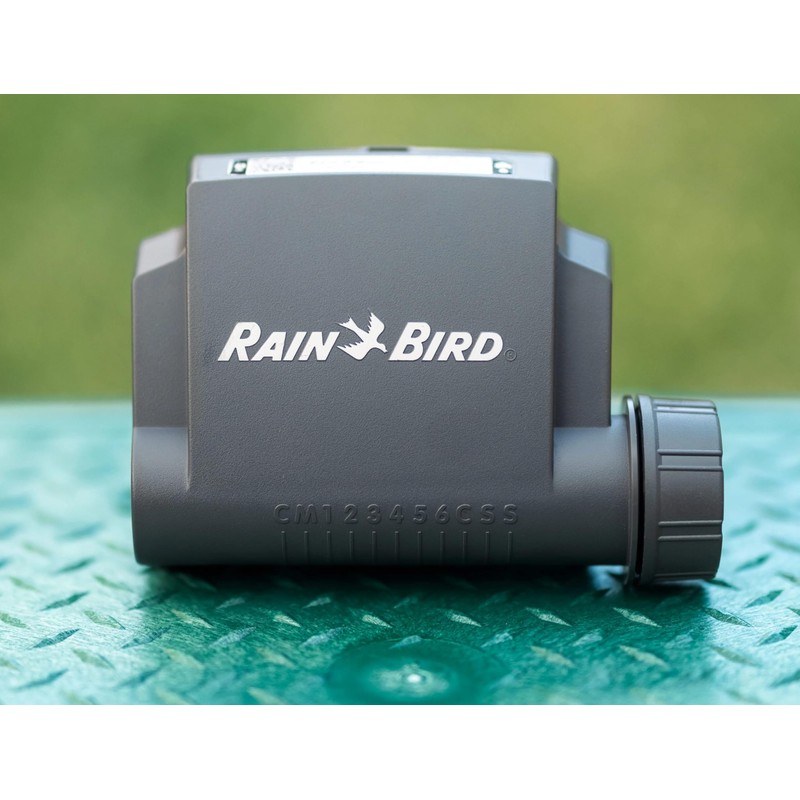

Rain Bird ESP-BAT-BT6 Advanced Bluetooth Battery-Operated Controller 6 Zone App-Controlled Irrigation Timer
Rain Bird ESP-BAT-BT6 Advanced Bluetooth Battery-Operated Controller 6 Zone App-Controlled Irrigation Timer
Rain Bird ESP-BAT-BT6 Advanced Bluetooth Battery-Operated Controller 6 Zone App-Controlled Irrigation Timer

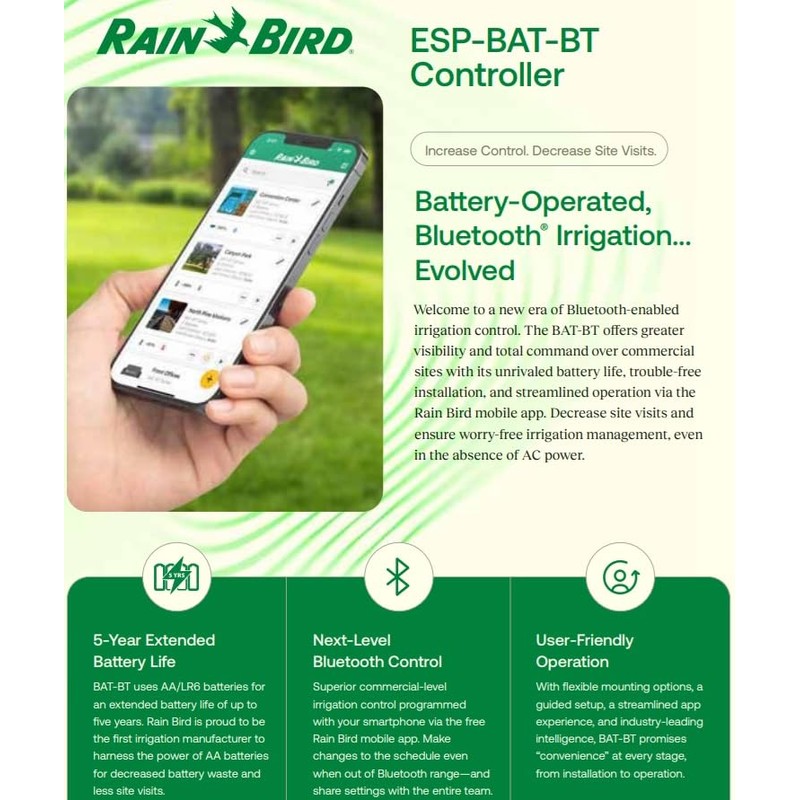

- The new era of Bluetooth-enabled control awaits. Decrease site visits with an enhanced app user experience that makes your job easier.
- Irrigate without AC power or frequent battery changes. The new BAT-BT Bluetooth Battery-Operated Controller leads the industry with up to five years of battery life!
- This wireless solution is fast and easy to install—and its durable, waterproof case helps ensure reliable, trouble-free operation.
- A powerful user interface includes precise mapping, seasonal adjustability, a sharing feature and more: everything you need for total irrigation management.
| Brand: | Rain Bird |
|---|---|
| Manufacturer: | Rain Bird |
| Part Number: | JM31G9L |
| Isin: | IJ4LOHZKRCYQ |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Controller Features
Battery changes have never been easier; wireless battery pack simply pulls out to remove and replace batteries in seconds
Up to 5 years battery life with four high-quality AA batteries
IP68 rated waterproof design built to withstand the harshest conditions; protect against dirt, dust and water…even if the valve box floods frequently

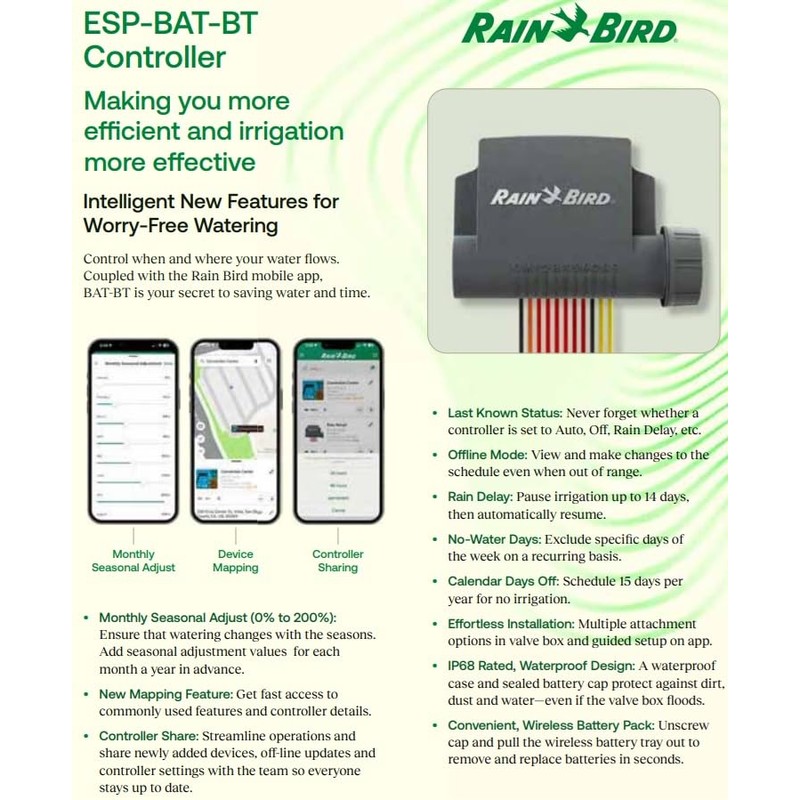

Rain Bird 2.0 App Features
Advanced Mapping: Map pins turn red when battery is below 30%. Select a mapping pin and access commonly used shortcuts: manual water, edit controller, battery status, controller sharing, change address, Bluetooth status and delete device.
Offline Mode: Edit, track, and save desired controller changes in the app, even when out of Bluetooth range. Review change log at anytime. Rapid synchronize change log when back on site and in Bluetooth range.
Controller Sharing: Streamline operations and collaboration with your team. Share secure access of any and all devices with new team members. Keep existing team members up-to-date with on-site controller changes or make offline changes from anywhere and share with a team member on site for synchronization, saving a site visit.
Monthly Seasonal Adjust: Seasons change and so should your water schedule. Program adjustment values by month for the entire year in advance, saving not just water but site visits.
Cycle & Soak: Eliminate runoff, a common form of water waste by breaking up the total run time into shorter cycles so the soil has time to soak in the water (available down to 7 second cycles).
Seconds Based Irrigation: Run times go down to 7 seconds allowing one second intervals (7 seconds to 18 hour run times).
Calendar Days Off: Have a future event in the park and you want to be sure irrigation doesn’t run? Schedule the day(s) off ahead of time, saving a site visit.
Permanent Days Off: Do you always mow on Thursdays? Exclude certain day(s) of the week on a recurring basis, no matter the chosen watering frequency. (Odd, Even and Cyclic)
Additional Images: Quickly identify stations and sites via custom imagery.
Interstation Delay: Allow a delay between a station turning off and another turning on. This ensures your hydraulics are never compromised.
Rain Delay: Is rain coming? Save a site visit, turn the controller off for up to 14 days and then auto-resume irrigation. If rain is expected for more than 14 days set Monthly Seasonal Adjust values to 0%.
Pause Active Irrigation: If and when a broken nozzle occurs, simply pause the station, fix the issue and resume right where the irrigation program left off.
Search & Filter: Easily find controller(s) right from the home screen. Sort by name, controller type, recently added or last connected. Filter by Bluetooth in range, sync available or low battery.
Controller Grouping: For sites with multiple battery-operated controllers, add multiple controllers to a group for organized on-site operations.
Quick Status: View all your connected controllers and their most relevant statuses: controller auto, controller off, rain delay, calendar day(s) off, battery life and Bluetooth connection.

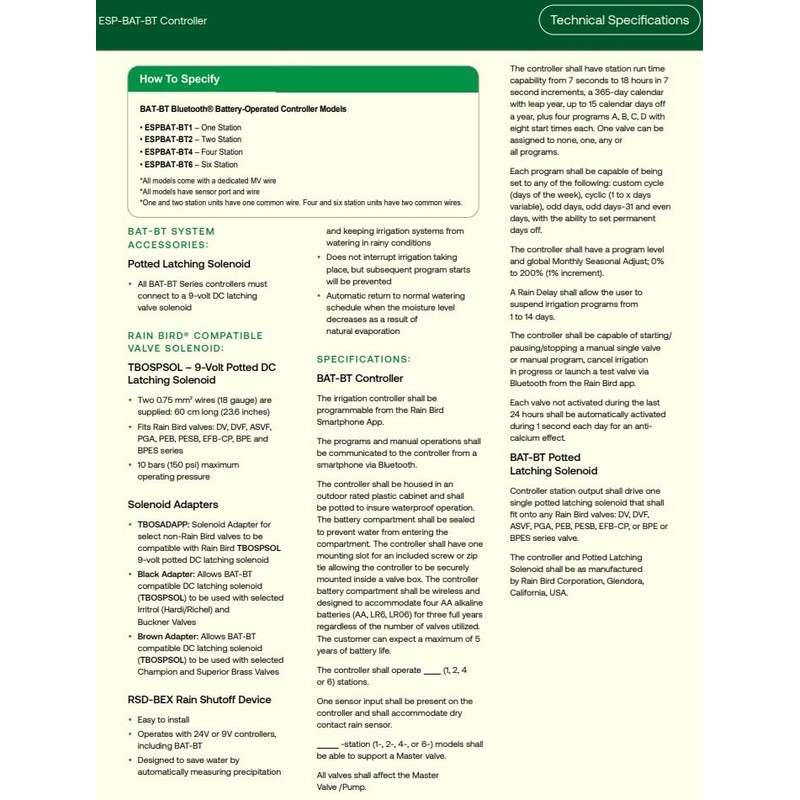

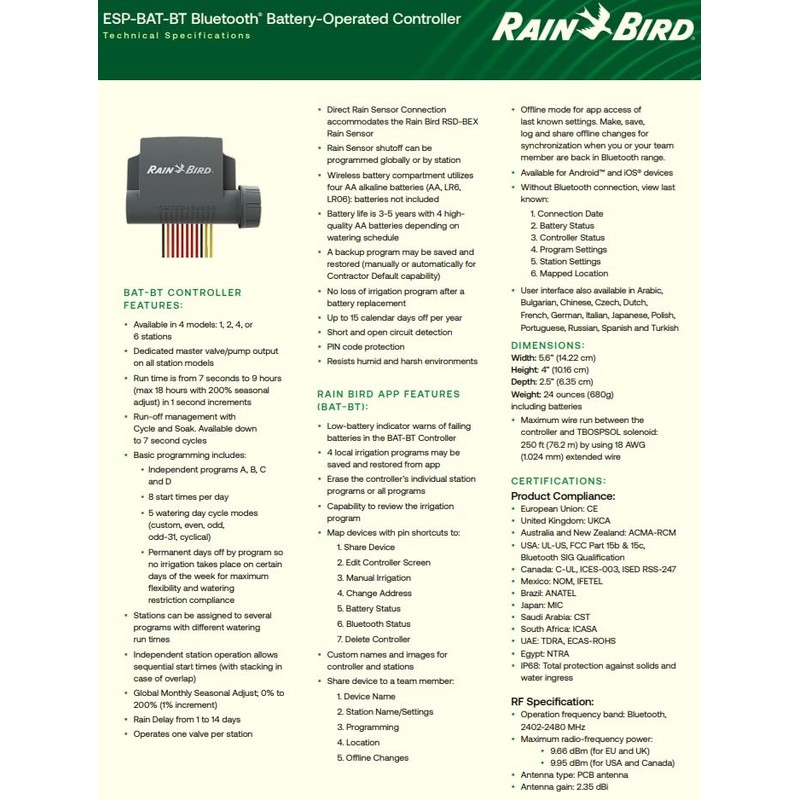

Operating Specifications
Rain Bird 2.0 App; available for Android and iOS devices
Master Valve/Pump output on all models
Basic programming includes four independent programs A, B, C and D each with 8 start times per day Stations can be assigned to several programs with different watering run times
Run time is from 7 seconds to 9 hours (max 18 hours with 200% seasonal adjust) in 1 second increments Independent station operation allows sequential start times (with stacking in case of overlap)
Operates one valve per station
Global Monthly Seasonal Adjust; 0% to 200% (1% increment)
Four watering day cycle modes (custom, even, odd and cyclical) with permanent days off so no irrigation takes place on mow days, selectable by program for maximum flexibility and watering restriction compliance
Backup program may be saved and restored (manually or automatically for contractor default capability)
No loss of irrigation program after a battery replacement
Short and open circuit detection
PIN code protection
Direct Rain Sensor Connection accommodates the Rain Bird RSD-BEx Rain Sensor
Rain Sensor shutoff globally or by station
Operates with four AA alkaline batteries (AA, LR6, LR06): batteries not included
Radio Frequency Specification
Operation frequency band: Bluetooth, 2402-2480 MHz
Maximum radio-frequency power: 9.95 dBm (for EU and UK) 9.66 dBm (for USA and Canada)
Antenna type: PCB antenna
Antenna gain: 2.41 dBi (for EU and UK) 2.35 dBi (for USA and Canada)
Certifications - Product Compliance
European Union: CE
United Kingdom: UKCA
Australia and New Zealand: ACMA-RCM
USA: UL-US, FCC Part 15b & 15c, Bluetooth SIG Qualification
Canada: C-UL, ICES-003, ISED RSS-247
Mexico: NOM, IFETEL
Brazil: ANATEL
Japan: MIC
Saudi Arabia: CST
South Africa: ICASA
UAE: TDRA, ECAS-ROHS
Egypt: NTRA
IP68: Total protection against solids and water ingress
Maximum Wire Run
12 AWG - 1250ft (381m)
14 AWG - 750ft (229m)
18 AWG - 300ft (91m)
*Tested with all Rain Bird valves that are compatible with TBOSPSOL DC-latching solenoid
*Max distances were tested up to 100 PSI
Dimensions
Width: 5.6”
Height: 4”
Depth: 2.5”
Weight: 24 ounces (680g) including batteries
Maximum wire run between the controller and TBOSPSOL solenoid: 98.4ft (30m) by using 1.5mm² (16 AWG) extended wire
Battery changes have never been easier; wireless battery pack simply pulls out to remove and replace batteries in seconds
Up to 5 years battery life with four high-quality AA batteries
IP68 rated waterproof design built to withstand the harshest conditions; protect against dirt, dust and water…even if the valve box floods frequently
Rain Bird 2.0 App Features
Advanced Mapping: Map pins turn red when battery is below 30%. Select a mapping pin and access commonly used shortcuts: manual water, edit controller, battery status, controller sharing, change address, Bluetooth status and delete device.
Offline Mode: Edit, track, and save desired controller changes in the app, even when out of Bluetooth range. Review change log at anytime. Rapid synchronize change log when back on site and in Bluetooth range.
Controller Sharing: Streamline operations and collaboration with your team. Share secure access of any and all devices with new team members. Keep existing team members up-to-date with on-site controller changes or make offline changes from anywhere and share with a team member on site for synchronization, saving a site visit.
Monthly Seasonal Adjust: Seasons change and so should your water schedule. Program adjustment values by month for the entire year in advance, saving not just water but site visits.
Cycle & Soak: Eliminate runoff, a common form of water waste by breaking up the total run time into shorter cycles so the soil has time to soak in the water (available down to 7 second cycles).
Seconds Based Irrigation: Run times go down to 7 seconds allowing one second intervals (7 seconds to 18 hour run times).
Calendar Days Off: Have a future event in the park and you want to be sure irrigation doesn’t run? Schedule the day(s) off ahead of time, saving a site visit.
Permanent Days Off: Do you always mow on Thursdays? Exclude certain day(s) of the week on a recurring basis, no matter the chosen watering frequency. (Odd, Even and Cyclic)
Additional Images: Quickly identify stations and sites via custom imagery.
Interstation Delay: Allow a delay between a station turning off and another turning on. This ensures your hydraulics are never compromised.
Rain Delay: Is rain coming? Save a site visit, turn the controller off for up to 14 days and then auto-resume irrigation. If rain is expected for more than 14 days set Monthly Seasonal Adjust values to 0%.
Pause Active Irrigation: If and when a broken nozzle occurs, simply pause the station, fix the issue and resume right where the irrigation program left off.
Search & Filter: Easily find controller(s) right from the home screen. Sort by name, controller type, recently added or last connected. Filter by Bluetooth in range, sync available or low battery.
Controller Grouping: For sites with multiple battery-operated controllers, add multiple controllers to a group for organized on-site operations.
Quick Status: View all your connected controllers and their most relevant statuses: controller auto, controller off, rain delay, calendar day(s) off, battery life and Bluetooth connection.
Operating Specifications
Rain Bird 2.0 App; available for Android and iOS devices
Master Valve/Pump output on all models
Basic programming includes four independent programs A, B, C and D each with 8 start times per day Stations can be assigned to several programs with different watering run times
Run time is from 7 seconds to 9 hours (max 18 hours with 200% seasonal adjust) in 1 second increments Independent station operation allows sequential start times (with stacking in case of overlap)
Operates one valve per station
Global Monthly Seasonal Adjust; 0% to 200% (1% increment)
Four watering day cycle modes (custom, even, odd and cyclical) with permanent days off so no irrigation takes place on mow days, selectable by program for maximum flexibility and watering restriction compliance
Backup program may be saved and restored (manually or automatically for contractor default capability)
No loss of irrigation program after a battery replacement
Short and open circuit detection
PIN code protection
Direct Rain Sensor Connection accommodates the Rain Bird RSD-BEx Rain Sensor
Rain Sensor shutoff globally or by station
Operates with four AA alkaline batteries (AA, LR6, LR06): batteries not included
Radio Frequency Specification
Operation frequency band: Bluetooth, 2402-2480 MHz
Maximum radio-frequency power: 9.95 dBm (for EU and UK) 9.66 dBm (for USA and Canada)
Antenna type: PCB antenna
Antenna gain: 2.41 dBi (for EU and UK) 2.35 dBi (for USA and Canada)
Certifications - Product Compliance
European Union: CE
United Kingdom: UKCA
Australia and New Zealand: ACMA-RCM
USA: UL-US, FCC Part 15b & 15c, Bluetooth SIG Qualification
Canada: C-UL, ICES-003, ISED RSS-247
Mexico: NOM, IFETEL
Brazil: ANATEL
Japan: MIC
Saudi Arabia: CST
South Africa: ICASA
UAE: TDRA, ECAS-ROHS
Egypt: NTRA
IP68: Total protection against solids and water ingress
Maximum Wire Run
12 AWG - 1250ft (381m)
14 AWG - 750ft (229m)
18 AWG - 300ft (91m)
*Tested with all Rain Bird valves that are compatible with TBOSPSOL DC-latching solenoid
*Max distances were tested up to 100 PSI
Dimensions
Width: 5.6”
Height: 4”
Depth: 2.5”
Weight: 24 ounces (680g) including batteries
Maximum wire run between the controller and TBOSPSOL solenoid: 98.4ft (30m) by using 1.5mm² (16 AWG) extended wire
