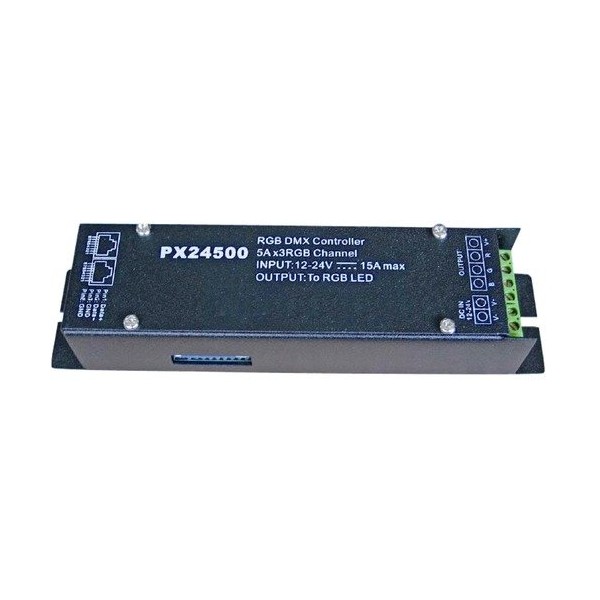

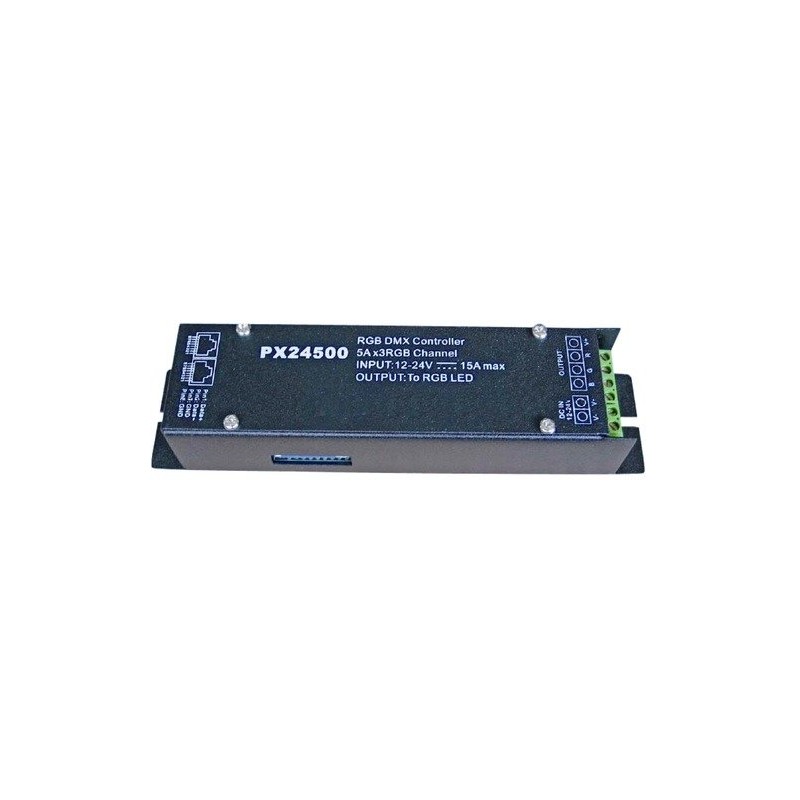

PX24500 RGB LED DMX512 Decoder driver15A Max
PX24500 RGB LED DMX512 Decoder driver15A Max
PX24500 RGB LED DMX512 Decoder driver15A Max
Product Overview
- RGB LED Lighting: This DMX512 decoder driver powers RGB LED lights for vibrant, customizable illumination.
- High-Output LED Driver: With 15A max power, this driver can handle large LED lighting installations.
- Reliable DMX512 Decoder: The built-in DMX512 decoder ensures smooth, synchronized lighting control.
- Modern LED Driver Design: Sleek, modern style complements any lighting setup.
- Safety Certified: Meets ROHS and other safety standards for worry-free installation.
| Color: | Multi-color (RGB) |
|---|---|
| Manufacturer: | Antenna Pros |
| Part Number: | 89DO0W4 |
| Material Type: | Metal |
| Isin: | IMOPMVD0EZEQ |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
he most popular DMX Driver PX24500, which offers you to connect your RGB LED Lights, LED Lighting, LED Ribbon strips or RGB LED other Modules to DMX512 or DMX1990 Lighting controllers. Then by using PWM and DMX software, you can change the color and dimming of your RGB LED lights. For 12 to 24VDC systems only. Includes one 6' Cat5 cable with RJ45 jack connectors. 5A per channel with a maximum power of 180W / 12VDC or 360W / 24VDC. For use with 4 pin, 3 loop, common anode style RGB LED and LED Lighting. Can be connected to DMX512 signal using RJ45 connectors and Cat5 cables. Unit has DIP switches on the side to manually change the DMX address of each driver. Each PX24500 Driver uses 3 DMX addresses. RGB LEDs and power supply are connected using screw down style connectors. RoHs, CE approved. Decode CH: 1~3 Imput signal: DMX512(1990) Output signal: 0~24v PWM signal Power supply: 12~25v Power dis: Power output: Operating temperature: 0~70c DMX type: DMX 512, DMX 1990 Watts: 180w/12vdc, 360w/24vdc max Refresh rate: 433Hz Rating: Dry Can be used on 12v or 24V DC 5 Amp Per Channel 3*5 = 15A total Maximum Size 18cm L 3.5cm H 4cm W Fully Dip switch enabled Perfect for any of our RGB Led products - except the Par & MR16 RGB Led bulb. Usually works with our DMX100 and DMX300 Master controller to reach really full color 16 million colors and 256 grey level. Example of what you can do with DMX LED lights Example of software control, programing Example of DMX LED light show, with DMX512 and px24500 DMX decoder: Example of DMX512 Controller and px24500 DMX decoder with led magic ball/cristal ball: Example of DMX512 Controller with px24500 DMX decoder software and what can be done:
