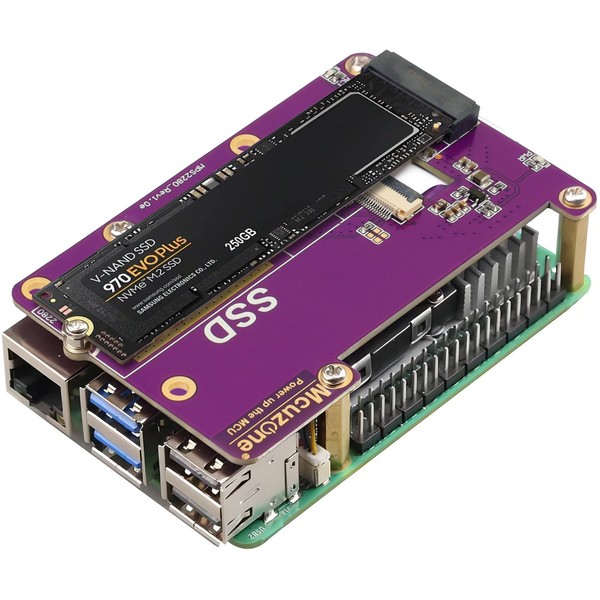

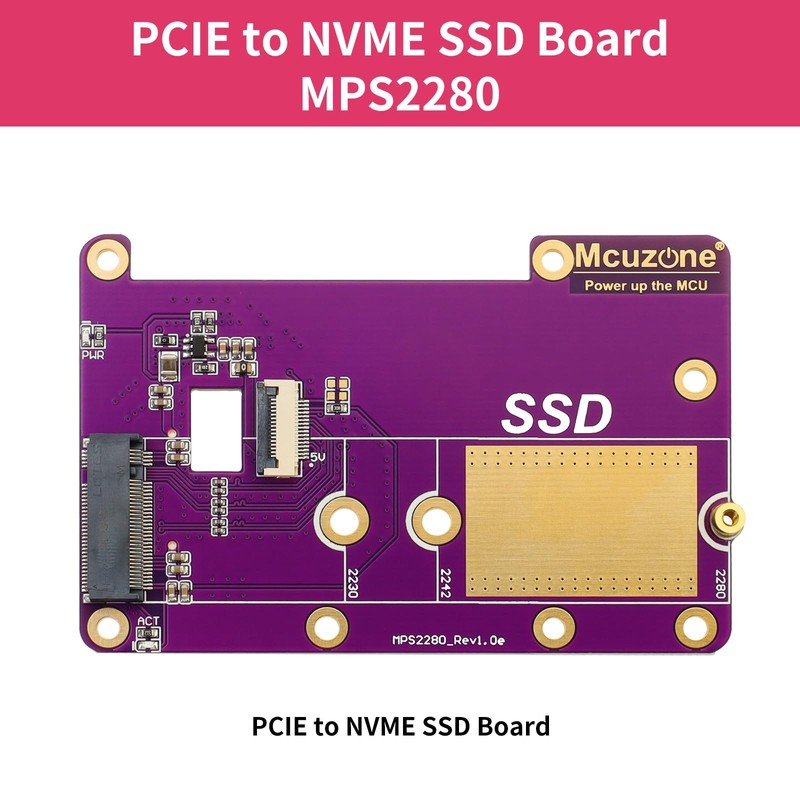

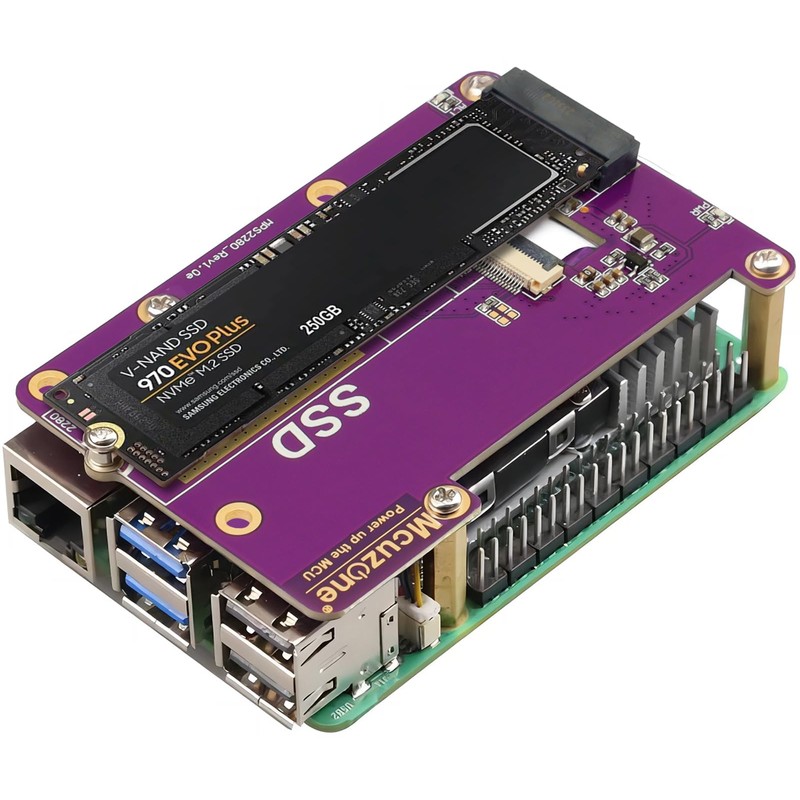

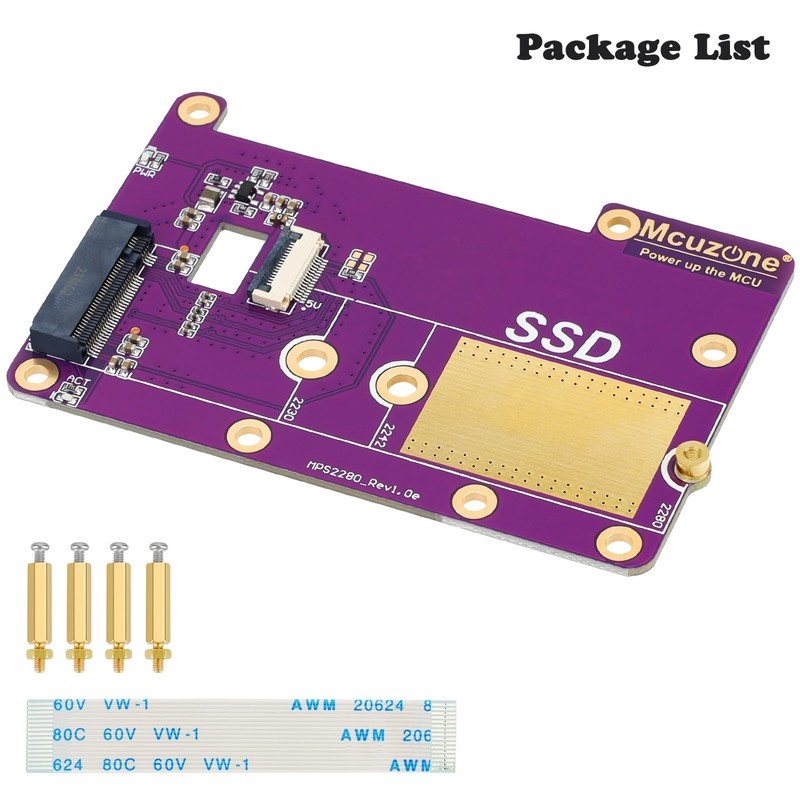

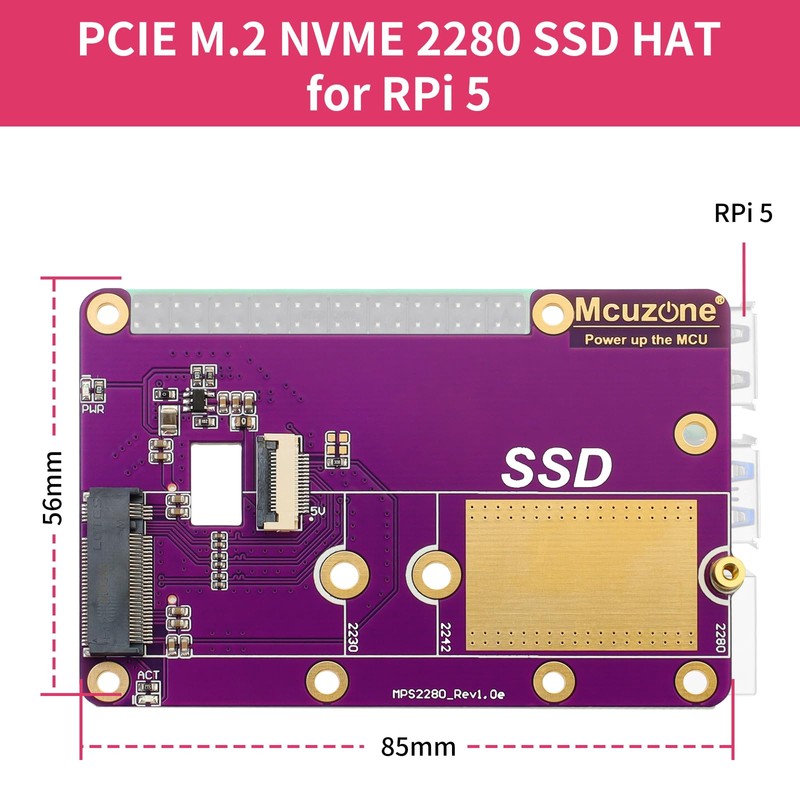

PCIe M.2 Hat for Raspberry Pi 5 NVMe SSD PIP PCIe Pimoroni Peripheral Board with Extra Screw Sets and FPC Shielded Cable for 2280/2242/2230 NVME and for Raspberry Pi 5
PCIe M.2 Hat for Raspberry Pi 5 NVMe SSD PIP PCIe Pimoroni Peripheral Board with Extra Screw Sets and FPC Shielded Cable for 2280/2242/2230 NVME and for Raspberry Pi 5
PCIe M.2 Hat for Raspberry Pi 5 NVMe SSD PIP PCIe Pimoroni Peripheral Board with Extra Screw Sets and FPC Shielded Cable for 2280/2242/2230 NVME and for Raspberry Pi 5
- PCIe Interface for Enhanced Expansion: Specifically designed for the Raspberry Pi 5, this PCIe M.2 expansion board supports Gen2 and Gen3 modes. It connects via a PCIe x1 interface, providing a highly efficient expansion solution that enhances your Raspberry Pi's data transfer capabilities.

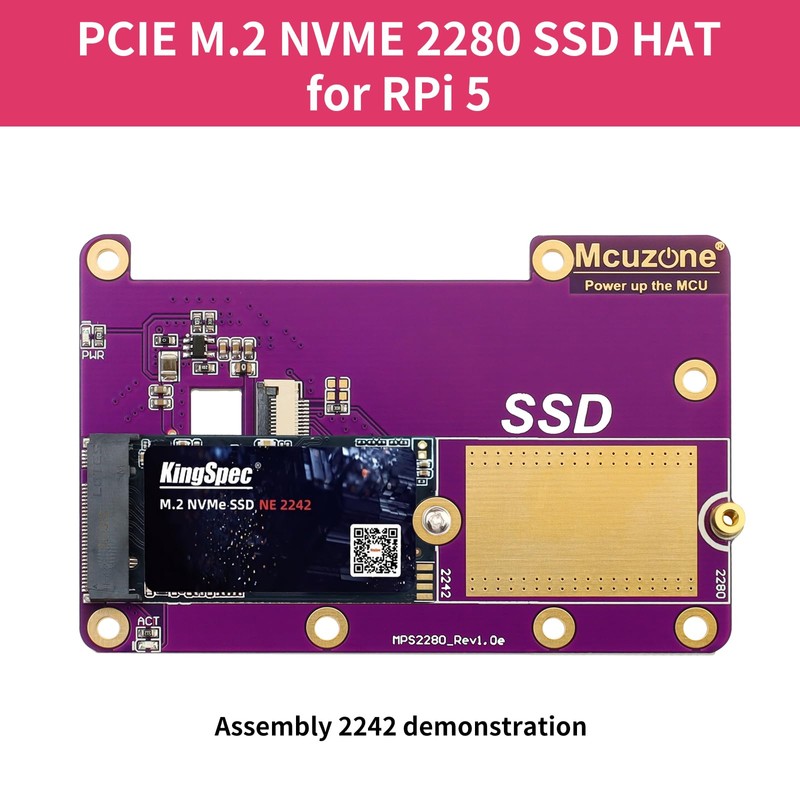

- Supports Various Sizes of NVMe SSDs: Equipped with an M.2 M-key interface, this expansion board is compatible with 2280, 2242, and 2230 size NVMe SSDs, with a default 2280 standoff pre-soldered. Whether you need it for system boot or storage expansion, it meets your diverse needs.
- SSD Boot and Storage Expansion: PCIe M.2 HAT supports booting the system from an NVMe SSD, significantly speeding up system startup. Alternatively, you can use the SSD purely for storage expansion while keeping the system boot from a TF card, thus enhancing storage capacity.
- Stable Power Design: The expansion board's power circuit design supports a 2A current. Despite the Raspberry Pi 5's PCIe interface current limit of 5V1A, it can provide over 3.3V1.5A output for the SSD, meeting the power requirements of most NVMe SSDs.
- High Quality and Ease of Use: Made with high-quality electronic components and gold-plating technology, it ensures durability and reliability. The onboard dual LED indicators provide power and SSD activity status. With four M2.5 mounting holes and a recessed design, it facilitates 40 Pin GPIO operation, making it user-friendly.
| Brand: | Drocoge |
|---|---|
| Size: | PCIe M.2 Hat Expansion Board |
| Manufacturer: | Drocoge |
| Part Number: | 5QZJGWB |
| Isin: | IGXZ4OFVSSLV |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Drocoge PCIe M.2 Hat for Raspberry Pi 5 is a tailor-made expansion board designed to enhance the storage and data transfer performance of your Raspberry Pi. Connecting via a PCIe x1 interface, it supports Gen2 and Gen3 modes and is compatible with M.2 M-key NVMe SSDs. Whether you use 2280, 2242, or 2230 size SSDs, this expansion board provides seamless support.
Not only does this expansion board allow for system booting from an NVMe SSD, greatly improving startup speed, but it can also be used solely for storage expansion. This is ideal if you prefer to keep the system boot from a TF card while adding more storage capacity. The power circuit design can provide over 3.3V1.5A output, fulfilling the power needs of most NVMe SSDs, even with the Raspberry Pi 5's PCIe interface current limit of 5V1A.
The Drocoge PCIe M.2 Hat is equipped with onboard power and SSD activity indicators, allowing you to monitor the device's operational status at any time. Using high-quality electronic components and gold-plating technology, it guarantees high durability and long-term use. The design includes four M2.5 mounting holes and a recessed top to facilitate 40 Pin GPIO operations, ensuring secure installation and ease of use.
In summary, the Drocoge PCIe M.2 Hat is an ideal choice for Raspberry Pi 5 users looking to enhance system performance and expand storage space. It significantly broadens the device's application range and flexibility, making it suitable for home projects, personal development, or professional applications, providing the reliability and performance you need.
