OSOYOO Breakout Board for Raspberry Pi Pico - GPIO Status LEDs, Reverse Current Protection, 3 Pin Sensor/Servo Interface, Independent 5V/3.3V Power Supply, On-Board Screw Terminals for Prototyping
OSOYOO Breakout Board for Raspberry Pi Pico - GPIO Status LEDs, Reverse Current Protection, 3 Pin Sensor/Servo Interface, Independent 5V/3.3V Power Supply, On-Board Screw Terminals for Prototyping
OSOYOO Breakout Board for Raspberry Pi Pico - GPIO Status LEDs, Reverse Current Protection, 3 Pin Sensor/Servo Interface, Independent 5V/3.3V Power Supply, On-Board Screw Terminals for Prototyping

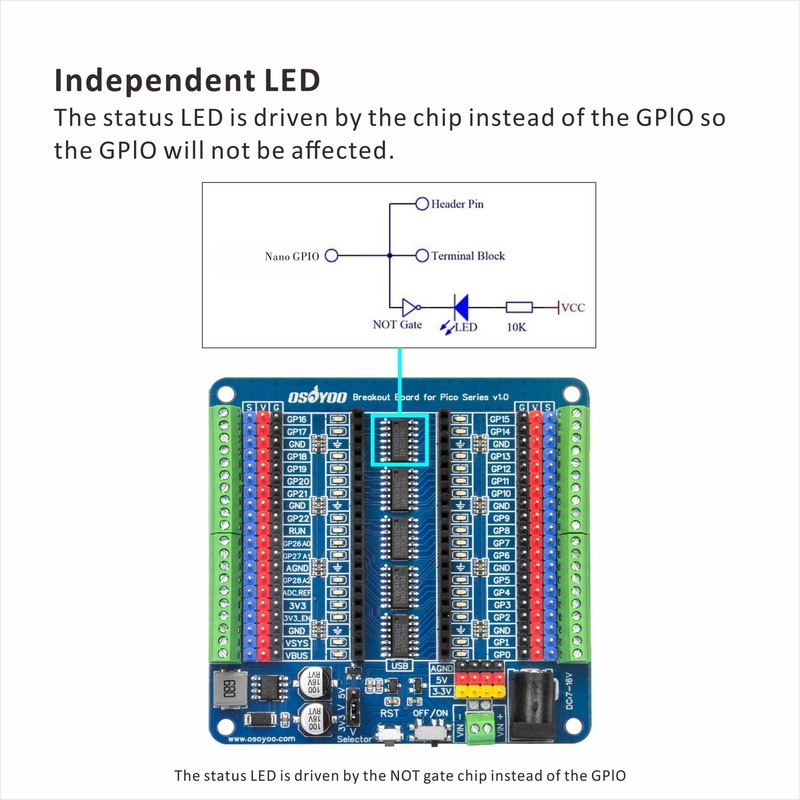

- GPIO status LED: LED on when GPIO outputs/inputs high level, LED off when GPIO outputs/inputs low level. It is a useful tool for troubleshooting and debugging I/O without the need for a meter or entering the software.
- Standard pin interface to achieve full compatibility with the Pitch Pico series and all fully compatible Pico series boards
- Digital IO port, 26 ports for digital modules, analogue IO port, 4 ports for analog sensor input
- EASY & FLEXIBLE WIRING Simplifies connecting wires to pico boards and provides easier and more flexible connections. Clamp block design allows for easy "screwing" of bare wires. Ideal for projects that require stable connections without soldering.
- Ideal for practical, practical projects: This is a great way to connect items with the Pico for projects that you will actually use in the real world. These breakout board terminal expansion screens allow you to build items you will use in robotics and 3D printed projects where you need to connect and disconnect cables.
Brand: | OSOYOO |
---|---|
Manufacturer: | OSOYOO |
Part Number: | Q7X1W4X |
Isin: | IPZMJZIMABJP |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
OSOYOO Breakout Board for Raspberry Pi Pico Series
Upgrade your Raspberry Pi Pico projects with the OSOYOO Breakout Board designed for seamless prototyping and improved performance. This board has LED indicators on each GPIO port that allow real-time monitoring of pin status without wiring. Simply check your prototype code with instant visual feedback.

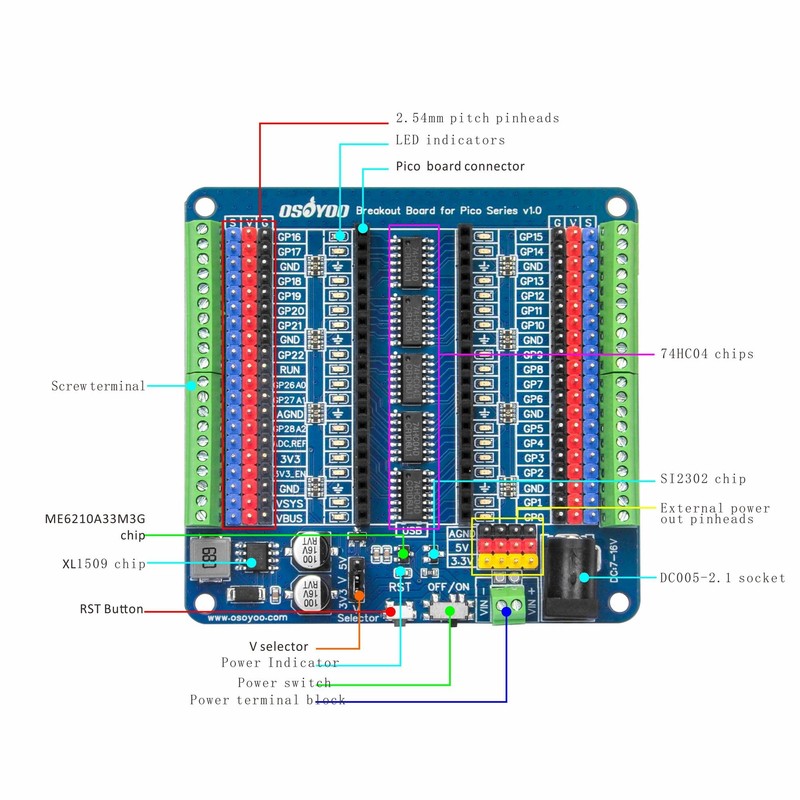

Key Features:
GPIO Status LEDs: Quickly identify pin activity for optimized debugging and prototyping.
Reverse Power Protection: Built-in circuit protection automatically shut down the board if the power is connected incorrectly, preventing damage.
3-Pin Sensor/Servo Interface: Includes V and GND pins on each I/O pin for effortless sensor and servo module connections.
Independent Power Supply: On-board power supplies with 5V/2A and 3.3V/500mA provide stable power for servos, sensors and other peripherals.
Screw Terminals: Ensure reliable connections with integrated screw terminals for hassle-free wiring.
Important Notes:
The Pico series supports a maximum I/O voltage of 3.3V. Avoid connecting devices that output 5V to the I/O ports to avoid damage.
Adjust the V_Selector jumper cap to adjust the V pin output voltage when using an external power supply through the VIN interface.
If you are using only the Pico's built-in 3.3V output, connect the S-connector 3.3V pin to the V_Selector's V pin with a Dupont cable.
Compatibility:

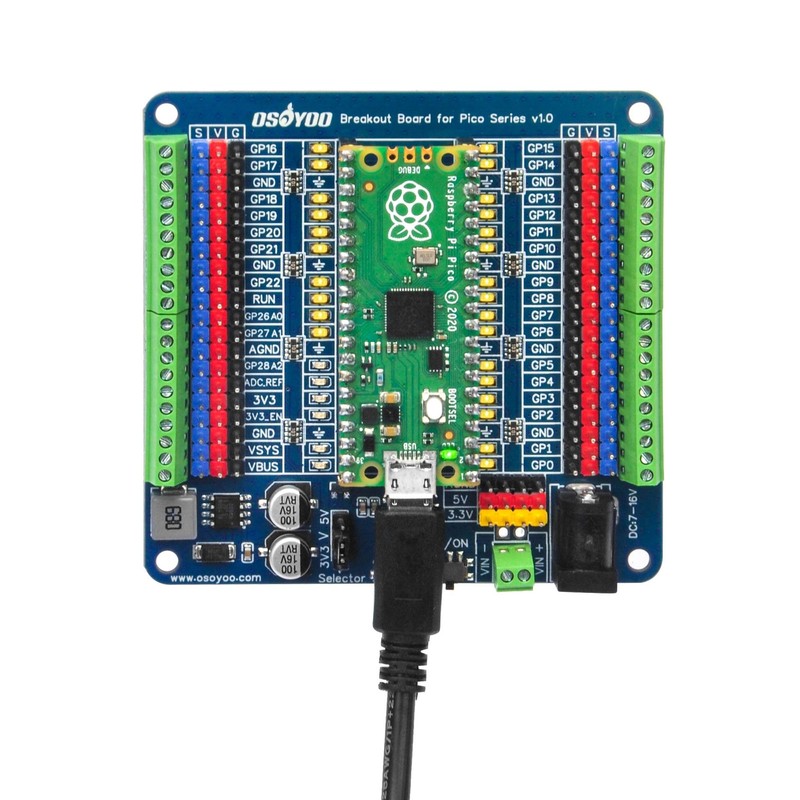

Fully compatible with all Raspberry Pi Pico models including:
First generation: Pico, Pico H, Pico W, Pico WH.
Second generation: Pico 2, Pico 2W
Experience effortless prototyping with the OSOYOO Breakout Board for Raspberry Pi Pico - designed for manufacturers, educators, and tech enthusiasts who want to bring their ideas to life.
Technical specifications:
Name: OSOYOO_IO_Breakout_Board_for_Pico_v.1.0
Working Voltage: 5V
VIN input voltage (recommended): 7-12V
VIN input voltage (limit): 7-18V
Digital I/O pins: 26.
PWM digital I/O pins: 18.
Analog input pins: 4
Power Switch: Yes
External Output: 5V/2A, 3.3V/500mA
Power Input Options: USB/DC005-2.1/Screw Terminal/Male Pinheads
On-board LED indicators: all GPIO ports
Length: 78 mm.
Width: 75 mm.
Weight: 25 g.
