Orange Pi 5 Plus 8GB LPDDR4/4x Rockchip RK3588 8-Core 64-Bit Single Board Computer with eMMC Socket, Development Board Run Orange Pi/Linux/Ubuntu/Debian/Android OS (8GB)

Brand: Generic
  • 🍊[High Performance]: Orange Pi 5 Plus signal board computer uses Rockchip RK3588 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design. 4GB/8GB/16GB LPDDR4/4x RAM memory and support eMMC socket which can be connected with 16GB/32GB/64GB/128GB/256GB eMMC module(NO Include). Main frequency up to 2.4GHz and up to 8K display processing capability.
  • 🍊[Abuandent Interfaces]: Orange Pi 5 Plus development board provides abundant interfaces, including 2*HDMl output ports, 1*HDMl input port , 2*PCIe extended 2.5G Ethernet ports, 1*M.2 M-Key slot (supports installation of NVMe SSDs), and 1*M.2 E-Key slot (supports Wi-Fi 6 and Bluetooth modules). In addition, Orange Pi 5 Plus has 2*USB 3.0, 2*USB 2.0, and 2*Type-C (one of which is a power connector).
  • 🍊[8K Video Codes Support]: Orange Pi 5 Plus up to supports 8-core CPU and 8K@60Hz video decoding , the powerful video codec allows for clearer images and more detailed picture quality which greatly improves the user gaming experience.
  • 🍊[Support Open Source]: Orange Pi 5 Plus single board computer can build computer, wireless server, games, music sounds, video and speaker. Orange Pi 5 Plus development board can run Orange Pi OS(Droid)/Ubuntu/Debian/Armbian/Linux/Android 12 OS.
  • 🍊[Genuine Guarantee and Official Authorized]: 👉Original guaranteed: Our products are all genuine , guaranteeing the highest quality.👉Quality guaranteed: Our all products that have undergone rigorous quality checks.👉Satisfaction guaranteed: Please contact us if you have any concerns about the product, we will do our best to offer satisfaction for all our customers.
Brand: Generic
Manufacturer: Orange Pi
Part Number: DTJS7BT
Isin: IYIDSQK2WMB3

$270.27

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Orange Pi 5 Plus 8GB LPDDR4/4x Rockchip RK3588 8-Core 64-Bit Single Board Computer with eMMC Socket, Development Board Run Orange Pi/Linux/Ubuntu/Debian/Android OS (8GB)

Orange Pi 5 Plus 8GB LPDDR4/4x Rockchip RK3588 8-Core 64-Bit Single Board Com...

$270.27

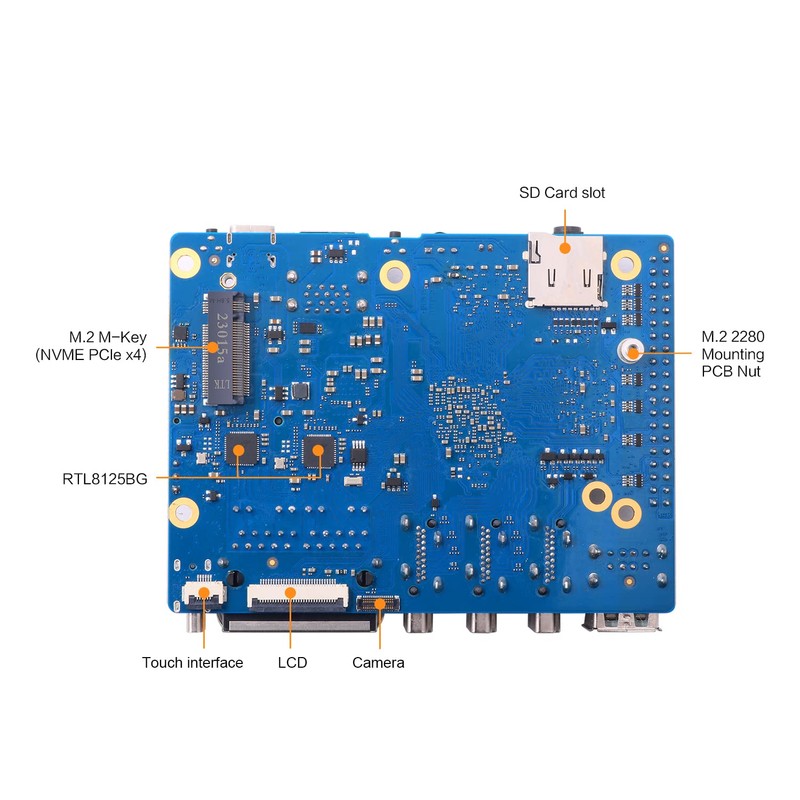

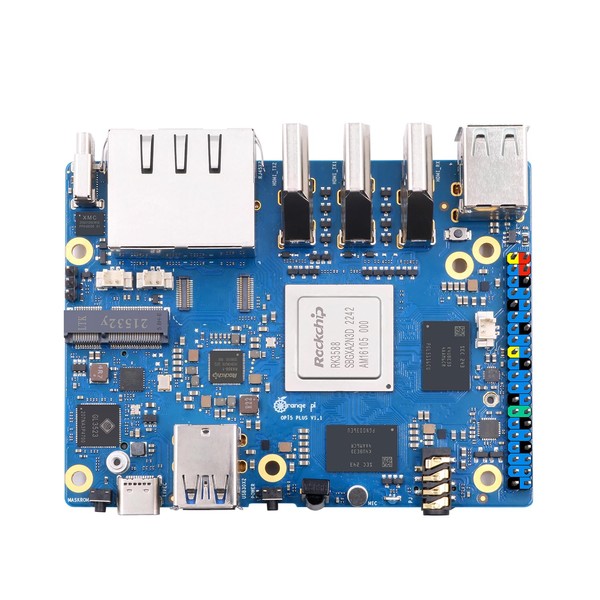

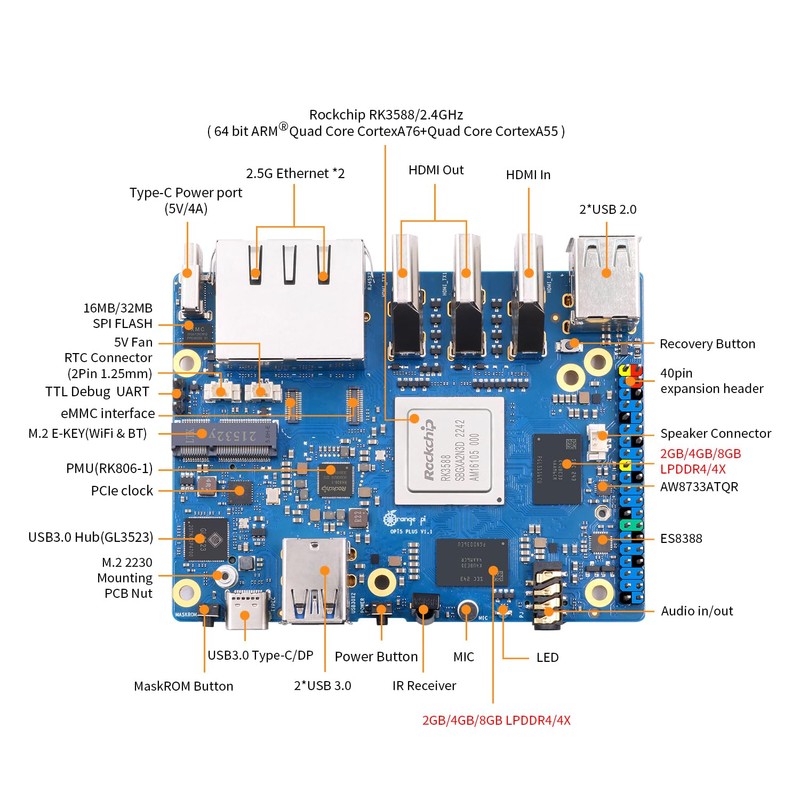

Hardware Parameters

  • SoC: Rockchip RK3588 (8nm LP process)
  • CPU: 8-core 64-bit processor 4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors
  • GPU: Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
  • NPU: Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power
  • PMU: RK806-1
  • RAM: 4GB/8GB/16GB (LPDDR4/4X)
  • Memory: QSPI Nor FLASH: 16MB/32MB MicroSD card slot: up to 128GB eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s
  • USB: USB3.0 × 2USB2.0 × 2Type-C ×1
  • Video: 2x HDMI 2.1 out up to 8k@60FPS 1x Type-C with DP TX 1.4A,up to 8K@30FPS 1x HDMI in with up to 4K@60FPS 1 x MIPI DSI TX 4 Lane,up to 4K @60Hz
  • TP interface1x 6Pin FPC socket
  • Camera: 1XMIPI CSI 4 Lane
  • AudioCODEC: ES8388 1xAudio 3.5mm jack with mic 1xMIC In 1xHDMI 2.1 eARC 1xSPK
  • Ethernet: 2xPCIe 2.5G LAN(RTL8125BG)
  • Expansion Port: 40 Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO
  • PCIe M.2 M-KEY Socket: M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD
  • PCIe M.2 E-KEY Socket: M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported
  • Button: 1×MaskROM key1xRecovery1×on/off key
  • Power Source: Support Type-C power supply, 5V@4A
  • IR receiver: 1x IR receiver tube
  • LED: RGB LED side light
  • FAN: 5V FAN
  • RTC2Pin: RTC backup battery
  • Debugging: 3Pin debug serial port (UART)
  • Supported OS: Orangepi OS(Droid), Orangepi OS(Arch), Ubuntu22.04, Debian11, Android12
