NIKKAI NKK ON-OFF TOGGLE SWITCH WT Series Environmentall
NIKKAI NKK ON-OFF TOGGLE SWITCH WT Series Environmentall

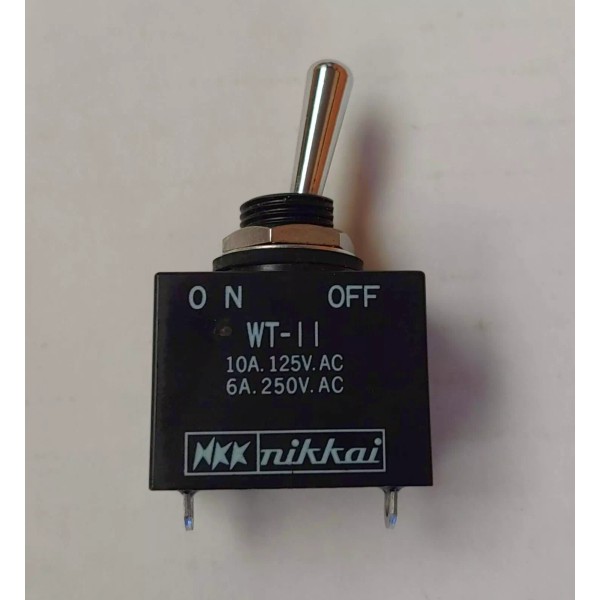

WT11 series Environmental Friendly. NIKKAI MADE IN JAPAN
Lead free / RoHS Compliant
Installation: Manual Soldering
Heat resistant resin used for outer housing meets UL94V-0 flammability standard and provides high arc and tracking resistance.
Sealing for solder lug or screw lug models meets IP67at front panel and IP60 at back panel.
Single unit construction of bushing and case gives added protection from environmental elements.
Epoxy sealed base covered by outer case doubles protection from dust and water (not operable under
Switch - Down OFF Middle none UP ON
SPECIFICATIONS;
POLE
Switch Function: On-Off
Current Rating: 10A (AC/DC)
Voltage Rating: AC 125V
Voltage Rating: DC 30V
Actuator Type: Standard Round
Actuator Length: 17.50mm
Illumination: Non-Illuminated
General Specifications
Electrical Capacity (Resistive Load)
Power Level:
10A @ 125V AC or 6A @ 250V AC or 10A @ 30V DC
Other Ratings
Contact Resistance:
10 milliohms maximum for solder lug & screw terminal models;
30 milliohms maximum for wire lead terminal models
Insulation Resistance:
200 megohms minimum @ 500V DC
Dielectric Strength:
1,500V AC minimum for 1 minute minimum
Mechanical Life:
50,000 operations minimum for On-None-Off, On-None-On, & On-Off-On models
30,000 operations minimum for all other models
Electrical Life:
15,000 operations minimum
Angle of Throw:
24 degrees
- Single unit construction of the bushing and top of the housing gives added protection from environmental elements
- Epoxy sealed terminals prevent entry of solder flux and other contaminants
- Specially designed switching mechanism for breaking light welds
WT SERIES
WT series is environmentally sealed toggles switches that offer sealed actuator area and epoxy sealed base prevent entry of contaminants. Interlocked movable contact mechanism provides highly reliable switching by minimizing contact bounce over center contact.
