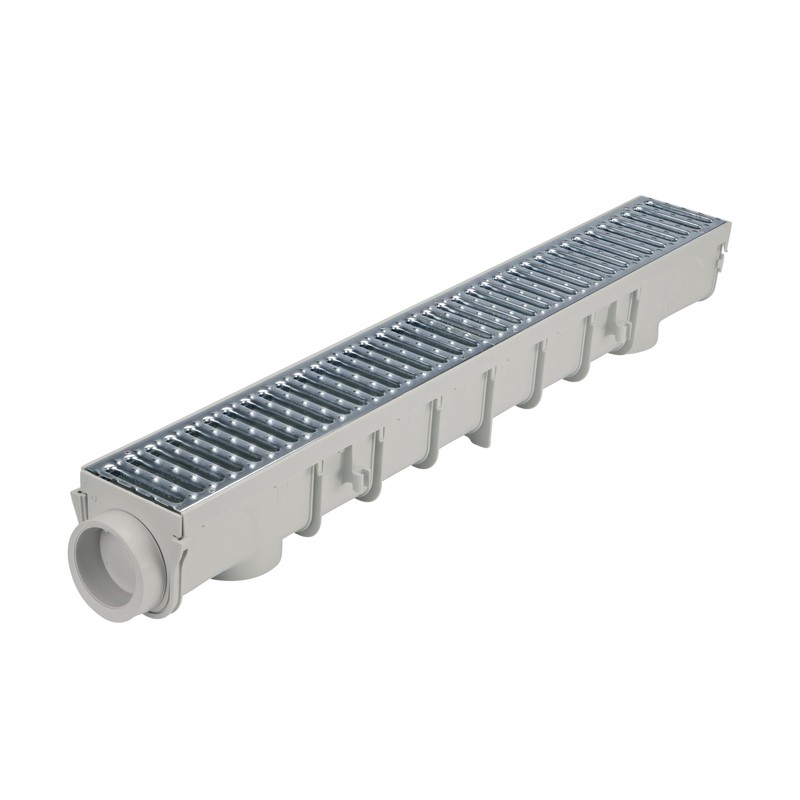

NDS NDS Pro Series Channel Drain Kit, 5-1/2 in. X 39-3/8 in. Deep Profile Channel, Galv. Steel Grates, End Caps/Outlet, 5 in.
NDS NDS Pro Series Channel Drain Kit, 5-1/2 in. X 39-3/8 in. Deep Profile Channel, Galv. Steel Grates, End Caps/Outlet, 5 in.
NDS NDS Pro Series Channel Drain Kit, 5-1/2 in. X 39-3/8 in. Deep Profile Channel, Galv. Steel Grates, End Caps/Outlet, 5 in.
- DRAIN SURFACE WATER FROM HARDSCAPES: Prevent concrete staining and costly structural damage by capturing and conveying excess surface water to the drain pipe for downstream release

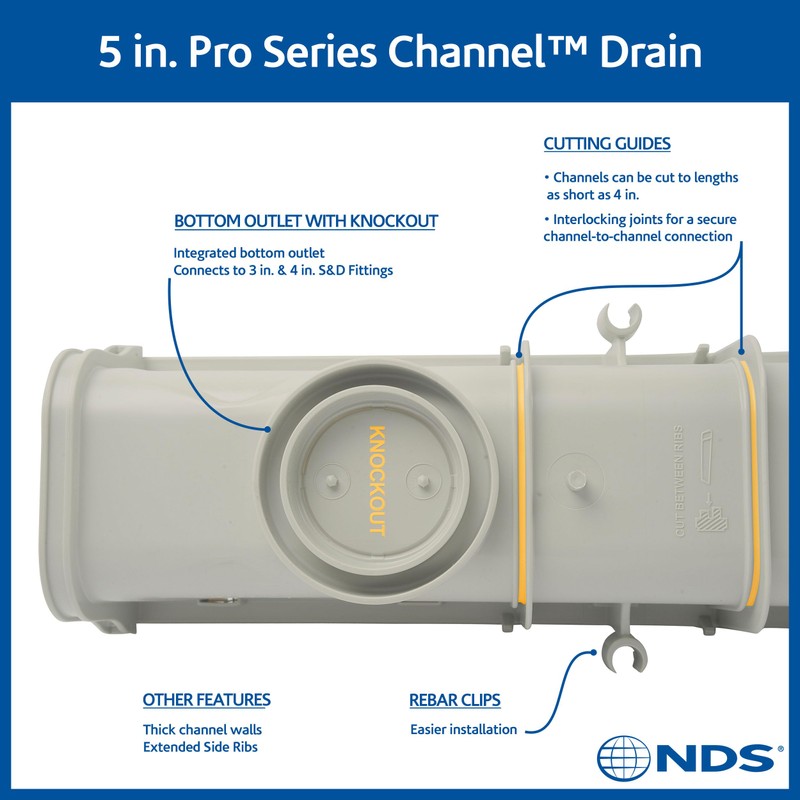

- CONNECTIONS: Bottom outlet connects to 3 in. & 4 in. Sewer & Drain Fittings; Side outlet connects to 3 in. Sewer & Drain pipe; End outlet connects to 3 in. Sewer & Drain pipe and 4 in. Sewer & Drain fittings

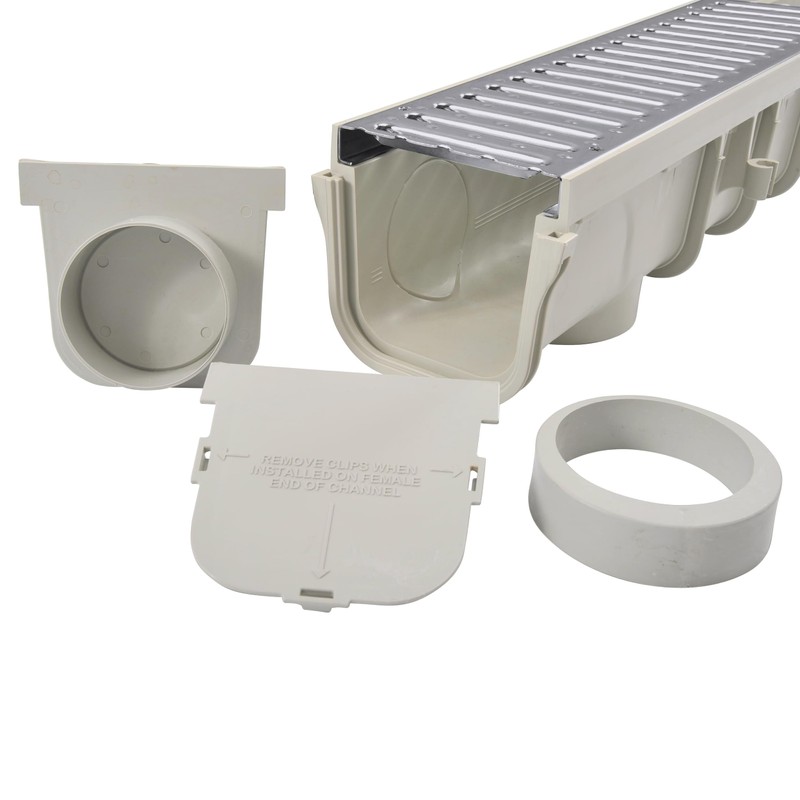

- KIT INCLUDES: 5 in. Pro Series Channel Drain Kit comes with a Deep Profile Channel Drain, Galvanized Steel Channel Grates, End Cap/Outlet, and End Cap

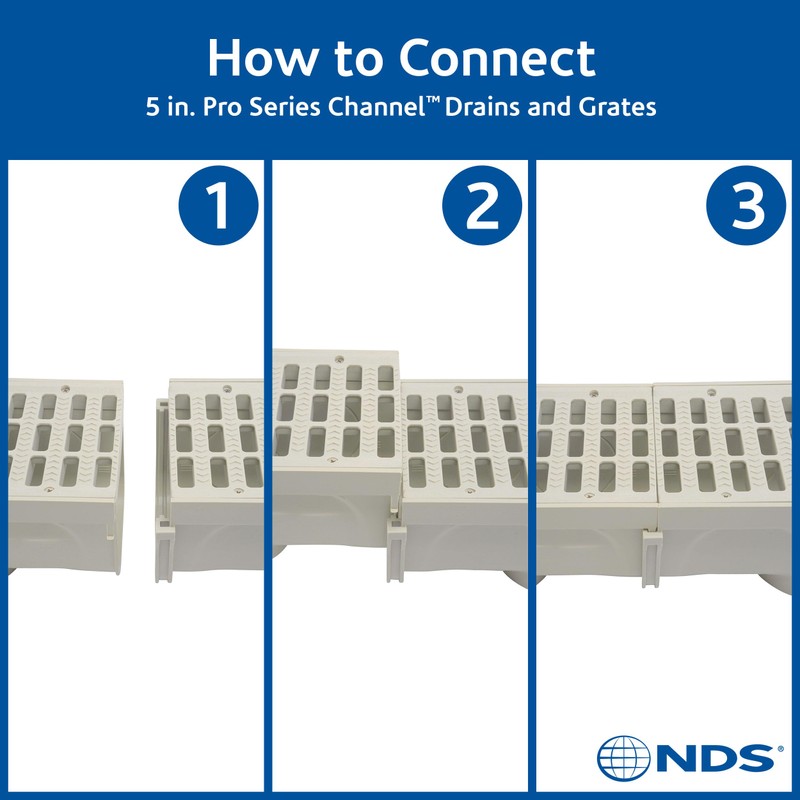

- MODULAR DESIGN: Sections connect together for longer runs, or can be cut with saw to length as short as 4 in. for smaller, interlocking sections; Channel-to-channel clips reduce motion during installationEASY CUSTOMIZATION: The NDS Pro-Series is a lightweight channel drain system with interlocking joints and a modular design, so systems are flexible and connections are made quickly and easily
- SPECIFICATIONS: 59 GPM per ft. flow rate. 19.0 sq. in. per linear ft. open surface area. Rated for NDS Class B Loads (up to 175 psi) when properly installed ADA compliant
| Product Dimensions: | 5.52 x 4.77 x 39.79 inches; 4.32 pounds |
|---|---|
| Isin: | IDINBPGMVUKT |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

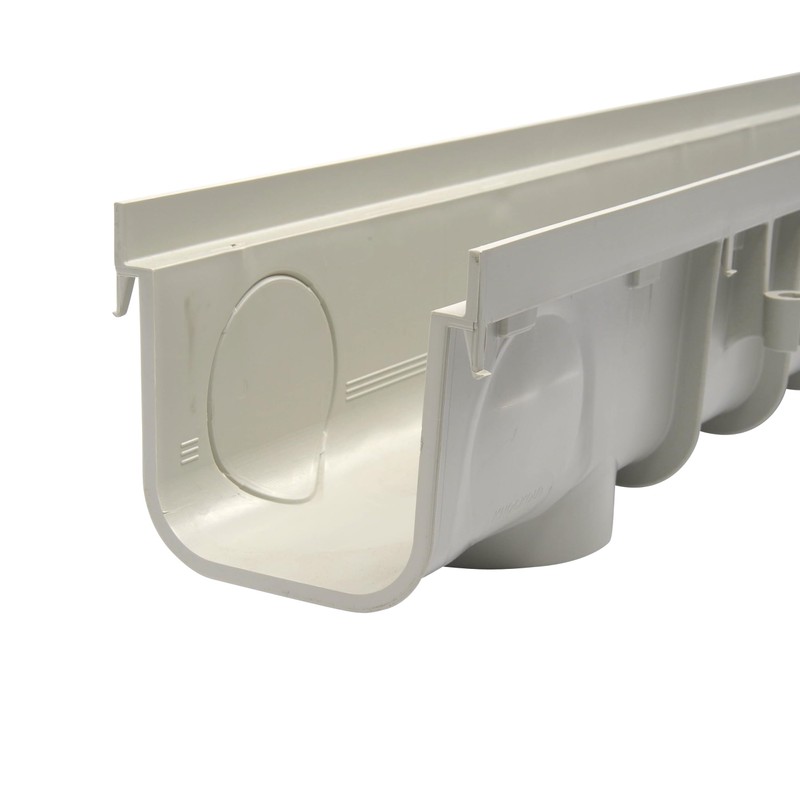

Drain excess water flooding hardscapes to prevent costly property damage with the 5 in. Pro Series Channel Drain, Deep Profile, the most durable modular drain system in its class. Captures moderate flows from driveways, patios, courtyards, walkways, & sports facilities, & conveys to drain pipe. Kit includes a 4-3/4 in. deep polypropylene channel, galvanized steel grates, end cap/outlet, & end cap. Channels connect together with interlocking joints. Shorten to 4 in. increments using saw guides. End cap/outlet, integrated bottom outlet, & side knockouts provide 8 outlet options per channel section. Channel drains, also called trench drains, are long, narrow drains used for surface drainage of hardscapes. Channel drains collect and convey water to drain pipes, which carry the water downstream to discharge with a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. NDS channel and trench drains are designed for durability, drainage, and performance, and are a proven alternative to traditional concrete drains. NDS offers free tools such as the Channel Drain Selector, Home Drainage Center, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.
