MVF 5" 125/150 ANSI Full Face Flange Gasket 1/8" Thick Style 1125 Non Asbestos

Brand: MVF
next product image
previous product image
MVF 5" 125/150 ANSI Full Face Flange Gasket 1/8" Thick
MVF 5" 125/150 ANSI Full Face Flange Gasket 1/8" Thick
MVF 5" 125/150 ANSI Full Face Flange Gasket 1/8" Thick

MVF 5" 125/150 ANSI Full Face Flange Gasket 1/8" Thick Style 1125 Non Asbestos

Brand: MVF

MAINLAND VALVE & FITTING, INC.
INDUSTRIAL WHOLESALE SUPPLY

MAINLAND VALVE & FITTING IS AN INDUSTRIAL WHOLESALE COMPANY THAT BUYS AND SALES INDUSTRIAL SURPLUS. MOST MATERIAL OFFERED BY US WILL BE OF AN INDUSTRIAL GRADE. WHAT THAT MEANS FOR YOU IS, YOU WILL RECEIVE A HIGH QUALITY LONG LASTING PRODUCT AT A SUBSTANTIAL SAVINGS.

Be sure to add me to your favorites list!

Lot Description:

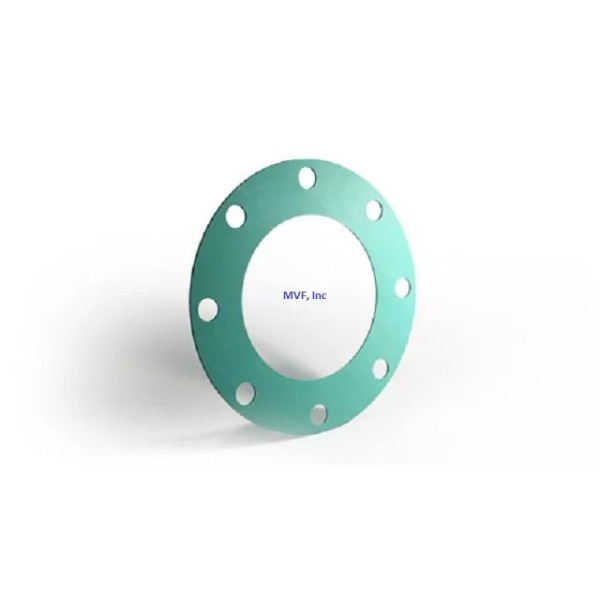

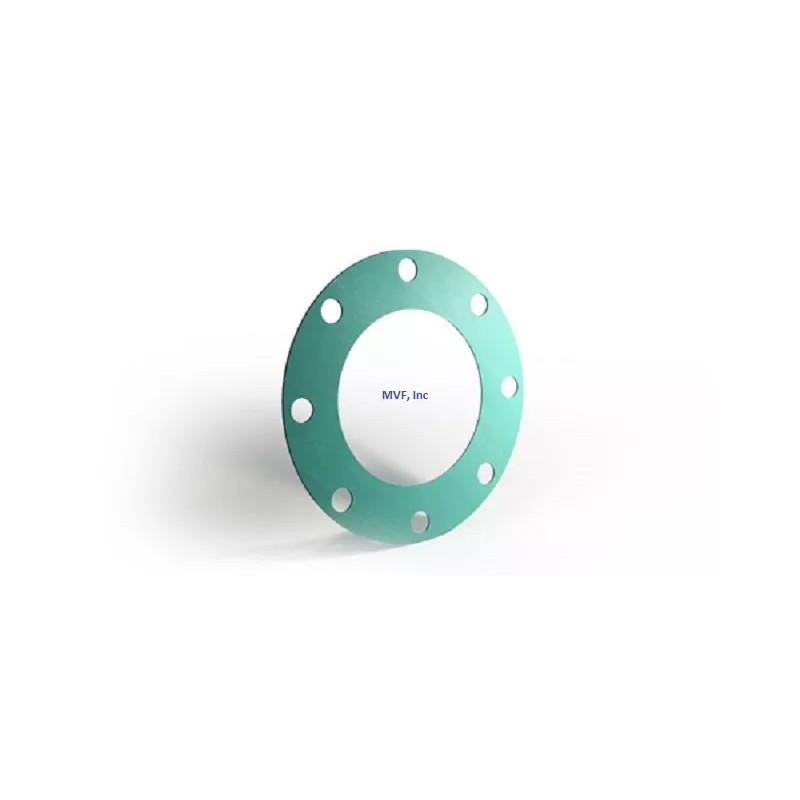

5" 125/150 Full Face Ring Gasket 1/8" thick I.D. 5-9/16"  O.D. 10"

General purpose Ring, green in color, composed of chemical and heat resistant synthetic fibers bonded together with a nitrile rubber binder.

Specifications:

Temperature: 750f (400c)

Pressure: 1400 PSI

Material: 1125

Dimensions for Full Face Gaskets for 150 lb ASME/ANSI Pipe Flanges


Nominal
Pipe Size		GasketNumber of Bolt HolesDiameter of Bolt HolesBolt Circle
I.D.O.D.
1/2"
13/16"
3 1/2"
4
5/8"
2 3/8"
3/4"
1 1/16"
3 7/8"
4
5/8"
2 3/4"
1"
1 5/16"
4 1/4"
4
5/8"
3 1/8"
1 1/4"
1 5/8"
4 5/8"
4
5/8"
3 1/2"
1 1/2"
1 7/8"
5"
4
5/8"
3 7/8"
2"
2 3/8"
6"
4
3/4"
4 3/4"
2 1/2"
2 7/8"
7"
4
3/4"
5 1/2"
3"
3 1/2"
7 1/2"
4
3/4"
6"
3 1/2"
4"
8 1/2"
8
3/4"
7"
4"
4 1/2"
9"
8
3/4"
7 1/2"
5"
5 9/16"
10"
8
7/8"
8 1/2"
6"
6 5/8"
11"
8
7/8"
9 1/2"
8"
8 5/8"
13 1/2"
8
7/8"
11 3/4"
10"
10 3/4"
16"
12
1"
14 1/4"
12"
12 3/4"
19"
12
1"
17"

Features and Benefits:

  • Applications Recommended for gasket and other static applications.

  • Excellent anti-shock properties and resistance to wet steam.


Application:
  • Suitable for ammonia, acetic acid, gases, water, fuels, benzene, mild acids, Freon 12 & 22, ethylene glycol, hydrocarbons, oils and greases, sea water, alcohols, vinyl acetate, xylene, heat transfer oils, and many other applications.Resistance to wet steam.
  • Temperature: 750f Max  (400c)
  • Pressure: 1400 PSI  (96.5Bar)
SHIPPING WEIGHT: 4 oz.
(These products are represented as FACTORY NEW)

 IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US.

Check out my other items!

Be sure to add me to your favorites list!

Bid High & Bid Often

THANK YOU, COME AGAIN

Please note: In some cases we will use the same picture for multiple listings of the exact same item. Please keep in mind that you will receive the same product of the same or better quality as pictured. Our office hours are M-F, 8-5cst. We will respond to any questions you have on the following business day.

INVESTMENT RECOVERY
*WE BUY INDUSTRIAL SURPLUS*

Terms & Conditions: Mainland Valve & Fitting, Inc. is a wholesaler of surplus industrial equipment. All products represented by Mainland Valve & Fitting, Inc. that is noted as surplus are surplus and are not represented by any manufacture. No manufacture warranty or any warranty is expressed or implied.  All products represented by Mainland Valve & Fitting, Inc. that is noted as factory new are factory new and are warranted only by the manufactures warranty. No other warranty is expressed or implied.  All Names, Logos, Description & other related information are trademarks of their respected companies.

All information listed herein is, to the best of our knowledge, believed to be correct. All material is surplus, and we have no way of testing anything we sell. Please review the pictures carefully. All material noted as new surplus are unused and in as new condition, all material noted as used are used and in a usable or repairable condition. If you have any questions, contact us.

Shipping cost will be actual cost only plus a small handling fee to help cover cost associated with shipping ($2.00 min. unless special request are made). We will combine multiple auctions into one shipment; you pay only one handling fee per shipment, even on combined shipments.  Questions, comments, or concerns please contact us.

Please check out our about me page which includes our full terms and conditions and full warranty information.


Brand: MVF
