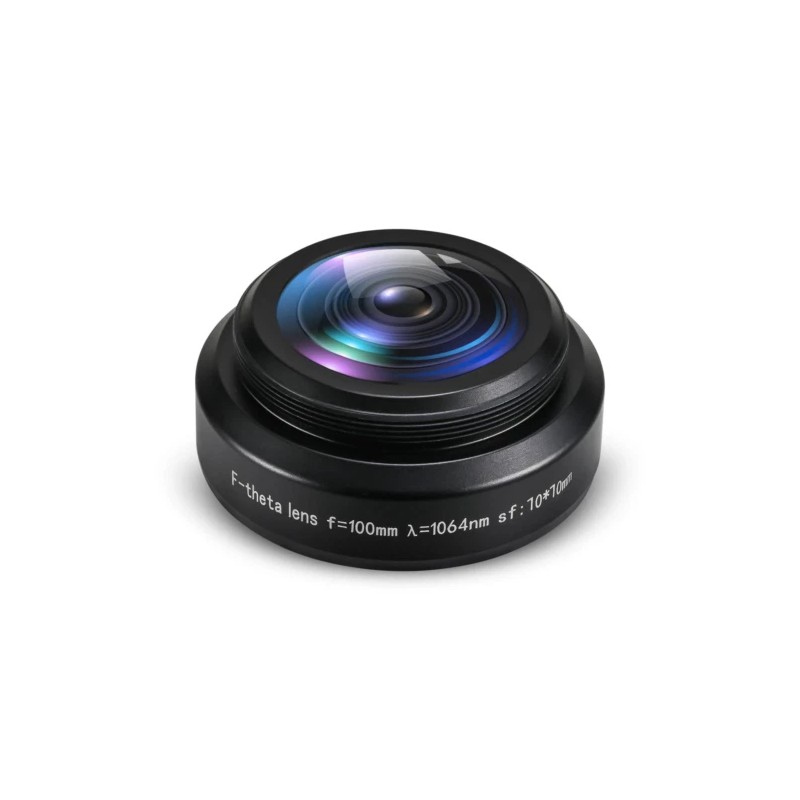

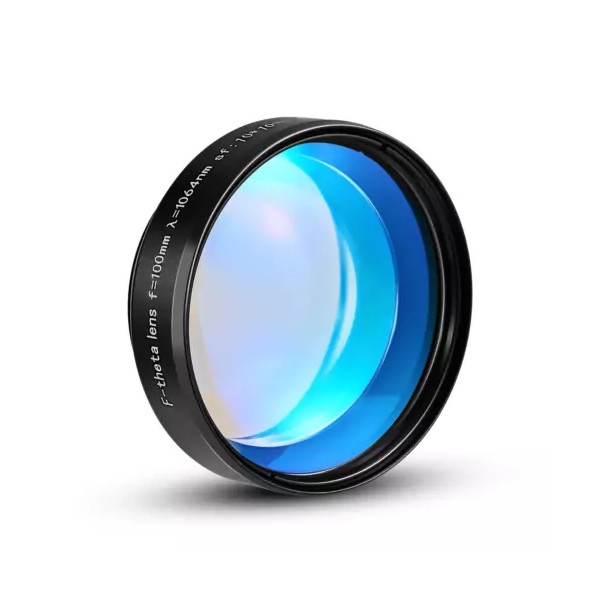

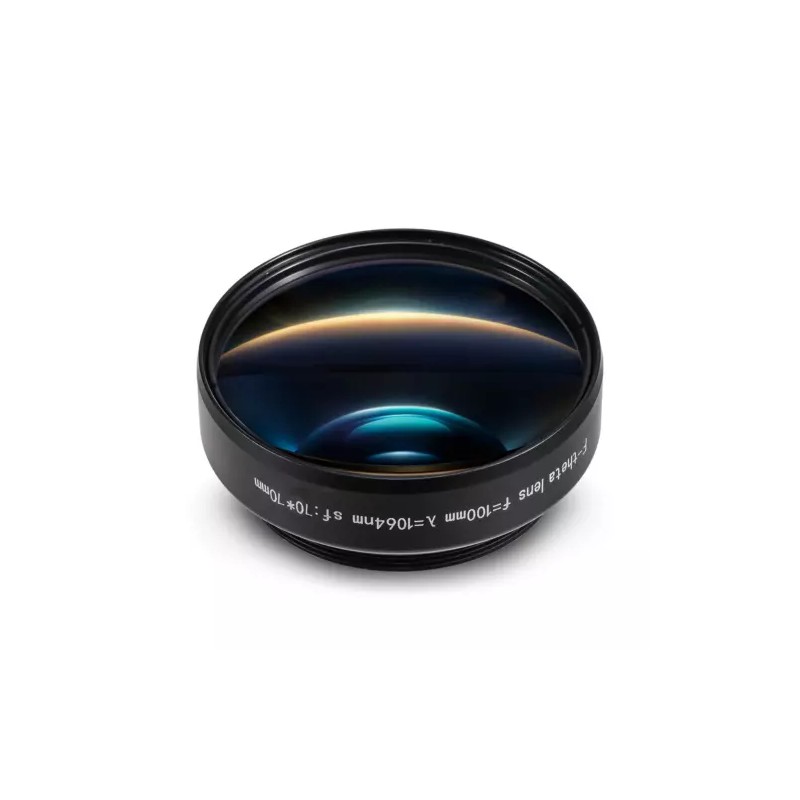

Monport 70mm 110mm Replacement Optical Scanning Lens for Fiber Laser Engraver - 70mm*70mm

Brand: Monport

Monport F-theta M52 200x200mm /175x175mm /150x150mm /110x110mm /70x70mm Replacement Optical Scanning Lens for Fiber Laser Engraver

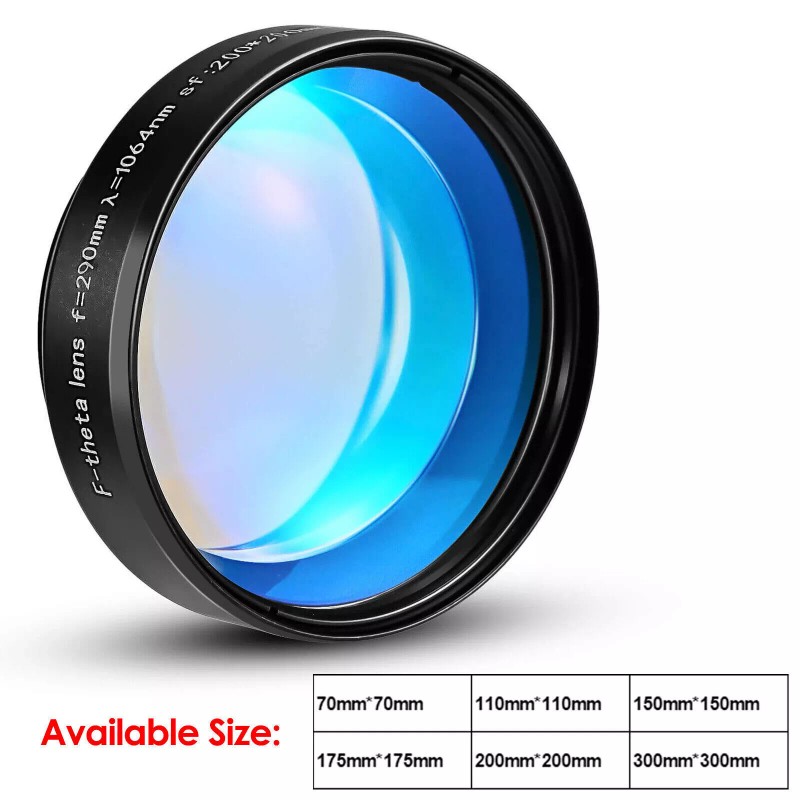

  • 【200x200mm/175x175 mm/150x150mm/110x110mm/70x70mm FIELD LENS】This powerful F-theta laser focus lens from Monport is ideal for laser marking, engraving, image transfer, material processing, and cutting systems; It can move markings within a 7.9x7.9/6.9x6.9/5.9x5.9/4.3x4.3/2.7x2.7 inch work area, and can even perfectly complete any design you need.

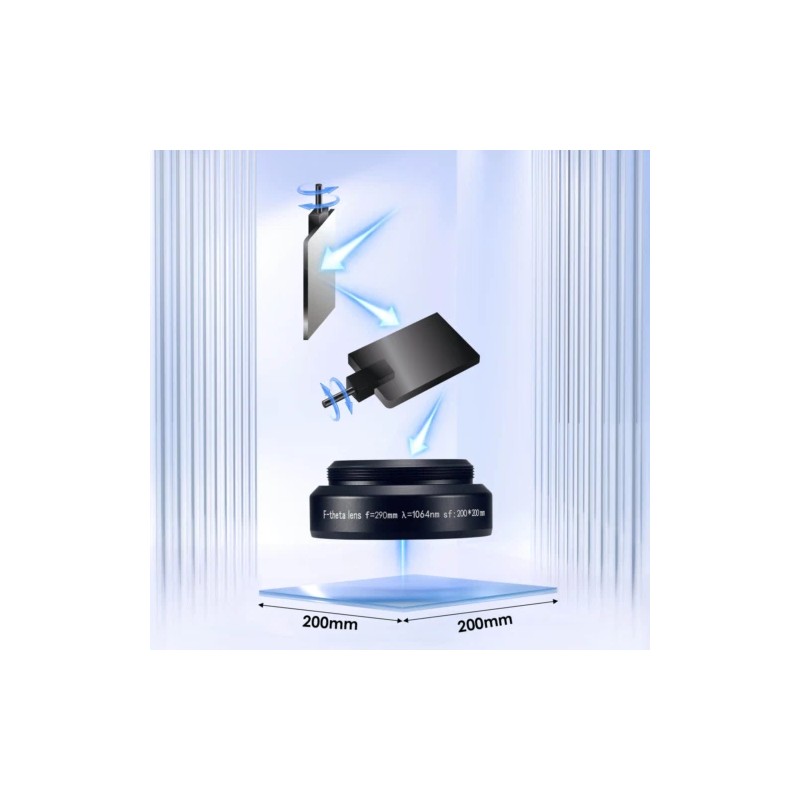

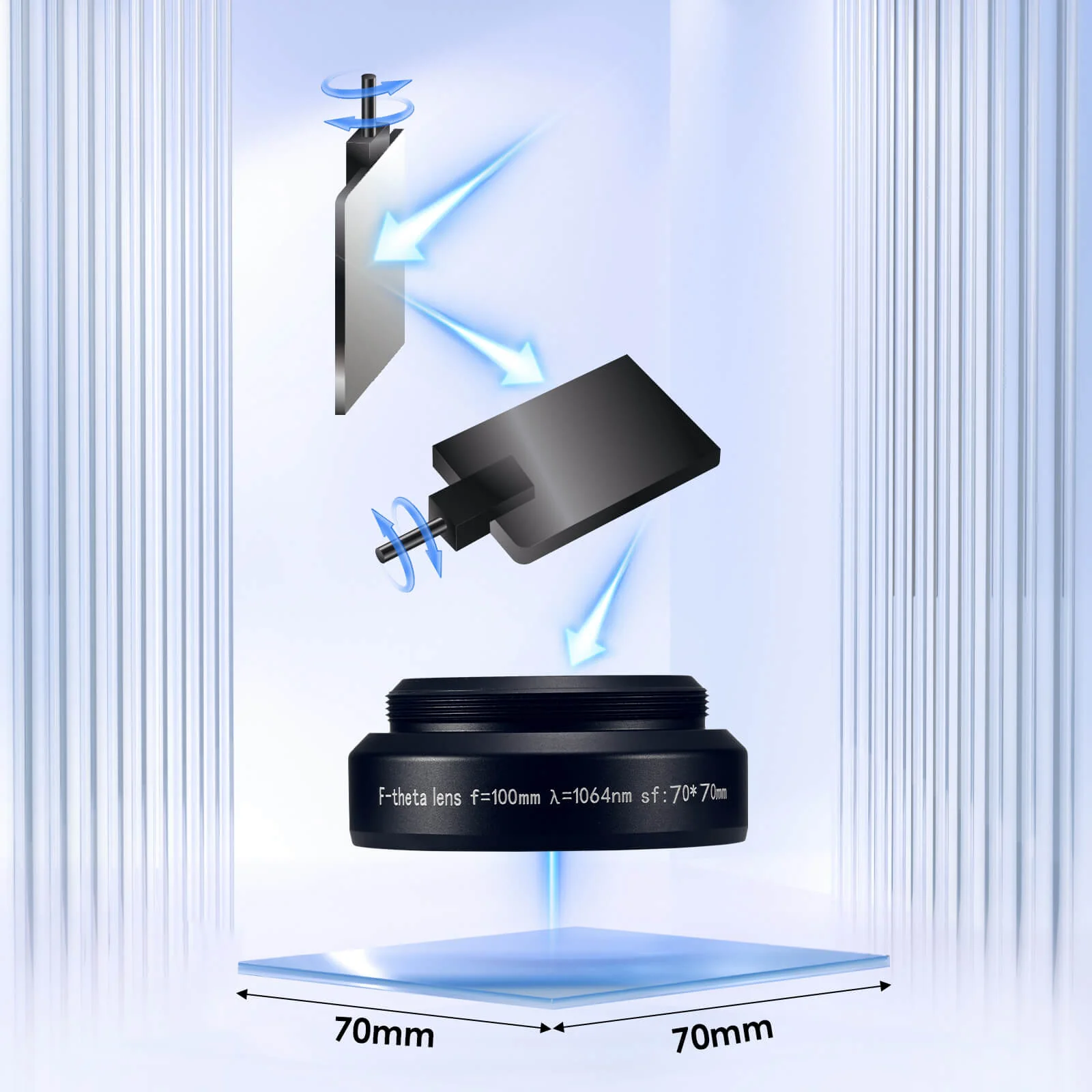

  • 【Precision Focusing】Our F-theta scanning lens meets fast positioning and precision focusing, so you can mark steel, aluminum, gold, etc. with a consistent and precise 31.7 μm spot size at any location within the lens range.
  • 【LASTING DURABILITY】This fiber laser lenses' double-sided multilayered coatings improve their natural optical properties and optimize the performance of the field lens. While also strengthening them against scratches and damage during daily use, prolonging the service life.

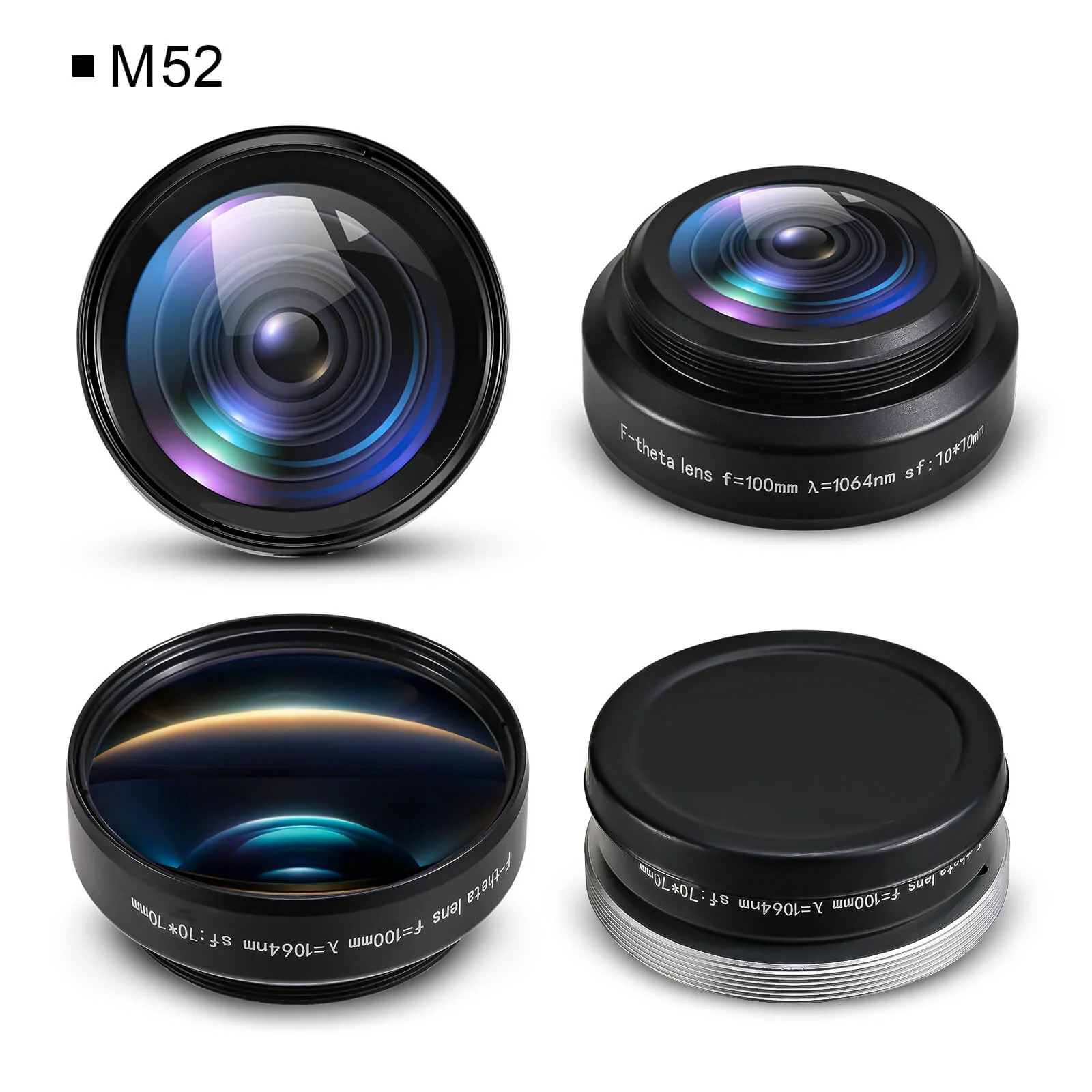

  • 【EASY INSTALLATION】The standard M52 threading and 52-68 adapter ring ensure easy installation and quick replacement. Please confirm whether the size of the field mirror matches before purchasing. If unable to confirm, please contact customer service for consultation.

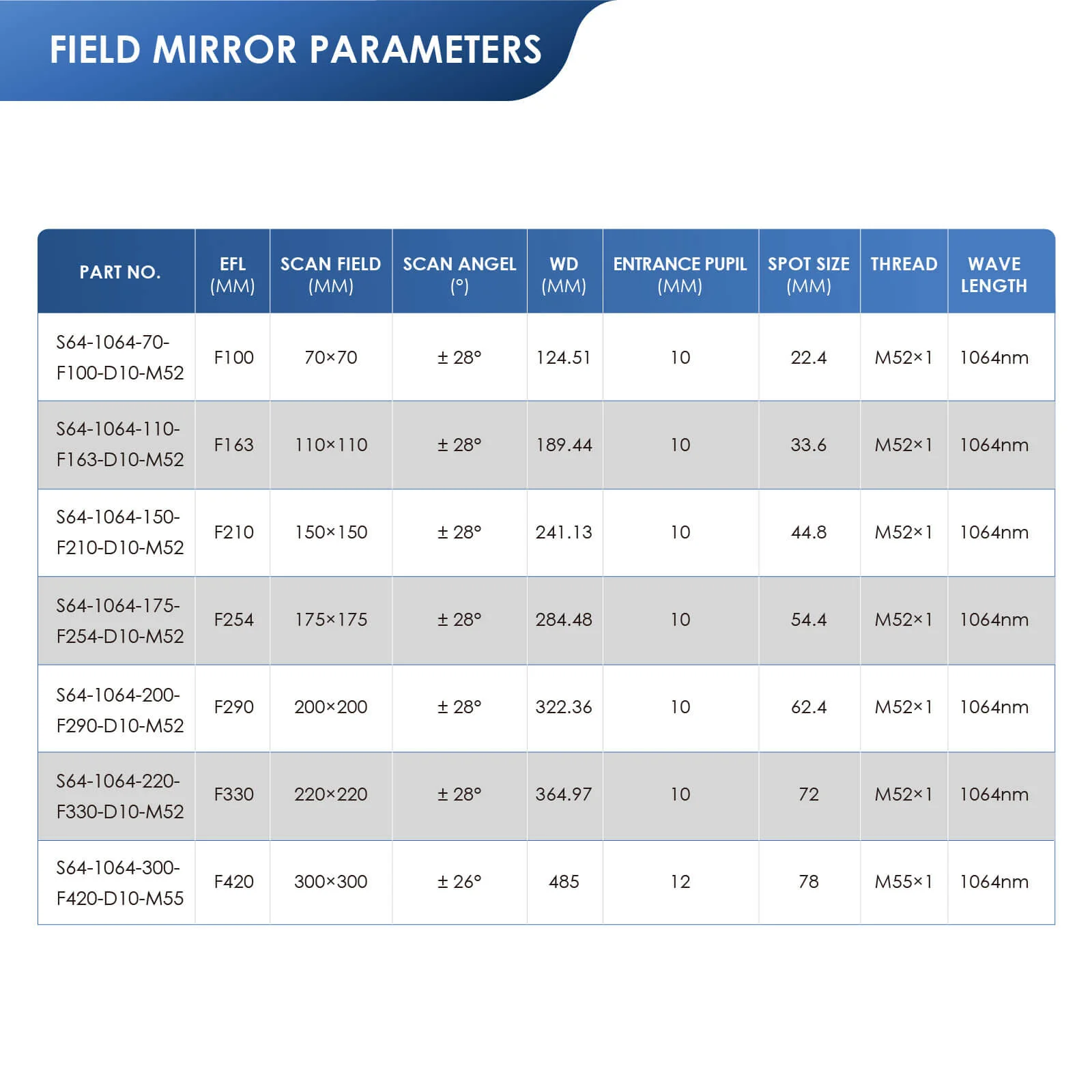

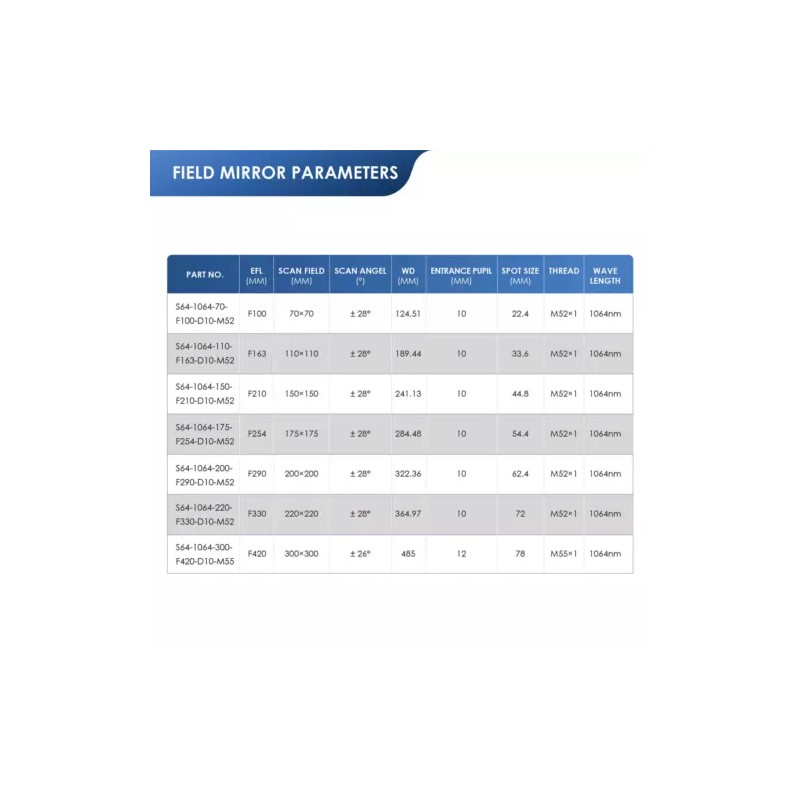

Fiber Lens Specification

Specifications (200x200 mm)

  • Material: K9 Glass, Plastic
  • Scanning Area:7.9x7.9 in. (200x200 mm)
  • Operating Wavelength: 1064 nm (1.064 μm)
  • Focal Length: 11.4 in. (290 mm)
  • Entrance Beam Diameter: 0.4 in. (10 mm)
  • Spot Size: 55.47 μm
  • Working Distance: 12.7 in. (322.36mm)
  • Threading: M52x1
  • Overall Dimensions: 2.5x1.2 in. (65x30 mm)
  • Net Weight: 4.4 oz. (125g)



Specifications (175x175 mm)

  • Material: K9 Glass, Plastic
  • Scanning Area:6.9x6.9 in. (175x175 mm)
  • Operating Wavelength: 1064 nm (1.064 μm)
  • Focal Length: 10 in. (254 mm)
  • Entrance Beam Diameter: 0.4 in. (10 mm)
  • Spot Size: 49.46 μm
  • Working Distance: 11.2 in. (284.48 mm)
  • Threading: M52x1
  • Overall Dimensions: 2.5x1.2 in. (65x30 mm)
  • Net Weight: 4.4 oz. (125g)



Specifications (150x150 mm)

  • Material: K9 Glass, Plastic
  • Scanning Area:5.9x5.9 in. (150x150 mm)
  • Operating Wavelength: 1064 nm (1.064 μm)
  • Focal Length: 8.3 in. (210 mm)
  • Entrance Beam Diameter: 0.4 in. (10 mm)
  • Spot Size: 40.89 μm
  • Working Distance: 9.5 in. (241.13 mm)
  • Threading: M52x1
  • Overall Dimensions: 2.5x1.2 in. (65x30 mm)
  • Net Weight: 4.4 oz. (125g)



Specifications (110x110 mm)

  • Material: K9 Glass, Plastic
  • Scanning Area:4.3x4.3 in. (110x110 mm)
  • Operating Wavelength: 1064 nm (1.064 μm)
  • Focal Length: 6.4 in. (163 mm)
  • Entrance Beam Diameter: 0.4 in. (10 mm)
  • Spot Size: 31.74 μm
  • Working Distance: 7.4 in. (189.44 mm)
  • Threading: M52x1
  • Overall Dimensions: 2.5x1.2 in. (65x30 mm)
  • Net Weight: 4.4 oz. (125g)

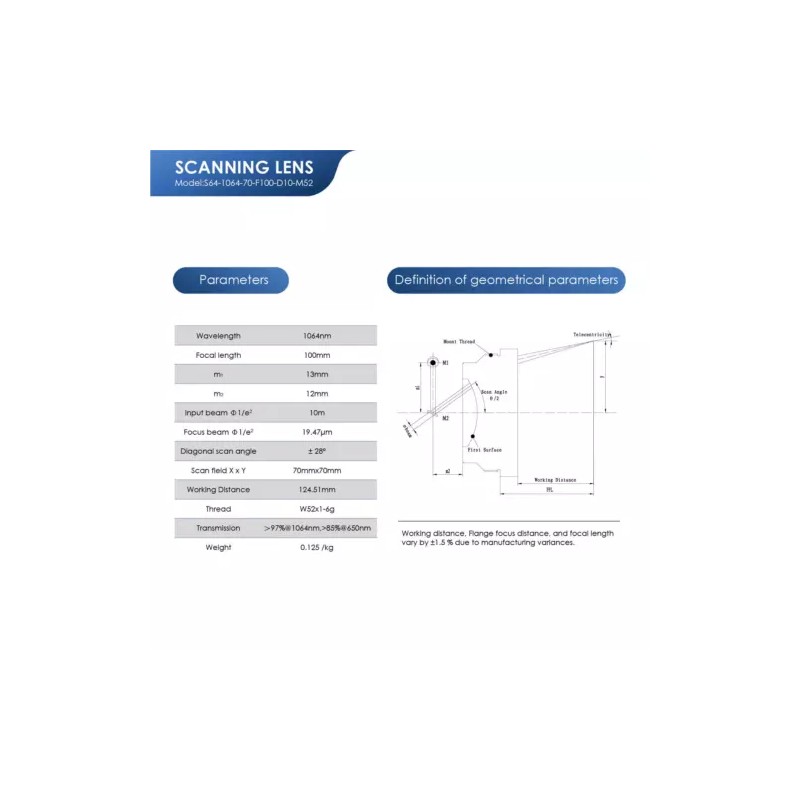

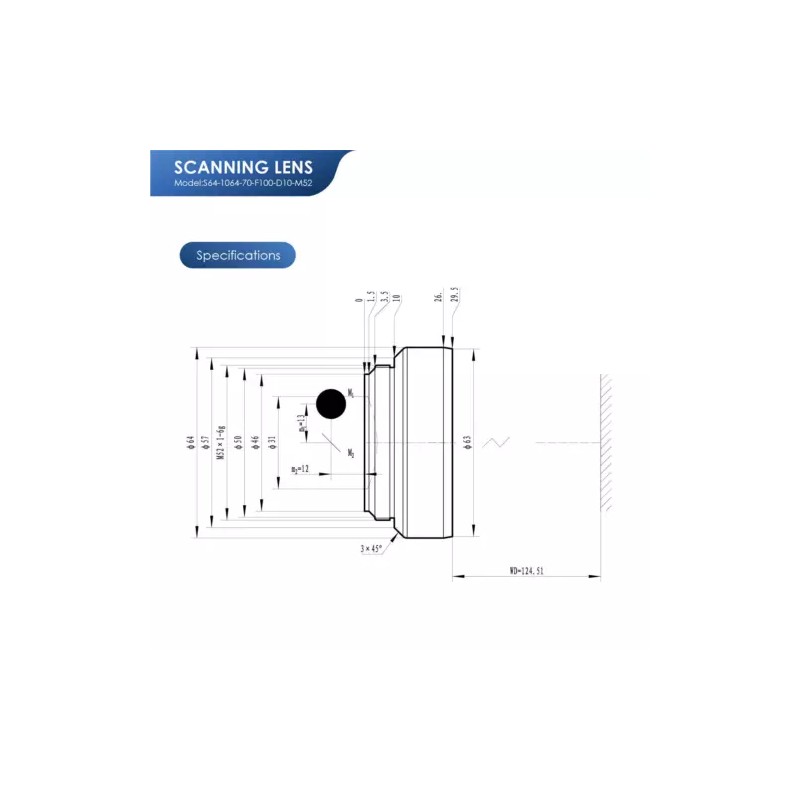

Specifications (70x70 mm)

  • Material: K9 Glass, Plastic
  • Scanning Area:2.7x2.7 in. (70x70 mm)
  • Operating Wavelength: 1064 nm (1.064 μm)
  • Focal Length: 3.9 in. (100 mm)
  • Entrance Beam Diameter: 0.4 in. (10 mm)
  • Spot Size: 19.47 μm
  • Working Distance: 4.9 in. (124.51 mm)
  • Threading: M52x1
  • Overall Dimensions: 2.5x1.2 in. (65x30 mm)
  • Net Weight: 4.4 oz. (125g)

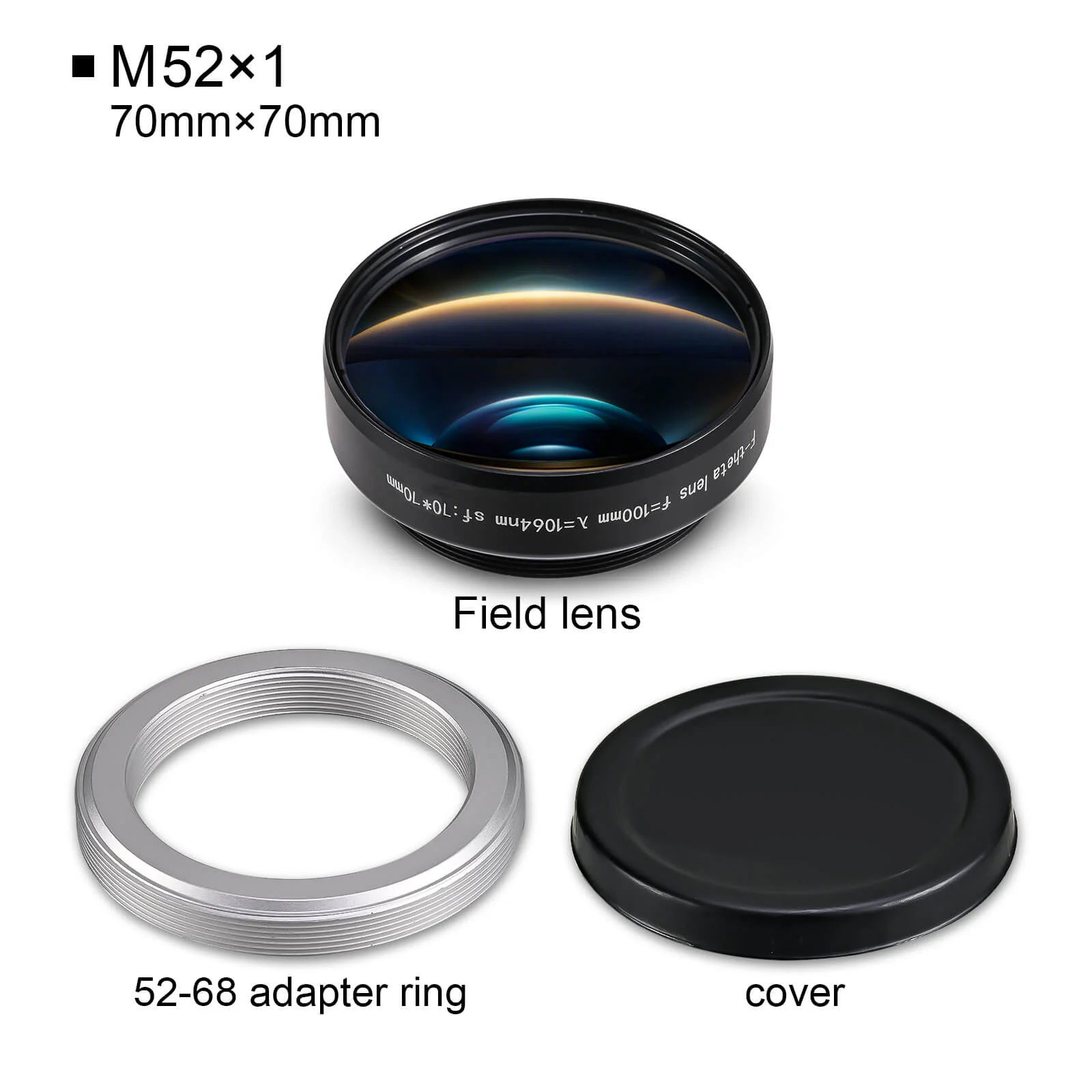

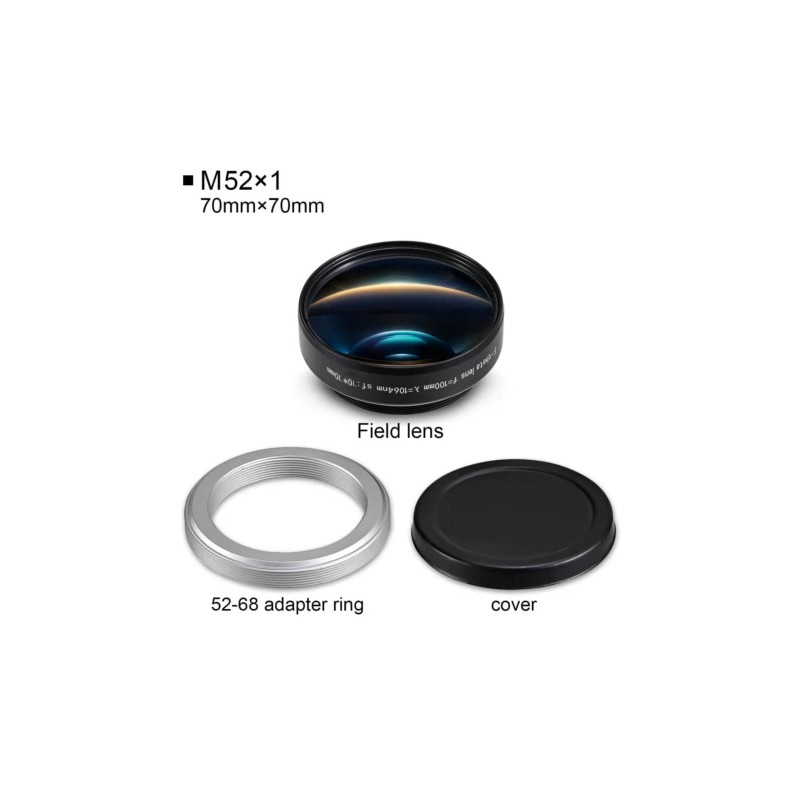

Package List

  • F Theta Field Lens*1
  • Field Mirror Cover*1
  • 52-68 Adapter Ring*1
