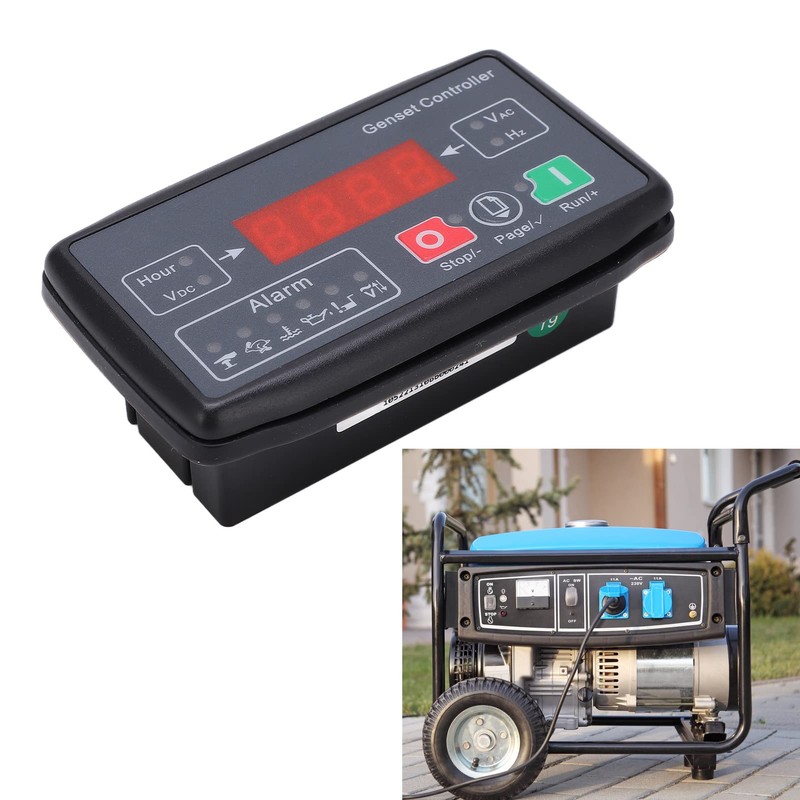

MGC100 Generator Set Controller Automatic Start Stop Control Module Single Generator Set Start Protect for Small Petrol Generator Sets
MGC100 Generator Set Controller Automatic Start Stop Control Module Single Generator Set Start Protect for Small Petrol Generator Sets
MGC100 Generator Set Controller Automatic Start Stop Control Module Single Generator Set Start Protect for Small Petrol Generator Sets
- Start and protection of generator set: used to start and protect a single generator set, manual and remote control start and stop of the generator set, data measurement, alarm indicator, shutdown protection, etc.
- LED digital tube display: light touch button operation for precise measurement of different parameters, all configuration parameters can be adjusted via the front panel of the controller
- Reliable operation. Easy installation: the petrol generator controller offers the advantages of easy operation, reliable operation, compact structure and convenient installation
- For and petrol generator: the car start-stop control module can be widely used for data display and error protection of various small and petrol generator sets
- Embedded installation method: modular structure design, flame retardant ABS plastic shell, embedded installation method, small size and easy installation
Brand: | Walfront |
---|---|
Color: | Black |
Manufacturer: | Walfront |
Part Number: | P2NV4YZ |
Material Type: | ABS |
Isin: | IBXMB2DTPHP6 |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Item Type: Generator Set Control
Material: ABS
Working voltage: DC9.0V to 18.0V continuous power supply - suitable for DC12V system
Power consumption of the entire machine: normal operation < 1 W, standby state < 0.4 W.
Generator voltage input:
Three-phase four-wire AC30V-AC360V (ph-N).
Three-phase three-conductor AC50V-AC620V (ph-ph).
Two-phase three-conductor AC30V-AC360V (ph-N).
Single-phase two-wire AC30V-AC360V (ph-N).
Generator frequency: 50Hz/60Hz.
Package list:
1 x generator set controller.
2 x brackets.
1 x cable frame.
1 x user manual (English language
Use:
Remote start sequence:
1. If the input for the remote power on signal is valid, enter the switch-on delay.
2. After the switch-on delay has elapsed, the preheating relay output (if configured) enters the preheating delay.
3. After the preheating delay has elapsed, the fuel relay is output for 1s (if configured as fuel output), then the start relay output and the preheating relay are disconnected; if the unit does not start successfully within the start time, the fuel relay and the start relay stop the output output, after the start interval, the switched on shutdown output is switched off The course is preheated after 1 second. The output is disconnected).
4. If the unit does not start successfully within the set number of starts, the start error alarm indicator lights up.
5. The safe runtime is entered every time the start is successful. During this time, the low oil pressure input and negative pressure alarm are invalid. After the delay of safe operation has expired, the start delay is activated (when the start delay is idle. The delay is configured).
