LS Engine Swap Conversion Low Profile Oil Pan, Black, 10 AN
LS Engine Swap Conversion Low Profile Oil Pan, Black, 10 AN
LS Engine Swap Conversion Low Profile Oil Pan, Black, 10 AN
Product Overview
- Fits most muscle cars, trucks, and more from the '60s, '70s and '80s that were originally equipped with rear sump engines
- 6" deep sump with small kick outs on each side which increase capacity to 7 quarts for an abundant oil supply
- AN 10 male straight oil outlet and return fittings for use with a remote mounted oil filter and simple addition of an oil cooler
- Anti-slosh baffle with one trap door in the front of the sump for increased oil control under hard acceleration and braking

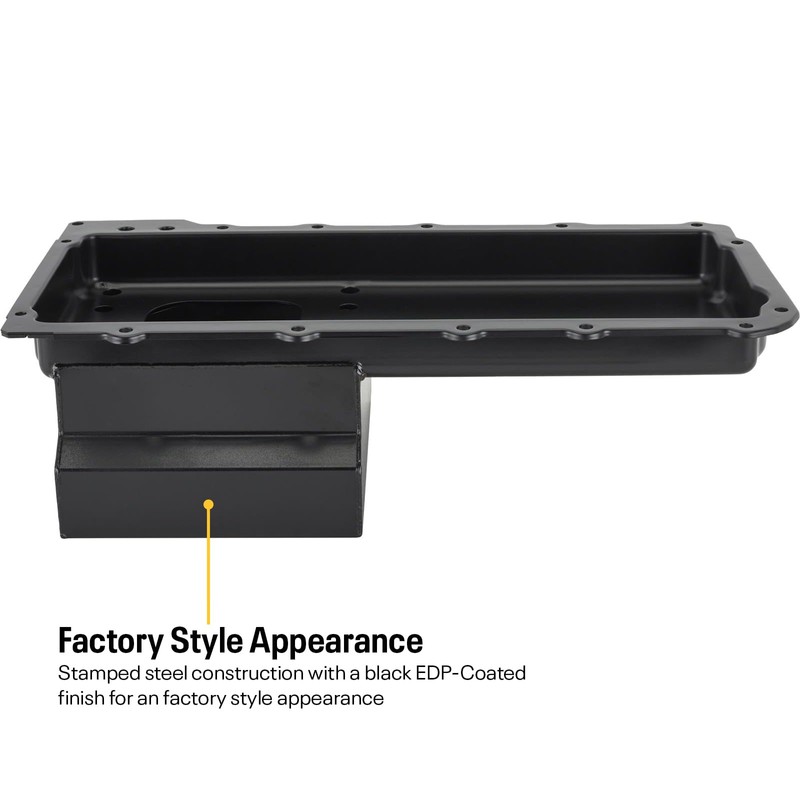

- Stamped steel construction with a black EDP-Coated finish for an factory style appearance
| Brand: | Speedway Motors |
|---|---|
| Color: | Black |
| Manufacturer: | Speedway Motors |
| Part Number: | NAX8S13 |
| Material Type: | Stamped Steel |
| Isin: | IUMMKVVNG5QE |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- Fits most muscle cars, trucks, and more from the '60s, '70s and '80s that were originally equipped with rear sump engines
- 6" deep sump with small kick outs on each side which increase capacity to 7 quarts for an abundant oil supply
- AN 10 male straight oil outlet and return fittings for use with a remote mounted oil filter and simple addition of an oil cooler
- Anti-slosh baffle with one trap door in the front of the sump for increased oil control under hard acceleration and braking
- Stamped steel construction with a black EDP-Coated finish for an factory style appearance
| Brand: | Speedway Motors |
|---|---|
| Color: | Black |
| Manufacturer: | Speedway Motors |
| Part Number: | NAX8S13 |
| Material Type: | Stamped Steel |
| Isin: | IUMMKVVNG5QE |
Fits a wide variety of 1960s-1980s RWD GM vehicles with rear sump oil pans. Designed for Gen III and Gen IV LS wet sump applications. Sump is 6 inches deep for increased ground clearance. Pan depth at front half of pan is 1 5/8-inch for increased K-member/steering clearance. 21-inch length overall with the sump 10-inches long. 10 1/4-inches wide at sump kickouts. Swap pan holds 7 quarts of oil for extended high rpm use. Truck windage trays can be used with mild modification. Fits stroker kits up to 4.125-inch stroke with OE connecting rod design. Perfect swap pan for 4.8L, 5.3L, or 6.0L Vortec LS truck engines being installed into cars to increase ground clearance. Anti-slosh baffle with trap door for increased oil control during acceleration and braking. Pickup tube 9101745 is required for use with this oil pan. AN 10 straight fittings require a remote mounted oil filter. We suggest oil pan bolt kit 91001008 and pan gasket 91017451 to complete installation. Make Your LS Swap Happen Without the Hassle There is no denying the appeal of the LS swap. GM’s LS family of engines is compact, lightweight, and makes great power. They are plentiful and cheap, and can be found in every RWD application GM has offered since the late ’90s, including performance cars like the Camaro, Corvette, GTO, and G8, and vans, SUVs, and trucks like the Trailblazer, SSR, and Silverado. Furthermore, the aftermarket has embraced the engine family, making an LS swap literally a weekend affair with such LS swap kit bits as engine mounts, headers, cooling system pieces, and more. Perhaps the most popular LS engine is the 5.3L truck offering, as they are the epitome of cheap and plentiful. Most are iron block, though there are aluminum block variants found in certain applications. When swapping most any LS engine you will more than likely need to update the oil pan for proper fitment into the chassis you are swapping into, but especially so with LS truck engines and their deeper oil pans
