LOOTICH Hole Drilling Jig Template for Ø35mm and 26mm Hinge Cup Mounting Plates Drawers and Eccentric Connecting Fittings of Ø25mm and 20mm Hole Diameter Pack of 2
LOOTICH Hole Drilling Jig Template for Ø35mm and 26mm Hinge Cup Mounting Plates Drawers and Eccentric Connecting Fittings of Ø25mm and 20mm Hole Diameter Pack of 2
LOOTICH Hole Drilling Jig Template for Ø35mm and 26mm Hinge Cup Mounting Plates Drawers and Eccentric Connecting Fittings of Ø25mm and 20mm Hole Diameter Pack of 2

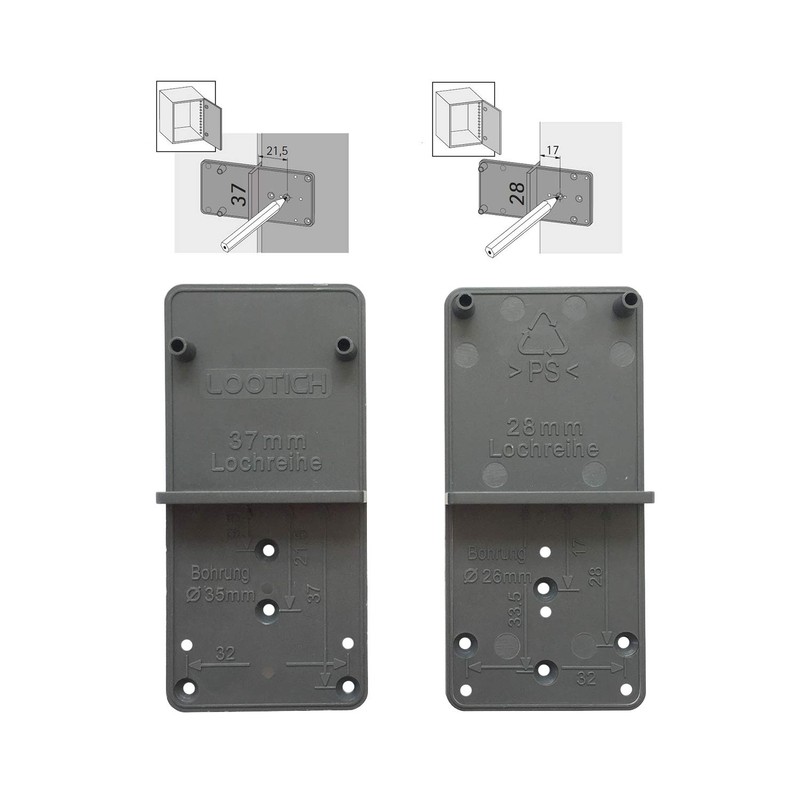

- LOOTICH Marking Jig for all standard concealed hinges; For people in the kitchen and bedroom fitting trade, this hinge drilling jig saves so much time when your building bespoke units or simply need to re-position hinges
- Marking for system drilling in 32-grid (with a distance of 28mm or 37mm to the front edge of the body) amongst others for dowels, shelf supports, mounting plates, etc
- Marking of cup drillings Ø 26 and 35mm with a root gap (distance to door edge) of 4mm for cup hinges
- Marking of drillings for connecting fittings with Ø20mm and eccentric connecting fittings with Ø25mm
- No more faffing about with tape measure to get your centres, just line the guide up against the edge of the door, mark through the relevant hole and you get perfectly aligned holes every time
| Brand: | LOOTICH |
|---|---|
| Size: | 100x100 x22 mm |
| Color: | Gray |
| Manufacturer: | LOOTICH |
| Part Number: | FCPLCWY |
| Material Type: | ABS Plastic |
| Isin: | ISB7ZCXBL91C |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

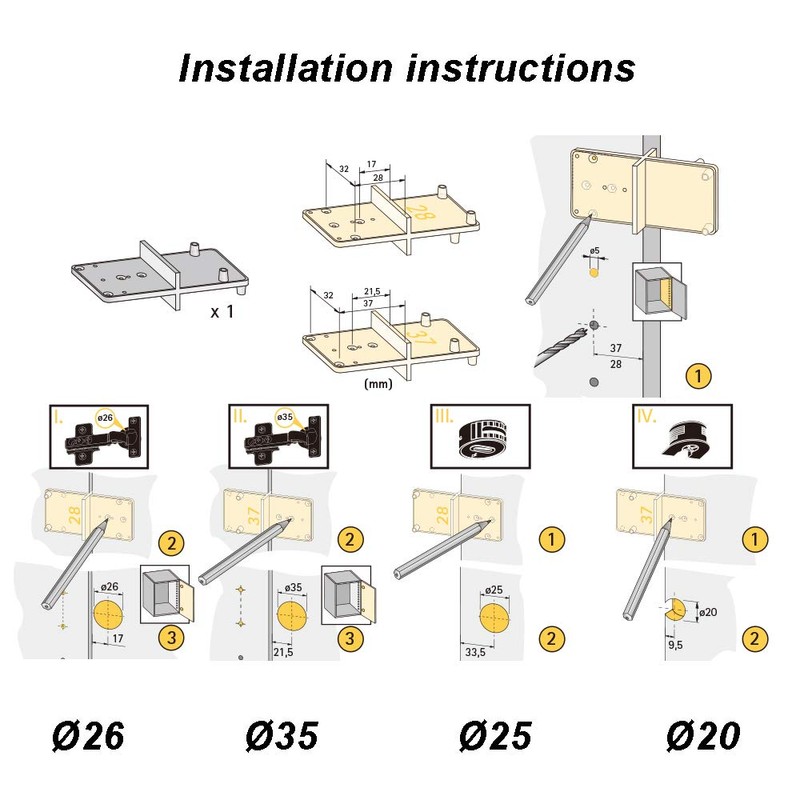

>Once the hole line has been drilled, the template can be turned and the two pins are inserted into the hole grid and the cabinet door is positioned.
>The bar on the template keeps the appropriate distance between cabinet side and door edge. Now the exact position for the cup drilling can be marked.
Product Details
>LOOTICH Drilling Template, Drilling Jig 351
>Material: ABS Plastic
>Colour: Dark Grey

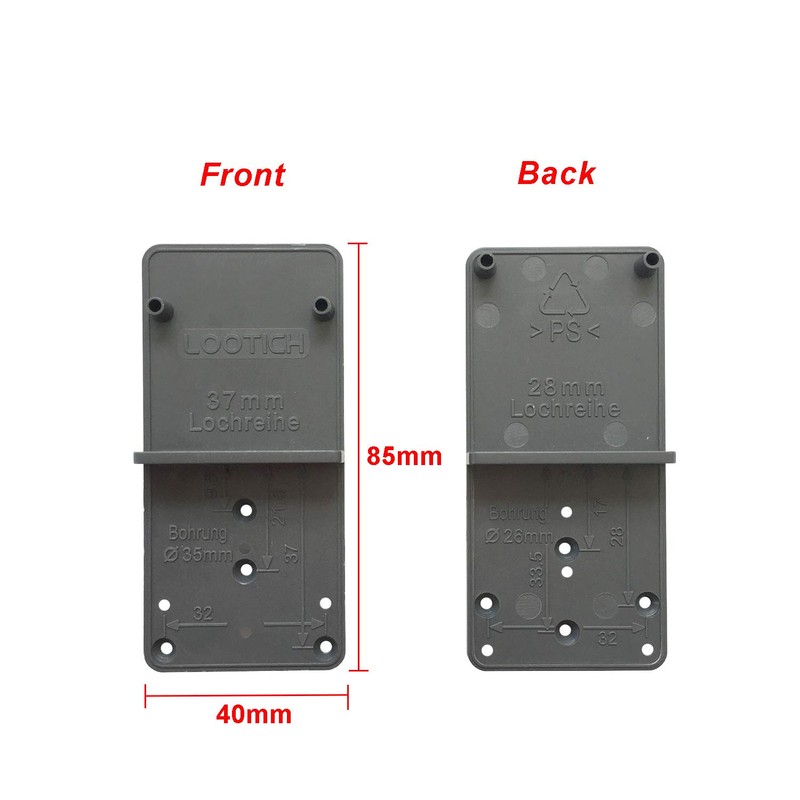

>Size: 85x40x22mm
>Easy marking template: The ideal aid for on-site assembly when one or more fittings need to be professionally mounted without the use of big machinery
>Practical, compact and multifunctional all in one
>The double sided hole marking stencil allows the punch marking of:

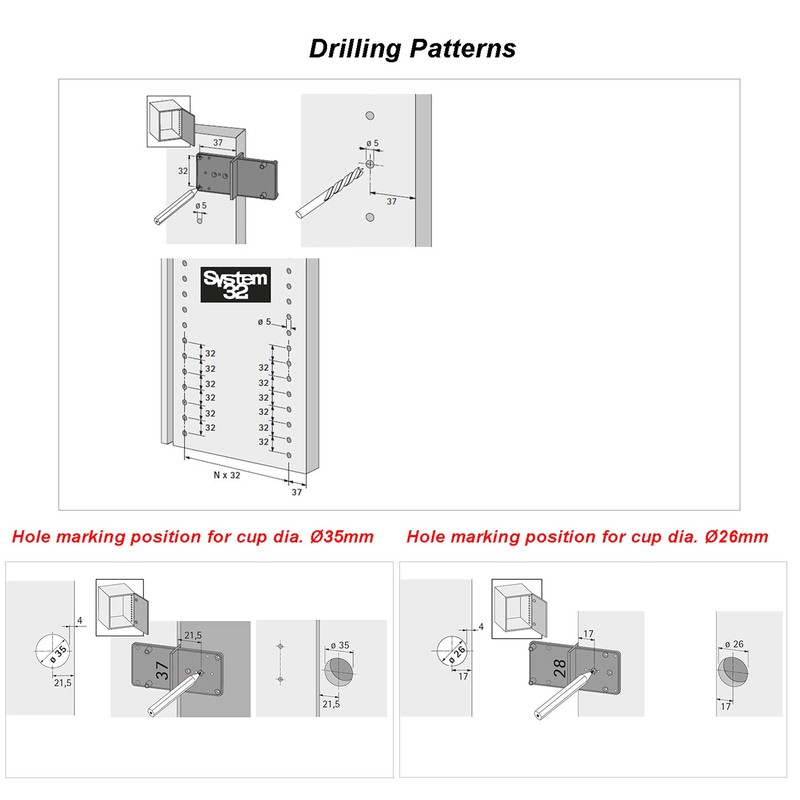

-System drill holes in a 32 grid for mounting plates, dowels, anchors, and shelf supports
-Ø35mm and Ø26mm cup hole diameter with a 4mm cup distance for hinges
-Ø25mm drill holes for Rastex 25 Eccentric connecting fittings
-Ø20mm drill holes for VB 35 and VB 135 Eccentric connecting fittings
>The stencil is essential for quick and accurate hinge locating for kitchen cabinet doors and shelving.With this part, each hole sits exactly where it needs to go
>Anyone who wants to attach hinged doors to a cupboard is well advised with this LOOTICH template
Package Contents
>Drilling jig: Pack of 2
>No paper introduction is included in the pack. If you need the PDF introduction, please contact the seller of RAINMAKER Ltd
Note
-We recommend using at least two marking-off templates for an exact positioning. This ensures that the distance between door and cabinet side is really parallel.
