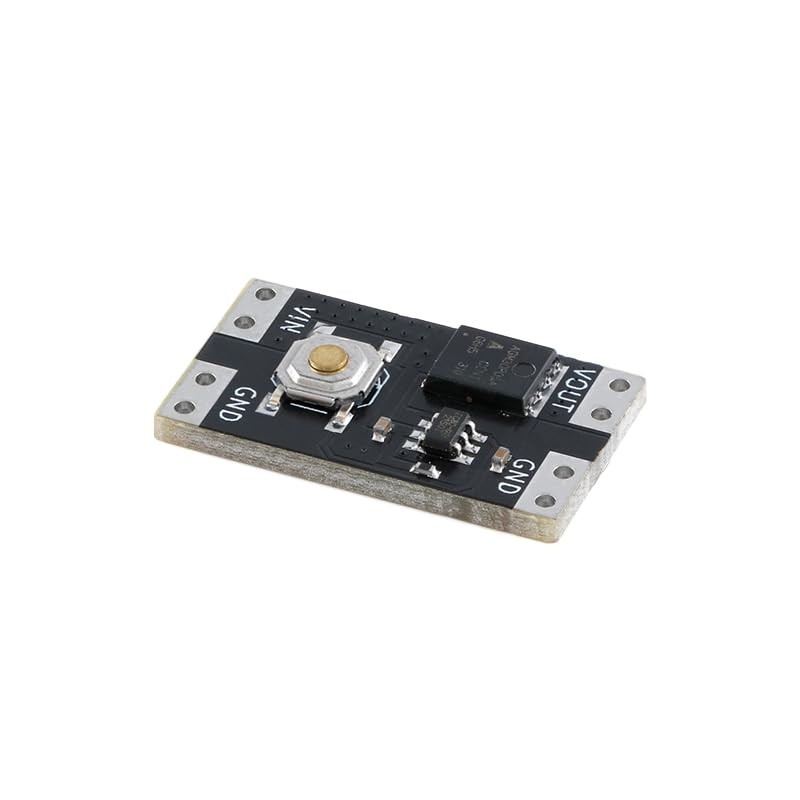

JESSINIE 5pcs XL-10AL Single-Key Switch Module, 10A Load, 300nA Low Power, One-Touch Bistable Switch
JESSINIE 5pcs XL-10AL Single-Key Switch Module, 10A Load, 300nA Low Power, One-Touch Bistable Switch
JESSINIE 5pcs XL-10AL Single-Key Switch Module, 10A Load, 300nA Low Power, One-Touch Bistable Switch
- 【Smart Energy Efficiency】 Control your devices with precision using our XL-10AL switch module. With an ultra-low shutdown quiescent current of just 300nA at 5V, it ensures minimal energy consumption, making it Suitable for battery-powered IoT devices. Whether you're managing smart home systems or industrial equipment, this low-power solution keeps your devices running smoothly without draining batteries.
- 【Switching Performance】 The XL-10AL boasts 10A current load capacity with only a 120-130mV voltage drop at 5V, reducing conductive losses by up to 75%. This means no more worrying about overheating or performance issues—just reliable switching every time. Suitable for applications requiring high durability and efficiency!
- 【Intuitive Bistable Logic】 Simplify your setup with our intelligent bistable logic design. Press once to turn on, press again to turn off—no complicated wiring needed. Compatible with all types of touch switches, including panel, chip, and waterproof options, this module allows for integration into existing setups. Transform traditional devices like lights or power tools into modern touch-controlled systems in just five s nds.
- 【Long-Term Reliability】 Designed for longevity, the XL-10AL offers exceptional reliability with a click life . Its robust construction prevents arc oxidation, ensuring smooth operation use. Whether you’re building consumer electronics or industrial machinery, the XL-10AL to deliver consistent performance without fail.
- 【Versatile & Safe Operation】 The XL-10AL operates within a safe voltage-current range, supporting up to 10A at 5V while maintaining optimal thermal management. For example, at 5V/10A, it maintains a temperature rise of only 58°C when properly cooled. Suitable for battery-operated projects where heat dissipation is crucial. Rest assured knowing your devices are protected by advanced engineering designed for safety and performance.
| Brand: | JESSINIE |
|---|---|
| Color: | XL-10AL 300nA |
| Manufacturer: | JESSINIE |
| Part Number: | FS59P7G |
| Isin: | IGTMKOMLGTWL |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Product Features:
1. Low power consumption control
XL-10AL (low power version): shutdown quiescent current 300nA (5V)
2.10A high current carrying
The voltage drop under 10A load is only 120-130mV (traditional mechanical switch ≥500mV), and the conduction loss is reduced by 75%.
3. Intelligent bistable logic
Intelligent bistable logic, self-locking switch function (press once to switch on/press again to switch off), supports external expansion of any touch switch.
Version Comparison
Parameter: XL-10AL (Low Power)
Operating Voltage:3.5-5.5V
Static Power Consumption:300nA(5V)
10A Voltage Drop: 130mV(5V)
Scenario:Battery Powered IoT Devices
Thermal Requirement:5V@10A need to be forced to dissipate the heat.
Core
✅ Low Power Consumption
The XL-10AL's 300nA shutdown current is 1/100th of the industry's, enabling battery-powered sensors to have a standby life from 3 months → 10 years +.
✅ Switching Performance
120mV ultra-low voltage drop + 10A sustained load, direct replacement for mechanical switches, avoiding arc oxidation (10x longer life).
✅ Intelligent upgrade with zero modification
Compatible with all light touch switches (panel/chip/waterproof), 5 s nds to convert traditional devices to touch switches (such as lights/power tools).
Performance real data
plaintext
[ Test condition: 25℃ | Natural heat sink ]
► XL-10AL@5V/10A:
- Voltage Drop：130mV｜Power Consumption：1.3W｜Temperature Rise：58℃（Heatsink Required)
- Click life: 10 times (resistive load)
► XL-10AH@24V/10A:
- Voltage drop：120mV｜Power consumption：1.2W｜Temperature rise：49℃（Heat sink required）.
🔴 CRITICAL NOTES.
Voltage-current safety zone:
XL-10AL: ≤10A at 5V ≤5A at 4V ≤10A at 4V ≤10A at 4V
XL-10AH: ≤10A at 12V ≤10A at 7V ≤5A at 7V ＜10A at 7V
