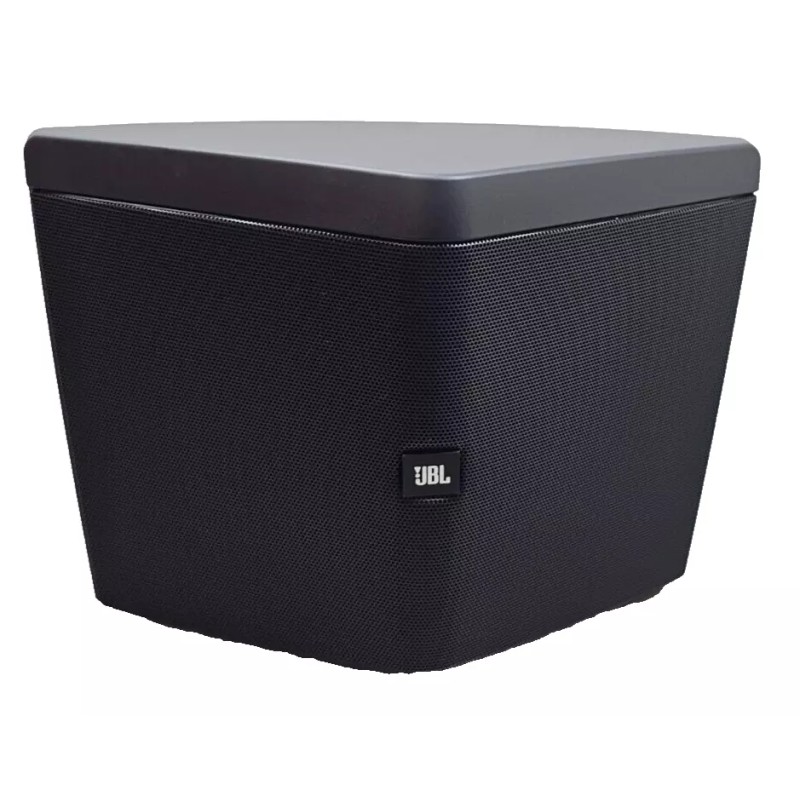

JBL ControlHST Wide Coverage Wall Mountable Speaker Passive 8Ohm 100w 180*Range
JBL ControlHST Wide Coverage Wall Mountable Speaker Passive 8Ohm 100w 180*Range
JBL ControlHST Wide Coverage Wall Mountable Speaker Passive 8Ohm 100w 180*Range
The ABS enclosure features a wall-facing 5.25" woofer and dual horizontally splayed 0.75" fluid-cooled tweeters, enabling the Control HST to deliver a 160 x 150° pattern control while producing a 50 Hz to 20 kHz frequency range (-10 dB) devoid of the primary reflection that normally plagues wall-mounted speakers, making it ideal for reducing the number of speakers in a setup without sacrificing coverage area or fidelity.
An integrated 60W multi-tap transformer allows the Control HST to be used in 70/100V, or 8-ohm system configurations at selectable wattage settings. Boasting IP54 and Mil-Std-810 ratings for resistance to water, humidity, and more, the Control HST is a capable speaker for a range of locations. It includes a color-matched U-bracket for simplified wallmount installation.
Dual horizontally splayed 0.75" fluid-cooled tweeters for high output, low distortion, and humidity resistance
Wall-facing 5.25" woofer with a CMMD ceramic metal matrix diaphragm
HST Hemispherical Soundfield Technology provides extremely wide horizontal coverage that approaches 180 degrees (covering a greater area with fewer speakers) and reduces the primary wall reflection to yield a flat frequency response and consistent sound character at all listening positions
100W (400W peak) power handling for two hours
50 Hz to 20 kHz frequency range (-10 dB)

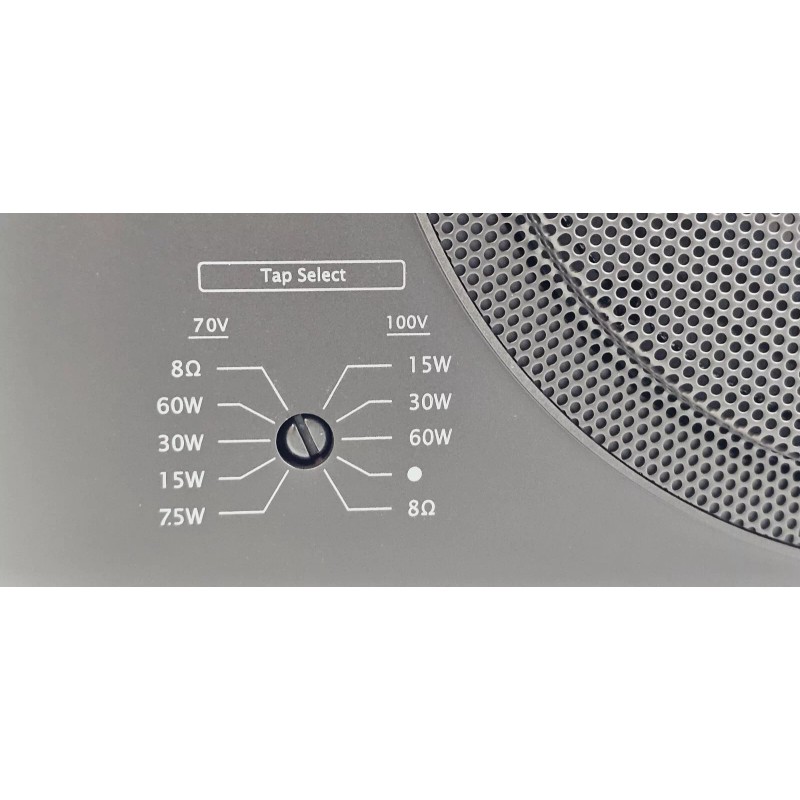

Integrated 60W multi-tap transformer allows 70/100V, or 8-ohm operation
Built-in passive high-slope crossover network

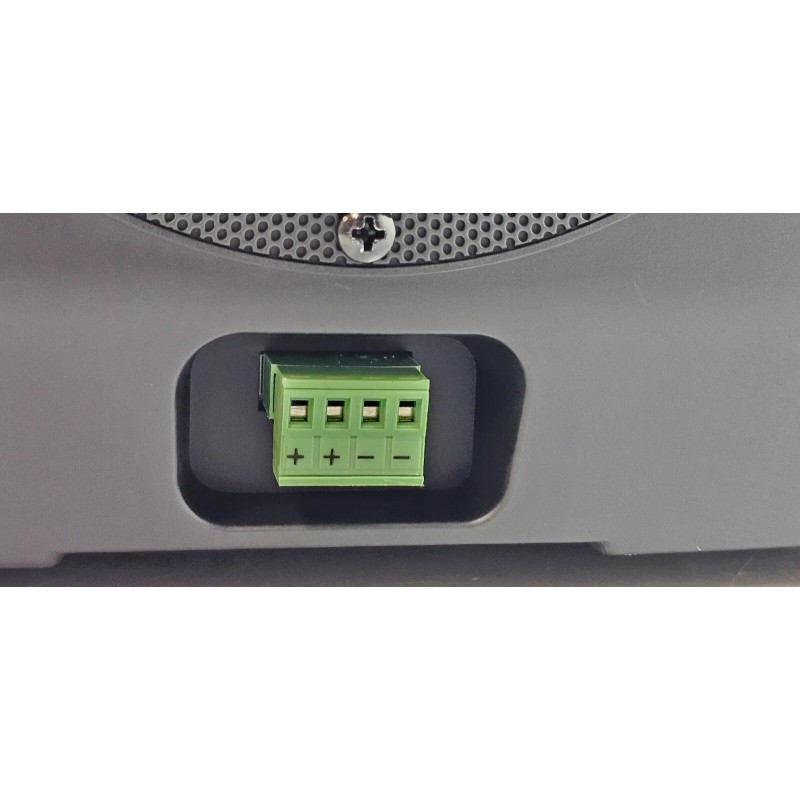

Removable locking Euroblock connector with screw-down input and loop-thru terminals
Sealed cabinet features fiberglass-reinforced construction with an aluminum grille
IP54 and Mil-Std-810 rated for resistance to humidity, salt spray, temperature, and UV damage
Includes a heavy-duty, weather-capable U-bracket for easy mounting (wall mounting required)
HF Driver
2 x 0.75" / 1.91 cm Aluminum Tweeter
LF Driver
1 x 5.25" / 13.34 cm Woofer
LF Voice Coil
1" / 2.54 cm
Magnet
HF:
Neodymium
Frequency Range
50 Hz to 20 kHz -10 dB
Frequency Response
68 Hz to 18 kHz ±3 dB
Maximum SPL
108 dB (Continuous)
114 dB (Peak)
Sensitivity
88 dB (Average)
Coverage Angle
160° H x 150° V
Directivity
5.4 (Directivity/Q Factor)
7.2 dB (Directivity Index)
Crossover
High-Pass:
1.6 kHz, 18 dB/Octave (Passive)
Low-Pass:
1.6 kHz, 12 dB/Octave (Passive)
Construction Material
ABS, Aluminum Grille, Fiberglass
Dimensions
14.25 x 10.1 x 7.2" / 36.2 x 25.65 x 18.29 cm
Weight
8 lb / 3.6 kg (Each Speaker, without Bracket)
9.5 lb / 4.3 kg (Each Speaker, with Bracket)
| Brand: | JBL |
|---|---|
| Isin: | IZS2O45HS52X |
