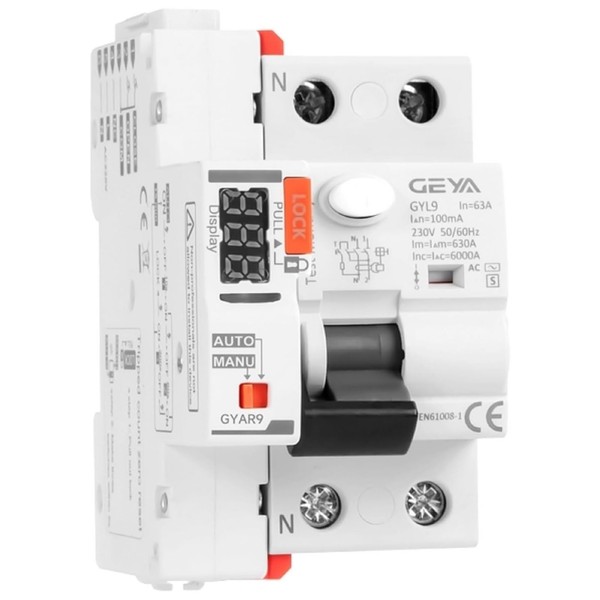

Jadeshay FI Circuit Breaker 40 A 30 mA, Automatic Resume-On Circuit Breaker RCCB Circuit Breaker with Digital Display Screen 2P AC230V (Type AC)
Jadeshay FI Circuit Breaker 40 A 30 mA, Automatic Resume-On Circuit Breaker RCCB Circuit Breaker with Digital Display Screen 2P AC230V (Type AC)
Jadeshay FI Circuit Breaker 40 A 30 mA, Automatic Resume-On Circuit Breaker RCCB Circuit Breaker with Digital Display Screen 2P AC230V (Type AC)

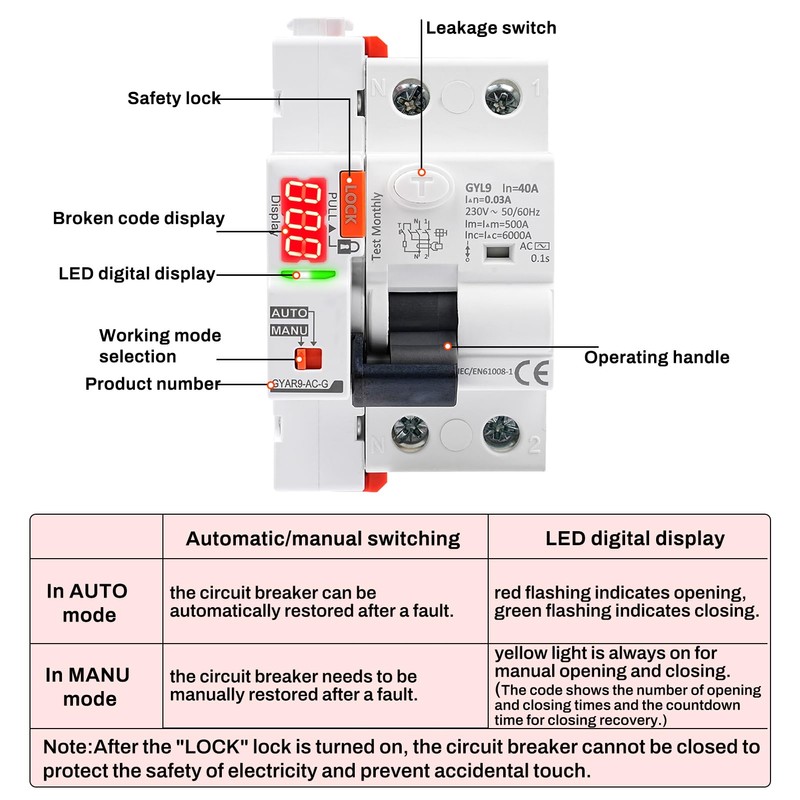

- 【Intelligent automatic re-switch】: The intelligent circuit breaker automatically closes the circuit breaker when the RCCB accidentally triggers. The fi automatic reconnection 40a does not need to be closed manually, reducing the cost of manual maintenance, correcting the error in time and improving efficiency.
- 【Automatic/Manual Switching】: When the auto reset switch is in auto mode, it can automatically close again after an error. In MANU mode, it must be manually restored after the error. Once the lock of the Type A Fi circuit breaker is opened, closing is no longer possible. This ensures electrical safety and prevents accidental contact.
- 【Self-locking mode】: After a fault in the circuit, the gate automatically closes after 9 seconds the first time, the second time after 59 seconds, and the third time after 299 seconds. After the fourth error, the reset switch is in self-locking mode. It is necessary to check the safety of the circuit and then manually open the gate.
- 【LED Digital Display】: Auto mode: red flashing means open, green flashing means closing. MANU mode: yellow light always lights up for manual opening and closing. The code shows the number of interruptions and closes, as well as the countdown to the closing process recovery.
- Widely used: RCCB residual current circuit breakers can be widely used in AC distribution boxes connected to the photovoltaic network, as well as in unmanned mobile base stations, elevators, smart homes, smart factories, charging stations for vehicles with new energy, etc.
| Brand: | Jadeshay |
|---|---|
| Size: | (AC Type) |
| Color: | One colour |
| Manufacturer: | Jadeshay |
| Part Number: | 7RT8QQG |
| Isin: | IBLCV1EOCL6G |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Parameters:
Material: PC.
Operating voltage: 230 V AC.
Rated current: 40 A.
Operating frequency: 50/60 Hz.
Model: GYAR9-AC-G (Type A) / GYAR9-AC-G (Type AC)
Control signal: automatic restart + dry contact control.
Digital display: 3 digits of broken code display: the number of interruptions and closing operations, the countdown time for closing and recovery.
Effective control signal duration: >400 ms.
<;1 sec.
<0.5 seconds.
Control cable length: ≤ 1500 m.
Power consumption: ≤ 1.5 VA (static), ≤ 25 VA (dynamic).
Nominal insulation voltage: 400 V.
Rated surge resistance Uimp (between S2C-RM DC and MCB): 4 kV (4.9 kV at sea level)
Self-locking protection: within 10 s 3CO / within 20 s 4CO / within 30 s 6CO, the product is self-locking protected for 40 s after automatic recovery
Electrical life: 10000 times, 3 times/minute.
Indicator light: green normal state, red MCB overcurrent error.
AUTO/MANUAL SHIFTING: Automatic remote control switching available, MANU remote switch disabled
Mechanical life: 10000 cycles.
Protection class: IP20.
Ambient temperature: -25 to +70 °C.
Storage temperature: -40 to +70 °C.
Wiring capacity of current and control signal terminals: 28-12AWG 2.5mm²
Auxiliary signal terminal wiring capacity:28-14AWG 1.5mm²
DIN rail mounting: DIN rail EN 60715 (35 mm)
Material: PC.
Operating voltage: 230 V AC.
Rated current: 40 A.
Operating frequency: 50/60 Hz.
Model: GYAR9-AC-G (Type A) / GYAR9-AC-G (Type AC)
Control signal: automatic restart + dry contact control.
Digital display: 3 digits of broken code display: the number of interruptions and closing operations, the countdown time for closing and recovery.
Effective control signal duration: >400 ms.
<;1 sec.
<0.5 seconds.
Control cable length: ≤ 1500 m.
Power consumption: ≤ 1.5 VA (static), ≤ 25 VA (dynamic).
Nominal insulation voltage: 400 V.
Rated surge resistance Uimp (between S2C-RM DC and MCB): 4 kV (4.9 kV at sea level)
Self-locking protection: within 10 s 3CO / within 20 s 4CO / within 30 s 6CO, the product is self-locking protected for 40 s after automatic recovery
Electrical life: 10000 times, 3 times/minute.
Indicator light: green normal state, red MCB overcurrent error.
AUTO/MANUAL SHIFTING: Automatic remote control switching available, MANU remote switch disabled
Mechanical life: 10000 cycles.
Protection class: IP20.
Ambient temperature: -25 to +70 °C.
Storage temperature: -40 to +70 °C.
Wiring capacity of current and control signal terminals: 28-12AWG 2.5mm²
Auxiliary signal terminal wiring capacity:28-14AWG 1.5mm²
DIN rail mounting: DIN rail EN 60715 (35 mm)
