INTEL MAXV USB-CPLD
DEVELOPMENT
SYSTEM
The UnoProLogic is an easy to use
CPLD development system. It includes
a four Channel ADC and built in
JTAG programmer
|
The UnoProLogic makes programmable logic easy with an all inclusive development platform. It includes an Intel MAX V5M570 CPLD, JTAG programmer, and a four channel ADC with 300KS/second sample rate. You can create your HDL code, program it into the CPLD and interact with the hardware via a Windows PC. |
|
The UnoProLogic DVD provides detailed step by step instructions to quickly guide the user to create a project. The Quartus Prime software must be downloaded from Intels website. Once the Quartus software is on your desktop, we will show you how to create a project, write you first LED blinky code, compile and program the CPLD. |
|
Programming the CPLD
|
The CPLD on the UnoProLogic can be programmed with the HDL code created by the user. Programming is quick and easy. All that is required is a standard USB-C cable and the Quartus Software installed on the PC. There are no extra parts to buy - just plug in the USB cable and connect the UnoProLogic to the PC |
Programmable Logic Code Development
|

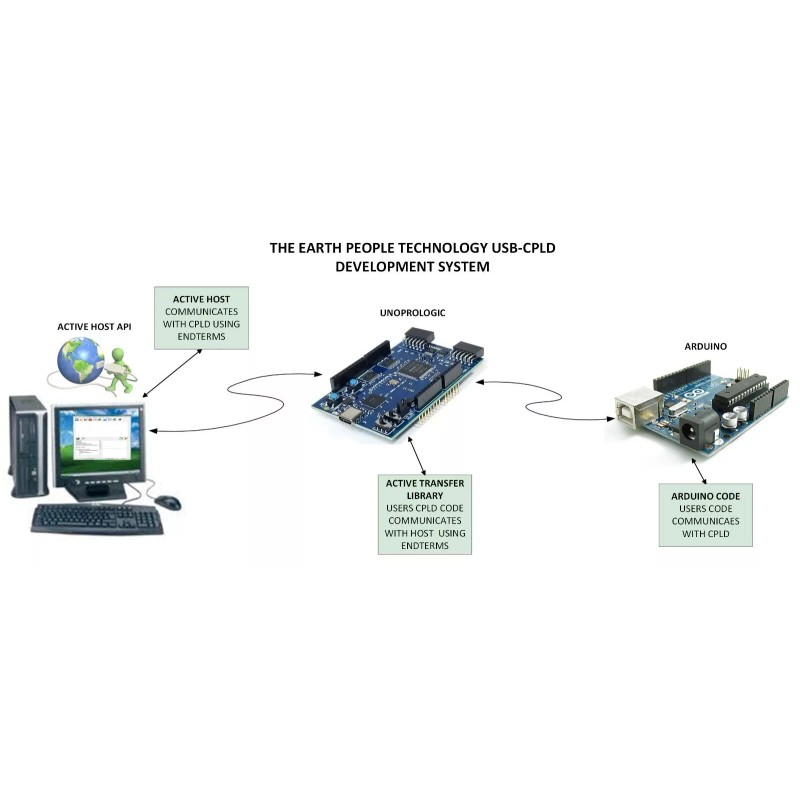

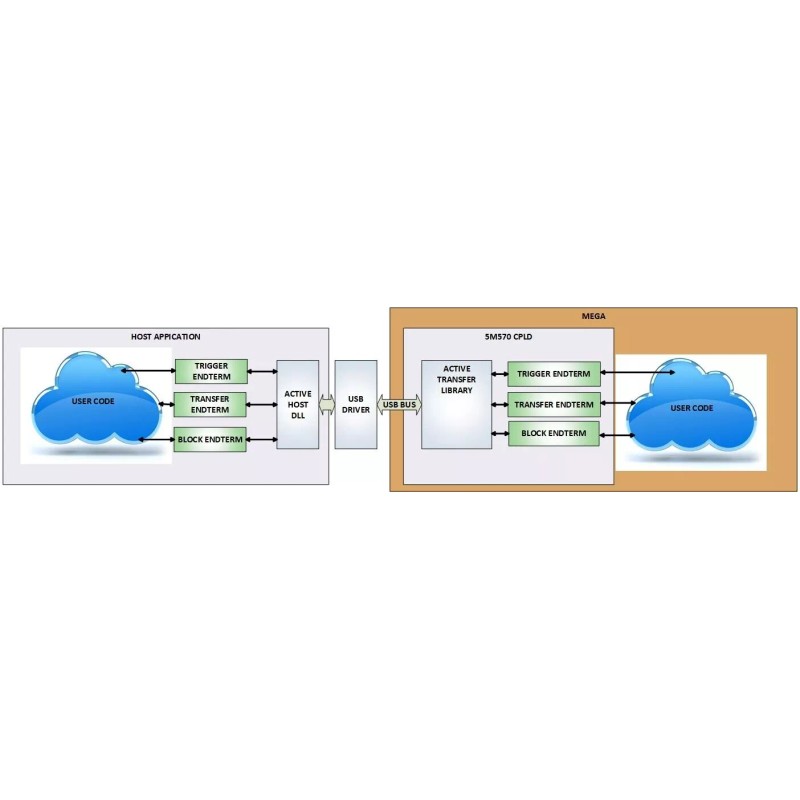

It also provides a high speed data transfer mechanism between an Arduino board and a host PC. The EPT USB-CPLD development system provides a convenient, user-friendly work flow by connecting seamlessly with Altera’s Quartus Prime software. The user will develop the code in the Quartus environment on a Windows Personal Computer. The programmable logic code is loaded into the CPLD using only the Quartus Programmer tool and a standard USB-C cable. The Active Host SDK provides a highly configurable communications interface between Arduino and host. It connects transparently with the Active Transfer Library in the CPLD code. This Active Host/Active Transfer combination eliminates the complexity of designing a USB communication system. No scheduling USB transfers, USB driver interface or inf file changes are needed. The EPT USB-CPLD development system is a unique combination of hardware and software. |
|
Use the C# examples included in the DVD to create your own display Window on the PC and send/receive data between the UnoProLogic and the PC. |
4 Channel Analog to Digital Converter
|
Examine four analog channels running up to 300 KSamples/second. The hardware has been simplified to remove extra cost. The input signals are limited to 0 to +5Volts and the sample rate is shared across all four channels. If you run one channel only, it will take advantage of the 300KSamples/second. If you run four channels, each channel will have a maximum sample rate of 75 KSamples/second. |
The UnoProLyzer Application
|
The UnoProLyzer is an Open Source Oscilloscope Application created by Earth People Technology. This application runs on a Windows 10/11 PC. It sends commands to and receives the data from the UnoProLogic and stores each channel data in its own separate buffer in memory. The UnoProLyzer collects all samples from each channel by streaming across up to four dedicated communication “pipes”. The traditional USB oscilloscope performs all of its functions down at the hardware level. This includes |
|
|
These scopes will then send the selected data to be displayed on a laptop. Effectively using the laptop as a dumb terminal. However, the modern laptop is extremely powerful with multi-core processors and multi-threaded operating systems. So, why not take advantage of the processing power on the laptop. This is what the UnoProLogic and UnoProLyzer do so well. The UnoProLogic commands the ADC to start a conversion on the channels selected by the user. It then waits for the ADC to complete the conversion on all channels. It transfers the data for each channel across its own dedicated communication pipe. Then starts the process over again. The UnoProLyzer application will accept each data word and decode the pipe number it came across. It stores each word into a separate buffer for each channel. The UnoProLyzer then performs post processing on each data word. It performs trigger detection, smoothing, sorting, scaling and searching. It then displays the data set in 500 data point segments. |
Hardware Features:
|
Programming Features:
|
Kit Contents
|
UnoProLogic kit contains the UnoProLogic and a USB-C Cable. DVD is available online for download only.the User Manual that walks the user through setting up the drivers, software, how to use to the test application. There is also a full tutorial in writing your first CPLD project, C# application and Arduino code. All the code for the projects are included. |
| Brand: | Intel |
|---|---|
| Isin: | IMODFBUDB4ZV |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
INTEL MAXV USB-CPLD
DEVELOPMENT
SYSTEM
The UnoProLogic is an easy to use
CPLD development system. It includes
a four Channel ADC and built in
JTAG programmer
|
The UnoProLogic makes programmable logic easy with an all inclusive development platform. It includes an Intel MAX V5M570 CPLD, JTAG programmer, and a four channel ADC with 300KS/second sample rate. You can create your HDL code, program it into the CPLD and interact with the hardware via a Windows PC. |
|
The UnoProLogic DVD provides detailed step by step instructions to quickly guide the user to create a project. The Quartus Prime software must be downloaded from Intels website. Once the Quartus software is on your desktop, we will show you how to create a project, write you first LED blinky code, compile and program the CPLD. |
|
Programming the CPLD
|
The CPLD on the UnoProLogic can be programmed with the HDL code created by the user. Programming is quick and easy. All that is required is a standard USB-C cable and the Quartus Software installed on the PC. There are no extra parts to buy - just plug in the USB cable and connect the UnoProLogic to the PC |
Programmable Logic Code Development
|
It also provides a high speed data transfer mechanism between an Arduino board and a host PC. The EPT USB-CPLD development system provides a convenient, user-friendly work flow by connecting seamlessly with Altera’s Quartus Prime software. The user will develop the code in the Quartus environment on a Windows Personal Computer. The programmable logic code is loaded into the CPLD using only the Quartus Programmer tool and a standard USB-C cable. The Active Host SDK provides a highly configurable communications interface between Arduino and host. It connects transparently with the Active Transfer Library in the CPLD code. This Active Host/Active Transfer combination eliminates the complexity of designing a USB communication system. No scheduling USB transfers, USB driver interface or inf file changes are needed. The EPT USB-CPLD development system is a unique combination of hardware and software. |
|
Use the C# examples included in the DVD to create your own display Window on the PC and send/receive data between the UnoProLogic and the PC. |
4 Channel Analog to Digital Converter
|
Examine four analog channels running up to 300 KSamples/second. The hardware has been simplified to remove extra cost. The input signals are limited to 0 to +5Volts and the sample rate is shared across all four channels. If you run one channel only, it will take advantage of the 300KSamples/second. If you run four channels, each channel will have a maximum sample rate of 75 KSamples/second. |
The UnoProLyzer Application
|
The UnoProLyzer is an Open Source Oscilloscope Application created by Earth People Technology. This application runs on a Windows 10/11 PC. It sends commands to and receives the data from the UnoProLogic and stores each channel data in its own separate buffer in memory. The UnoProLyzer collects all samples from each channel by streaming across up to four dedicated communication “pipes”. The traditional USB oscilloscope performs all of its functions down at the hardware level. This includes |
|
|
These scopes will then send the selected data to be displayed on a laptop. Effectively using the laptop as a dumb terminal. However, the modern laptop is extremely powerful with multi-core processors and multi-threaded operating systems. So, why not take advantage of the processing power on the laptop. This is what the UnoProLogic and UnoProLyzer do so well. The UnoProLogic commands the ADC to start a conversion on the channels selected by the user. It then waits for the ADC to complete the conversion on all channels. It transfers the data for each channel across its own dedicated communication pipe. Then starts the process over again. The UnoProLyzer application will accept each data word and decode the pipe number it came across. It stores each word into a separate buffer for each channel. The UnoProLyzer then performs post processing on each data word. It performs trigger detection, smoothing, sorting, scaling and searching. It then displays the data set in 500 data point segments. |
Hardware Features:
|
Programming Features:
|
Kit Contents
|
UnoProLogic kit contains the UnoProLogic and a USB-C Cable. DVD is available online for download only.the User Manual that walks the user through setting up the drivers, software, how to use to the test application. There is also a full tutorial in writing your first CPLD project, C# application and Arduino code. All the code for the projects are included. |
- Brand: Intel
- Mounting Style: Stand Alone
- Series: MAX V
- Type: CPLD (Complex Programmable Logic Device)
- Item Height: 0.7 cm (0.276 in)
- Maximum Clock Frequency: 66 MHz
- Number of Pins: 24
- MPN: EPT-5M57-AP-U2
- Country/Region of Manufacture: United States
- Interface Type: USB
- Maximum Operating Voltage: 5.5 V
