iMeshbean 90-125 psi Air Compressor Pressure Switch Control Valve w/ Unloader&On/Of
iMeshbean 90-125 psi Air Compressor Pressure Switch Control Valve w/ Unloader&On/Of
Bullet Point
- ★【Pressure Switch Specification】1/4"" NPT Single Female Port;1/4"" Compression Unloader Valve Connection; Pressure setting:90-125 psi;Cut-In Pressure 90 Psi;Cut-Off Pressure 125 Psi Pressure Differential: 30-40 Psi; Amp Rating (1-Phase) 20amps-120V AC / 12amps-40V AC;3-Phase:9.6amps-240VAC
- ★【Durable& Sturdy Air Compressor Pressure Switch】 The pressure switch is made of high quality steel and plastic, thermoplastic finished, features heavy duty 26A contacts -ensures longer service life and usability; durable and reliable to use
- ★【Perfect Pressure Switch for Air Compressor】The Air Compressor pressure control switch is diaphragm actuated;The air compressor pressure switch monitors the pressure of compressed air moving in and out from the air tank -helps maintain a proper level of pressure inside a compressor. Ensures system stability and prevents overloading and energy wastage
- ★【Easy to Operate】This air compressor pressure switch is equipped with an Unloader & on / off lever ,easy to install and to adjust;With this pressure switch, you can adjust the pressure of the pump, and you can set the adaptive pressure according to the work needs. 2-spring design of water pump pressure switch allows for adjustment of cut-in and cut-out pressure settings;

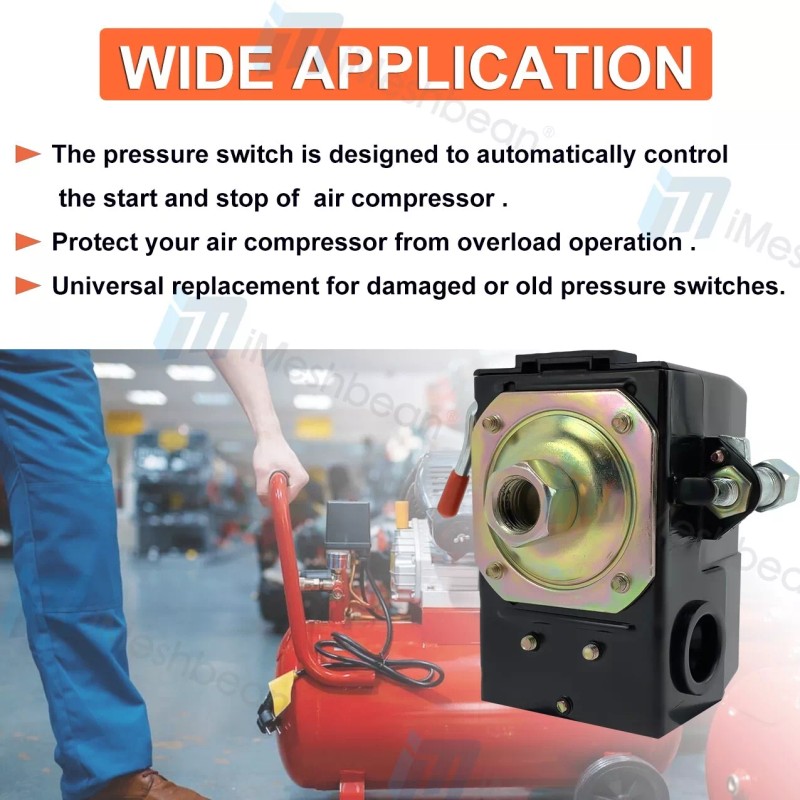

- ★【Widely Used】This air compressor pressure switch is suitable for 90-125 Psi air compressors.

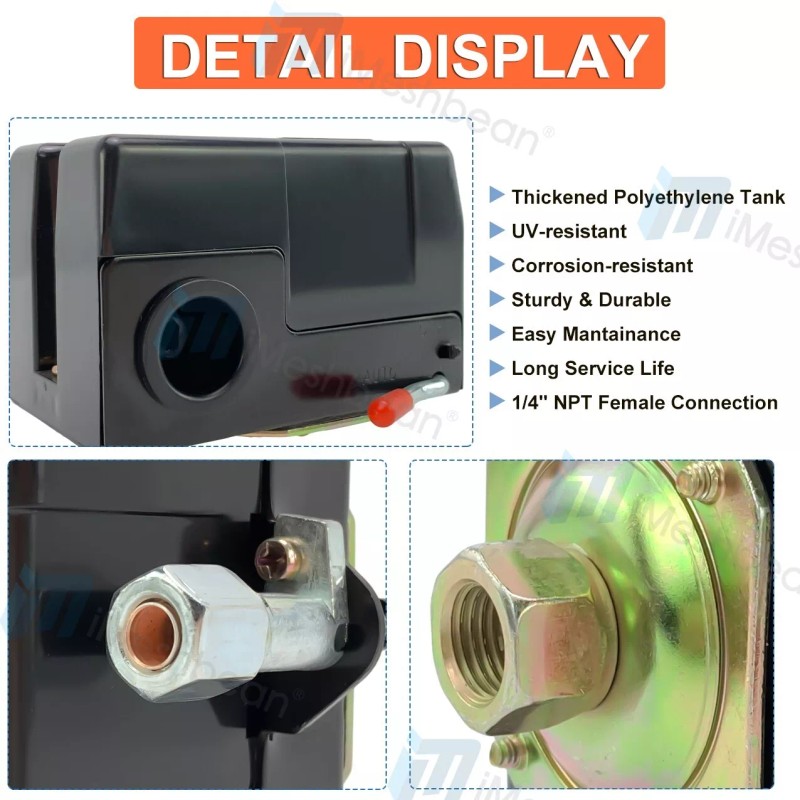

Features:
- Durable: ABS shell + Iron galvanized connector + Brass control valve+Silver Contact, durable and anti-corrosion.
- Size: Thread: G1/4, Pressure Range: 90-125PSI, Maximum Voltage: 240V, Maximum MAP Current: 20Ap.
- Adjustable Air Outlet: The air pressure at the brass joint is adjustable, which prevents the air pressure from being too high or too small so as to keep stable working.
- Application: Air compressor pressure switch Control valve is designed to control and adjust air compressor pressure and better for high efficiency working.
Specifications
- Number of Pressure Sensing Connection Ports: One 1/4" Female NPT (Note: 1/4" NPT Measures About 1/2" In Diameter)
- Unloader Connection Port: 1/4" Compression Which Accepts 1/4" Outside Diameter Copper Or High Pressure Tubing
- Preset On Pressure: 90 PSI
- Preset Off Pressure:125 PSI
- Differential: 30-40PSI
- Can Be Used With Single Or Three Phase
- Can Be Used With 110 - 240 Volts Depending On Amperage And Phase
- Good Up To 20 Amps Of Continuous Current. (Note: If being used with a magnetic starter the amperage does not matter since all the main power is going through the starter not the pressure switch.)
