HOJILA DY5500 4 in1 Multimeter Earth Ground Resistance Tester Meter Insulation Tester Voltmeter Phase Indicator

Brand: HOJILA
  • Earth ground resistance measurements from 0.01 to 2000 ohms with 0.01 ohm resolution
  • Three test voltage 2500V/1000V/500V measure insulation resistance to 20G ohms
  • AC voltage measurement to 600V
  • Phase sequence test
  • Data hold, auto range, auto poweroff, LCD backlight
Brand: HOJILA
Color: Green
Manufacturer: HOJILA
Part Number: 65NF7BV
Isin: IET3MLMS4D9F

$378.15

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
HOJILA DY5500 4 in1 Multimeter Earth Ground Resistance Tester Meter Insulation Tester Voltmeter Phase Indicator

HOJILA DY5500 4 in1 Multimeter Earth Ground Resistance Tester Meter Insulatio...

$378.15

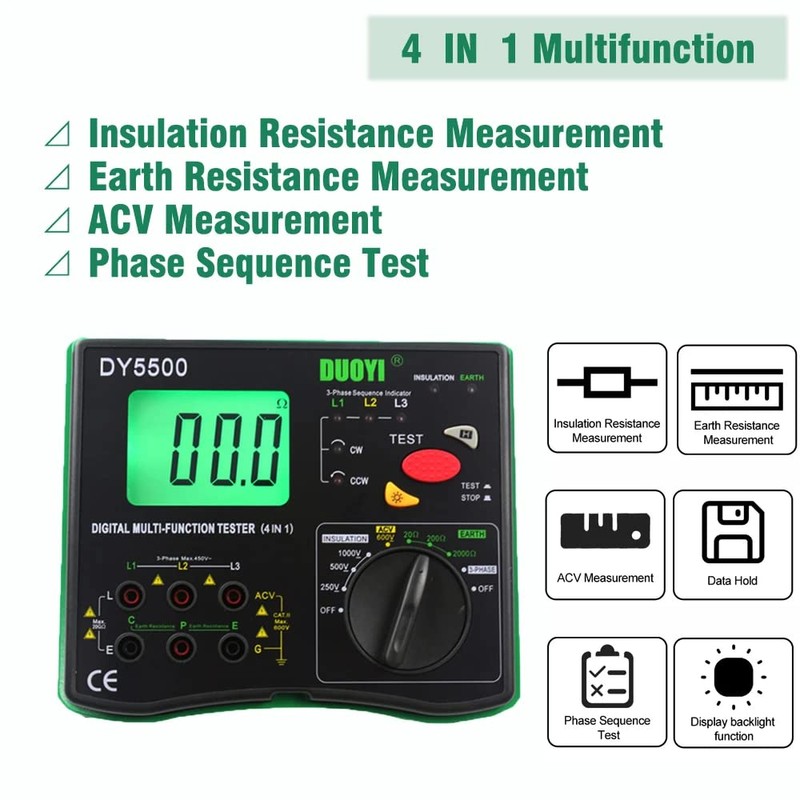

DY5500 multi-functional instrument can measureearth resistance, insulation resistance, AC voltage and phase sequence. It can be used to test the insulation resistance and earth resistance of power system, electrical equipment,lightning arrester equipment,and measure AC voltage and phase sequence test.

Specification

Insulation Resistance:
Testing Voltage: 250V / 500V / 1000V
Output Voltage: 90%-110% of the test voltage
Range: 0.1MΩ-20GΩ
Resolution: 0.01MΩ
Accuracy: 0.1MΩ-200MΩ±(3%rdg+5dgt), 200MΩ-20GΩ±(5%rdg+10dgt)

Earth Resistance:
Range: 20Ω/200Ω/2000Ω
Accuracy: 20Ω ±(2%rdg+0.1Ω), 200Ω/ 2000Ω ±(2%rdg+3dgt)

AC Voltage ( Earth Voltage) Measurement:
Measurement range: 1-600VAC
Accuracy: +(2% rdg+ 5dgt)
Resolution: 1V
Test frequency: 40-400Hz

Phase Sequence Test:
Measurement range: 100V-450V
Accuracy: +(2% rdg+ 5dgt)
Frequency: 50-60Hz

MODEL : DY5500
Earth Resistance: 0~20/200/2000 ±(2%+5)
Testing Voltage: 250/500/1000V
Insulation Resistance : 0.1~2000M ±(3%+5)
Phase Rotation Check: yes
AC Voltage : 600V ±(2%+5)
Auto Range: yes
Function Symbol Display : yes
Data Hold : yes
Low Battery Warning : yes
Max. Displays : 1999
LCD Backlight : yes
Product Size: 190 * 155 * 75 mm
Power: AA1.5V x 8 (not include in the package)

Package Included
1 × User Manual
1 × Tool Case
1 × Phase Sequence Test Wire ( Green and Red )
1 × Insulation Resistance Test Wire ( Red Lead with Big Probe / Black Lead with Big Clip / Black Lead with Detached Little Clip )
1 × Earth Resistance Test Wire ( Red 15-meter Test Wire / Yellow 10-meter Test Wire / Green 5-meter Test Wire )
1 × Simple Earth Resistance Test Wire( Red 1.6-meter Test Wire /Green 1.6-meter Test Wire )
2 × Auxiliary Earth Spike
1 × Tool Bag
