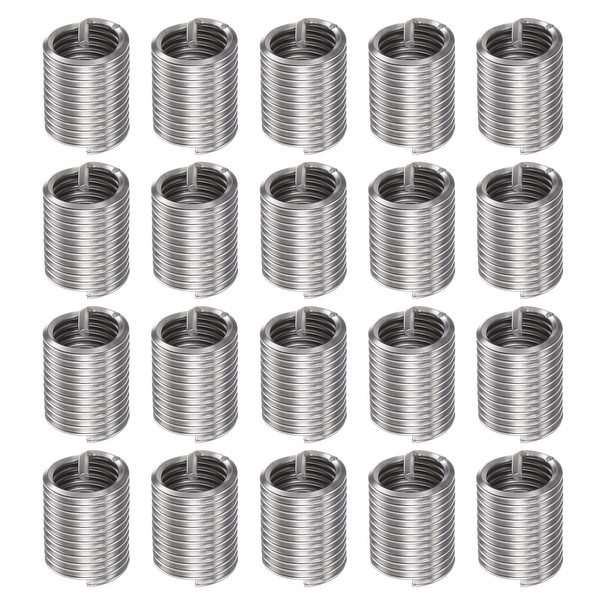

HARFINGTON 20pcs Wire Threaded Inserts 5/8-11 UNC 2D 31.8mm 304 Stainless Steel Helical Coiled Wire Thread Sleeve

Brand: HARFINGTON

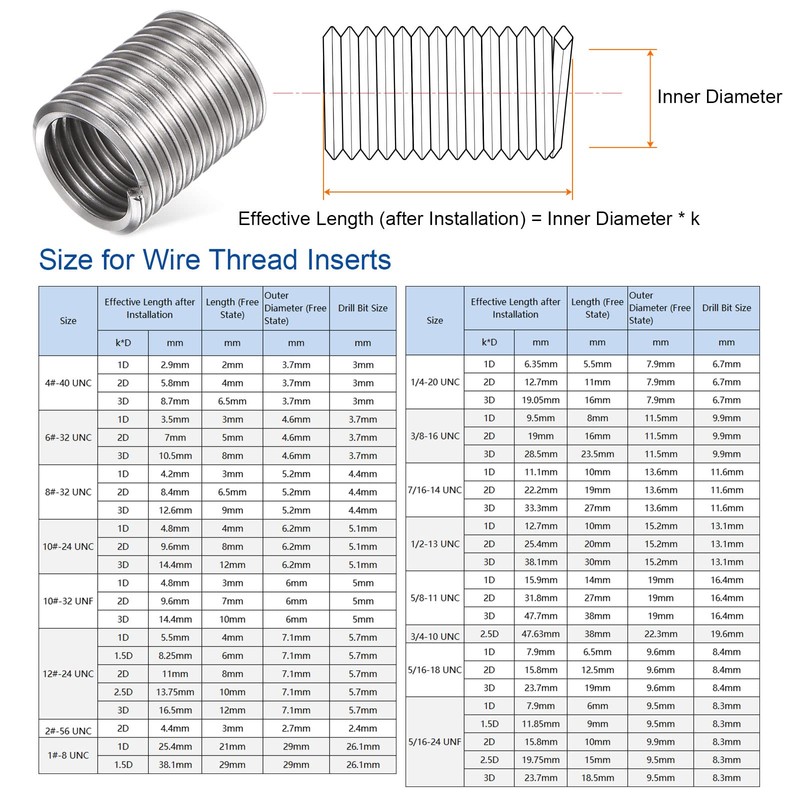

  • Size - Thread size: 5/8-11 UNC; effective length (after Installation): 2D = 31.8mm / 1.25"; free state length: 27mm / 1.06"; free state outer diameter: 19mm / 0.75"; type: helical; surface treatment: white washing.

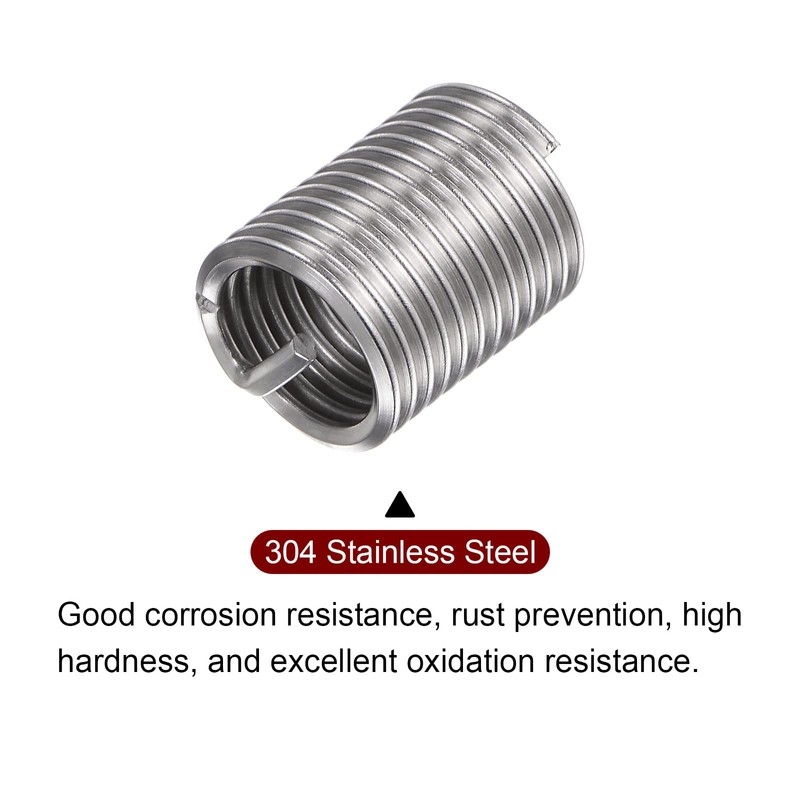

  • Material - 304 stainless steel has good corrosion resistance, rust prevention, high hardness, and excellent oxidation resistance. It is austenitic stainless steel, which is non-magnetic or slightly magnetic.
  • Features - Designed with a certain of elastic, and provides an even load. Wire thread inserts have self-tapping capability without pre-tapping the base metal. Large contact surface with finished products, strong tensile force. Strong resistance to vibration, no deformation.
  • Applications - Mainly used for various low-strength metal and non-metal materials, such as aluminum, magnesium, cast iron, plastic, rubber, MDF, ceramics, fiberglass, wood. Improve the strength and wear resistance of threaded connections, prevent thread loosening and slippage
  • Note - When the installation amount is small, take the corresponding bolts + nuts, fix the thread insert on the screw and fix it with the same type of nut to make the three in one. Use a wrench to screw the threaded insert into the bottom hole and remove the screw.
Brand: HARFINGTON
Size: 5/8-11 UNC
Color: White
Manufacturer: HARFINGTON
Part Number: SC2MWJ3
Material Type: Stainless Steel 304
Isin: I0K0MIXB3KED

$46.33

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
HARFINGTON 20pcs Wire Threaded Inserts 5/8-11 UNC 2D 31.8mm 304 Stainless Steel Helical Coiled Wire Thread Sleeve

HARFINGTON 20pcs Wire Threaded Inserts 5/8-11 UNC 2D 31.8mm 304 Stainless Ste...

$46.33

304 stainless steel has good corrosion resistance, rust prevention, high hardness, and excellent oxidation resistance. It is austenitic stainless steel, which is non-magnetic or slightly magnetic. With self-tapping sleeves, the same screw can be used continuously.
Features a certain of elastic, and provides an even load on the thread. Wire thread inserts have self-tapping capability without pre-tapping the base metal. Large contact surface with finished products, strong tensile force. Strong resistance to vibration, no deformation.
Greatly improve the strength and wear resistance of threaded connections, prevent thread loosening and slippage, and repair damaged internal threaded holes. Mainly used for various low-strength metal and non-metal materials, such as aluminum, magnesium, cast iron, plastic, rubber, MDF, ceramics, fiberglass, wood.
When the installation amount is small, take the corresponding bolts + nuts, fix the thread insert on the screw and fix it with the same type of nut to make the three in one. Use a wrench to screw the threaded insert into the bottom hole and remove the screw.
When the installation amount is large, use special installation tools to install. Drill holes with the appropriate size drill bit, then tap with the same size tap as the bolt. Put the screw sleeve on the installation tool and adjust the height of the pipe position. Gently screw the screw sleeve into the hole until the end of the screw sleeve is between 1/2 and 1/4 of the plane of the screw hole. Twist the crossed wires with the break tool instead of the installation tool.
