GODIAG 2024 GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS &Data Read &Write

Brand: GODIAG
Title
2024 GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS &Data Read &Write

PRODUCT DESCRIPTION

Kindly Note:

This item located in United States and only shipped to United States,

If you need to return the item for some reasons, please contact us via eBay message firstly to get the RMA#,and return address instead of sending iit back directly without permission,thank you!

2024 GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS &Data Read &Write

GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS & Key Synchronization Solder-free Matching CAS Data Read, Write and Progarm

Please note:that it does not support use with Autel devices

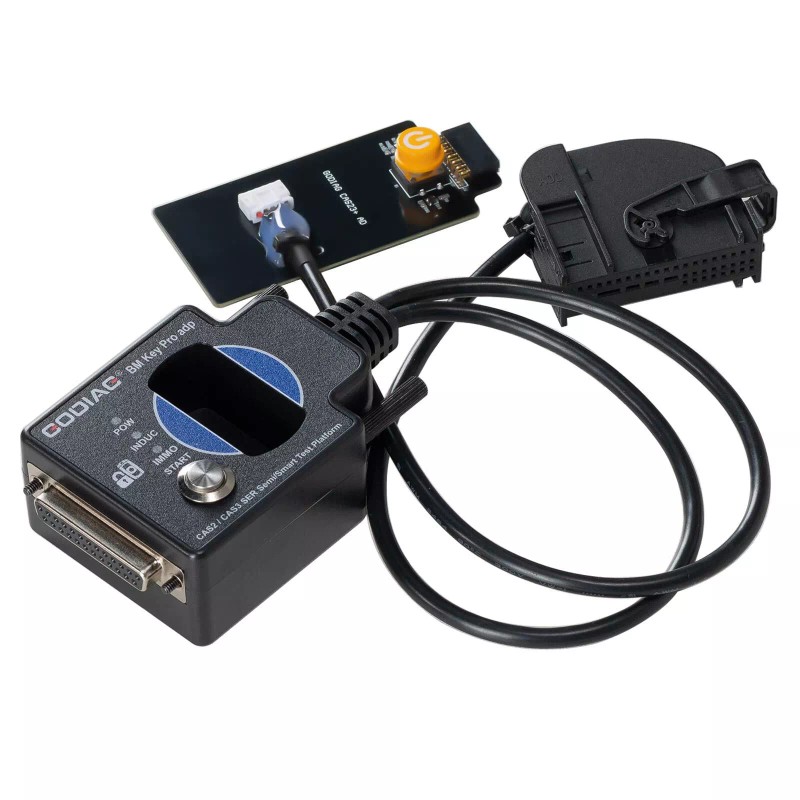

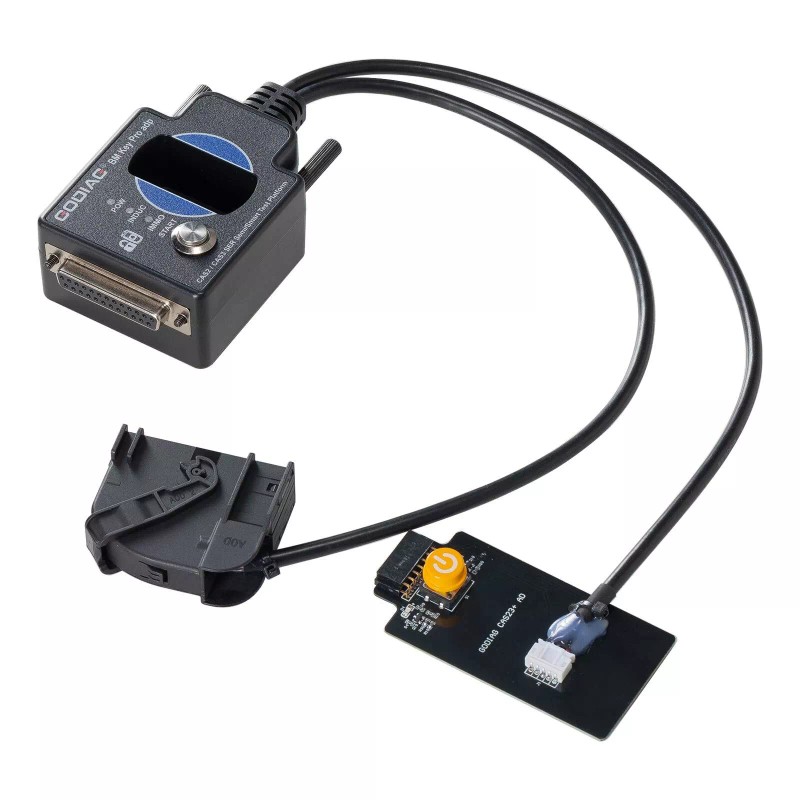

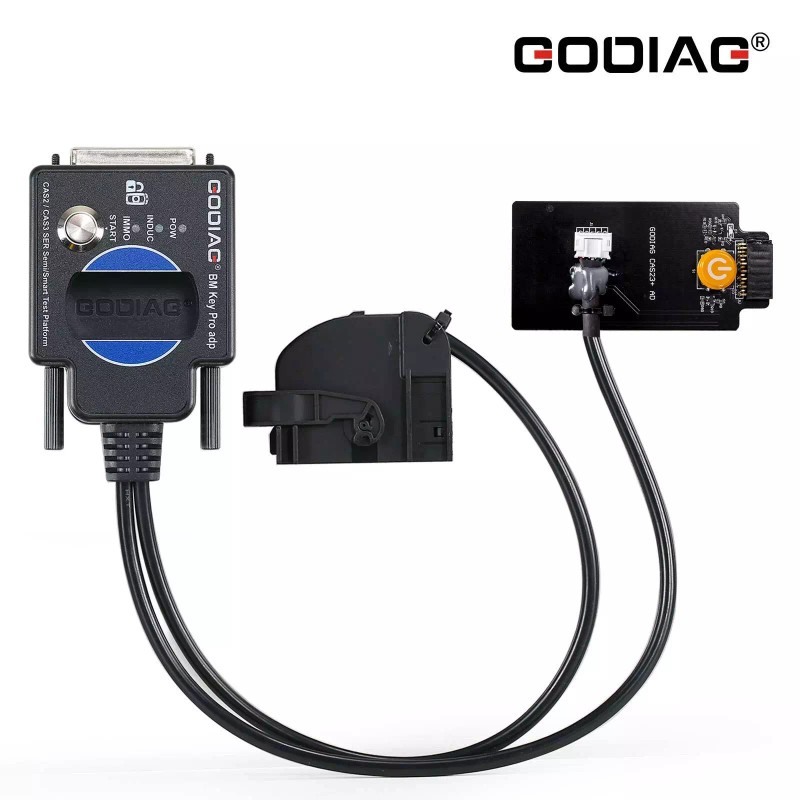

Godiag CAS2 CAS3 SER Semi Smart Test Platform is a dedicated device developed for BMW lo-cks-miths, maintenance engineers and CAS2 / CAS3,CAS3+ CAS3++ progarmming engineers. It can cooperate with the key progarmming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / CGDI BMW / Lonsdor devices, OBDSTAR devices, etc., to perform all key lo-st m-atching or key addition operations. This product is suitable for magnetic semi-intelligent or smart keys.

Note: Godiag CAS2 CAS3 SER Semi Smart Test Platform does not support mechanical key CAS2 and cannot be used with diagnostic equipment or with GT100 GT100+.

Product Features:

1. Detect CAS and key synchronization

2. Solder-free ma-tching CAS2/CAS3 serial smart key

3. CAS data reading, writing and progarmming

4. All keys lo-st /adding keys ma-tching

5. CAS key data backup

6. CAS module function judgment



Product Functions:

1.Check wheteher CAS2 / CAS3, CAS3+ CAS3++ modules and magnetic semi-intelligent/smart keys are synchronized.

2.Cooperate with the key progarmming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / CGDI BMW / Lonsdor devices, OBDSTAR devices, etc., to perform all key lo-st ma-tching or key addition operations.

3.CAS2 / CAS3, CAS3+ CAS3++ module diagnostics

4.CAS2 / CAS3, CAS3+ CAS3++ module progarmming

Module and key synchronization detection:

Check whether the CAS2 / CAS3, CAS3+ CAS3++ module and the magnetic semi-intelligent smart key can be synchronized:

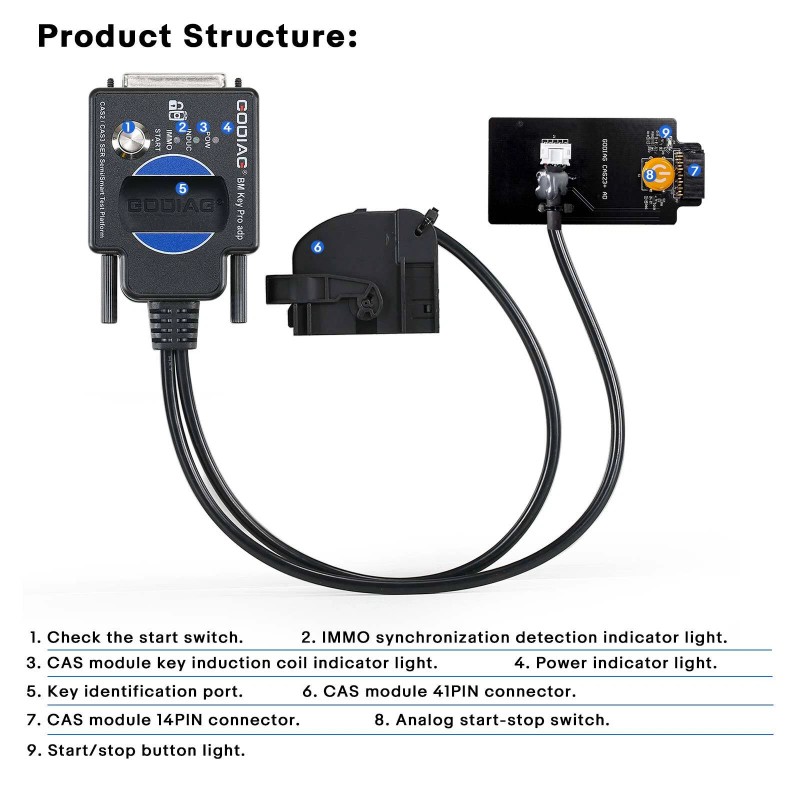

Step 1: Connect the CAS2/CAS3, CAS3+ CAS3++ modules according to the connection diagram.

Step 2: Put the key into the key sensing area.

Step 3: Connect the power supply and the corresponding power indicator light will light up. The start/stop button light is on. The coil sensor light will f-lash. [Indicates that the module can send out the key sensing signal normally. If the key and the module are synchronized, the light will f-lash regularly or stay on. If the key and module are out of sync, the fl-ashing will be irregular and will stop after one minute.]

Step 4: Press the start switch. [If the key is synchronized with the CAS module, the IMMO synchronization detection indicator light will light up and the internal buzzer of the machine will sound. If the key is not synchronized with the CAS module, the IMMO synchronization detection indicator light will not light up and the internal buzzer of the machine will not sound.]

Step 5: Press the analog start and stop button, the IMMO synchronization detection indicator light will go out after 3 seconds. Press the analog start/stop button again and the IMMO synchronization detection indicator light will light up.

The following uses Xhorse vvdi2 device to perform BMW CAS2/CAS3, CAS3+ CAS3++ semi-intelligent/smart key progarmming and mat-ching operations:

1. Connect the CAS2/CAS3, CAS3+ CAS3++ module and the key progarmming diagnostic device according to the connection diagram.

2. Select “key learn—CAS Key Learn---Connect”.


3.After successfully identifying the CAS information, select “Get Key Info” and “Save Key Info”.

4.Select an unused key position, be sure to select the “prepare dealer key with progarmmer” menu, and use the VVDI2 key progarmmer to generate the key. If the key is placed in the GODIAG CAS2 CAS3 SER Semi Smart Test Platform key sensing area, the dealer key will not be generated.


5.After progarmming the dealer key, put the key into the Godiag CAS2 CAS3 SER Semi Smart Test Platform induction port for testing. For test steps, please refer to “Synchronous Detection of Module and Key”.
If the IMMO light cannot light up, enter the VVDI2 menu “Key Learn—CAS/EWS Information—Connect—Synch DME-CAS or Synch CAS-ELV”. [When performing synchronization, the key must be placed in the key sensing area of the VVDI2 device.]

Package Includes:

1pc x GODIAG CAS2 CAS3 SER Semi Smart Test Platform

1pc x OBD2 to DB25 Cable

    We are specialized dealer of On-Board Diagnostic tools and automotive electronics.We have been engaged for many years in the line of automobile diagnosing instruments and our corporation is established for the purpose of trustworthiness.
    We have USA warehouses.We assure you not only good service but also to be ship as soon as possible.
    And we are a professional Authorized dealers of Launch,Autel,Xtool,Xhorse,Obdstar and so on.
    Also offer reasonable prices , excellent customer service and a reliable credit standing are our target!

    1. We accept PayPal.
    2. Credit card (Visa, Eurocard/MasterCard, Amex, and Switch or Visa/Delta) payment can be accepted ONLY through PayPal (You don't   need a PayPal account)!
    3. Please make the payment within 3 days of auction closing, otherwise a UPI (Unpaid Item) will be put on your account.

    4. Please include your special requests (color, packages, etc.) when you make payment.

    1. Your Order will be shipped within 1 Business day after the payment is cleared.
    2. We will send item to your Confirmed Shipping Address in Paypal.Please make sure it's correct and include phone number for delivery.If you would like to post to other address,please timely leave us a note when making payment through Paypal.
    3. Item will be shipped by USPS,UPS or Fedex,it tooks about 2-9 days,exact delivery time varies by shipping methods and your location.If you do not receive your order in the estimated time,please contact us freely, We'll try our best to solve the delivery problem. Anyway we will try our best to provide the top-ranking service for you.

    Please feel free to contact us via ebay message if you have any inquiry about the item or our service.We will try our best to reply within 24 working hours.
    Business time: GMT8 (8:30-18:00) from Monday to Saturday.
    Welcome your any-time parchase!

About Us

We are specialized dealer of On-Board Diagnostic tools and automotive electronics.We have been engaged for many years in the line of automobile diagnosing instruments and our corporation is established for the purpose of trustworthiness.
We have USA warehouses.We assure you not only good service but also to be ship as soon as possible.
And we are a professional Authorized dealers of Launch,Autel,Xtool,Xhorse,Obdstar and so on.
Also offer reasonable prices , excellent customer service and a reliable credit standing are our target!

Payment

1. We accept PayPal.
2. Credit card (Visa, Eurocard/MasterCard, Amex, and Switch or Visa/Delta) payment can be accepted ONLY through PayPal (You don't   need a PayPal account)!
3. Please make the payment within 3 days of auction closing, otherwise a UPI (Unpaid Item) will be put on your account.

4. Please include your special requests (color, packages, etc.) when you make payment.

Shipping

1. Your Order will be shipped within 1 Business day after the payment is cleared.
2. We will send item to your Confirmed Shipping Address in Paypal.Please make sure it's correct and include phone number for delivery.If you would like to post to other address,please timely leave us a note when making payment through Paypal.
3. Item will be shipped by USPS,UPS or Fedex,it tooks about 2-9 days,exact delivery time varies by shipping methods and your location.If you do not receive your order in the estimated time,please contact us freely, We'll try our best to solve the delivery problem. Anyway we will try our best to provide the top-ranking service for you.

Terms
Returns
Contact Us

Please feel free to contact us via ebay message if you have any inquiry about the item or our service.We will try our best to reply within 24 working hours.
Business time: GMT8 (8:30-18:00) from Monday to Saturday.
Welcome your any-time parchase!

PaymentShippingReturn policyAbout usContact us

Copyright © - Tongtool All rights reserved | Design:Tongtool

100% Genuine
High Quality
Fast Shipping
Brand: GODIAG
Isin: IZFLWFGSDIRQ

$123.94

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
GODIAG 2024 GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS &Data Read &Write

GODIAG 2024 GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS &Data Re...

$123.94

Title
2024 GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS &Data Read &Write

PRODUCT DESCRIPTION

Kindly Note:

This item located in United States and only shipped to United States,

If you need to return the item for some reasons, please contact us via eBay message firstly to get the RMA#,and return address instead of sending iit back directly without permission,thank you!

2024 GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS &Data Read &Write

GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS & Key Synchronization Solder-free Matching CAS Data Read, Write and Progarm

Please note:that it does not support use with Autel devices

Godiag CAS2 CAS3 SER Semi Smart Test Platform is a dedicated device developed for BMW lo-cks-miths, maintenance engineers and CAS2 / CAS3,CAS3+ CAS3++ progarmming engineers. It can cooperate with the key progarmming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / CGDI BMW / Lonsdor devices, OBDSTAR devices, etc., to perform all key lo-st m-atching or key addition operations. This product is suitable for magnetic semi-intelligent or smart keys.

Note: Godiag CAS2 CAS3 SER Semi Smart Test Platform does not support mechanical key CAS2 and cannot be used with diagnostic equipment or with GT100 GT100+.

Product Features:

1. Detect CAS and key synchronization

2. Solder-free ma-tching CAS2/CAS3 serial smart key

3. CAS data reading, writing and progarmming

4. All keys lo-st /adding keys ma-tching

5. CAS key data backup

6. CAS module function judgment



Product Functions:

1.Check wheteher CAS2 / CAS3, CAS3+ CAS3++ modules and magnetic semi-intelligent/smart keys are synchronized.

2.Cooperate with the key progarmming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / CGDI BMW / Lonsdor devices, OBDSTAR devices, etc., to perform all key lo-st ma-tching or key addition operations.

3.CAS2 / CAS3, CAS3+ CAS3++ module diagnostics

4.CAS2 / CAS3, CAS3+ CAS3++ module progarmming

Module and key synchronization detection:

Check whether the CAS2 / CAS3, CAS3+ CAS3++ module and the magnetic semi-intelligent smart key can be synchronized:

Step 1: Connect the CAS2/CAS3, CAS3+ CAS3++ modules according to the connection diagram.

Step 2: Put the key into the key sensing area.

Step 3: Connect the power supply and the corresponding power indicator light will light up. The start/stop button light is on. The coil sensor light will f-lash. [Indicates that the module can send out the key sensing signal normally. If the key and the module are synchronized, the light will f-lash regularly or stay on. If the key and module are out of sync, the fl-ashing will be irregular and will stop after one minute.]

Step 4: Press the start switch. [If the key is synchronized with the CAS module, the IMMO synchronization detection indicator light will light up and the internal buzzer of the machine will sound. If the key is not synchronized with the CAS module, the IMMO synchronization detection indicator light will not light up and the internal buzzer of the machine will not sound.]

Step 5: Press the analog start and stop button, the IMMO synchronization detection indicator light will go out after 3 seconds. Press the analog start/stop button again and the IMMO synchronization detection indicator light will light up.

The following uses Xhorse vvdi2 device to perform BMW CAS2/CAS3, CAS3+ CAS3++ semi-intelligent/smart key progarmming and mat-ching operations:

1. Connect the CAS2/CAS3, CAS3+ CAS3++ module and the key progarmming diagnostic device according to the connection diagram.

2. Select “key learn—CAS Key Learn---Connect”.


3.After successfully identifying the CAS information, select “Get Key Info” and “Save Key Info”.

4.Select an unused key position, be sure to select the “prepare dealer key with progarmmer” menu, and use the VVDI2 key progarmmer to generate the key. If the key is placed in the GODIAG CAS2 CAS3 SER Semi Smart Test Platform key sensing area, the dealer key will not be generated.


5.After progarmming the dealer key, put the key into the Godiag CAS2 CAS3 SER Semi Smart Test Platform induction port for testing. For test steps, please refer to “Synchronous Detection of Module and Key”.
If the IMMO light cannot light up, enter the VVDI2 menu “Key Learn—CAS/EWS Information—Connect—Synch DME-CAS or Synch CAS-ELV”. [When performing synchronization, the key must be placed in the key sensing area of the VVDI2 device.]

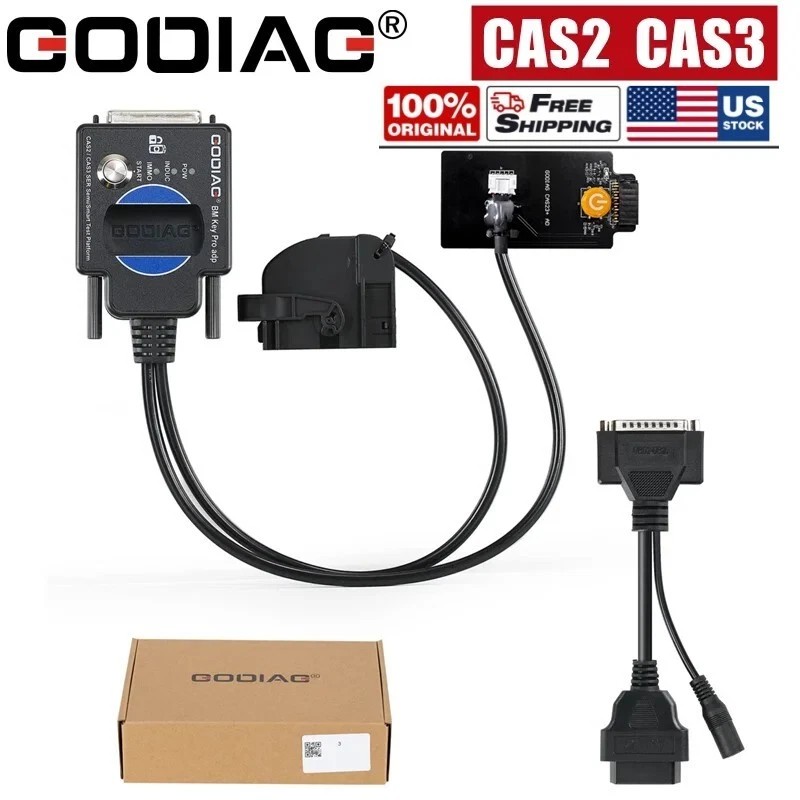

Package Includes:

1pc x GODIAG CAS2 CAS3 SER Semi Smart Test Platform

1pc x OBD2 to DB25 Cable
